◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#11934) — 236 parça

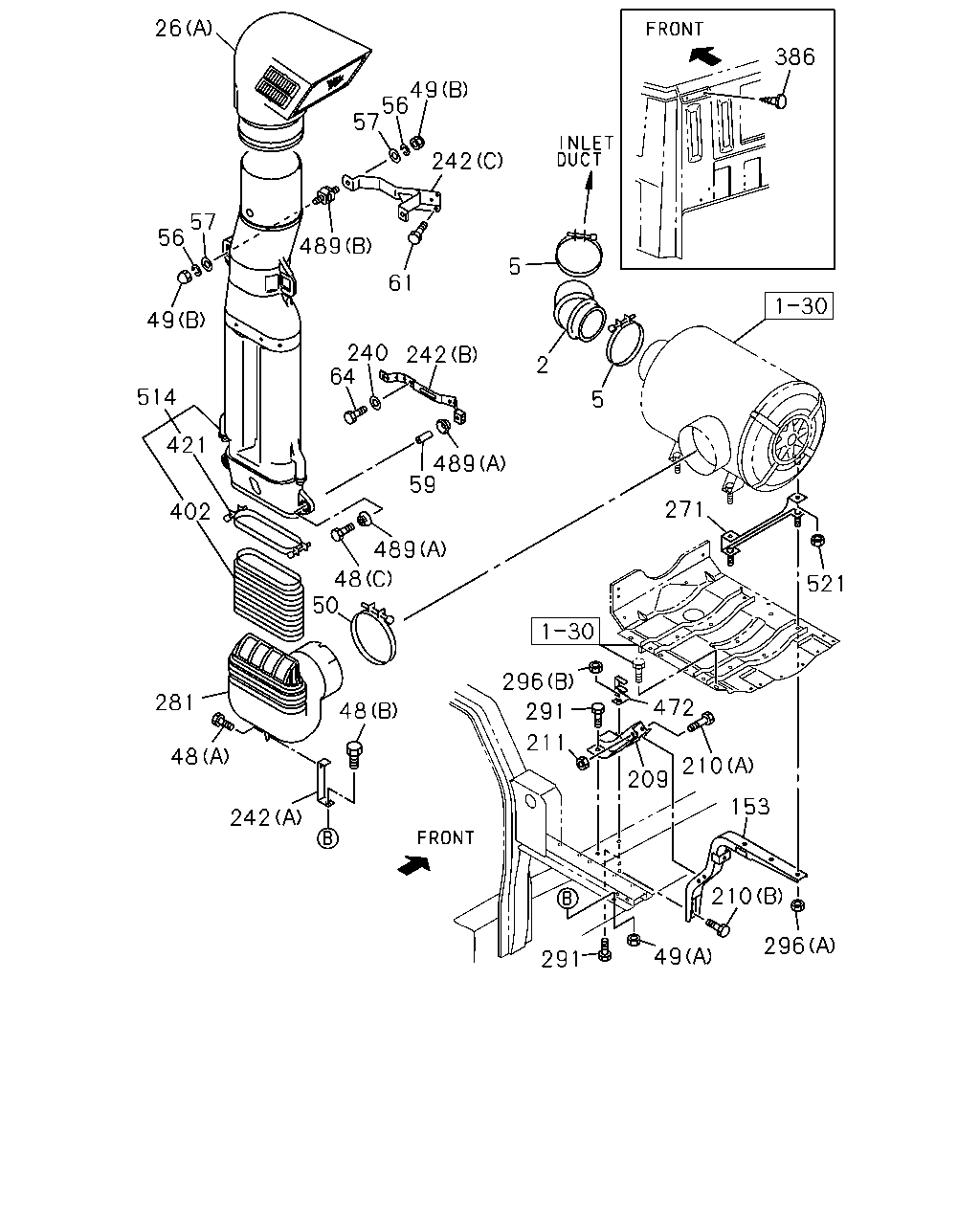

çizim 23174
26 49 56 57 5 489 57 56 49 61 242 240 242 2 5 64 514 489 59 421 402 489 48 50 48 271 521 281 48 242 296 291 211 472 210 153 291 49 210 296 209 386
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14231-871-0 01 1 0312- ●
2 HOSE; ACL 1-14231-955-0 01 1 0105-0311 ● ● ● ●
2 HOSE; ACL 1-14231-955-0 01 1 0312- ● ● ●
2 HOSE; ACL
HONG KONG EQUIPMENT(PQ1) 		1-14231-955-0 01 1 0312- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0105- ● ● ● ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0105- ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0105- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0105- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0105- ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ● ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ● ● ●
48 BOLT; AIR DUCT
(C) M10X60 		1-09030-044-1 02 1 0105- ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 0105- ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0105-0602 ● ● ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0105- ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0105- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 FLANGE 		1-09984-126-0 01 1 0105- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 		9-09110-408-0 01 1 0105-0512 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 		0-91110-508-0 01 1 0601- ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0105- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0105- ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0105- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 0105- ●
57 WASHER; PL,AIR INT DUCT
ID=8.4 OD=22 		1-09985-188-0 04 1 0105- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 0105- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0105-0110 ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0111- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 0105- ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0105- ● ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0105- ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0105- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0105-0308 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0309- ●
153 BRACKET; ACL,FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-53419-265-1 01 1 0309- ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0105-0308 ● ● ●
153 BRACKET; ACL,FRT
HONG KONG EQUIPMENT(PQ1) 		1-53419-299-0 01 1 0309- ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0309- ● ●
209 BRACKET; ACL 1-53419-276-0 01 1 0105- ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 0105-0512 ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 0105-0512 ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28651-230-0 01 1 0601- ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
240 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09985-188-0 01 1 0105- ● ● ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 0105- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E) 		1-53419-324-0 01 1 0111- ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0105- ● ● ● ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0105- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0105- ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0105- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0105- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-53419-325-1 01 1 0105- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0105-0110 ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0111- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 0105- ● ● ● ●
281 DUCT; AIR,VERTICAL INT 1-14230-194-0 01 1 0105- ● ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 0105- ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 0105-0512 ● ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28651-230-0 02 1 0601- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 0105-0602 ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0105- ● ● ● ●
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-1 01 1 0105- ● ● ● ●
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 0105- ● ● ● ●
472 STOPPER; LINK ROD
MJX16P M/T(Y3Z) 		1-33659-196-0 01 1 0107- ●
472 STOPPER; LINK ROD 1-33659-230-0 01 1 0105-0106 ●
472 STOPPER; LINK ROD
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y), TRANSMISSION-FULLERRTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMI SSION-FULLER RTLO149 18(Y4C) 		1-33659-230-0 01 1 0107- ● ● ● ●
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0105- ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0105- ●
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 0105- ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 0105- ●
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-0 01 1 0105- ● ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●

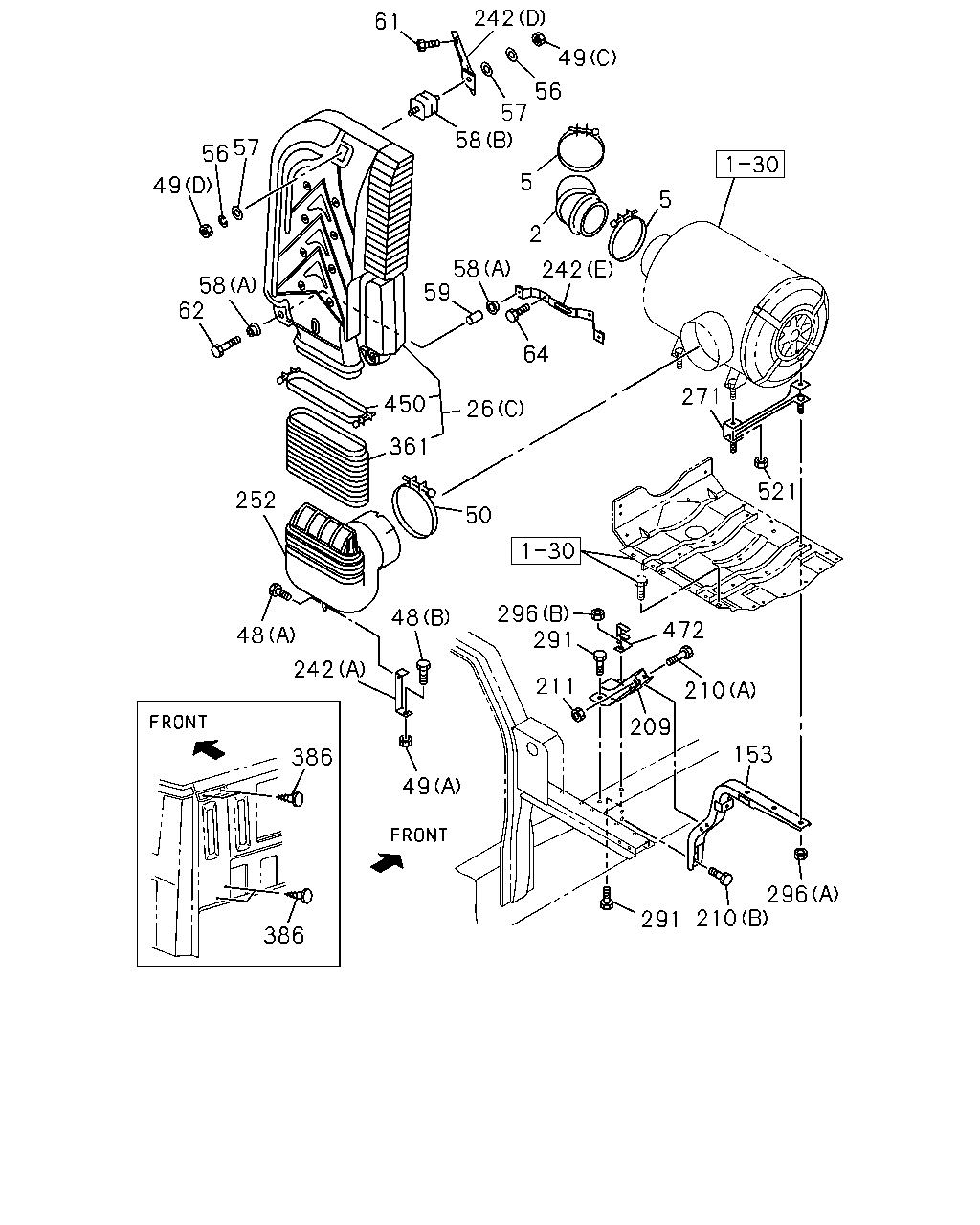

çizim 24440
61 242 56 49 58 57 5 5 2 242 58 59 64 271 26 450 521 361 50 57 56 49 58 62 252 48 48 296 472 291 211 210 153 209 296 210 291 49 242 386 386
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14231-871-0 01 1 0312- ●
2 HOSE; ACL 1-14231-955-0 01 1 0105-0311 ● ● ● ●
2 HOSE; ACL 1-14231-955-0 01 1 0312- ● ● ●
2 HOSE; ACL
HONG KONG EQUIPMENT(PQ1) 		1-14231-955-0 01 1 0312- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0105- ● ● ● ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0105- ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0105- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0105- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0105- ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ● ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ● ● ●
48 BOLT; AIR DUCT
(C) M10X60 		1-09030-044-1 02 1 0105- ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 0105- ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0105-0602 ● ● ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0105- ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0105- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 FLANGE 		1-09984-126-0 01 1 0105- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 		9-09110-408-0 01 1 0105-0512 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 		0-91110-508-0 01 1 0601- ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0105- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0105- ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0105- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 0105- ●
57 WASHER; PL,AIR INT DUCT
ID=8.4 OD=22 		1-09985-188-0 04 1 0105- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 0105- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0105-0110 ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0111- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 0105- ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B) 		8-97080-149-0 01 1 0111- ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0105- ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		1-14119-452-0 01 1 0105-0110 ●
58 SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) 		1-14119-452-0 01 1 0111- ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0105- ● ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0105- ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X60 		1-09030-044-1 02 1 0105- ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0105- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0105-0308 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0309- ●
153 BRACKET; ACL,FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-53419-265-1 01 1 0309- ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0105-0308 ● ● ●
153 BRACKET; ACL,FRT
HONG KONG EQUIPMENT(PQ1) 		1-53419-299-0 01 1 0309- ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0309- ● ●
209 BRACKET; ACL 1-53419-276-0 01 1 0105- ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 0105-0512 ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 0105-0512 ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28651-230-0 01 1 0601- ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E) 		1-53419-324-0 01 1 0111- ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0105- ● ● ● ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0105- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0105- ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0105- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0105- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-53419-325-1 01 1 0105- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0105-0110 ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0111- ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 0105- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 0105- ● ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 0105-0512 ● ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28651-230-0 02 1 0601- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 0105-0602 ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0105- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0105- ● ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0105- ● ● ● ●
472 STOPPER; LINK ROD
MJX16P M/T(Y3Z) 		1-33659-196-0 01 1 0107- ●
472 STOPPER; LINK ROD 1-33659-230-0 01 1 0105-0106 ●
472 STOPPER; LINK ROD
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y), TRANSMISSION-FULLERRTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMI SSION-FULLER RTLO149 18(Y4C) 		1-33659-230-0 01 1 0107- ● ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●

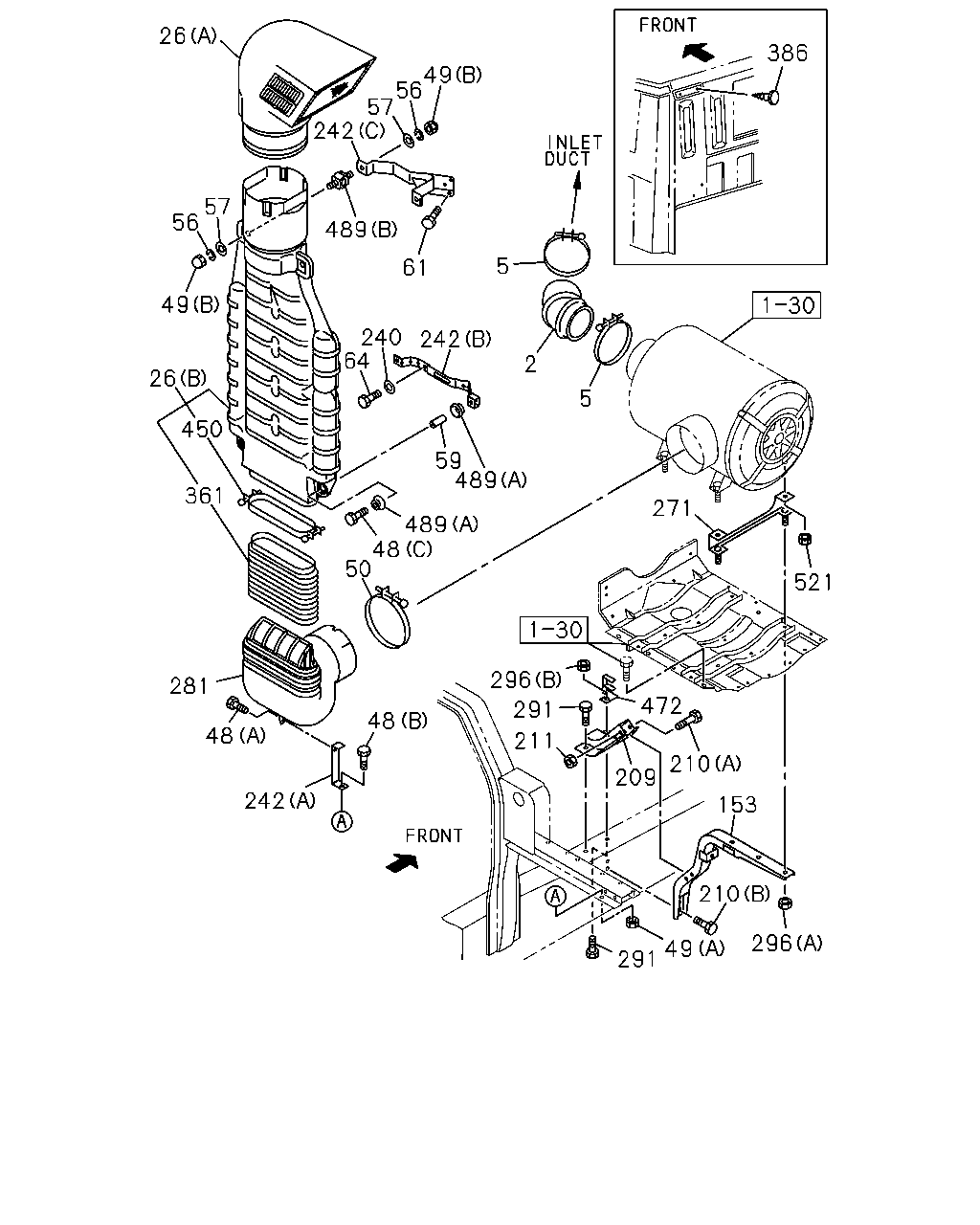

çizim 24451
26 49 56 57 242 386 5 2 5 61 489 57 56 49 240 242 64 26 59 450 489 48 50 361 489 271 521 281 48 48 242 296 291 211 472 210 209 153 210 291 49 296
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14231-871-0 01 1 0312- ●
2 HOSE; ACL 1-14231-955-0 01 1 0105-0311 ● ● ● ●
2 HOSE; ACL 1-14231-955-0 01 1 0312- ● ● ●
2 HOSE; ACL
HONG KONG EQUIPMENT(PQ1) 		1-14231-955-0 01 1 0312- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0105- ● ● ● ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0105- ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0105- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0105- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0105- ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ● ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ● ● ●
48 BOLT; AIR DUCT
(C) M10X60 		1-09030-044-1 02 1 0105- ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 0105- ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0105-0602 ● ● ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0105- ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0105- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 FLANGE 		1-09984-126-0 01 1 0105- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 		9-09110-408-0 01 1 0105-0512 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 		0-91110-508-0 01 1 0601- ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0105- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0105- ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0105- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 0105- ●
57 WASHER; PL,AIR INT DUCT
ID=8.4 OD=22 		1-09985-188-0 04 1 0105- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 0105- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0105-0110 ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0111- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 0105- ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0105- ● ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0105- ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0105- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0105-0308 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0309- ●
153 BRACKET; ACL,FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-53419-265-1 01 1 0309- ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0105-0308 ● ● ●
153 BRACKET; ACL,FRT
HONG KONG EQUIPMENT(PQ1) 		1-53419-299-0 01 1 0309- ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0309- ● ●
209 BRACKET; ACL 1-53419-276-0 01 1 0105- ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 0105-0512 ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 0105-0512 ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28651-230-0 01 1 0601- ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
240 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09985-188-0 01 1 0105- ● ● ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 0105- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E) 		1-53419-324-0 01 1 0111- ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0105- ● ● ● ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0105- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0105- ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0105- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0105- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-53419-325-1 01 1 0105- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0105-0110 ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0111- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 0105- ● ● ● ●
281 DUCT; AIR,VERTICAL INT 1-14230-194-0 01 1 0105- ● ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 0105- ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 0105-0512 ● ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28651-230-0 02 1 0601- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 0105-0602 ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0105- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0105- ● ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0105- ● ● ● ●
472 STOPPER; LINK ROD
MJX16P M/T(Y3Z) 		1-33659-196-0 01 1 0107- ●
472 STOPPER; LINK ROD 1-33659-230-0 01 1 0105-0106 ●
472 STOPPER; LINK ROD
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y), TRANSMISSION-FULLERRTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMI SSION-FULLER RTLO149 18(Y4C) 		1-33659-230-0 01 1 0107- ● ● ● ●
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0105- ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0105- ●
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 0105- ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 0105- ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
