Isuzu WW
▶
PICKUP
▶
TFR
▶
51421 - TFR/TFS(MALAYSIA)
▶
3 - Brakes, Brake System
▶

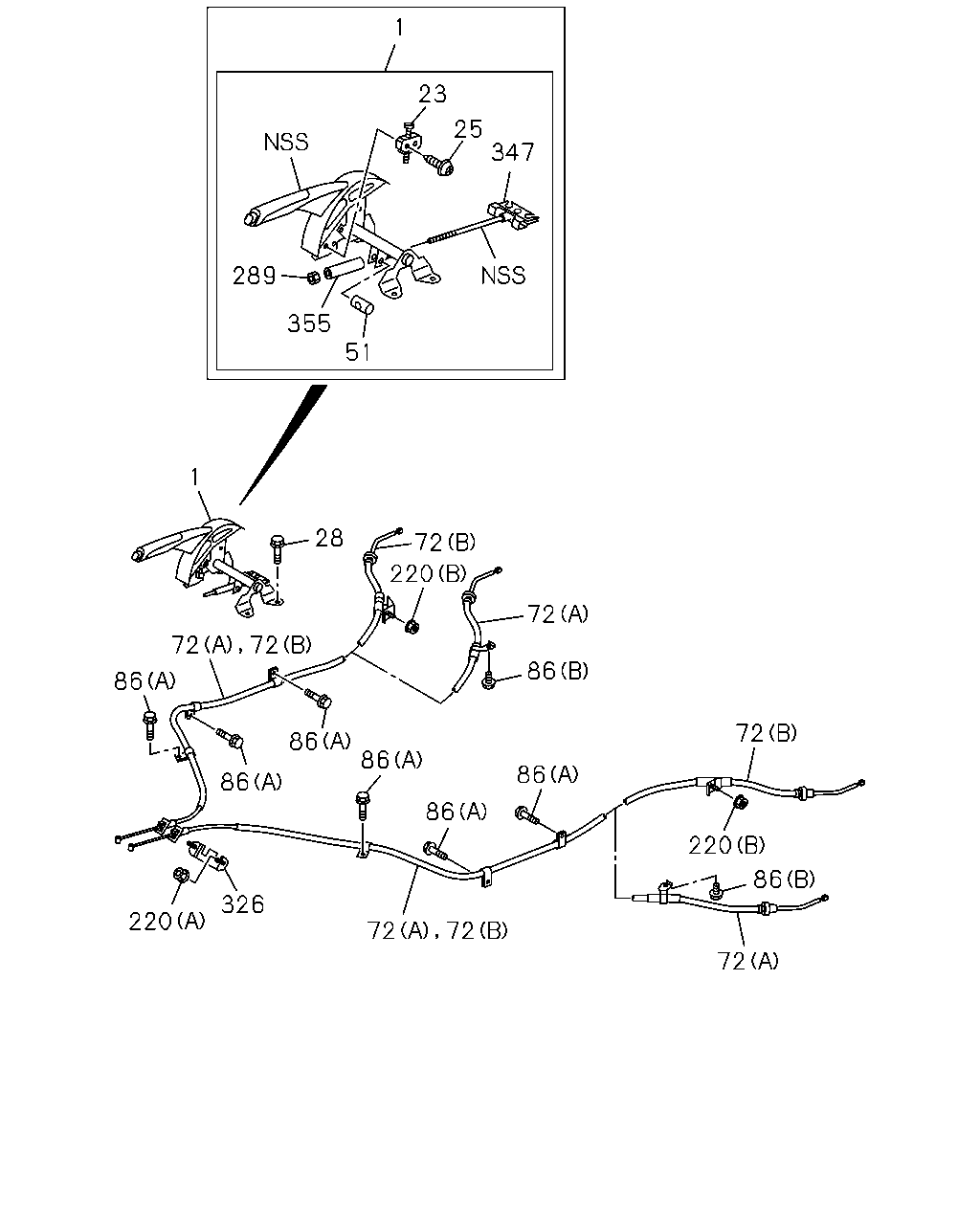

3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#119337) — 35 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5SF
D - TFS5WF
1
23
25
347
51
355
289
28
1
72
72
72
220
72
86
86
86
86
86
86
326
220
72
72
72
86
220
72
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
STEM ASM; PARKING BRK
8-98061-827-0
01
1
1305-
●
●
●
●
23
SWITCH; PARKING BRK
8-97947-494-0
01
1
1305-
●
●
●
●
25
SCREW; SW,PARKING BRK
8-97103-556-0
01
1
1305-
●
●
●
●
28
BOLT; HAND BRK LEVER
M8X20 FLANGE
0-28650-820-0
04
1
1305-
●
●
●
●
51
PIN; JOINT,RELAY LEVER
8-97947-496-0
01
1
1305-
●
●
●
●
72
CABLE; PARKING BRK
(B)
8-98102-140-1
01
1
1305-
●
72
CABLE; PARKING BRK
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC) (B)
8-98102-140-1
01
1
1305-
●
72
CABLE; PARKING BRK
(B)
8-98102-141-1
01
1
1305-
●
72
CABLE; PARKING BRK
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC) (B)
8-98102-141-1
01
1
1305-
●
72
CABLE; PARKING BRK
SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) (A)
8-98102-148-1
01
1
1305-
●
72
CABLE; PARKING BRK
SOFT RIDE SUSPENSION SYSTEM<FE1> (A)
8-98102-148-1
01
1
1305-
●
72
CABLE; PARKING BRK
SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) (A)
8-98102-149-1
01
1
1305-
●
72
CABLE; PARKING BRK
SOFT RIDE SUSPENSION SYSTEM<FE1> (A)
8-98102-149-1
01
1
1305-
●
72
CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> (A)
8-98067-048-1
01
1
1305-
●
72
CABLE; PARKING BRK
(A)
8-98067-048-1
01
1
1305-
●
72
CABLE; PARKING BRK
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> (A)
8-98067-048-1
01
1
1305-
●
72
CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> (A)
8-98067-049-1
01
1
1305-
●
72
CABLE; PARKING BRK
(A)
8-98067-049-1
01
1
1305-
●
72
CABLE; PARKING BRK
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> (A)
8-98067-049-1
01
1
1305-
●
86
BOLT
(A) M6X20 FLANGE
0-28650-620-0
06
1
1305-
●
●
●
86
BOLT
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC) (A) M6X20 FLANGE
0-28650-620-0
06
1
1305-
●
86
BOLT
HIGH RIDE SUSPENSION(7YC) (A) M6X20 FLANGE
0-28650-620-0
06
1
1305-
●
86
BOLT
HIGH RIDE SUSPENSION(7YC) (B) M8X12 FLANGE
0-28050-812-0
02
1
1305-
●
86
BOLT
(B) M8X12 FLANGE
0-28050-812-0
02
1
1305-
●
●
220
NUT; CLIP,PARKING CONT CABLE
(A) M8 FLANGE
0-91180-108-0
02
1
1305-
●
●
●
220
NUT; CLIP,PARKING CONT CABLE
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC) (A) M8 FLANGE
0-91180-108-0
02
1
1305-
●
220
NUT; CLIP,PARKING CONT CABLE
HIGH RIDE SUSPENSION(7YC) (A) M8 FLANGE
0-91180-108-0
02
1
1305-
●
220
NUT; CLIP,PARKING CONT CABLE
(B) M6 FLANGE
0-91180-106-0
02
1
1305-
●
220
NUT; CLIP,PARKING CONT CABLE
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC) (B) M6 FLANGE
0-91180-106-0
02
1
1305-
●
289
NUT; PARKING BRK
8-98017-654-0
01
1
1305-
●
●
●
●
326
RETAINER; PARK CABLE
8-98134-214-1
01
1
1305-
●
●
●
326
RETAINER; PARK CABLE
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC)
8-98134-214-1
01
1
1305-
●
326
RETAINER; PARK CABLE
HIGH RIDE SUSPENSION(7YC)
8-98134-214-1
01
1
1305-
●
347
EQUALIZER; HAND BRK
8-97947-495-0
01
1
1305-
●
●
●
●
355
SPACER; HAND BRK LEVER
8-97947-497-0
01
1
1305-
●
●
●
●
