◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51483 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#119335) — 11 parça

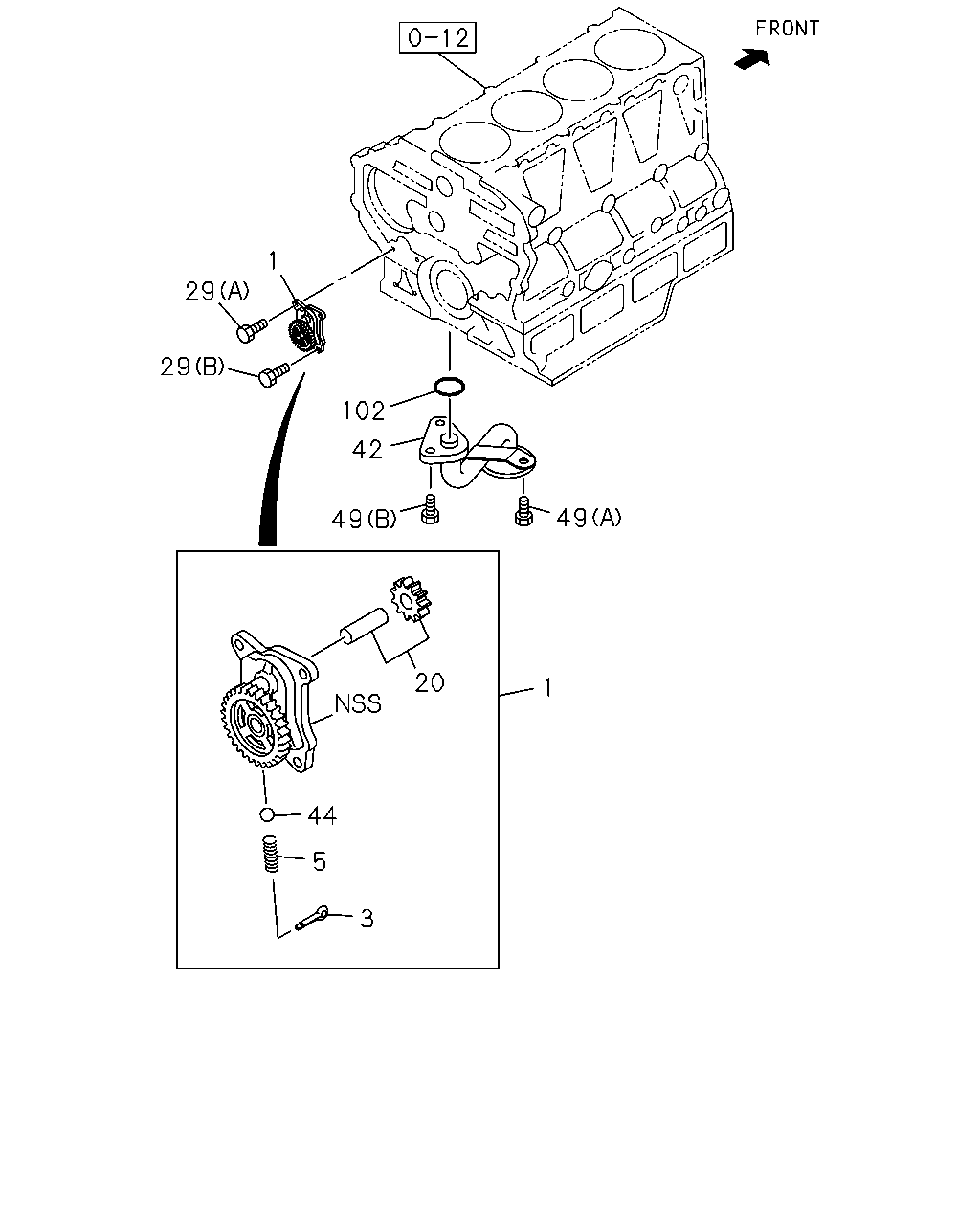

çizim 350299
1 29 29 102 42 49 49 1 20 44 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL
IMA 		8-98017-585-1 01 1 1304- ● ●
3 PIN; SPLIT
L=30 IMA 		9-08104-030-0 01 1 1304- ● ●
5 SPRING; COIL
IMA 		5-09580-098-0 01 1 1304- ● ●
20 GEAR; DRIVE,OIL PUMP
IMA 		8-98059-192-0 01 1 1304- ● ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE IMA 		0-28060-825-0 02 1 1304- ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE IMA 		0-28060-830-0 02 1 1304- ● ●
42 STRAINER; OIL,OIL PUMP
IMA 		8-98213-867-0 01 1 1304- ● ●
44 BALL; RELIEF VLV
IMA 		5-09843-003-0 01 1 1304- ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE IMA 		0-28060-816-0 02 1 1304- ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 IMA 		8-97071-956-0 01 1 1304- ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 IMA 		8-94399-398-0 01 1 1304- ● ●
