Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#11932) — 181 parça

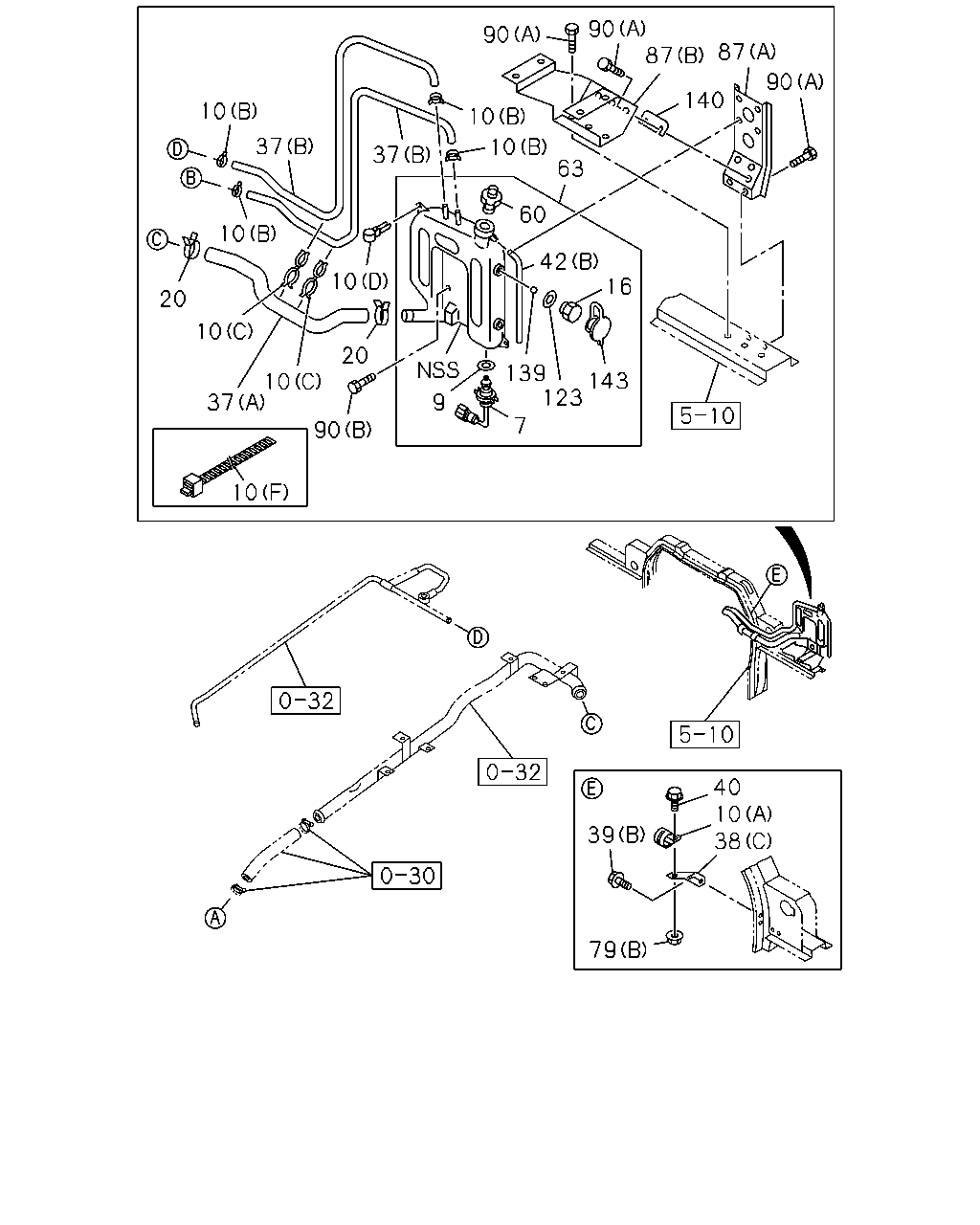

10 37 90 90 87 87 90 10 37 10 140 63 10 20 10 10 20 10 37 90 10 9 139 123 143 16 42 60 7 40 10 39 38 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0105-	●	●	●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	0105-0106	●	●	●	●
9	GASKET; SWITCH EXC. EURO3 SPECIFICATION<NJX> ID=28 T=2.5	1-09630-126-0	01	1	0107-	●	●	●	●
9	GASKET; SWITCH EURO3 SPECIFICATION<NJX> ID=28 OD=35	1-09630-130-0	01	1	0107-	●
10	CLIP; RUBBER HOSE (G) ID=10 & 15	1-09709-279-1	01	1	0303-		●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (B) ID=14	1-09704-102-0	04	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (C) ID=44 & 16	1-09709-125-0	04	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (D) ID=14 L=44	9-09917-427-0	02	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	02	1	0105-		●	●	●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0105-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (D) ID=28 L=58	1-09700-400-0	02	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (B) ID=14	1-09704-102-0	06	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (F) L=350	1-09707-183-0	01	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (C) ID=44 & 16	1-09709-125-0	08	1	0107-	●
16	PLUG; TANK	1-21464-514-0	02	1	0105-0205	●	●	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	0105-	●	●	●	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●	●
37	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0409	●	●	●	●
37	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0410-	●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0105-		●	●	●
37	HOSE; RUBBER (A)	1-21437-568-1	01	1	0105-		●	●	●
37	HOSE; RUBBER (A)	1-21437-755-0	01	1	0105-	●
37	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	02	1	0107-0409	●
37	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	02	1	0410-	●
38	BRACKET; RUBBER HOSE (A)	1-21489-158-2	01	1	0105-		●	●	●
38	BRACKET; RUBBER HOSE (B)	1-21489-165-1	01	1	0105-		●	●	●
38	BRACKET; RUBBER HOSE (C)	1-21489-180-0	01	1	0105-	●
39	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512		●	●	●
39	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●	●
39	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●
39	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	0105-0512		●	●	●
40	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0601-		●	●	●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●
40	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=500 SERVICED BY L=3000	0-03559-300-0	01	1	0109-	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108	●	●	●	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0109-		●	●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0105-	●	●	●	●
42	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A) L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0107-	●
60	CAP; SUB TANK	1-21450-137-0	01	1	0105-	●	●	●	●
63	TANK ASM; SUB	1-21481-144-0	01	1	0105-0106	●	●	●	●
63	TANK ASM; SUB EXC. EURO3 SPECIFICATION<NJX>	1-21481-144-0	01	1	0107-0205	●	●	●	●
63	TANK ASM; SUB EXC. EURO3 SPECIFICATION<NJX>	1-21481-146-0	01	1	0206-	●	●	●	●
63	TANK ASM; SUB EURO3 SPECIFICATION<NJX>	1-21481-143-1	01	1	0107-	●
79	NUT; CLIP,HOSE (A) M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●	●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●	●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
79	NUT; CLIP,HOSE (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
79	NUT; CLIP,HOSE (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	0105-	●	●	●	●
87	BRACKET; SUB TANK (A)	1-21489-162-0	01	1	0105-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	0105-0512	●	●	●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0105-	●	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	0105-0205	●	●	●	●
139	FLOAT	1-21489-161-0	02	1	0105-0205	●	●	●	●
140	SHIM T=0.8	1-53458-716-0	AR	1	0105-	●	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	0105-0205	●	●	●	●

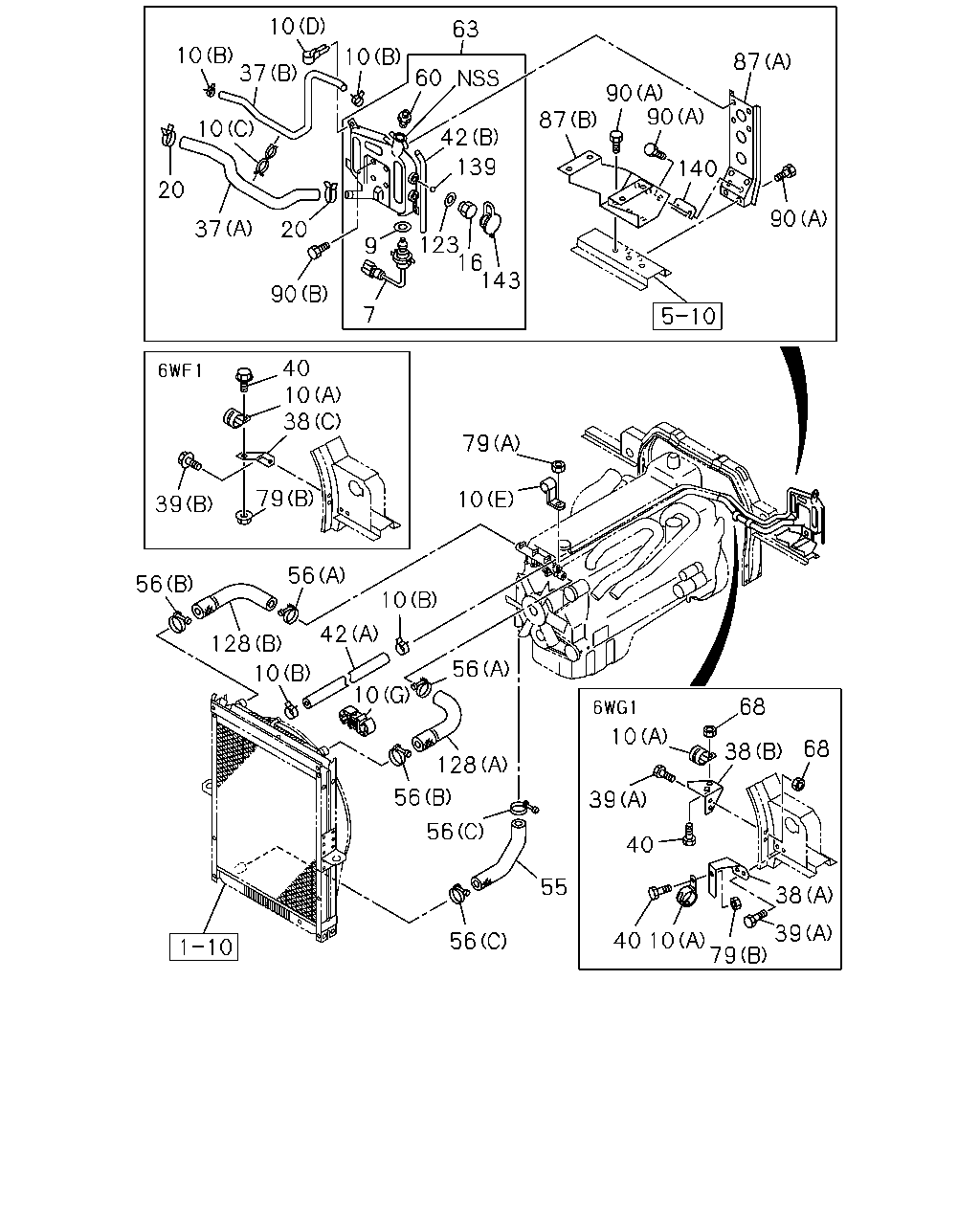

10 10 10 10 20 20 37 90 9 7 143 16 123 139 42 60 63 87 90 90 140 87 90 40 39 10 79 38 79 10 56 56 10 128 10 10 42 56 128 56 56 56 55 10 68 68 38 38 39 40 40 10 79 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0105-	●	●	●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	0105-0106	●	●	●	●
9	GASKET; SWITCH EXC. EURO3 SPECIFICATION<NJX> ID=28 T=2.5	1-09630-126-0	01	1	0107-	●	●	●	●
9	GASKET; SWITCH EURO3 SPECIFICATION<NJX> ID=28 OD=35	1-09630-130-0	01	1	0107-	●
10	CLIP; RUBBER HOSE (G) ID=10 & 15	1-09709-279-1	01	1	0303-		●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (B) ID=14	1-09704-102-0	04	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (C) ID=44 & 16	1-09709-125-0	04	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (D) ID=14 L=44	9-09917-427-0	02	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	02	1	0105-		●	●	●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0105-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (D) ID=28 L=58	1-09700-400-0	02	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (B) ID=14	1-09704-102-0	06	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (F) L=350	1-09707-183-0	01	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (C) ID=44 & 16	1-09709-125-0	08	1	0107-	●
16	PLUG; TANK	1-21464-514-0	02	1	0105-0205	●	●	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	0105-	●	●	●	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●	●
37	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0409	●	●	●	●
37	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0410-	●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0105-		●	●	●
37	HOSE; RUBBER (A)	1-21437-568-1	01	1	0105-		●	●	●
37	HOSE; RUBBER (A)	1-21437-755-0	01	1	0105-	●
37	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	02	1	0107-0409	●
37	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	02	1	0410-	●
38	BRACKET; RUBBER HOSE (A)	1-21489-158-2	01	1	0105-		●	●	●
38	BRACKET; RUBBER HOSE (B)	1-21489-165-1	01	1	0105-		●	●	●
38	BRACKET; RUBBER HOSE (C)	1-21489-180-0	01	1	0105-	●
39	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512		●	●	●
39	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●	●
39	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●
39	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	0105-0512		●	●	●
40	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0601-		●	●	●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●
40	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=500 SERVICED BY L=3000	0-03559-300-0	01	1	0109-	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108	●	●	●	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0109-		●	●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0105-	●	●	●	●
42	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A) L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0107-	●
55	HOSE; WATER,RAD OUTLET	1-21437-710-0	01	1	0105-		●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0105-	●		●	●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	0105-0106	●	●	●	●
56	CLIP; WATER HOSE,RAD EXC. EURO3 SPECIFICATION<NJX> (A) ID=57	1-09704-066-0	02	1	0107-	●	●	●	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0105-0106	●	●	●	●
56	CLIP; WATER HOSE,RAD EXC. EURO3 SPECIFICATION<NJX> (B) ID=63	1-09704-067-0	02	1	0107-	●	●	●	●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	0105-0106	●	●	●	●
56	CLIP; WATER HOSE,RAD EXC. EURO3 SPECIFICATION<NJX> (C) ID=72	1-09704-068-0	02	1	0107-	●	●	●	●
56	CLIP; WATER HOSE,RAD EURO3 SPECIFICATION<NJX> (C) ID=72	1-09704-068-0	04	1	0107-	●
60	CAP; SUB TANK	1-21450-137-0	01	1	0105-	●	●	●	●
63	TANK ASM; SUB	1-21481-144-0	01	1	0105-0106	●	●	●	●
63	TANK ASM; SUB EXC. EURO3 SPECIFICATION<NJX>	1-21481-144-0	01	1	0107-0205	●	●	●	●
63	TANK ASM; SUB EXC. EURO3 SPECIFICATION<NJX>	1-21481-146-0	01	1	0206-	●	●	●	●
63	TANK ASM; SUB EURO3 SPECIFICATION<NJX>	1-21481-143-1	01	1	0107-	●
68	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602		●	●	●
68	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●	●	●
79	NUT; CLIP,HOSE (A) M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●	●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●	●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
79	NUT; CLIP,HOSE (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
79	NUT; CLIP,HOSE (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	0105-	●	●	●	●
87	BRACKET; SUB TANK (A)	1-21489-162-0	01	1	0105-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	0105-0512	●	●	●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0105-	●	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	0105-0205	●	●	●	●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	0105-0106	●	●	●	●
128	HOSE; WATER,RAD INL EXC. EURO3 SPECIFICATION<NJX> (A)	1-21437-617-0	01	1	0107-	●	●	●	●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	0105-0106	●	●	●	●
128	HOSE; WATER,RAD INL EXC. EURO3 SPECIFICATION<NJX> (B)	1-21437-618-1	01	1	0107-	●	●	●	●
128	HOSE; WATER,RAD INL EURO3 SPECIFICATION<NJX> (C)	1-21437-866-0	01	1	0107-	●
139	FLOAT	1-21489-161-0	02	1	0105-0205	●	●	●	●
140	SHIM T=0.8	1-53458-716-0	AR	1	0105-	●	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	0105-0205	●	●	●	●

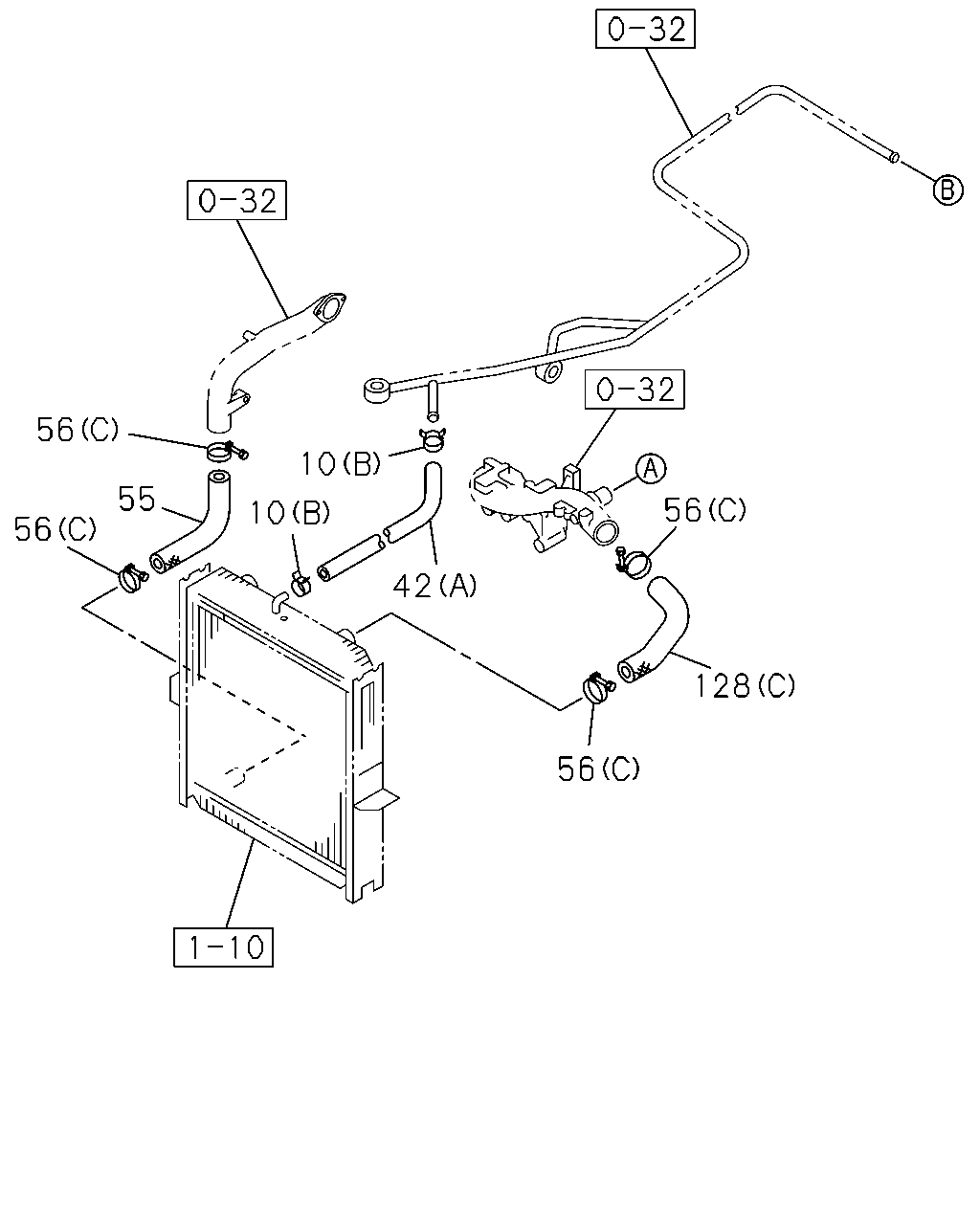

56 56 10 10 55 42 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	CLIP; RUBBER HOSE (G) ID=10 & 15	1-09709-279-1	01	1	0303-		●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (B) ID=14	1-09704-102-0	04	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (C) ID=44 & 16	1-09709-125-0	04	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	0105-0106	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (D) ID=14 L=44	9-09917-427-0	02	1	0107-	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	02	1	0105-		●	●	●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0105-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (D) ID=28 L=58	1-09700-400-0	02	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (B) ID=14	1-09704-102-0	06	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (F) L=350	1-09707-183-0	01	1	0107-	●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (C) ID=44 & 16	1-09709-125-0	08	1	0107-	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=500 SERVICED BY L=3000	0-03559-300-0	01	1	0109-	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108	●	●	●	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0109-		●	●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0105-	●	●	●	●
42	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A) L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0107-	●
55	HOSE; WATER,RAD OUTLET	1-21437-710-0	01	1	0105-		●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0105-	●		●	●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	0105-0106	●	●	●	●
56	CLIP; WATER HOSE,RAD EXC. EURO3 SPECIFICATION<NJX> (A) ID=57	1-09704-066-0	02	1	0107-	●	●	●	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0105-0106	●	●	●	●
56	CLIP; WATER HOSE,RAD EXC. EURO3 SPECIFICATION<NJX> (B) ID=63	1-09704-067-0	02	1	0107-	●	●	●	●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	0105-0106	●	●	●	●
56	CLIP; WATER HOSE,RAD EXC. EURO3 SPECIFICATION<NJX> (C) ID=72	1-09704-068-0	02	1	0107-	●	●	●	●
56	CLIP; WATER HOSE,RAD EURO3 SPECIFICATION<NJX> (C) ID=72	1-09704-068-0	04	1	0107-	●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	0105-0106	●	●	●	●
128	HOSE; WATER,RAD INL EXC. EURO3 SPECIFICATION<NJX> (A)	1-21437-617-0	01	1	0107-	●	●	●	●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	0105-0106	●	●	●	●
128	HOSE; WATER,RAD INL EXC. EURO3 SPECIFICATION<NJX> (B)	1-21437-618-1	01	1	0107-	●	●	●	●
128	HOSE; WATER,RAD INL EURO3 SPECIFICATION<NJX> (C)	1-21437-866-0	01	1	0107-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
