6-47 — MUD GUARD AND INSULATOR (#119315) — 47 parça

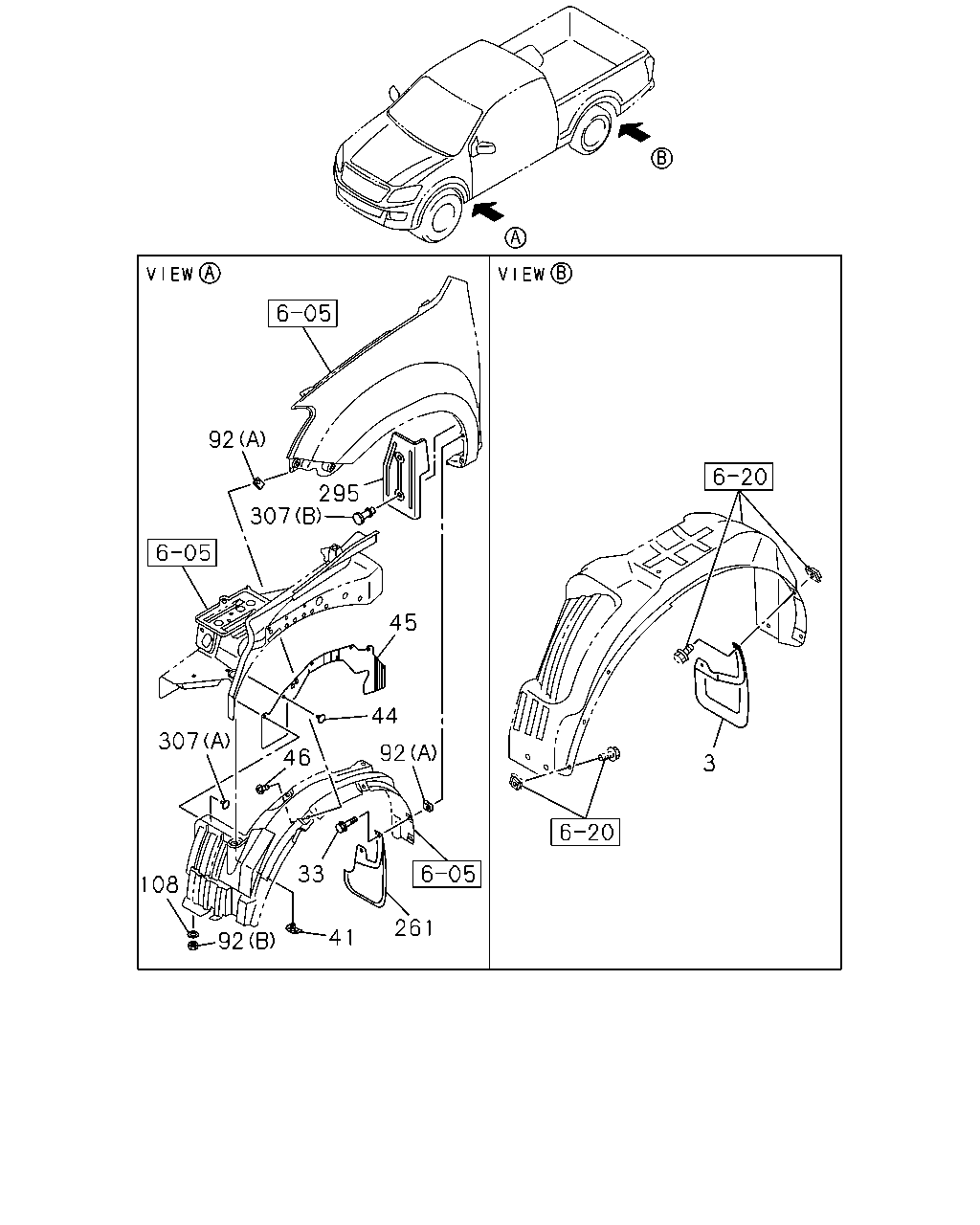

çizim 351356
92 295 307 45 44 92 46 33 307 108 92 41 261 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-330-2 01 1 1305- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-330-2 01 1 1305- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-331-2 01 1 1305- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-331-2 01 1 1305- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-276-1 01 1 1305- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-276-1 01 1 1305- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-279-1 01 1 1305- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-279-1 01 1 1305- ● ●
33 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1305- ● ● ● ●
41 RIVET; INNER LINER 8-94221-150-0 10 1 1305- ● ● ● ●
41 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> 		8-94221-150-0 06 1 1305- ● ● ● ●
41 RIVET; INNER LINER
HIGH RIDE SUSPENSION(7YC) 		8-94221-150-0 02 1 1305- ●
41 RIVET; INNER LINER 8-94221-150-0 02 1 1305- ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 10 1 1305- ● ● ● ●
45 COVER; MUD,FENDER SKIRT
4JA1-T ENG(LP0) 		8-98077-267-1 01 1 1305- ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-267-1 01 1 1305- ●
45 COVER; MUD,FENDER SKIRT 8-98077-269-0 01 1 1305- ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-269-0 01 1 1305- ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-268-1 01 1 1305- ●
45 COVER; MUD,FENDER SKIRT
4JK1-TCX ENG(LR0) 		8-98077-268-1 01 1 1305- ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-270-0 01 1 1305- ●
45 COVER; MUD,FENDER SKIRT 8-98077-270-0 01 1 1305- ● ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1305- ● ● ● ●
92 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1305- ● ● ● ●
92 NUT; MUD COVER
(A) 		8-97125-519-0 04 1 1305- ● ● ● ●
92 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1305- ● ● ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1305- ● ● ● ●
261 RUBBER; FRT,MUD GUARD
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-707-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-708-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-229-0 01 1 1305-1409 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-229-0 01 1 1305-1409 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-229-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 		8-98119-229-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-230-0 01 1 1305-1409 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-230-0 01 1 1305-1409 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-230-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 		8-98119-230-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-272-0 01 1 1305- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-272-0 01 1 1305- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-274-0 01 1 1305- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-274-0 01 1 1305- ● ●
295 COVER; WHEEL HOUSE
EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-396-1 01 1 1410- ●
295 COVER; WHEEL HOUSE
EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-397-1 01 1 1410- ●
307 RETAINER
EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97372-006-0 04 1 1410- ●
307 RETAINER
(A) 		8-98050-462-0 02 1 1305- ● ● ● ●

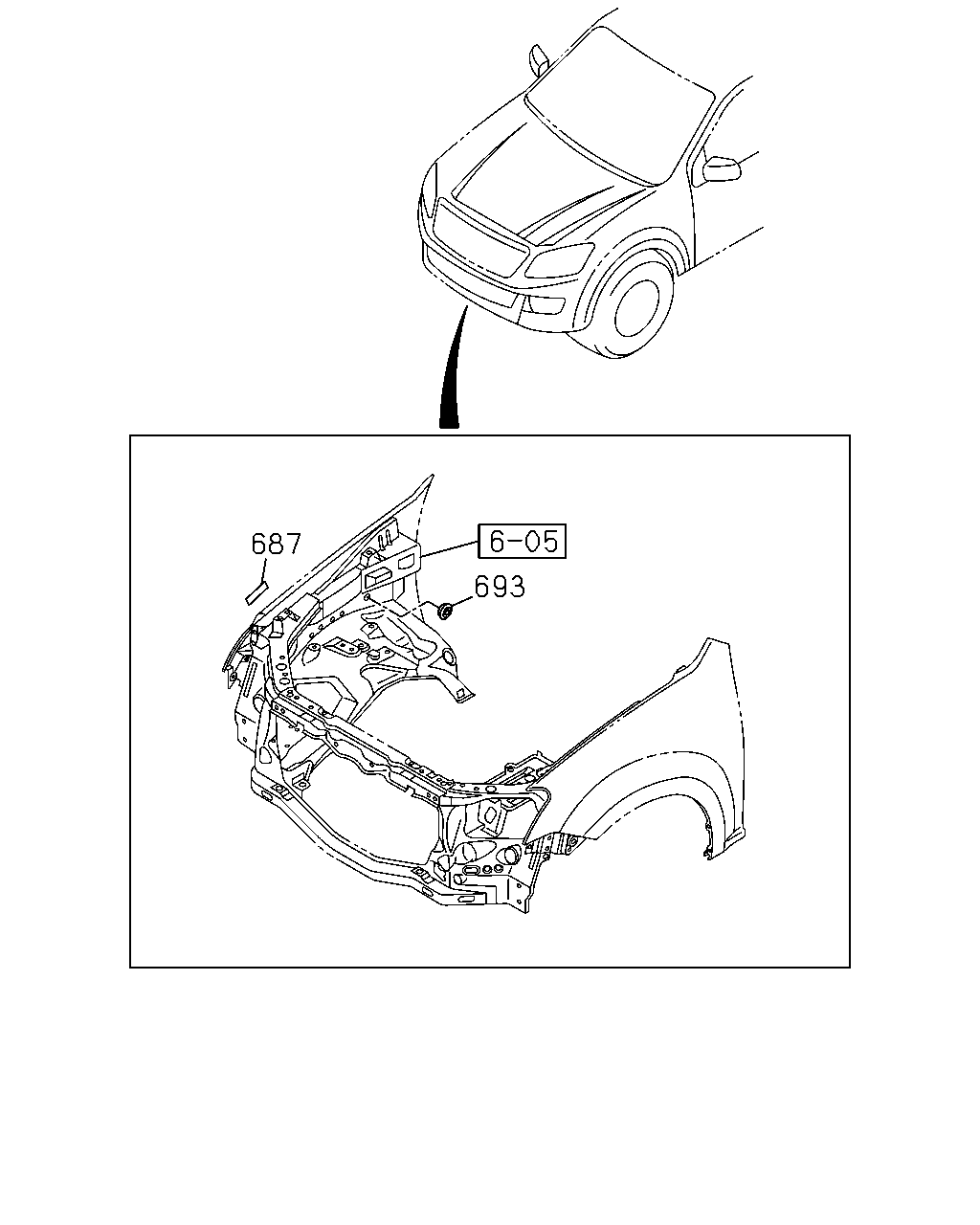

çizim 352150
687 693
BalonParca AdiParca NoAdetTipApplied Date A B C D
687 TAPE; PROTECT 8-98191-602-1 02 1 1305- ● ● ● ●
693 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1305- ● ● ● ●
