7-60 — SEAT BELT (#119314) — 10 parça

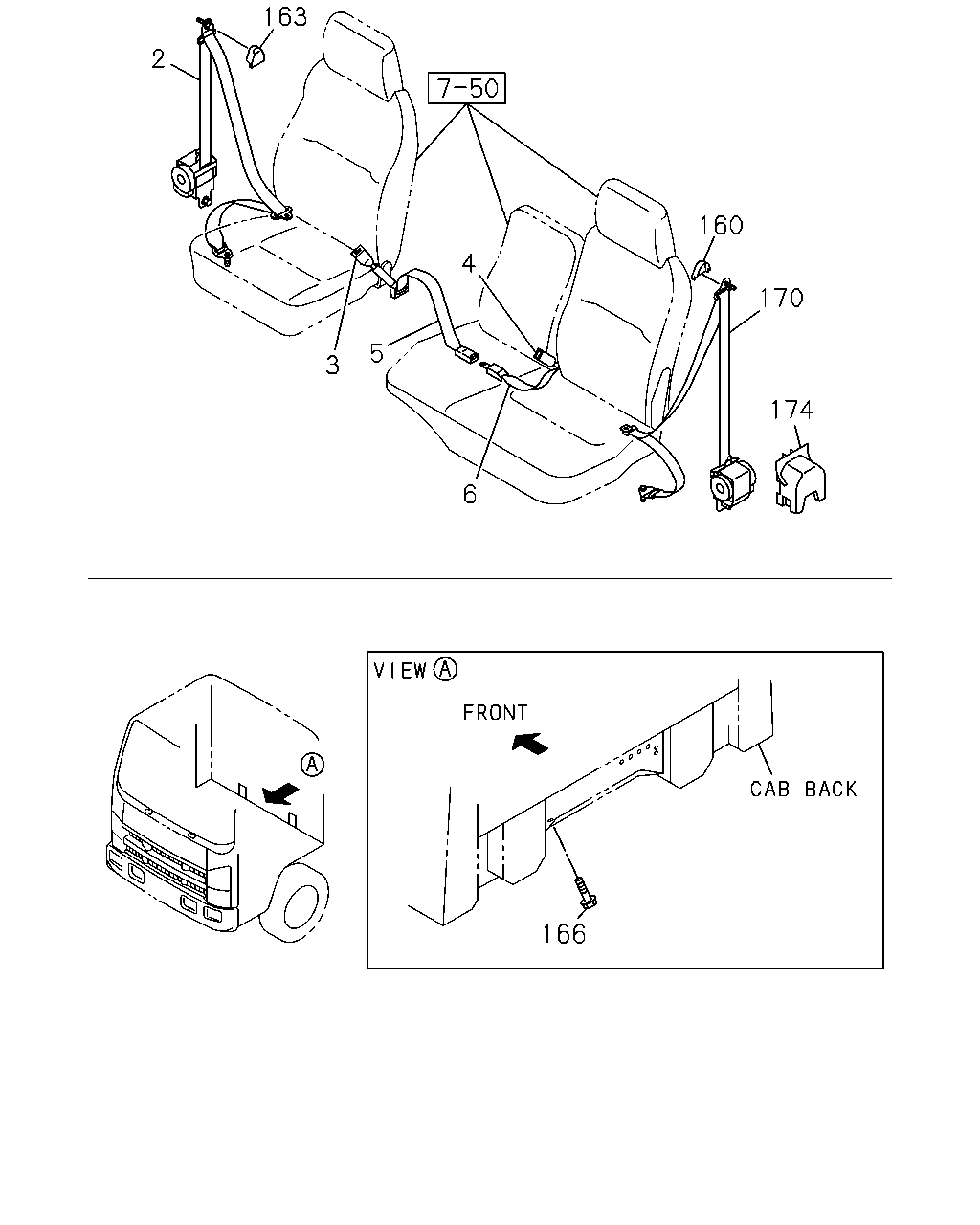

çizim 351519
166 174 170 160 6 4 5 3 163 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-503-0 01 1 1304- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-606-0 01 1 1304- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY THA 		8-97417-610-0 01 1 1304- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY THA 		8-97417-608-0 01 1 1304- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY THA 		8-97423-504-0 01 1 1304- ● ●
160 COVER; THROUGH ANCHOR
GRAY IMA 		8-97405-991-0 01 1 1304- ● ●
163 COVER; ADJUSTER
GRAY IMA 		8-97405-991-0 01 1 1304- ● ●
166 BOLT; SEAT BELT ANCHOR
M8X20 FLANGE THA 		0-28050-820-0 02 1 1304- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-503-0 01 1 1304- ● ●
174 COVER; RETRACTOR,SEAT BELT
IMA 		8-98039-376-1 01 1 1304- ● ●
