Isuzu WW
▶
TRUCKS
▶
CYH
▶
11539 - CYH CHINA EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#119308) — 50 parça
Tümü
A - 6WG1 TC-N
B - 6WG1 TC-R
◀
[110A] COMPONENT (15 parça)
[110A] AIR GUIDE (6 parça)
[110A] FIXING (26 parça)
[110A] RADIATOR SCREEN (3 parça)
▶
21
1
528
526
529
529
527
232
267
89
267
235
528
89
21
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-98212-215-1
01
1
1305-
●
●
21
SEAL; RAD
(A)
8-98219-021-1
01
1
1305-
●
●
21
SEAL; RAD
(B)
8-98230-111-0
01
1
1305-
●
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1305-
●
●
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1305-
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1305-
●
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1305-
●
●
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1305-
●
●
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1305-
●
●
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1305-
●
●
526
TANK; UPR,RADIATOR CORE
1-21414-041-2
01
1
1305-
●
●
527
TANK; LWR,RADIATOR CORE
1-21415-042-2
01
1
1305-
●
●
528
PLATE; SIDE,RADIATOR CORE
8-98211-500-1
01
1
1305-
●
●
528
PLATE; SIDE,RADIATOR CORE
8-98211-501-1
01
1
1305-
●
●
529
GASKET; CORE,RADIATOR
1-21439-142-0
02
1
1305-
●
●

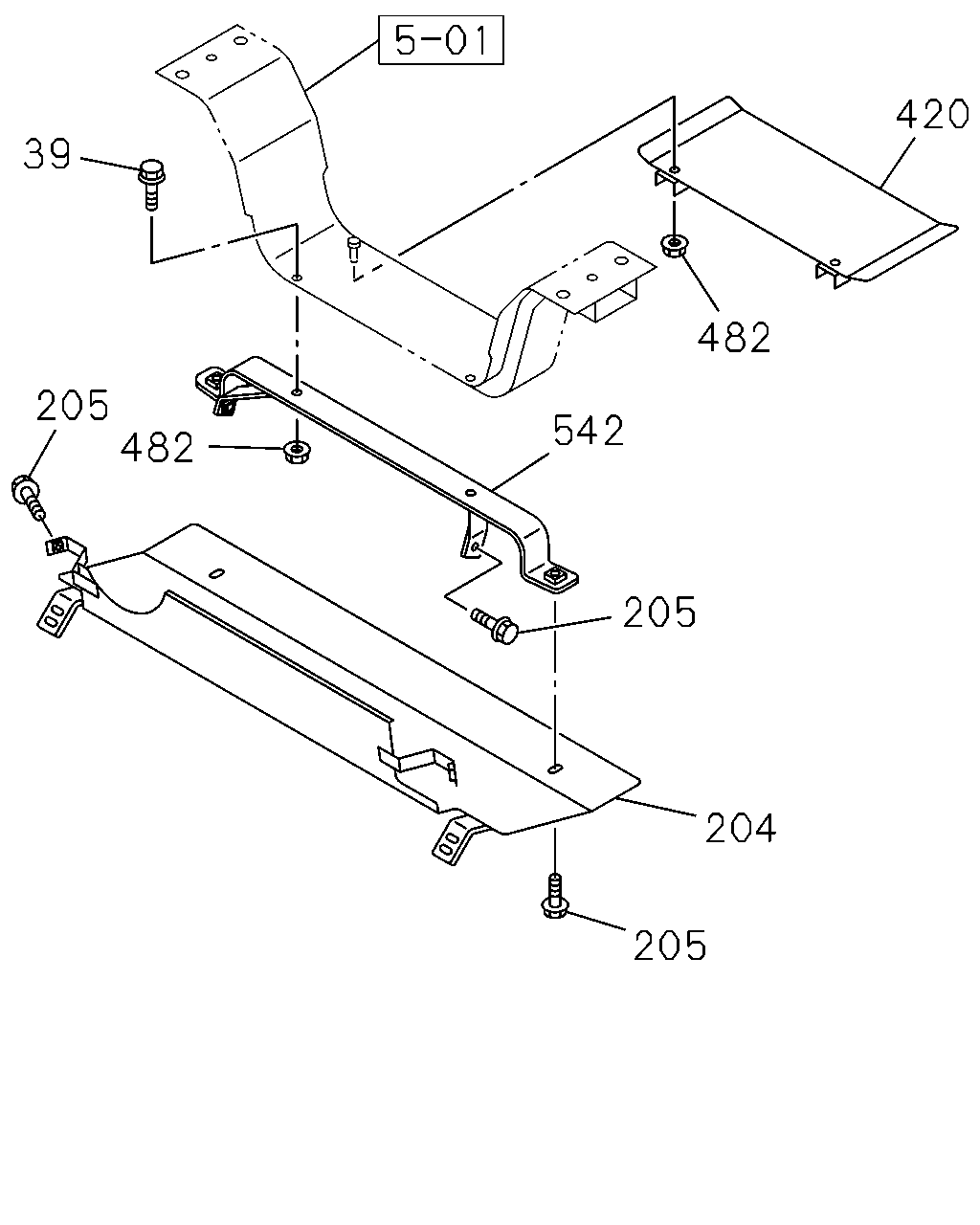

39
205
482
420
482
542
205
204
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
BOLT; AIR GUIDE
M10X25 FLANGE
0-28651-025-0
02
1
1305-
●
●
204
GUIDE ASM; AIR
8-98218-256-0
01
1
1305-
●
●
205
BOLT; AIR GUIDE
M8X25 FLANGE
0-28660-825-0
08
1
1305-
●
●
420
GUIDE; AIR,RAD
8-98223-595-1
01
1
1305-
●
●
482
NUT; AIR GUIDE
M10 FLANGE
0-91180-210-0
04
1
1305-
●
●
542
BRACKET; AIR GUIDE
8-98197-996-0
01
1
1305-
●
●

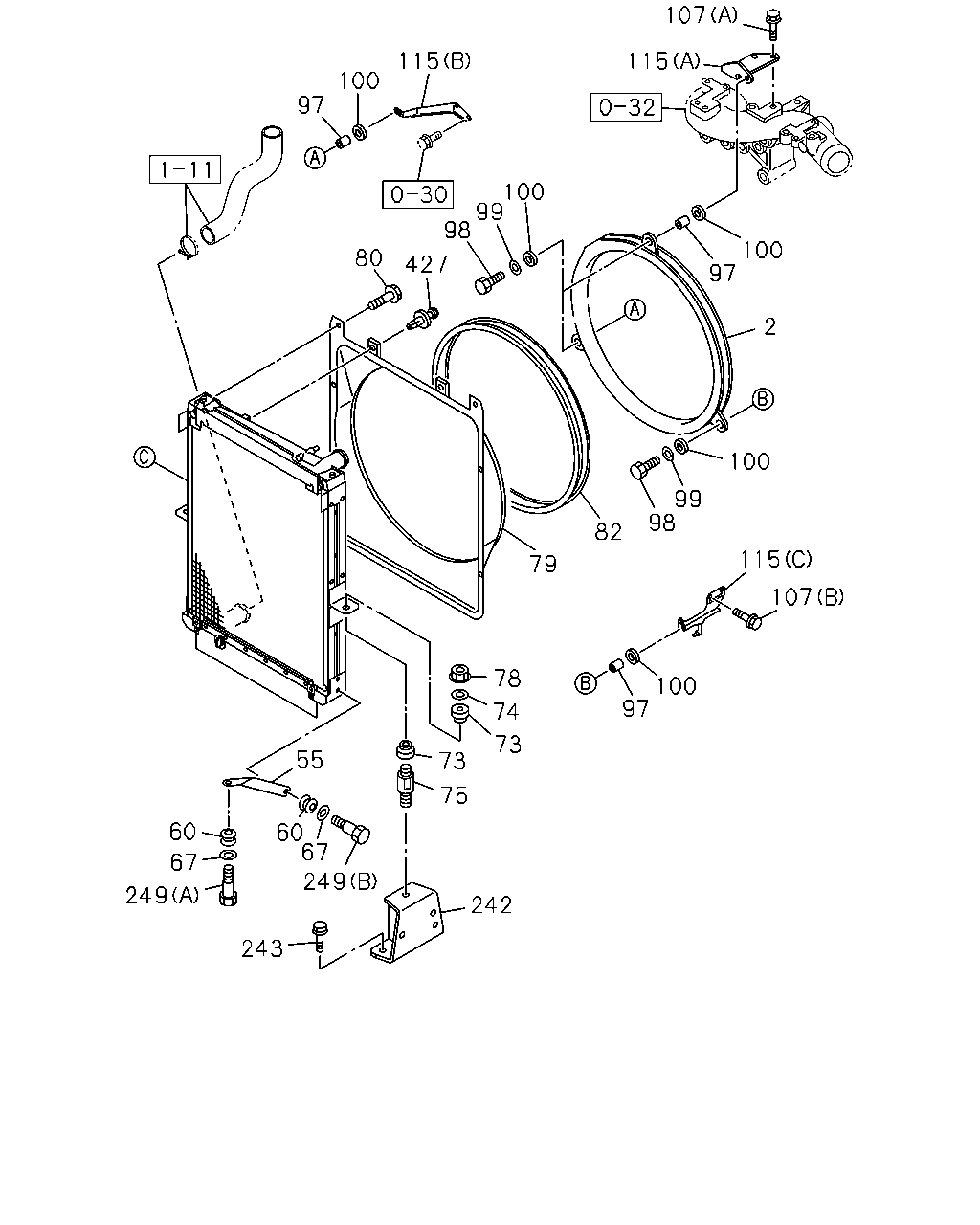

100
2
97
115
107
115
100
97
100
99
98
427
80
79
98
100
99
82
115
107
100
97
78
74
73
75
73
242
249
67
60
55
60
67
249
243
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GUIDE; FAN
8-98200-646-0
01
1
1305-
●
●
55
STAY; RAD TO UPR MBR
8-98198-386-0
01
1
1305-
●
●
55
STAY; RAD TO UPR MBR
8-98198-387-0
01
1
1305-
●
●
60
GROMMET
1-09332-117-0
04
1
1305-
●
●
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
1305-
●
●
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
1305-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1305-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
1305-
●
●
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
1305-
●
●
79
GUIDE; FAN,RAD
8-98212-218-0
01
1
1305-
●
●
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28050-816-0
06
1
1305-
●
●
82
COVER; FAN,RAD
8-98203-920-0
01
1
1305-
●
●
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
1305-
●
●
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
03
1
1305-
●
●
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
1305-
●
●
100
RUBBER; MTG
1-09337-017-0
06
1
1305-
●
●
107
BOLT; BRKT TO STAY
(A) M8X20 FLANGE
0-28650-820-0
02
1
1305-
●
●
107
BOLT; BRKT TO STAY
(B) M14X25 FLANGE
0-28951-425-0
02
1
1305-
●
●
115
BRACKET; FAN GUIDE
(A)
1-21559-463-0
01
1
1305-
●
●
115
BRACKET; FAN GUIDE
(B)
1-21559-485-0
01
1
1305-
●
●
115
BRACKET; FAN GUIDE
(C)
8-98202-991-0
01
1
1305-
●
●
242
BRACKET; RAD
8-98197-994-1
02
1
1305-
●
●
243
BOLT; BRKT
M12X35 FLANGE
0-28661-235-0
04
1
1305-
●
●
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
1305-
●
●
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
1305-
●
●
427
CLIP; FAN GUIDE
1-09470-009-0
02
1
1305-
●
●
1
571
570
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-98212-215-1
01
1
1305-
●
●
570
SCREEN ASM; RADIATOR
RADIATOR PROTECTOR(YC6)
8-98211-143-1
01
1
1305-
●
●
571
SPRING; RADIATOR SCREEN
RADIATOR PROTECTOR(YC6)
8-98211-362-0
02
1
1305-
●
●
