8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#119305) — 27 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

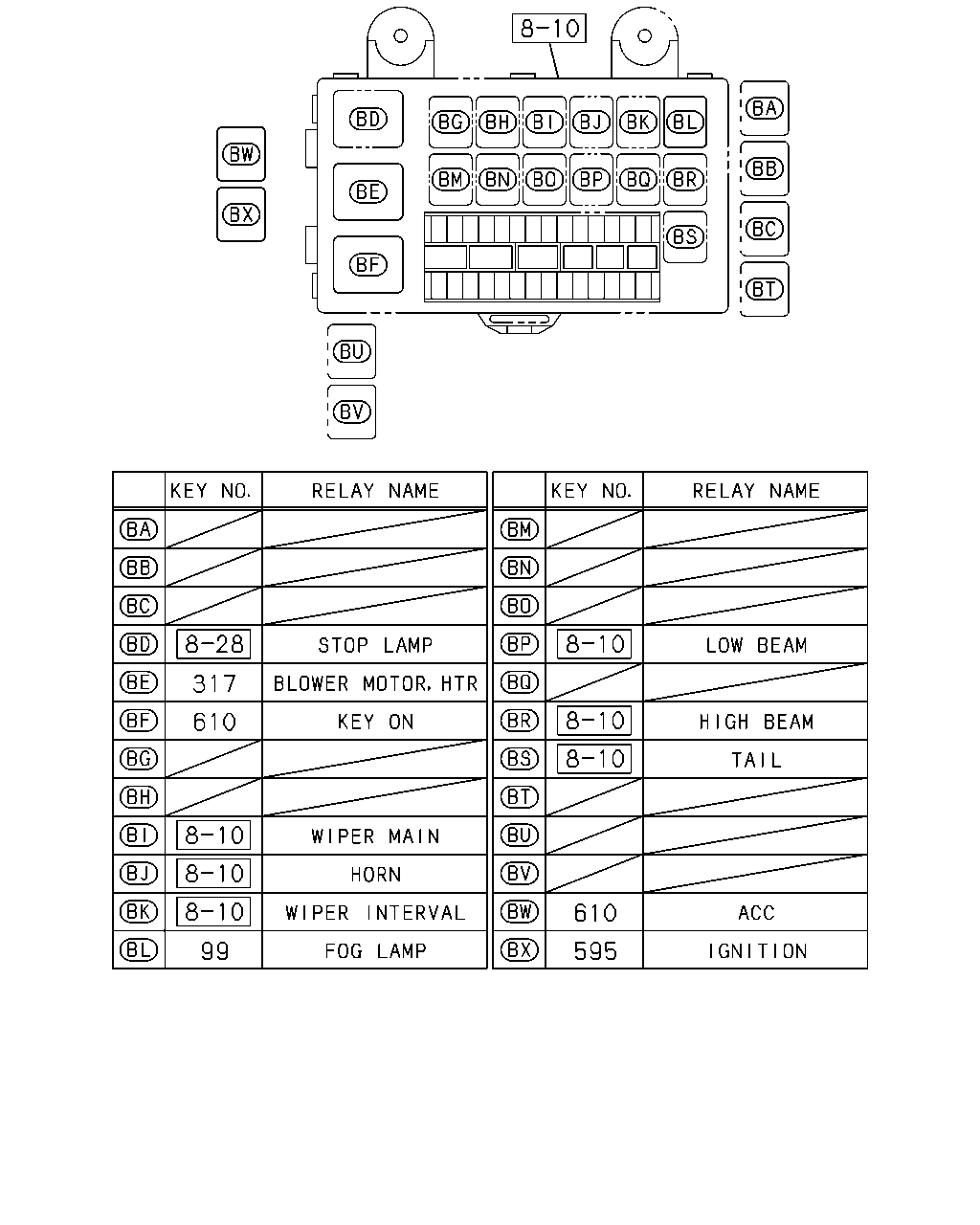

[825A] RELAY;CAB HARNESS (5 parça)

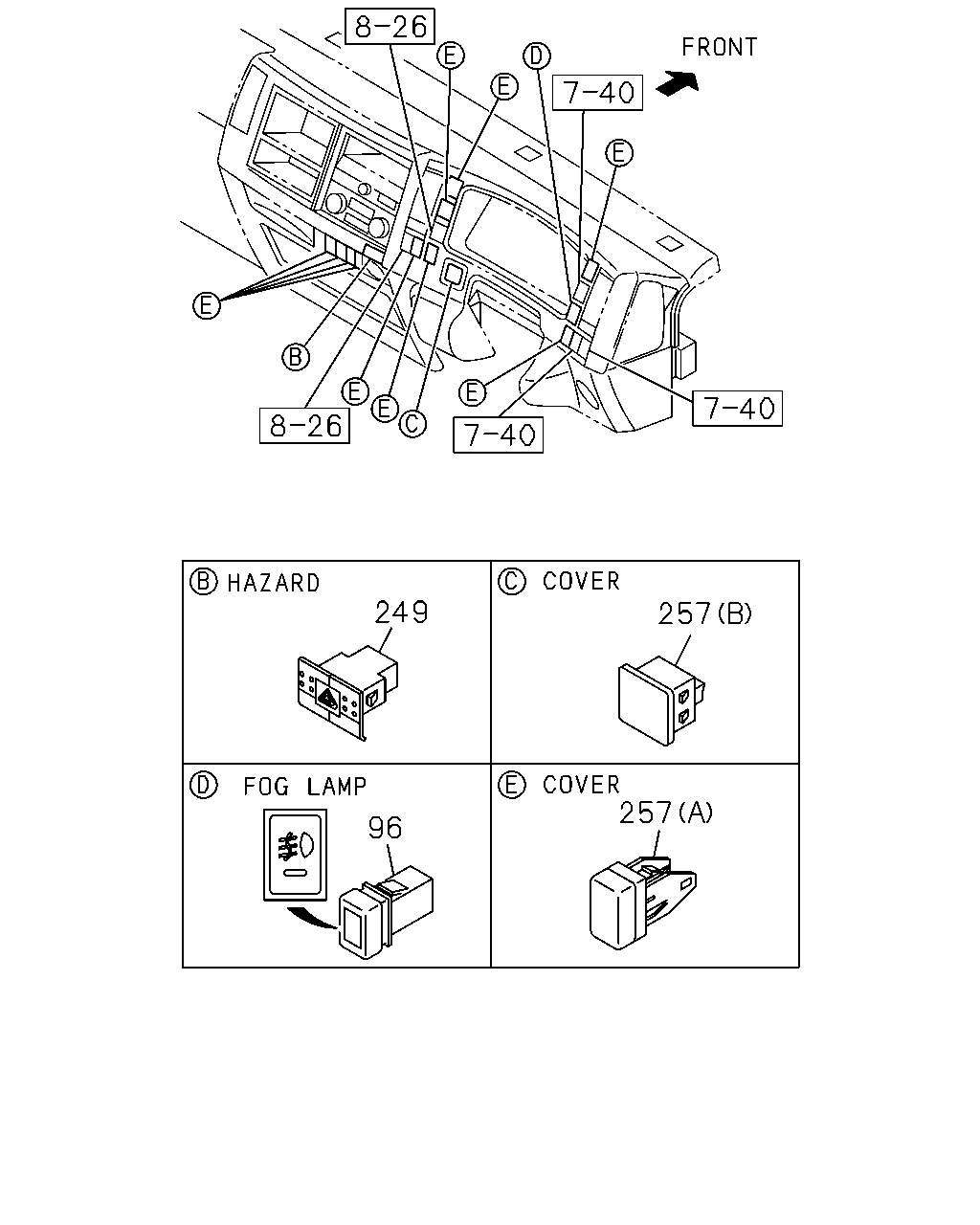

[825A] SWITCH(NO.2) (8 parça)

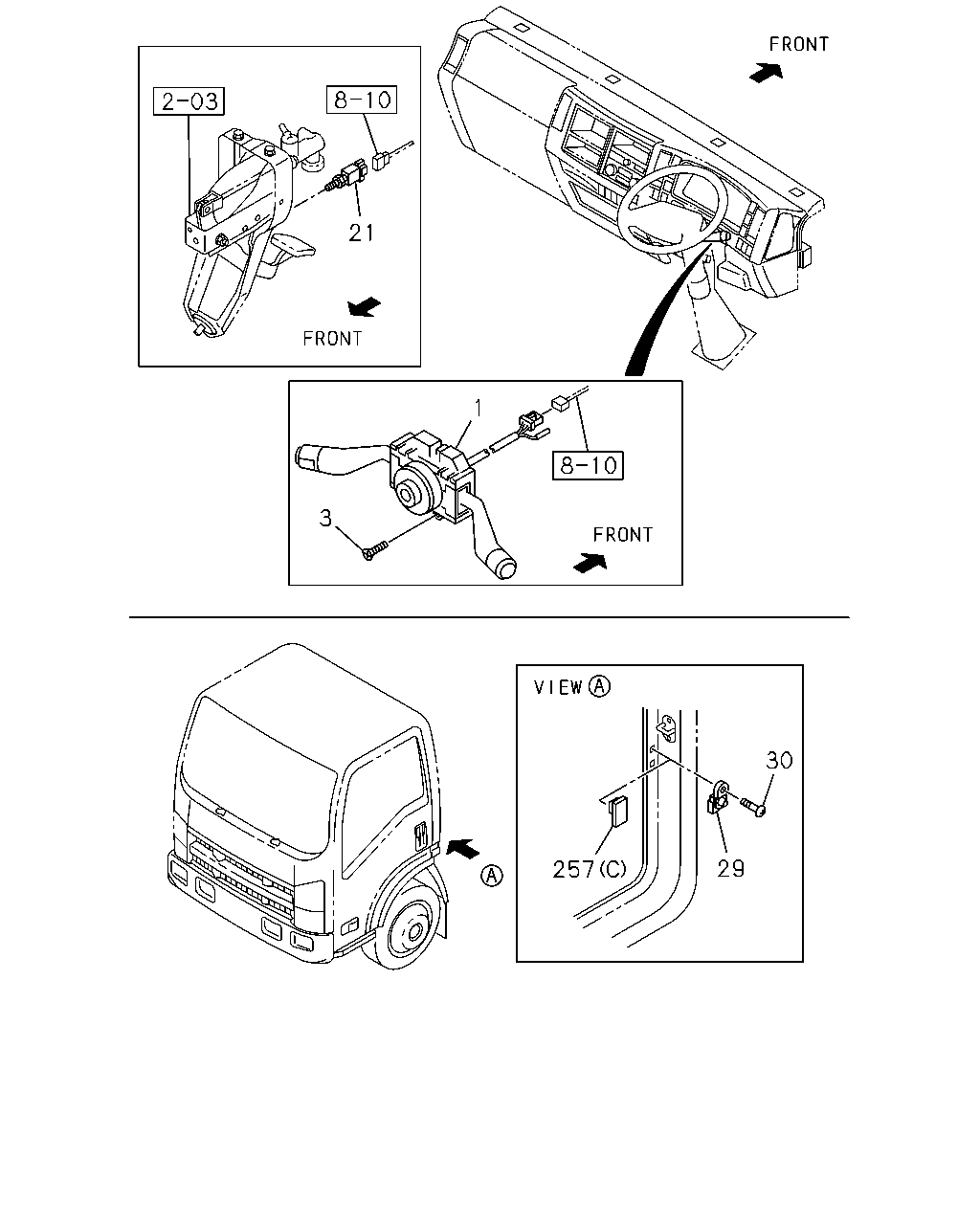

[825A] SWITCH(NO.1) (11 parça)
[825A] RELAY;FRAME HARNESS (3 parça)
▶
317
610
99
595
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
99
RELAY; FOG LAMP
24V 10A PANASONIC IMA
8-97173-035-1
01
1
1304-
●
●
317
RELAY; BLOWER MOTOR,HTR
COOLER WO/HEATER<C65> 24V 12.5A PANASONIC IMA
8-97262-933-0
01
1
1304-
●
●
595
RELAY; IGNITION
24V 12.5A PANASONIC IMA
8-97262-933-0
01
1
1304-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC IMA
8-97262-933-0
01
1
1304-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC IMA
8-97262-933-0
01
1
1304-
●
●
249
257
257
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
96
SWITCH; FOG LAMP
THA
8-97387-031-4
01
1
1304-
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
1304-1308
●
●
249
SWITCH; HAZARD
THA
8-97948-258-0
01
1
1309-
●
●
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
01
1
1304-
●
●
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
01
1
1304-
●
●
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
08
1
1304-
●
●
257
COVER; HOLE,SW
(B) IMA
8-98029-914-1
01
1
1304-
●
●
257
COVER; HOLE,SW
(C) IMA
8-98029-917-0
01
1
1304-
●
●
21
1
3
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
8-98069-995-1
01
1
1304-1310
●
●
1
SWITCH; COMB
IMA
8-98243-729-0
01
1
1311-
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES IMA
8-98061-743-0
02
1
1304-
●
●
21
SWITCH; CLU
IMA
8-97358-248-0
01
1
1304-
●
●
29
SWITCH; DOOR
BLACK IMA
8-98022-211-0
01
1
1304-
●
●
30
SCREW; DOOR SW
M5X18 IMA
8-98047-201-0
01
1
1304-
●
●
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
01
1
1304-
●
●
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
01
1
1304-
●
●
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
08
1
1304-
●
●
257
COVER; HOLE,SW
(B) IMA
8-98029-914-1
01
1
1304-
●
●
257
COVER; HOLE,SW
(C) IMA
8-98029-917-0
01
1
1304-
●
●
151
154
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
151
RELAY; HTR & A/C
COOLER WO/HEATER<C65> 24V 12.5A PANASONIC IMA
8-97262-933-0
01
1
1304-
●
●
154
RELAY; CONDENSER FAN
COOLER WO/HEATER<C65> 24V 10A PANASONIC IMA
8-97173-035-1
01
1
1304-
●
●
315
RELAY; EXH BRAKE CONT
24V 10A PANASONIC IMA
8-97173-035-1
01
1
1304-
●
●
