Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11525 - CYZ CHINA EURO4
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#119301) — 18 parça
◀

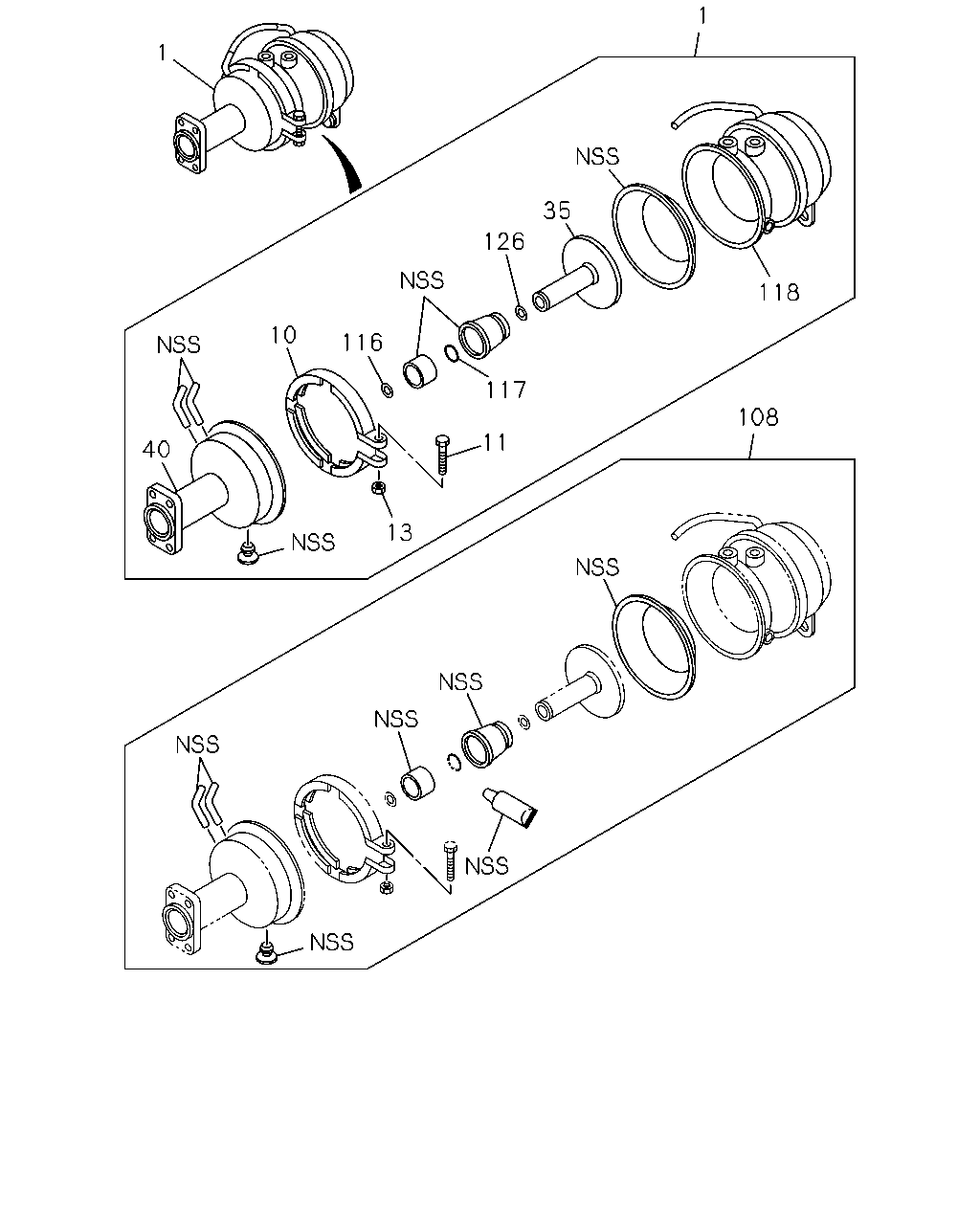

[341A] COMPONENT,REPAIR KIT (14 parça)
[341A] CONNECTOR;NYLON TUBE (4 parça)
▶
1
1
35
118
126
116
10
117
11
13
40
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-097-0
02
1
1305-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-098-0
02
1
1305-
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
04
1
1305-
11
BOLT; CLAMP RING
1-48269-257-0
04
1
1305-
13
NUT; CLAMP RING
1-48269-147-0
04
1
1305-
35
PLATE; ROD END,SPR CHAMBER
8-98146-974-0
04
1
1305-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH
1-48251-140-1
02
1
1305-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH
1-48251-141-1
02
1
1305-
108
REPAIR KIT; SPR CHAMBER
8-98146-982-0
04
1
1305-
116
GUIDE; SPR CHAMBER
8-98146-963-0
04
1
1305-
117
RING; SPR CHAMBER
8-98146-966-0
04
1
1305-
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH
1-87412-113-0
02
1
1305-
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH
1-87412-114-0
02
1
1305-
126
SHIM
8-98146-965-0
AR
1
1305-
1
32
1
32
32
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-097-0
02
1
1305-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-098-0
02
1
1305-
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
07
1
1305-
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
01
1
1305-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
