Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#11930) — 324 parça

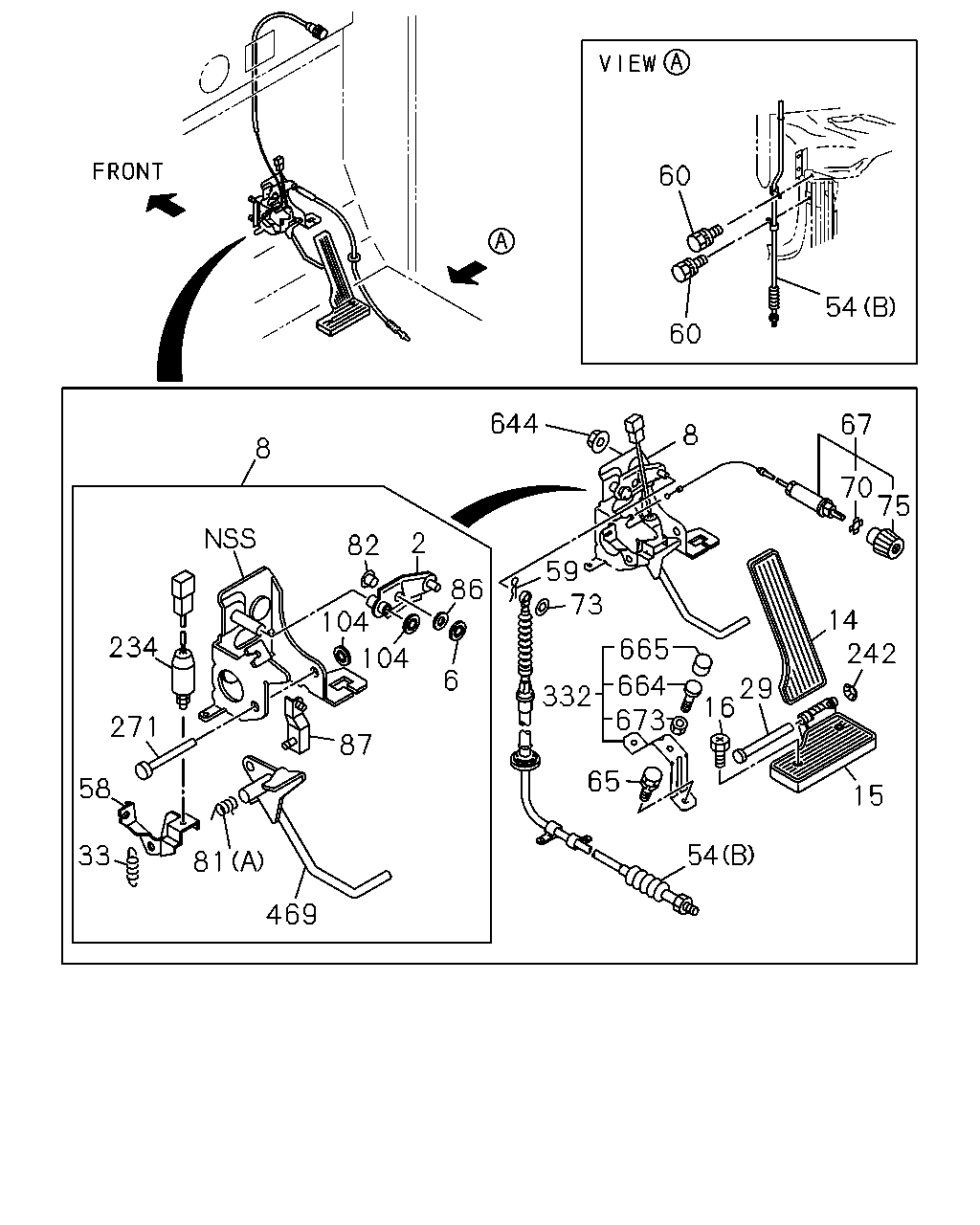

60 54 60 644 8 67 75 70 59 82 2 8 234 104 104 6 86 73 14 242 665 664 332 29 16 15 673 65 54 87 271 58 81 469 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-210-2	01	1	0105-	●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0105-		●	●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0105-0604	●
6	RING; SNAP,LINK TO LINK ID=4	0-91805-504-0	02	1	0605-	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0105-	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0105-		●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0105-	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0105-	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	0105-	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0105-		●	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0105-	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0105-	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0105-0204	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-0	01	1	0205-	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0105-	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0105-0605	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	0105-0109	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0105-0206		●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0207-		●	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0105-	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0105-		●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0105-	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0105-	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-		●	●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0105-	●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0105-		●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0105-	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0105-		●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●	●
469	LEVER ASM	1-71907-209-5	01	1	0105-	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-0304	●	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●	●

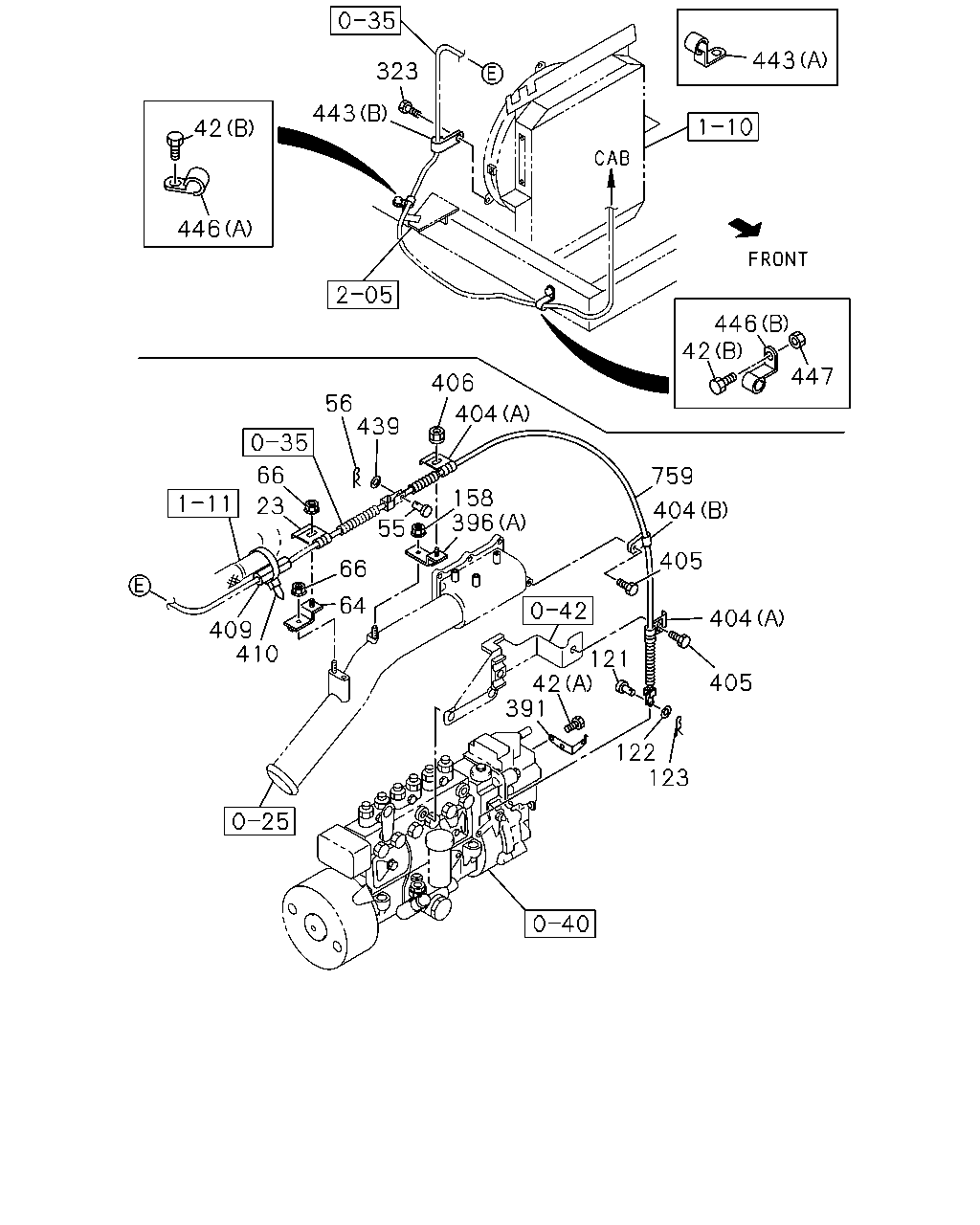

323 443 42 446 443 446 447 42 406 56 158 439 404 55 66 23 66 64 409 410 396 759 405 404 404 121 405 42 122 123 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0105-0112		●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	0105-	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0105-0112			●	●
23	BRACKET; FUEL CUT CABLE	1-14319-140-0	01	1	0201-0401		●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0402-0402		●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0403-		●	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
42	BOLT; BRKT,ENG CONT CABLE (A) M6X12 FLANGE	0-28080-612-0	02	1	0105-0512		●
42	BOLT; BRKT,ENG CONT CABLE (A) M6X12 FLANGE	0-28050-612-0	02	1	0601-		●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512		●	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0105-		●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0105-	●
64	BRACKET; ENG CONT CABLE	1-47477-804-3	01	1	0105-			●	●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602			●	●
66	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0105-		●	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	0105-0605	●
122	WASHER; PL,CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0605		●	●	●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-		●	●	●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	0105-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-		●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602	●		●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512		●	●	●
323	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●	●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0105-		●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0105-	●		●	●
396	BRACKET; CLIP (B)	1-14319-130-1	01	1	0105-		●
396	BRACKET; CLIP (C)	1-47479-250-0	01	1	0105-		●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0105-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●		●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●		●	●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	0105-0606		●
404	CLIP; CABLE (B) ID=11 L=20	0-95235-035-0	01	1	0607-		●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0105-		●	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28050-616-0	02	1	0601-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0512		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●		●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●
409	SLEEVE ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0108-		●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	0105-0105		●	●	●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	0106-		●	●	●
410	CLIP; BAND ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> L=300	1-09707-001-1	01	1	0108-0504		●
410	CLIP; BAND ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> L=350	1-09707-183-0	01	1	0505-		●
410	CLIP; BAND L=140	5-09707-031-1	01	1	0105-		●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-0605	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-	●
443	CLIP; CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-		●	●	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	02	1	0105-0606		●	●	●
443	CLIP; CABLE (B) ID=7 L=20	0-95234-635-0	02	1	0607-		●	●	●
446	CLIP; ENG CONT ID=7 L=28	9-09524-655-0	04	1	0105-0606	●
446	CLIP; ENG CONT ID=7 L=28	0-95234-655-0	04	1	0607-	●
446	CLIP; ENG CONT (B)	9-09917-514-0	01	1	0105-0404		●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-		●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404			●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0405-0606		●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	0-95235-035-0	01	1	0607-		●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	04	1	0603-	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0105-0602		●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0105-		●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0105-			●	●

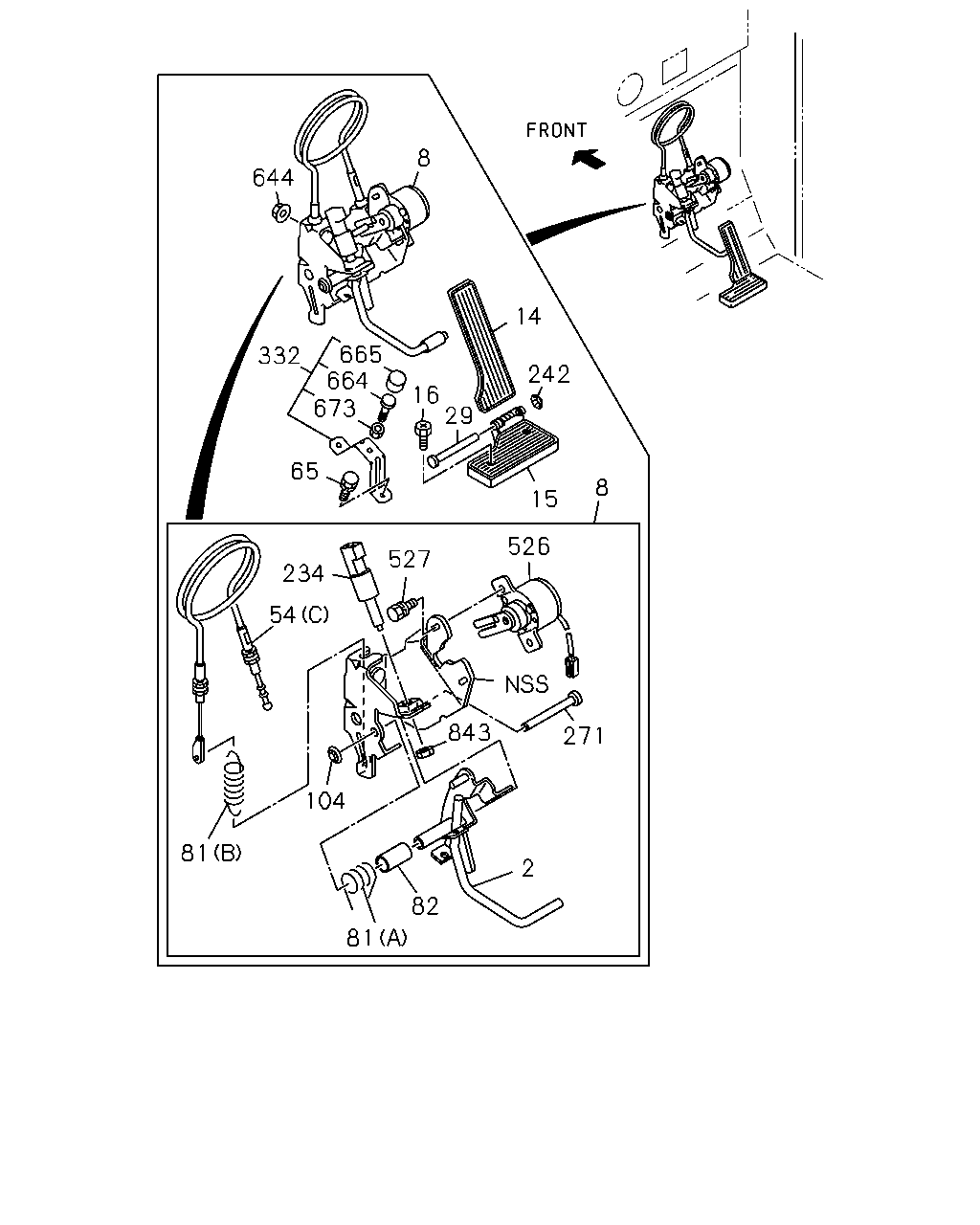

644 8 332 665 14 242 664 65 673 16 8 15 29 526 527 234 54 271 843 2 82 81 81 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-210-2	01	1	0105-	●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0105-		●	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0105-	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0105-		●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0105-	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	0105-	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0105-		●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0105-0206		●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0207-		●	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0105-	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0105-		●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-		●	●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0105-	●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0105-		●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0105-	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0105-		●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	0105-		●	●	●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0206		●	●	●
527	BOLT; ACCEL SENSOR M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-		●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-0304	●	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●	●
843	NUT M12	9-99111-412-0	01	1	0105-0512		●	●	●
843	NUT M12	0-91111-512-0	01	1	0601-		●	●	●

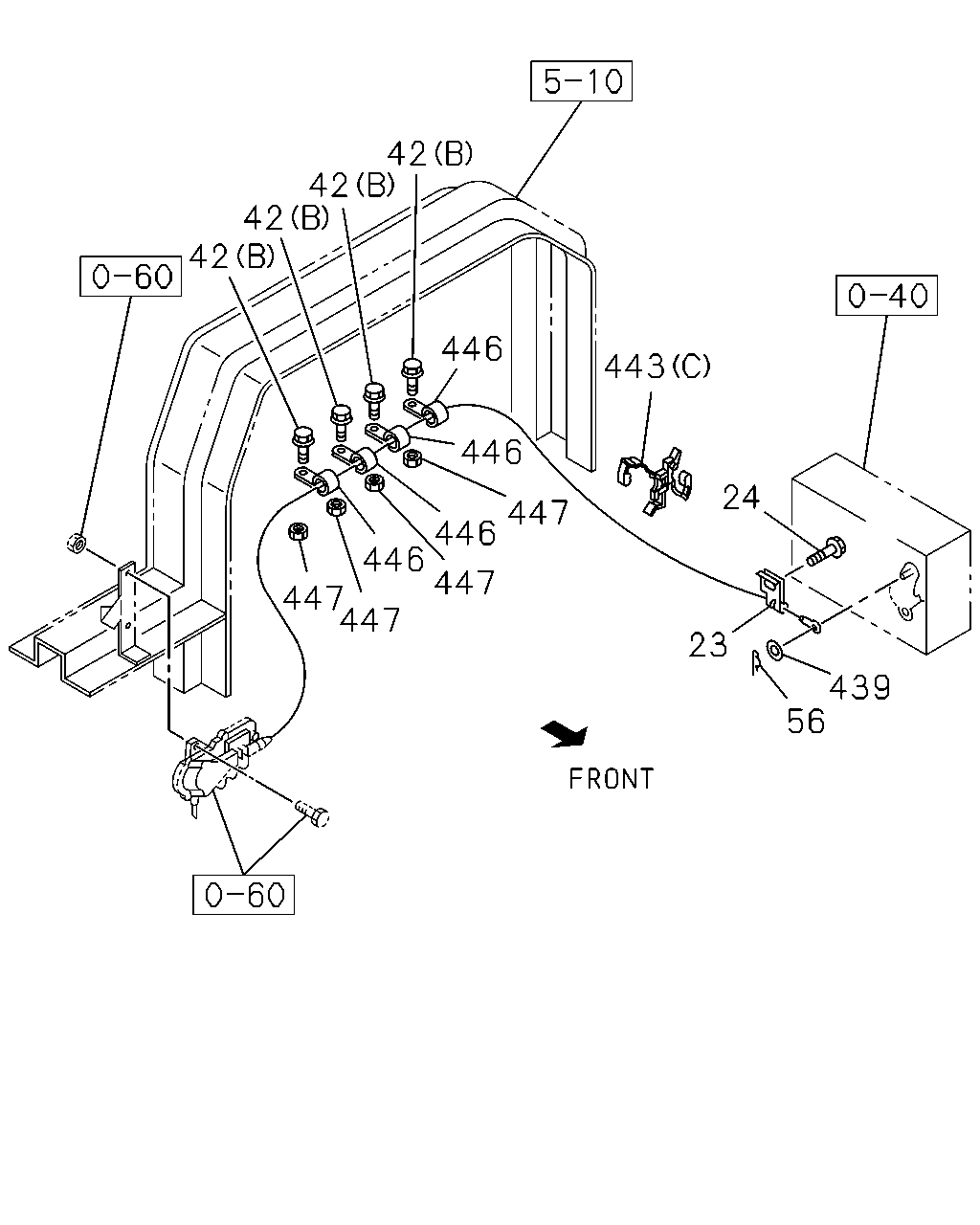

56 439 23 24 443 447 447 446 447 446 446 446 42 42 42 42 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0105-0112		●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	0105-	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0105-0112			●	●
23	BRACKET; FUEL CUT CABLE	1-14319-140-0	01	1	0201-0401		●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0402-0402		●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0403-		●	●	●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●
24	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
42	BOLT; BRKT,ENG CONT CABLE (A) M6X12 FLANGE	0-28080-612-0	02	1	0105-0512		●
42	BOLT; BRKT,ENG CONT CABLE (A) M6X12 FLANGE	0-28050-612-0	02	1	0601-		●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512		●	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-0605	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-	●
443	CLIP; CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-		●	●	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	02	1	0105-0606		●	●	●
443	CLIP; CABLE (B) ID=7 L=20	0-95234-635-0	02	1	0607-		●	●	●
446	CLIP; ENG CONT ID=7 L=28	9-09524-655-0	04	1	0105-0606	●
446	CLIP; ENG CONT ID=7 L=28	0-95234-655-0	04	1	0607-	●
446	CLIP; ENG CONT (B)	9-09917-514-0	01	1	0105-0404		●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-		●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404			●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0405-0606		●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	0-95235-035-0	01	1	0607-		●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	04	1	0603-	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0105-0602		●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●

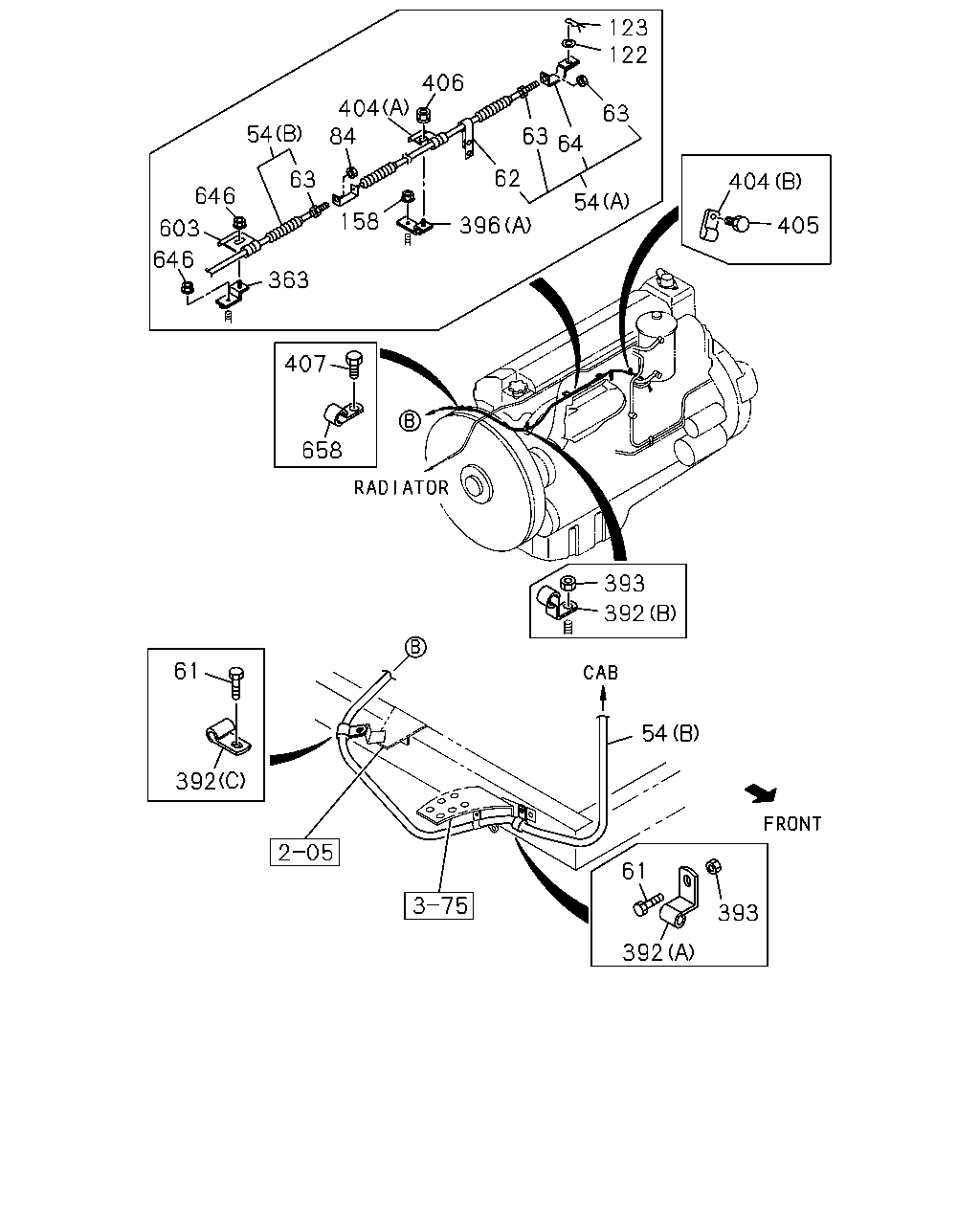

123 406 122 404 405 63 404 54 646 603 63 64 54 62 63 396 158 363 646 407 658 393 392 54 61 393 392 392 61 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0105-	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	0105-	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0105-		●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	0105-	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0105-	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	0105-	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0105-	●
64	BRACKET; ENG CONT CABLE	1-47477-804-3	01	1	0105-			●	●
84	NUT; ENG CONT LEVER M8 FLANGE	0-91150-108-0	01	1	0105-0501	●
84	NUT; ENG CONT LEVER M8	9-09110-408-0	01	1	0502-0512	●
84	NUT; ENG CONT LEVER M8	0-91110-508-0	01	1	0601-	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	0105-0605	●
122	WASHER; PL,CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0605		●	●	●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-		●	●	●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	0105-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-		●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602	●		●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●
363	SPACER; BRKT,ENG CONT SHAFT	1-47477-804-3	01	1	0105-	●
392	CLIP; ACCEL CONT CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●
392	CLIP; ACCEL CONT CABLE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-	●
392	CLIP; ACCEL CONT CABLE (A) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●
392	CLIP; ACCEL CONT CABLE (A) ID=11 L=20	0-95235-035-0	01	1	0607-	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	0105-0602	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	0105-0602	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91180-108-0	01	1	0603-	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91180-108-0	01	1	0603-	●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0105-	●		●	●
396	BRACKET; CLIP (B)	1-14319-130-1	01	1	0105-		●
396	BRACKET; CLIP (C)	1-47479-250-0	01	1	0105-		●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0105-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●		●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●		●	●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	0105-0606		●
404	CLIP; CABLE (B) ID=11 L=20	0-95235-035-0	01	1	0607-		●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0105-		●	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28050-616-0	02	1	0601-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0512		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●		●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●
407	BOLT; CLIP TO ENG M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●
407	BOLT; CLIP TO ENG M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
603	BRACKET; ENG CONT SHAFT	1-14319-140-0	01	1	0105-	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	02	1	0105-0602	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91180-108-0	02	1	0603-	●
658	CLIP; ENG CONT CABLE ID=7 L=20	9-09524-635-0	02	1	0105-0606	●
658	CLIP; ENG CONT CABLE ID=7 L=20	0-95234-635-0	02	1	0607-	●

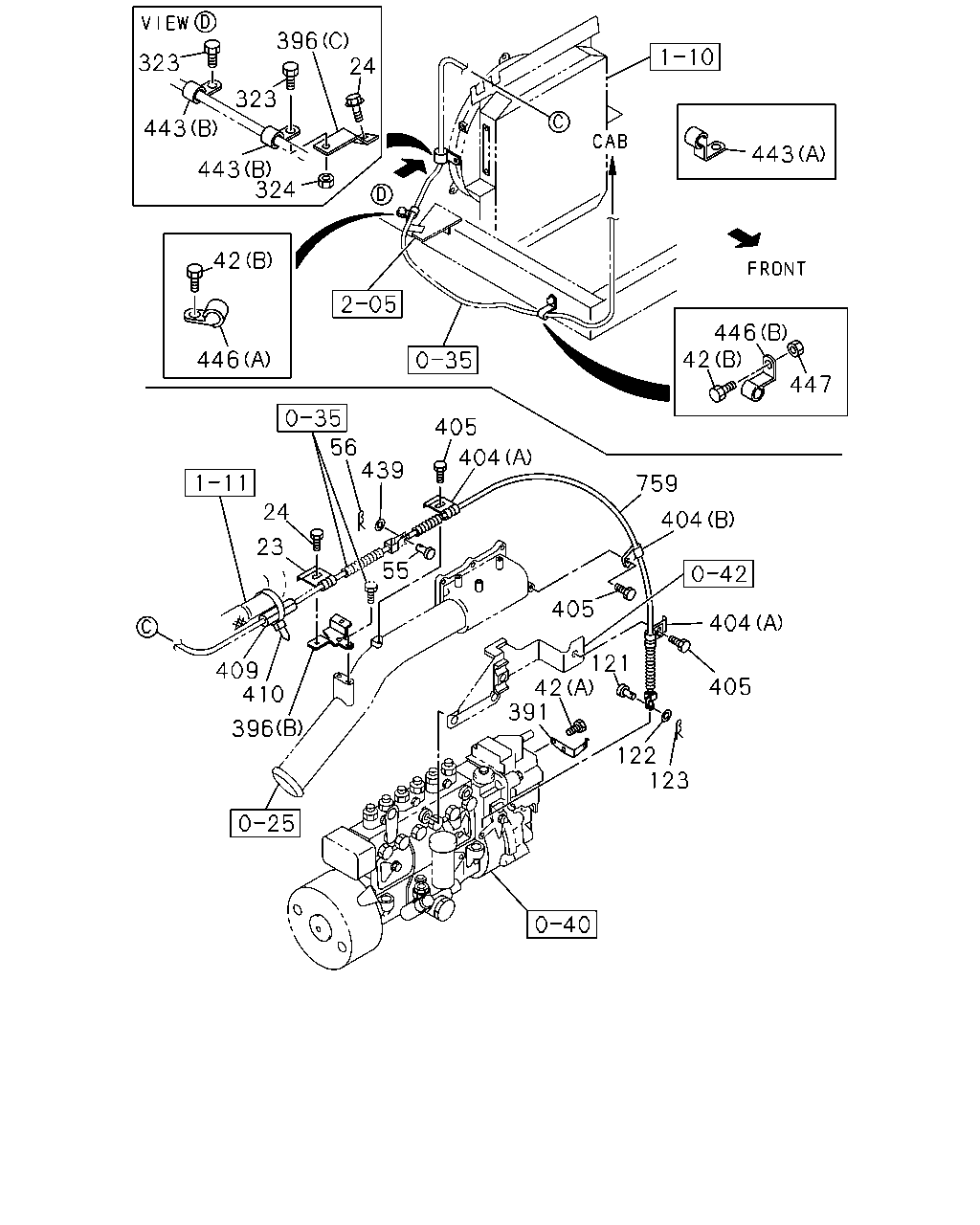

396 323 443 324 443 323 24 42 446 443 446 447 42 56 405 759 404 404 405 122 123 405 439 24 55 23 409 410 396 391 42 121 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0105-0112		●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	0105-	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0105-0112			●	●
23	BRACKET; FUEL CUT CABLE	1-14319-140-0	01	1	0201-0401		●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0402-0402		●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0403-		●	●	●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●
24	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
42	BOLT; BRKT,ENG CONT CABLE (A) M6X12 FLANGE	0-28080-612-0	02	1	0105-0512		●
42	BOLT; BRKT,ENG CONT CABLE (A) M6X12 FLANGE	0-28050-612-0	02	1	0601-		●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512		●	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0105-		●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0105-		●	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	0105-0605	●
122	WASHER; PL,CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0605		●	●	●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-		●	●	●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	0105-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-		●	●	●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512		●	●	●
323	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0105-0602		●	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0105-		●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0105-	●		●	●
396	BRACKET; CLIP (B)	1-14319-130-1	01	1	0105-		●
396	BRACKET; CLIP (C)	1-47479-250-0	01	1	0105-		●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0105-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●		●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●		●	●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	0105-0606		●
404	CLIP; CABLE (B) ID=11 L=20	0-95235-035-0	01	1	0607-		●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0105-		●	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28050-616-0	02	1	0601-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0512		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
409	SLEEVE ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0108-		●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	0105-0105		●	●	●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	0106-		●	●	●
410	CLIP; BAND ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> L=300	1-09707-001-1	01	1	0108-0504		●
410	CLIP; BAND ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> L=350	1-09707-183-0	01	1	0505-		●
410	CLIP; BAND L=140	5-09707-031-1	01	1	0105-		●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-0605	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-	●
443	CLIP; CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-		●	●	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	02	1	0105-0606		●	●	●
443	CLIP; CABLE (B) ID=7 L=20	0-95234-635-0	02	1	0607-		●	●	●
446	CLIP; ENG CONT ID=7 L=28	9-09524-655-0	04	1	0105-0606	●
446	CLIP; ENG CONT ID=7 L=28	0-95234-655-0	04	1	0607-	●
446	CLIP; ENG CONT (B)	9-09917-514-0	01	1	0105-0404		●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-		●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404			●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0405-0606		●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	0-95235-035-0	01	1	0607-		●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	04	1	0603-	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0105-0602		●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0105-		●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0105-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
