◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11539 - CYH CHINA EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶

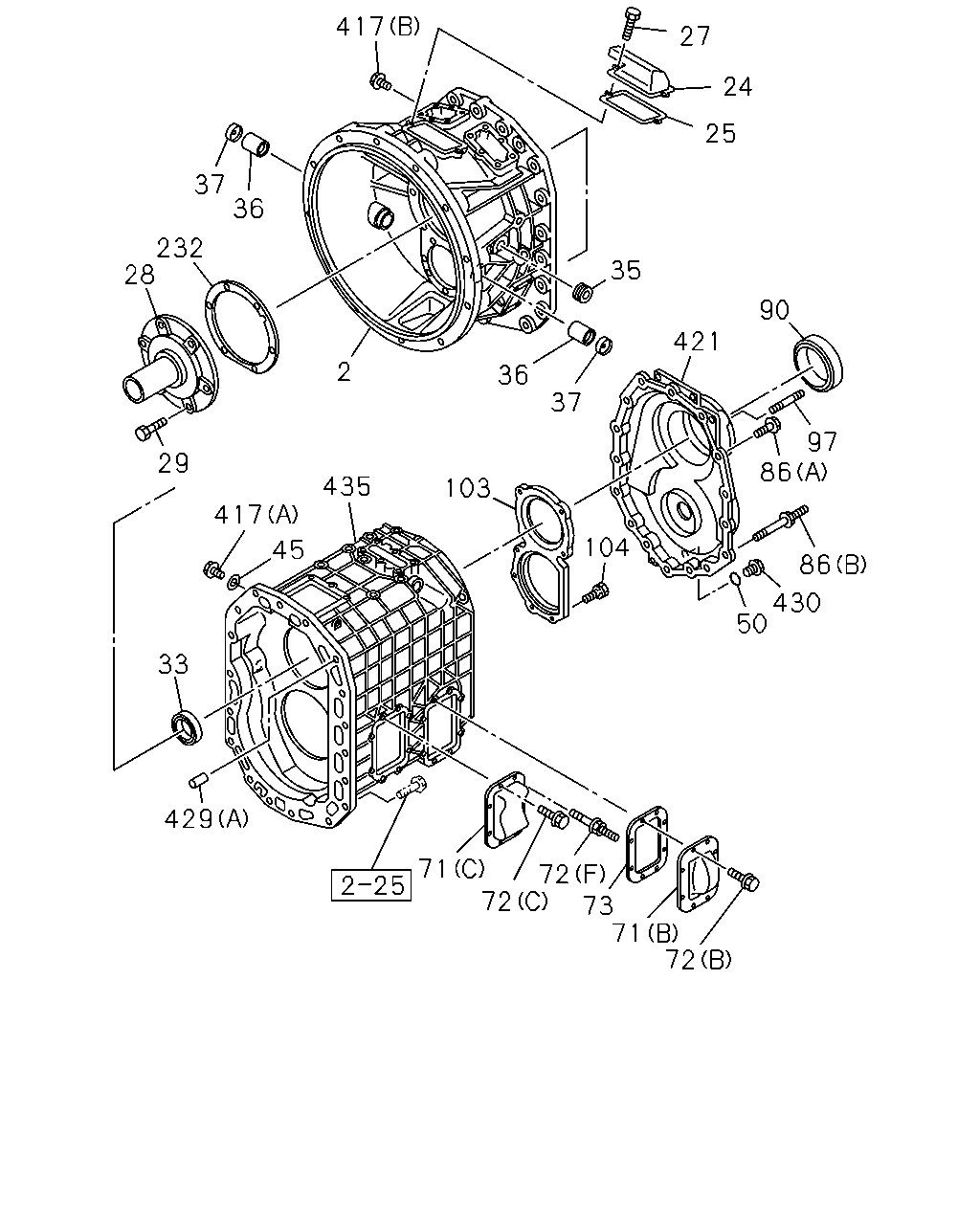

2-20 — MANUAL TRANSMISSION ASM AND CASE (#119299) — 174 parça

72 71 73 72 72 71 429 33 417 45 435 29 28 232 37 36 2 36 37 35 417 27 24 25 421 90 97 86 86 430 50 104 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98207-351-0	01	1	1305-	●
2	HOUSING; CLU	8-98168-737-0	01	1	1305-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1305-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1305-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1305-	●	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	1305-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1305-		●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1305-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1305-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1305-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1305-	●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1305-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-440-0	02	1	1305-	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1305-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	8-98205-404-0	02	1	1305-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1305-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1305-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1305-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	1305-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1305-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1305-	●	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	1305-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1305-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1305-	●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	1305-	●
72	BOLT; SIDE COVER (F) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1305-	●
72	BOLT; SIDE COVER (D) M10X35 FLANGE	0-28751-035-0	08	1	1305-		●
72	BOLT; SIDE COVER (E) M12X30 FLANGE	1-09044-086-0	08	1	1305-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	1305-	●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1305-	●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1305-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1305-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1305-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1305-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1305-	●
103	RETAINER; BRG	1-33151-059-0	01	1	1305-	●
103	RETAINER; BRG	1-33151-061-0	01	1	1305-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1305-	●	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1305-	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1305-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1305-	●	●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1305-1502	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1305-		●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	1305-	●	●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	1305-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1305-	●
435	CASE; TRANS	8-98132-970-0	01	1	1305-	●
435	CASE; TRANS	1-33111-361-1	01	1	1305-		●

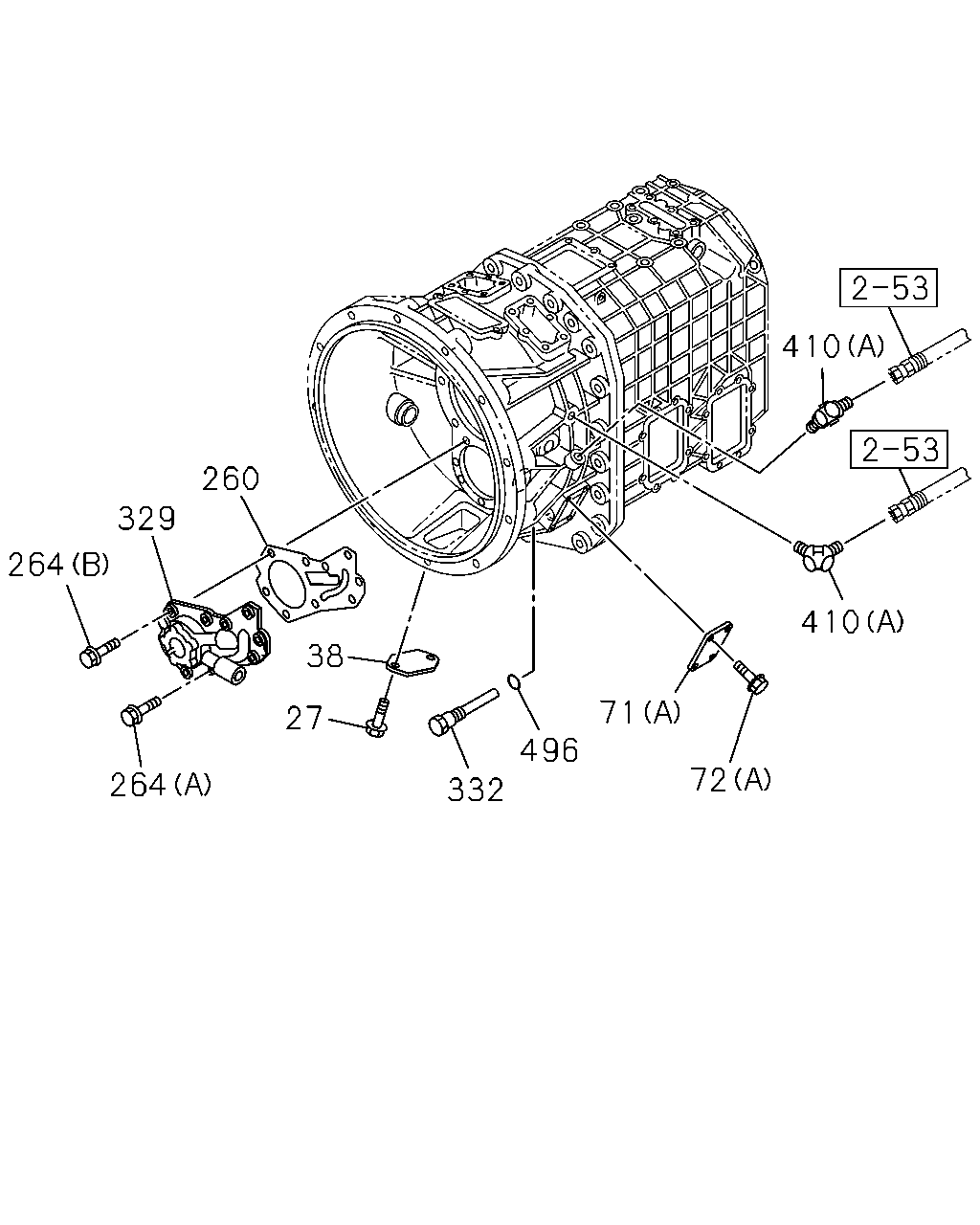

264 329 260 264 27 38 332 496 71 72 410 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1305-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1305-	●	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	1305-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1305-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1305-	●	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	1305-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1305-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1305-	●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	1305-	●
72	BOLT; SIDE COVER (F) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1305-	●
72	BOLT; SIDE COVER (D) M10X35 FLANGE	0-28751-035-0	08	1	1305-		●
72	BOLT; SIDE COVER (E) M12X30 FLANGE	1-09044-086-0	08	1	1305-		●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	1305-	●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1305-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1305-	●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1305-		●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1305-		●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1305-	●
329	PUMP ASM; OIL	1-34150-117-0	01	1	1305-1408		●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-		●
332	FILTER; OIL	1-34159-050-1	01	1	1305-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1305-	●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1305-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1305-		●
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	1305-	●

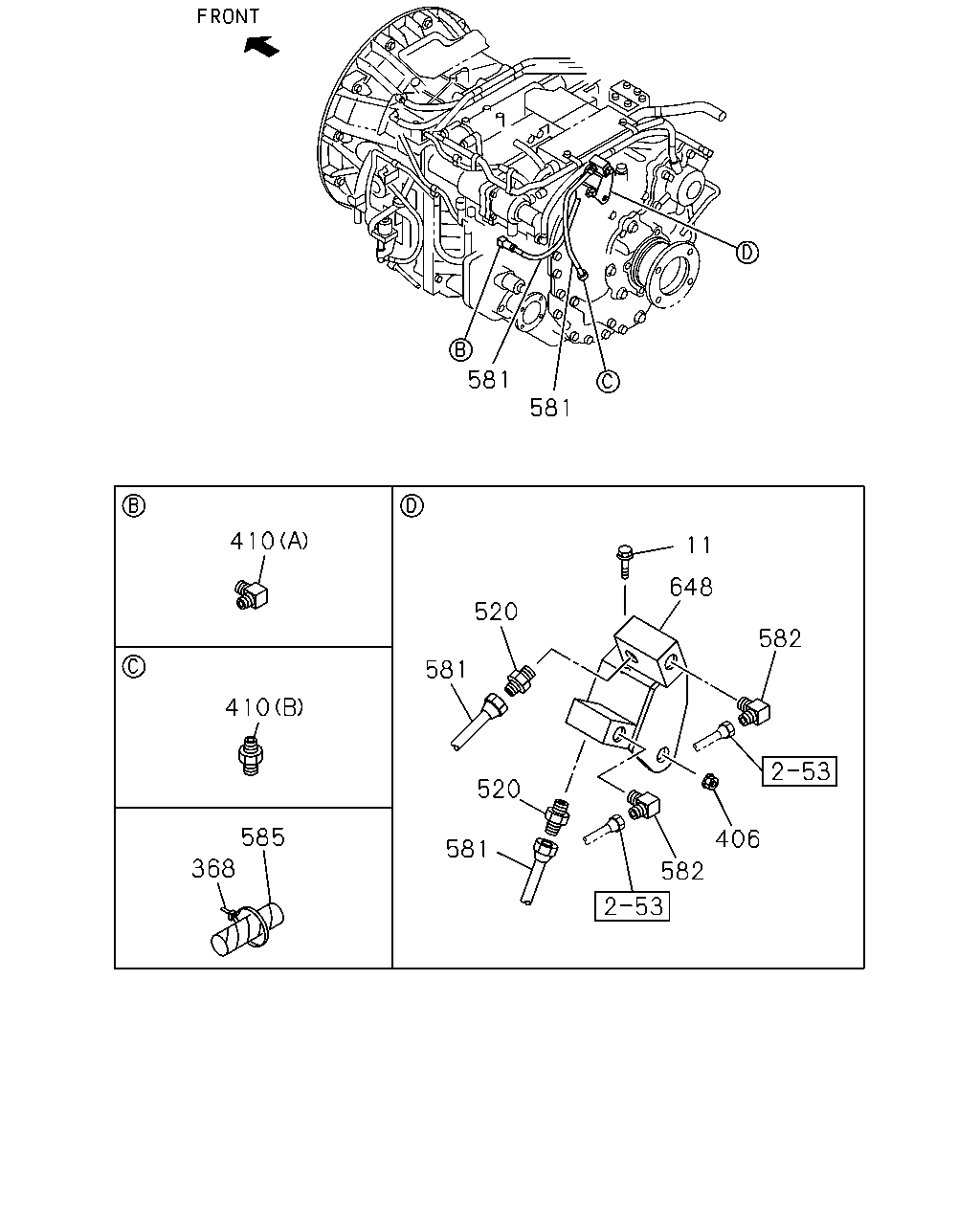

581 581 410 410 585 368 11 648 582 406 582 581 581 520 520

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1305-		●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1305-		●
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1305-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1305-	●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1305-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1305-		●
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1305-		●
581	HOSE; OIL COOLER L=360	1-09365-234-0	02	1	1305-		●
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1305-		●
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1305-		●
648	UNION ASM	8-98131-605-2	01	1	1305-		●

511 303 265 353 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
150	NUT M8 FLANGE	0-91180-108-0	01	1	1305-	●
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-	●
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1305-	●
353	CLIP; NYLON TUBE ID=18 H=23 L=28	1-09701-070-0	01	1	1305-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1305-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

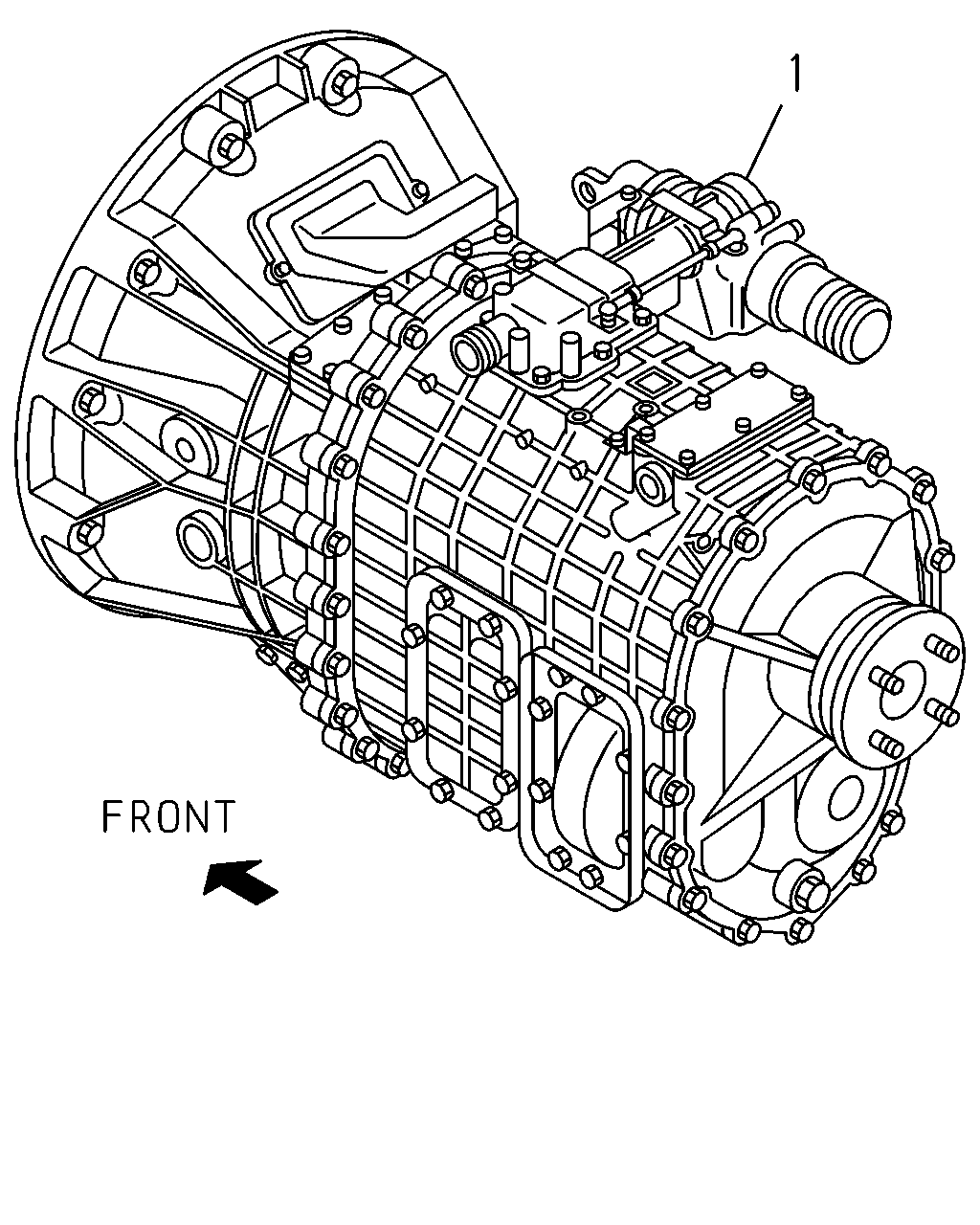

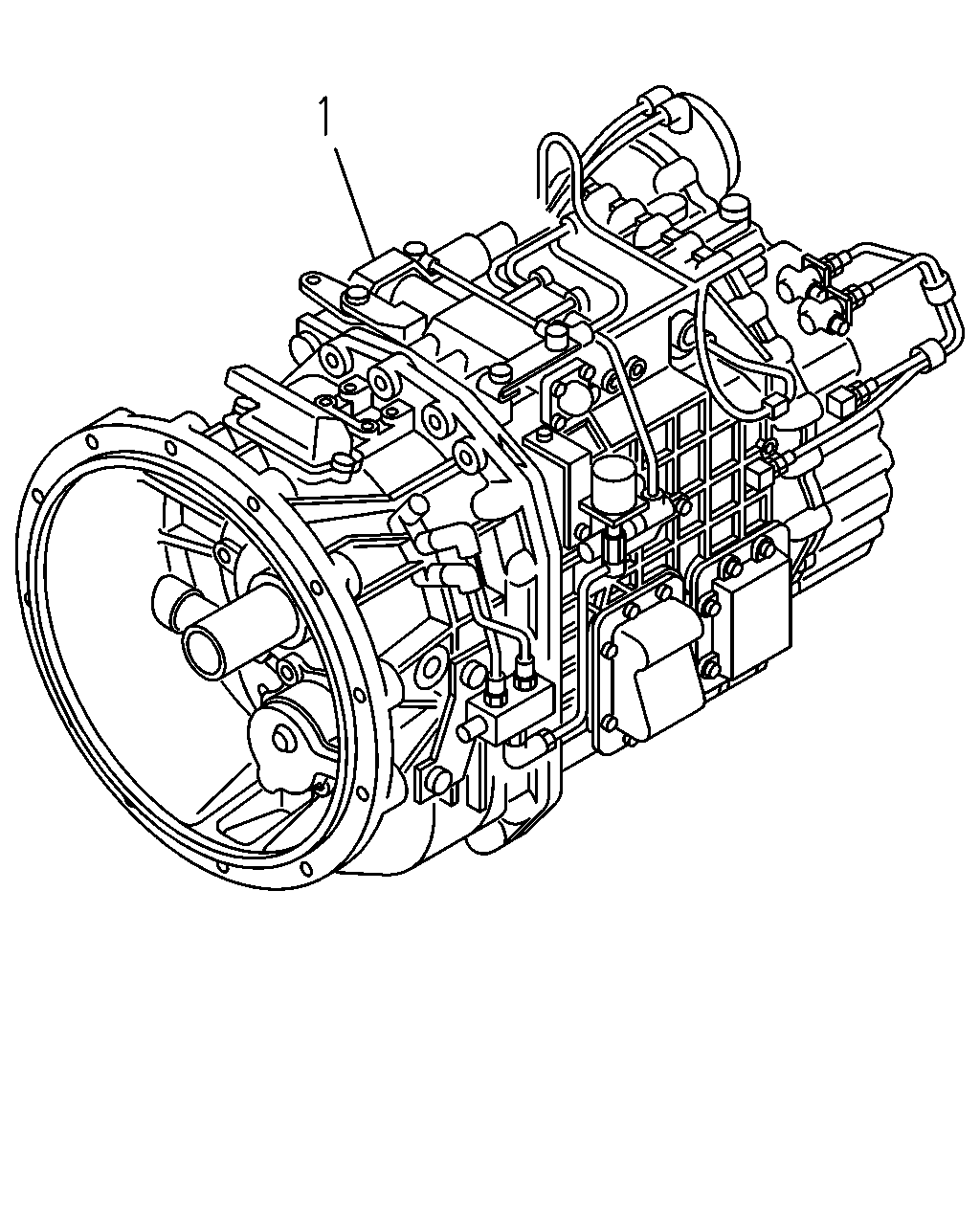

	1	TRANSMISSION ASM; MANUAL	1-33044-556-0	01	1	1305-	●
	1	TRANSMISSION ASM; MANUAL	1-33044-658-0	01	1	1305-		●

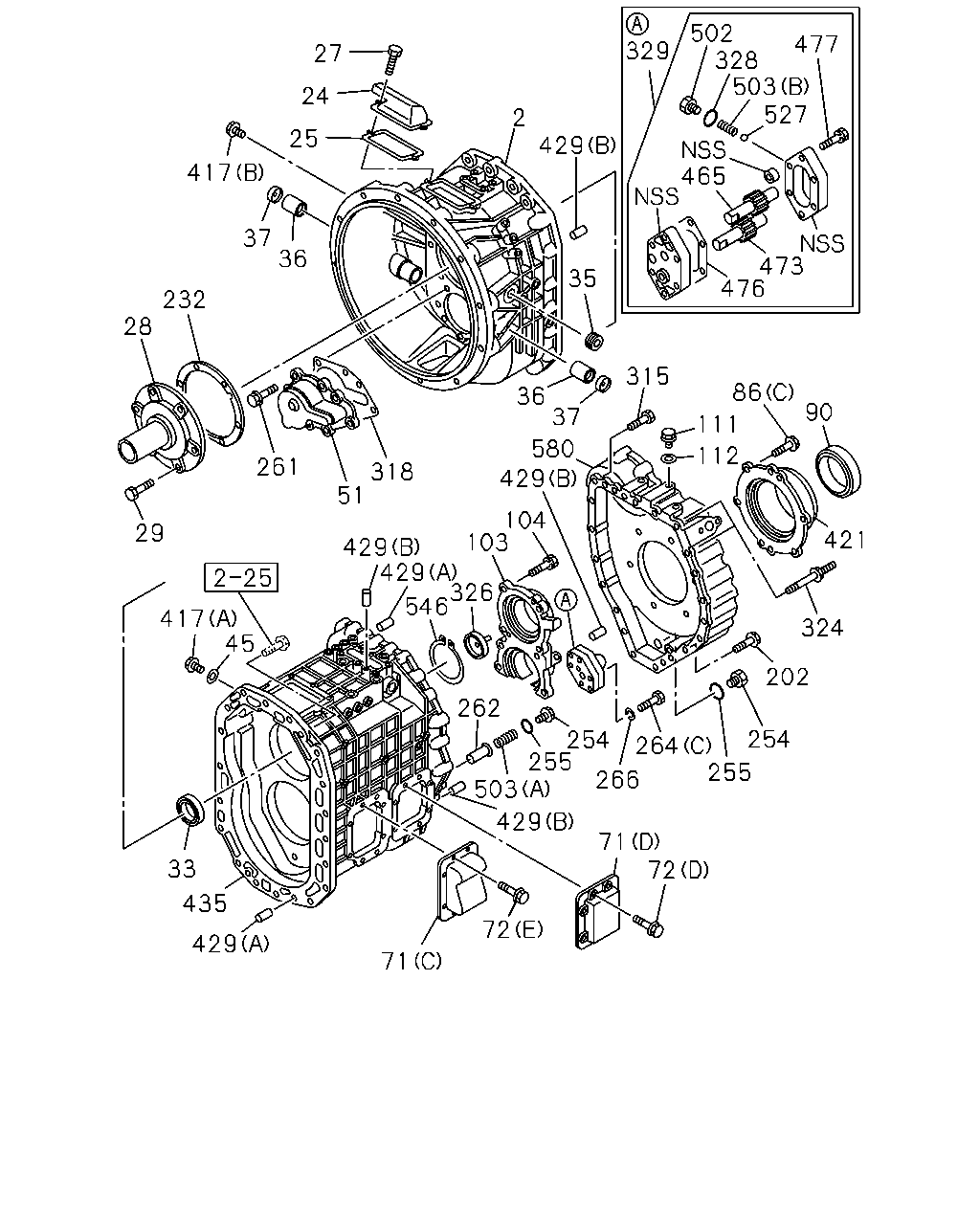

27 24 25 2 417 36 37 232 28 261 29 318 51 429 580 37 36 315 111 86 112 421 324 202 254 255 266 71 72 71 429 435 33 429 264 254 255 503 262 546 429 429 104 103 417 45 90 429 35 326 72 476 473 477 502 465 329 503 527 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98207-351-0	01	1	1305-	●
2	HOUSING; CLU	8-98168-737-0	01	1	1305-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1305-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1305-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1305-	●	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	1305-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1305-		●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1305-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1305-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1305-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1305-	●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1305-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-440-0	02	1	1305-	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1305-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	8-98205-404-0	02	1	1305-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1305-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1305-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	1305-		●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	1305-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1305-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1305-	●	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	1305-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1305-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1305-	●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	1305-	●
72	BOLT; SIDE COVER (F) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1305-	●
72	BOLT; SIDE COVER (D) M10X35 FLANGE	0-28751-035-0	08	1	1305-		●
72	BOLT; SIDE COVER (E) M12X30 FLANGE	1-09044-086-0	08	1	1305-		●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1305-	●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1305-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1305-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1305-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1305-		●
103	RETAINER; BRG	1-33151-059-0	01	1	1305-	●
103	RETAINER; BRG	1-33151-061-0	01	1	1305-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1305-	●	●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	1305-		●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1305-		●
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1305-		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1305-	●	●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1305-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1305-		●
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	1305-		●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1305-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1305-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1305-	●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1305-		●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1305-		●
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1305-		●
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1305-		●
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1305-		●
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1305-		●
318	GASKET; COVER	1-34142-034-0	01	1	1305-		●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1305-		●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1305-		●
328	GASKET; PLUG	1-34159-100-0	01	1	1305-		●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1305-	●
329	PUMP ASM; OIL	1-34150-117-0	01	1	1305-1408		●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1305-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1305-	●	●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1305-1502	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1305-		●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	1305-	●	●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	1305-		●
435	CASE; TRANS	8-98132-970-0	01	1	1305-	●
435	CASE; TRANS	1-33111-361-1	01	1	1305-		●
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	1305-1408		●
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	1305-1408		●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1305-		●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	1305-1408		●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1305-		●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1305-		●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1305-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	1305-		●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1305-		●
580	CASE; RANGE	1-33115-051-2	01	1	1305-		●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL	1-33044-556-0	01	1	1305-	●
	1	TRANSMISSION ASM; MANUAL	1-33044-658-0	01	1	1305-		●
