2-20 — MANUAL TRANSMISSION ASM AND CASE (#119296) — 98 parça

72 71 73 332 186 82 186 82 437 322 321 321 435 186 82 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

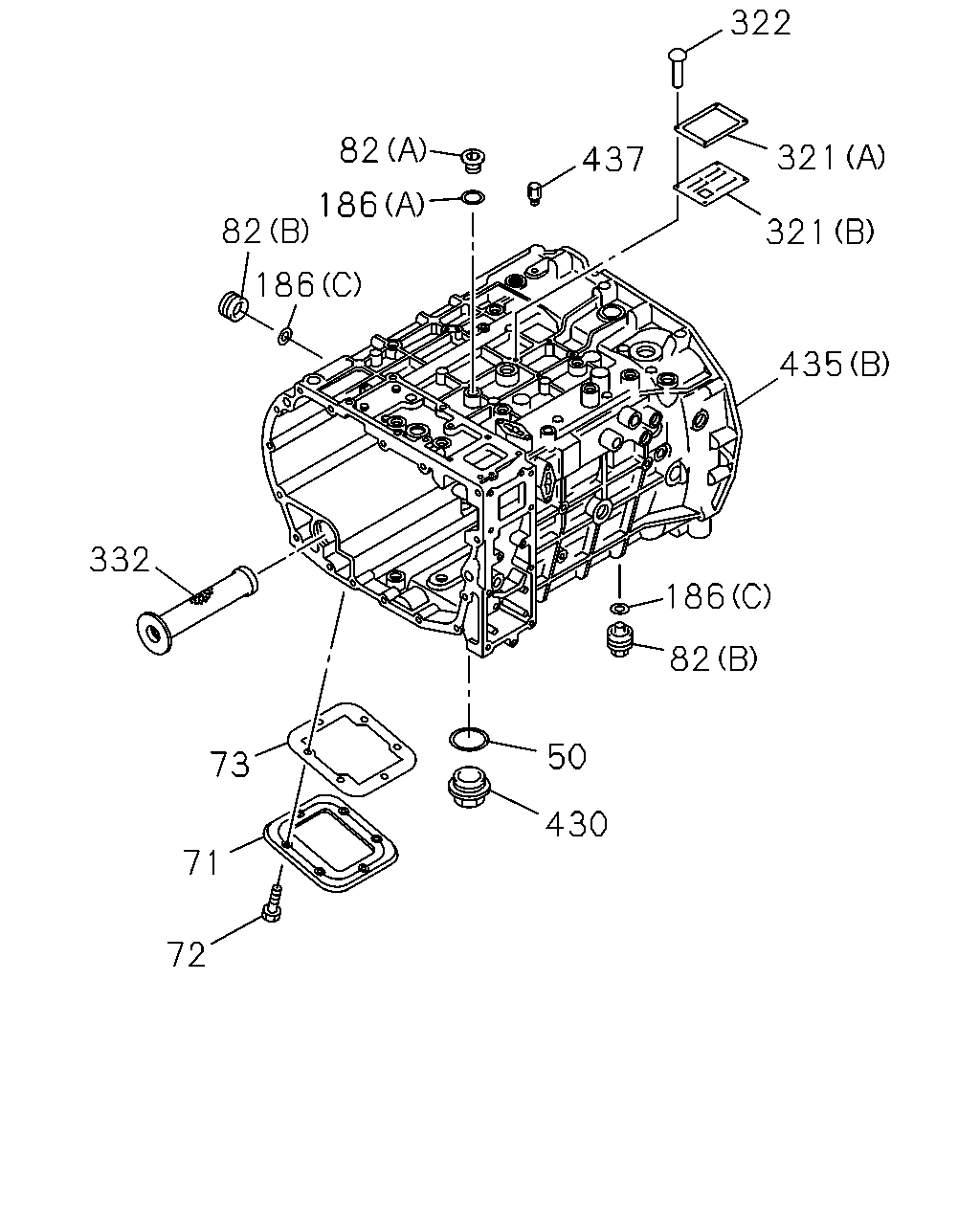

50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). IMA	1-33119-293-0	01	1	1305-
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	1305-1305
71	COVER; SIDE,TRANS CASE IMA	1-33119-622-0	01	1	1306-
72	BOLT; SIDE COVER M10X22 IMA	1-33119-592-0	06	1	1305-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	1-33119-237-0	01	1	1305-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1305-1305
82	PLUG; SCREW,CASE (A) IMA	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	1305-1305
82	PLUG; SCREW,CASE (B) IMA	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-34539-113-0	02	1	1305-1305
82	PLUG; SCREW,CASE (C) IMA	1-33119-618-0	02	1	1306-
186	RING; SEAL (A) IMA	1-33119-249-0	01	1	1305-
186	RING; SEAL (B) IMA	1-33119-286-0	02	1	1305-
186	RING; SEAL (C) IMA	1-33119-435-0	02	1	1305-
321	PLATE; NAME (A) IMA	1-33119-519-0	01	1	1305-
321	PLATE; NAME (B) IMA	1-33119-520-0	01	1	1305-
322	RIVET; NAME PLATE	1-33119-556-0	04	1	1305-1305
322	RIVET; NAME PLATE IMA	1-33119-617-0	04	1	1306-
332	FILTER; OIL IMA	1-33119-437-0	01	1	1305-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1305-1305
430	PLUG; OIL DRAIN IMA	1-33119-621-0	01	1	1306-
435	CASE; TRANS (B) IMA	1-33111-372-0	01	1	1305-
435	CASE; TRANS (A)	1-33111-373-0	01	1	1305-1305
435	CASE; TRANS (A) IMA	1-33111-380-0	01	1	1306-
437	BREATHER; TRANS	1-36122-004-0	01	1	1305-1305
437	BREATHER; TRANS IMA	1-36122-006-0	01	1	1306-

327 427 86 421 123 123 62 86 86 86 86 86 86 427 415 86 519 25 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

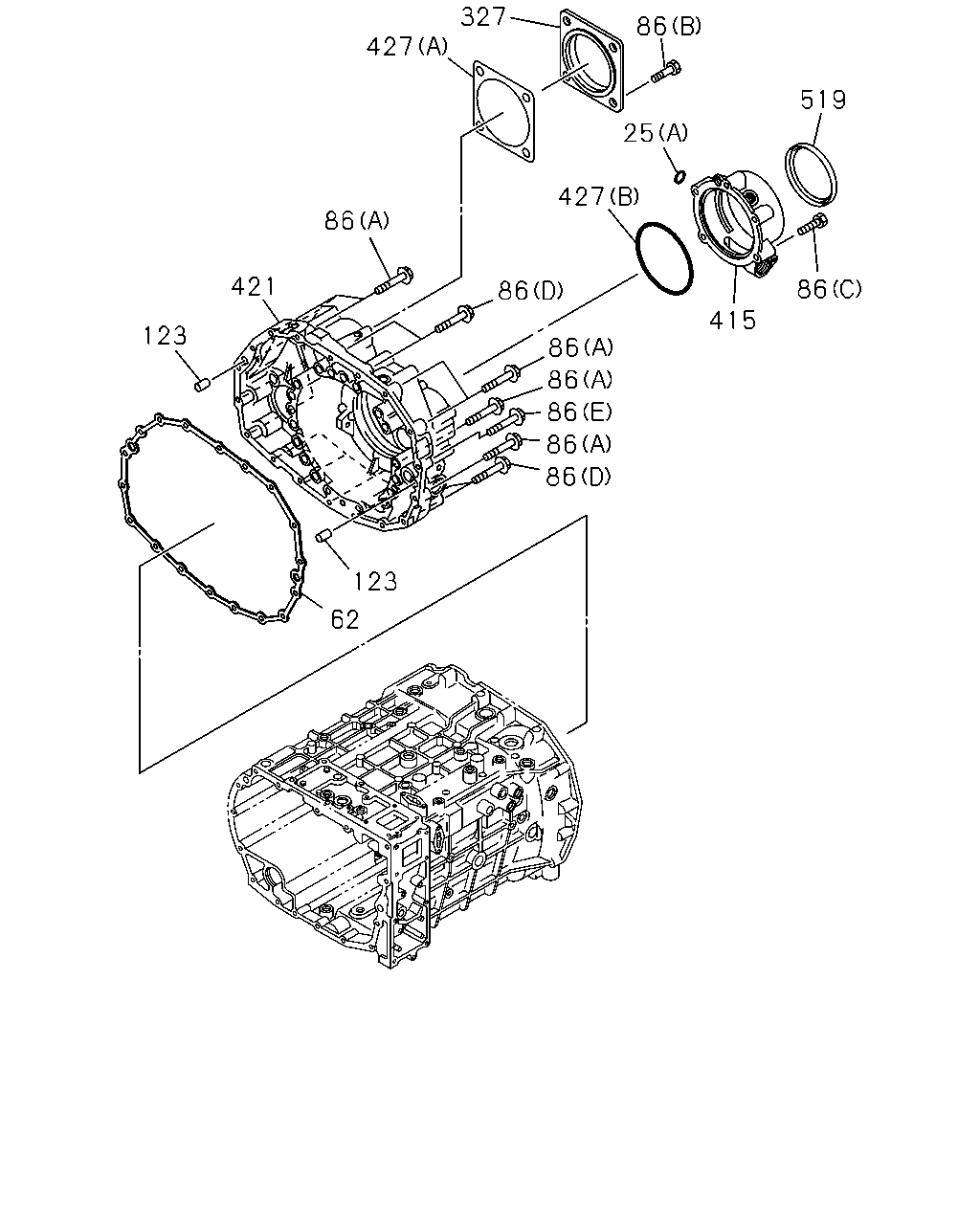

25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (A) IMA	1-33139-060-0	01	1	1305-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	8-98138-242-0	01	1	1305-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). IMA	1-33132-087-0	01	1	1305-
86	BOLT; RR COVER (A) M10X70	1-33119-522-0	12	1	1305-1305
86	BOLT; RR COVER (A) M10X70 IMA	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER (D) M10X110	1-33139-057-0	05	1	1305-1305
86	BOLT; RR COVER (D) M10X110 IMA	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER (E) M10X50	1-33139-058-0	01	1	1305-1305
86	BOLT; RR COVER (E) M10X50 IMA	1-33139-236-0	01	1	1306-
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	1305-1305
86	BOLT; RR COVER (C) M10X60 IMA	1-33139-237-0	05	1	1306-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR<BDM> (B) M12X25 IMA	1-33119-594-0	04	1	1305-
123	DOWEL; TRANS CASE IMA	1-33119-292-0	04	1	1305-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR<BDM>	1-33131-165-0	01	1	1305-1305
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR<BDM> IMA	1-33131-273-0	01	1	1306-
415	COVER; BRG IMA	1-33131-269-0	01	1	1305-
421	COVER; RR,TRANS	1-33131-261-0	01	1	1305-1305
421	COVER; RR,TRANS IMA	1-33131-275-0	01	1	1306-
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1305-1305
427	GASKET; RR COVER (B) IMA	1-33132-088-0	01	1	1306-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR<BDM> (A) IMA	1-33132-054-0	01	1	1305-
519	GASKET; SHAFT IMA	1-33139-059-0	01	1	1305-

329 468 245 478 477 27 24 330 28 315 435 314 33 113 25 29 463 82 186 412 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

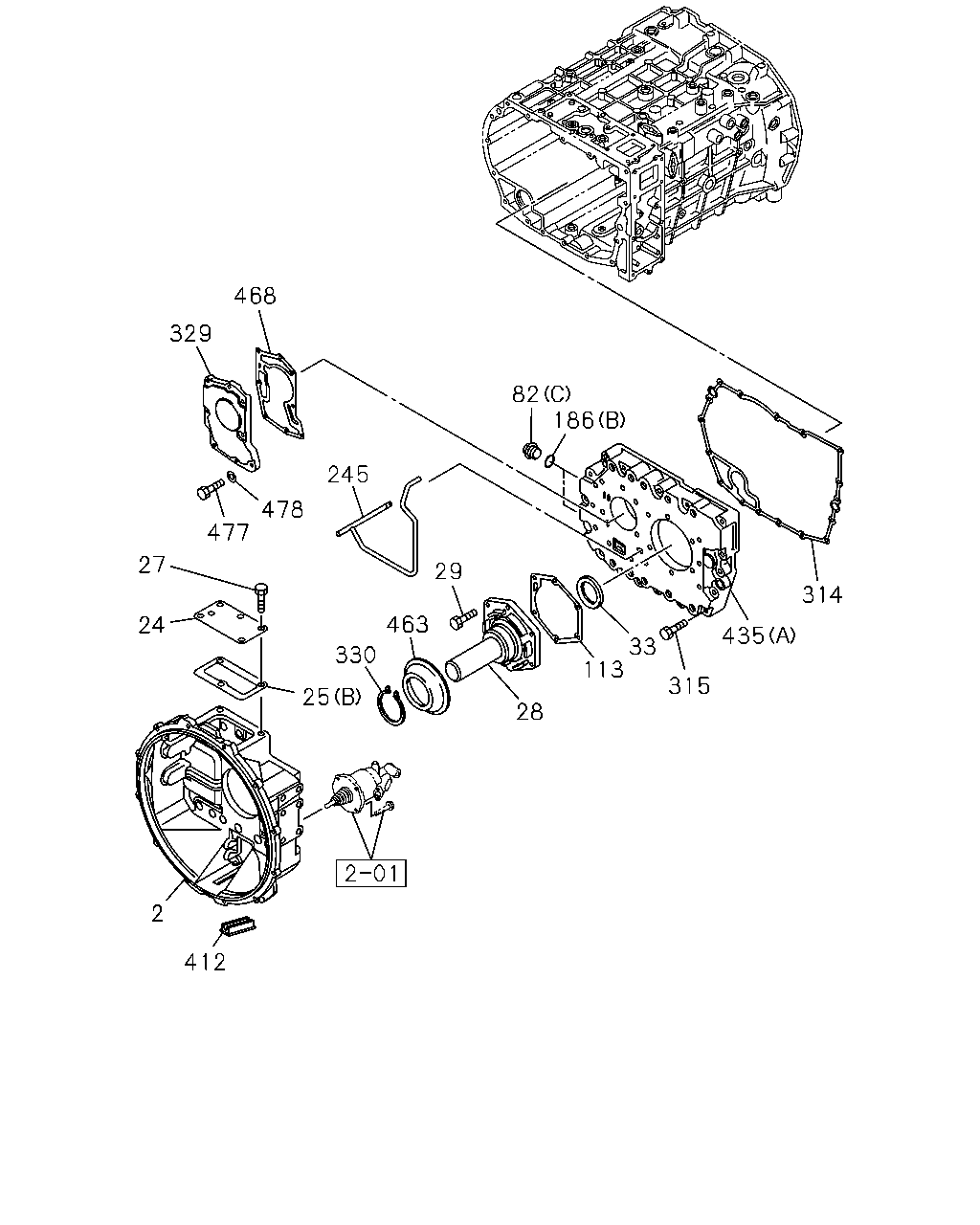

2	HOUSING; CLU IMA	1-31111-232-0	01	1	1305-
24	COVER; CHECK HOLE,DUST	1-31119-051-0	01	1	1305-1305
24	COVER; CHECK HOLE,DUST IMA	1-31119-061-0	01	1	1306-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (A) IMA	1-33139-060-0	01	1	1305-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	8-98138-242-0	01	1	1305-
27	BOLT; COVER TO CLU HSG IMA	1-31119-058-0	03	1	1305-
28	COVER; FRT,TRANS CASE IMA	1-33121-167-0	01	1	1305-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1305-1305
29	BOLT; FRT COVER M8X30 IMA	1-33549-581-0	06	1	1306-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IMA	1-33219-321-0	01	1	1305-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1305-1305
82	PLUG; SCREW,CASE (A) IMA	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	1305-1305
82	PLUG; SCREW,CASE (B) IMA	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-34539-113-0	02	1	1305-1305
82	PLUG; SCREW,CASE (C) IMA	1-33119-618-0	02	1	1306-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	1-33122-024-0	01	1	1305-
186	RING; SEAL (A) IMA	1-33119-249-0	01	1	1305-
186	RING; SEAL (B) IMA	1-33119-286-0	02	1	1305-
186	RING; SEAL (C) IMA	1-33119-435-0	02	1	1305-
245	PIPE; OIL IMA	1-33119-517-0	01	1	1305-
314	GASKET; CASE IMA	1-33112-052-0	01	1	1305-
315	BOLT; CASE M10X70	1-33119-522-0	17	1	1305-1305
315	BOLT; CASE M10X70 IMA	1-33119-616-0	17	1	1306-
329	PUMP ASM; OIL IMA	1-34150-123-0	01	1	1305-
330	RING; RET IMA	1-33129-005-0	01	1	1305-
412	CAP; CLU HSG IMA	1-31119-015-0	01	1	1305-
435	CASE; TRANS (B) IMA	1-33111-372-0	01	1	1305-
435	CASE; TRANS (A)	1-33111-373-0	01	1	1305-1305
435	CASE; TRANS (A) IMA	1-33111-380-0	01	1	1306-
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	1305-1305
463	COVER; DUST,FRT COVER IMA	1-33129-018-0	01	1	1306-
468	GASKET; OIL PUMP IMA	1-34159-122-0	01	1	1305-
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	1305-1305
477	BOLT; OIL PUMP M8X30 IMA	1-33549-581-0	08	1	1306-
478	WASHER; LK,OIL PUMP	1-33549-577-0	08	1	1305-1305
478	WASHER; LK,OIL PUMP IMA	1-33549-583-0	08	1	1306-

511 303 353 290 439 406 271 265 198 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

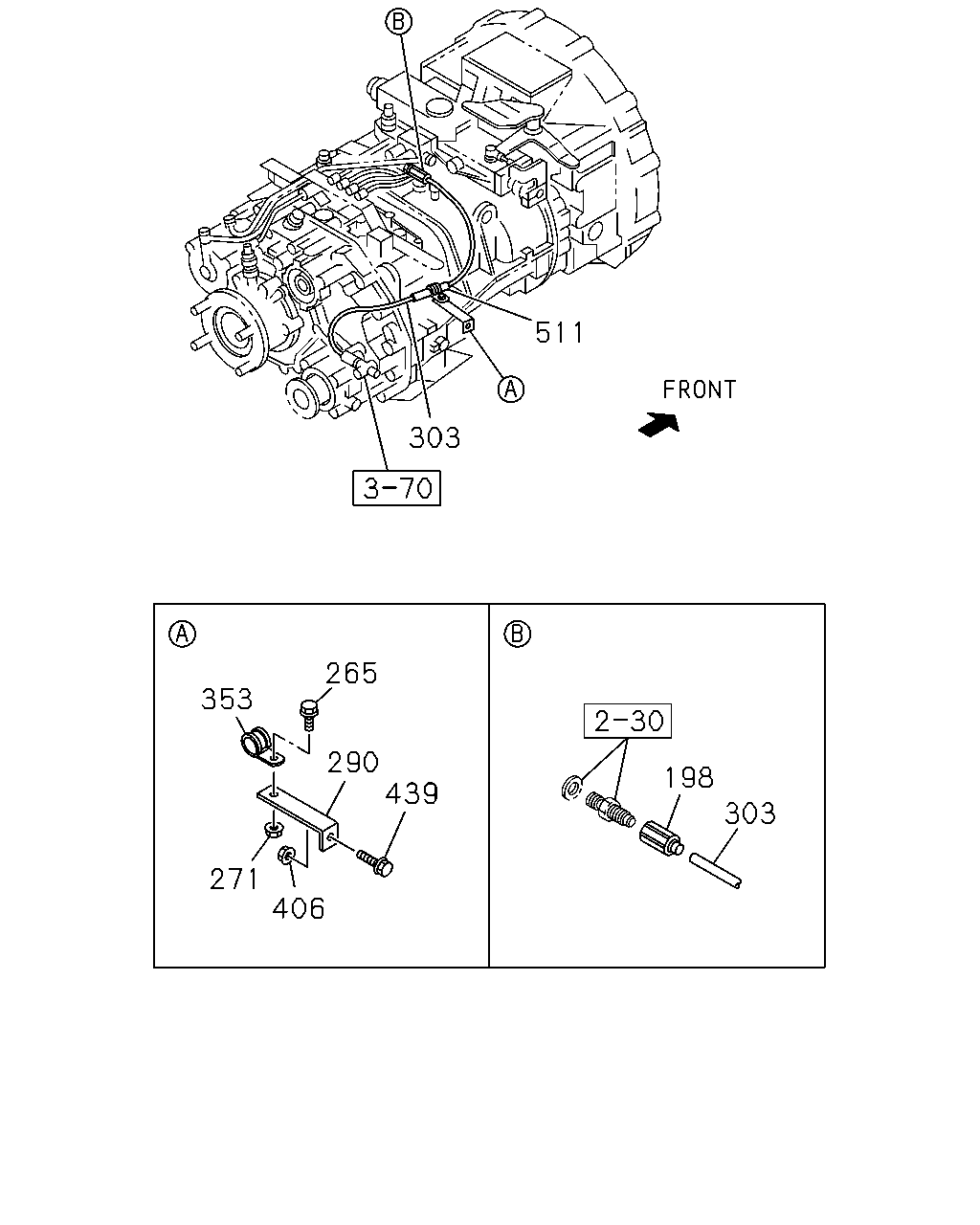

198	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1305-
265	BOLT; CLIP FXZ<FG****> M8X25 FLANGE THA	0-28650-825-0	01	1	1305-
265	BOLT; CLIP GXZ<GG****> M8X20 FLANGE THA	0-28650-820-0	01	1	1305-
271	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1305-
290	BRACKET; CLIP GXZ<GG****> L=95	1-82699-085-0	01	1	1305-
303	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	01	1	1305-
353	CLIP; NYLON TUBE FXZ<FG****> ID=18 L=25 H=50	1-09701-096-0	01	1	1305-
353	CLIP; NYLON TUBE GXZ<GG****> ID=18 L=40	1-09701-111-0	01	1	1305-
406	NUT; BRKT GXZ<GG****> M8 FLANGE THA	0-91180-108-0	01	1	1305-
439	BOLT; BRKT GXZ<GG****> M8X25 FLANGE THA	0-28650-825-0	01	1	1305-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	01	1	1305-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

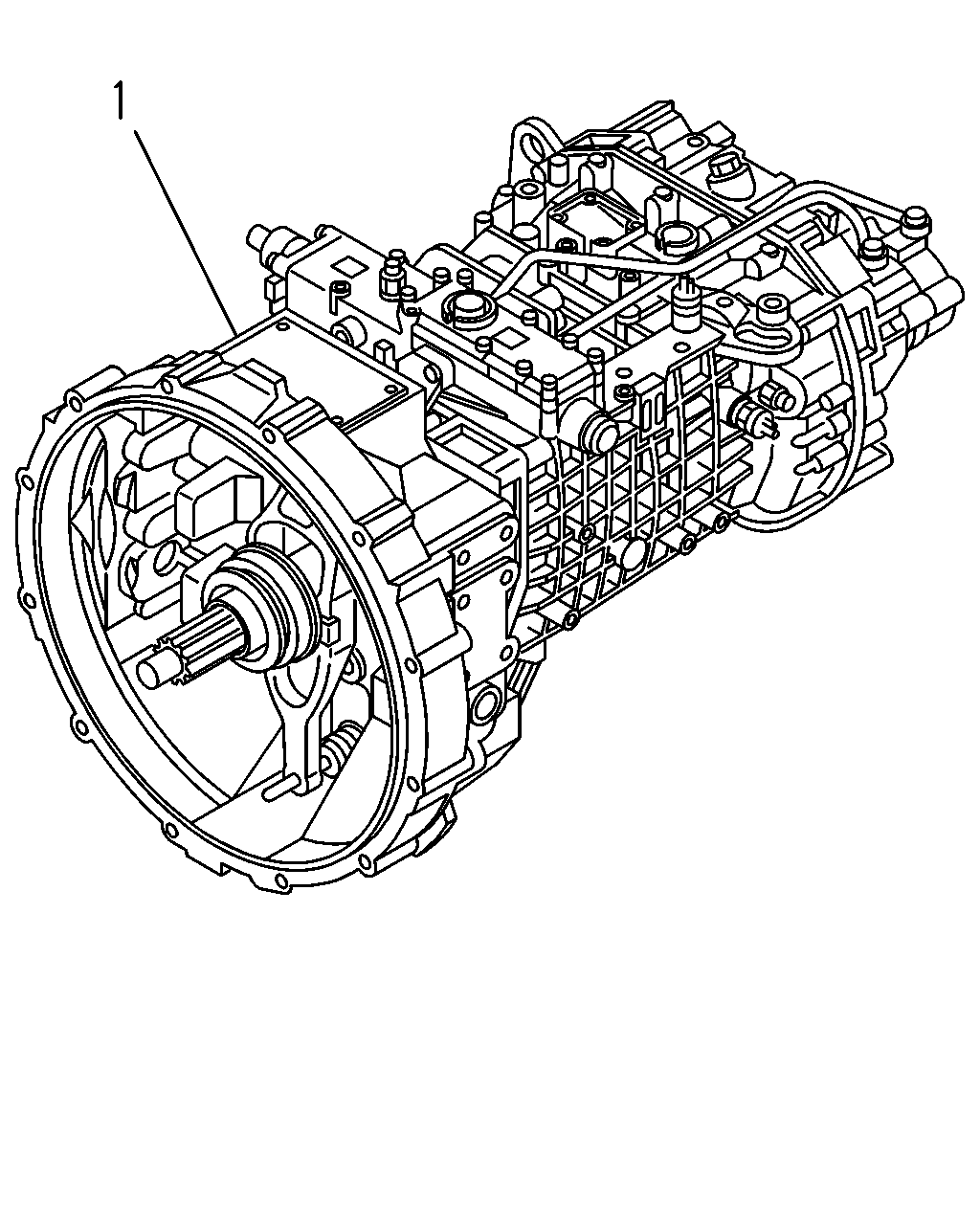

	1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR<BDM> IMA	8-98167-318-1	01	1	1305-
	1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR<BDM> IMA	8-98167-317-1	01	1	1305-
