Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#119295) — 53 parça
◀

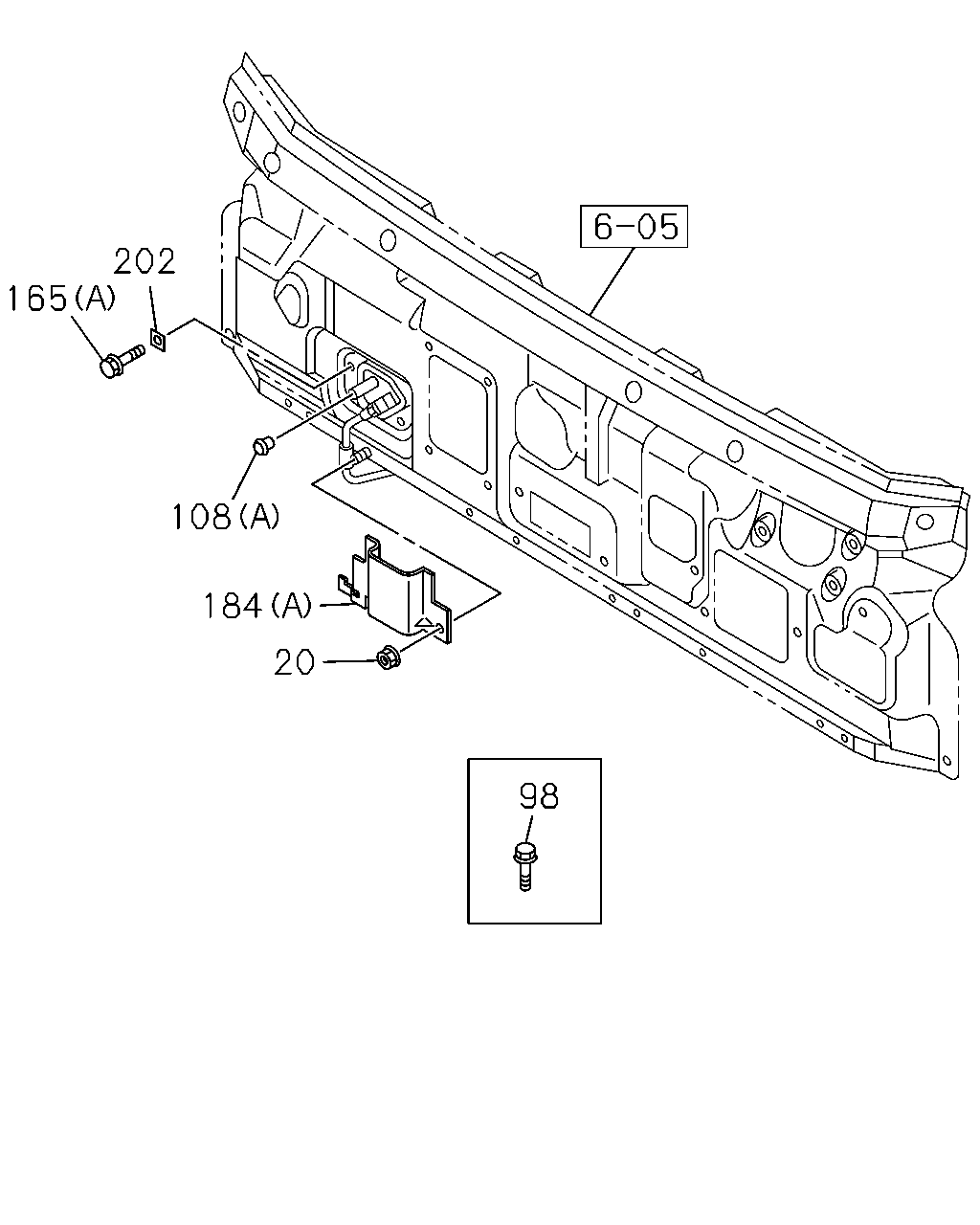

[360A] CAB OUTSIDE (12 parça)

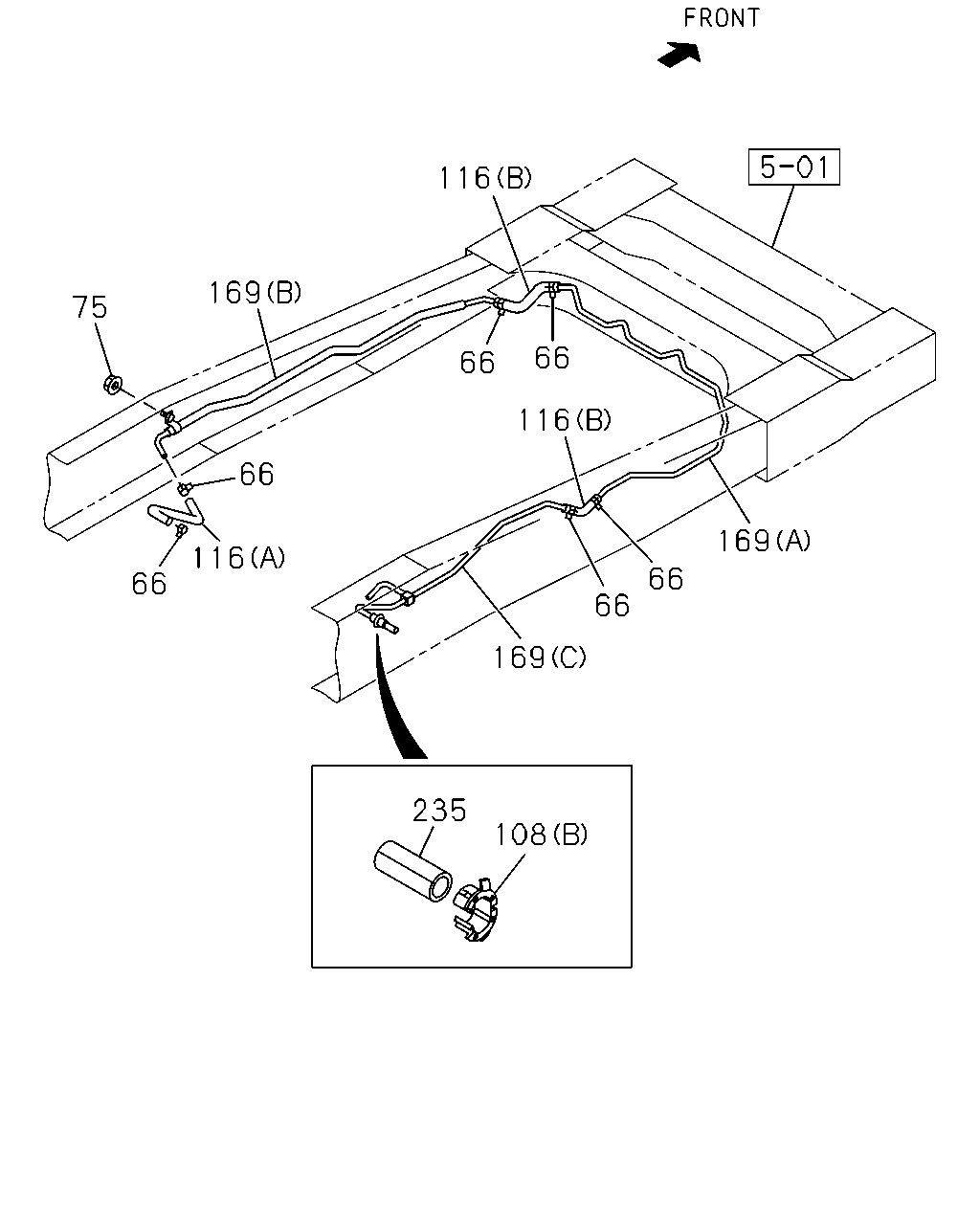

[360A] FRAME SIDE(NO.1) (14 parça)
[360A] FRAME SIDE(NO.2) (14 parça)
[360A] FRAME SIDE(NO.3) (8 parça)

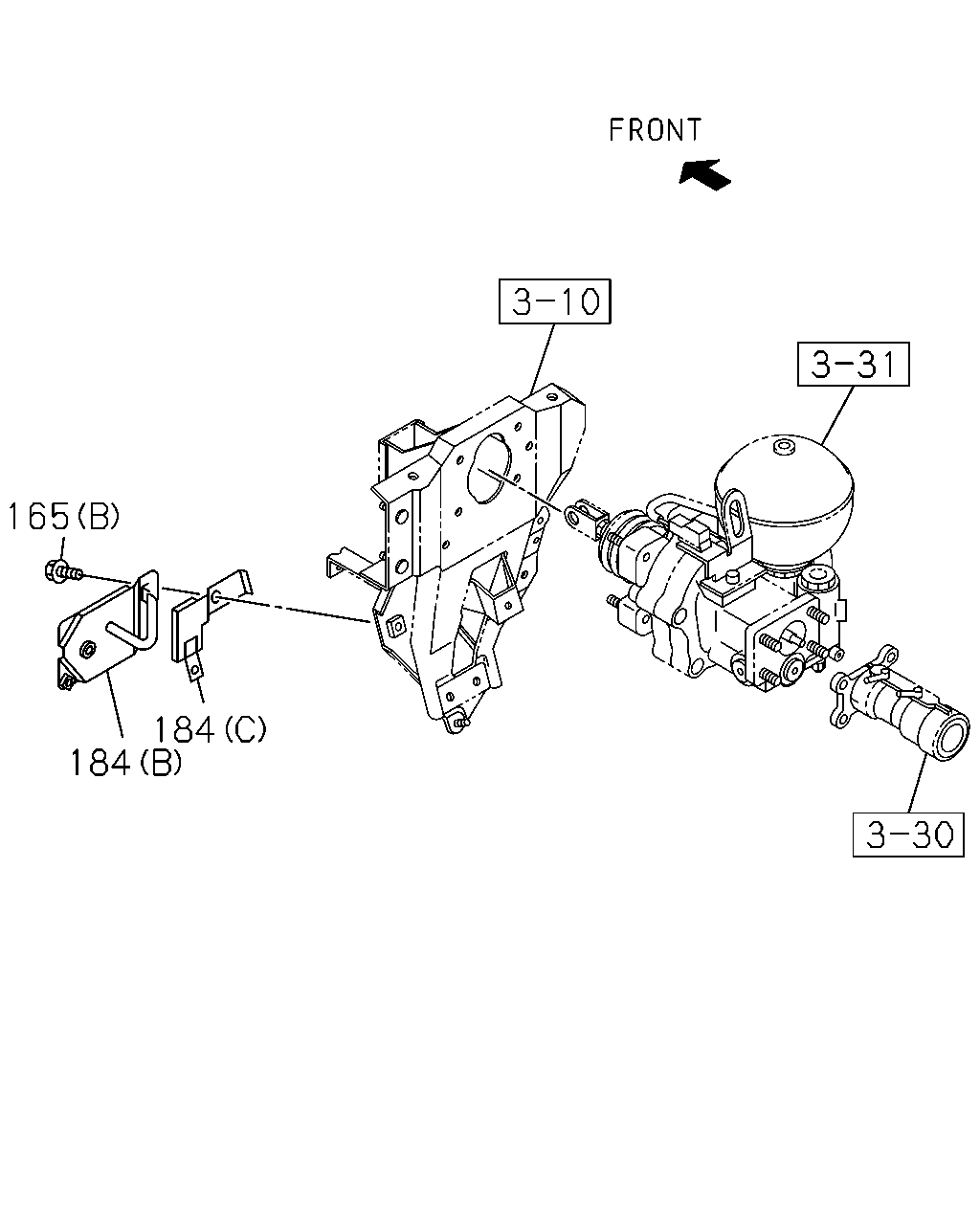

[360A] CAB INSIDE (5 parça)
▶
202
165
108
184
20
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1304-
98
BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> M6X12 FLANGE THA
0-28050-612-0
01
1
1304-
98
BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
108
GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA
8-94128-319-2
01
1
1304-
108
GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA
8-94128-319-2
01
1
1304-
108
GROMMET; PIPE
(A) IMA
9-09956-353-0
01
1
1304-
165
BOLT; BRKT
(B) M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
165
BOLT; BRKT
(A) M6X20 W/LK&PL WASHER IMA
8-98031-842-0
02
1
1304-
184
BRACKET; UNION FIX
(A) IMA
8-98017-628-1
01
1
1304-
184
BRACKET; UNION FIX
(C) IMA
8-98156-526-0
01
1
1304-
184
BRACKET; UNION FIX
(B) IMA
8-98193-145-0
01
1
1304-
202
SEAL
IMA
8-97856-616-0
02
1
1304-
116
169
75
66
116
66
169
66
66
169
235
108
66
66
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
66
CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA
8-98008-098-0
02
1
1304-
66
CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA
8-98008-098-0
04
1
1304-
75
NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
01
1
1304-
108
GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA
8-94128-319-2
01
1
1304-
108
GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA
8-94128-319-2
01
1
1304-
108
GROMMET; PIPE
(A) IMA
9-09956-353-0
01
1
1304-
116
HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-98158-378-0
01
1
1304-
116
HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 IMA
0-08158-300-0
01
1
1304-
116
HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000 IMA
0-08158-300-0
01
1
1304-
169
PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-98041-052-2
01
1
1304-
169
PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-98048-901-0
01
1
1304-
169
PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA
8-98048-903-0
01
1
1304-
235
RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA
8-97214-235-0
01
1
1304-
235
RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA
8-97214-235-0
01
1
1304-
122
136
136
136
236
158
78
44
136
78
136
136
44
136
78
136
235
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-98057-425-1
01
1
1304-
44
PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-98070-194-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) IMA
8-97386-589-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA
8-98057-462-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) IMA
8-98112-680-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) IMA
8-98136-613-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-98171-287-0
01
1
1304-
122
HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> THA
8-98189-104-0
01
1
1304-
136
CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA
8-98008-098-0
02
1
1304-
136
CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA
8-98008-098-0
06
1
1304-
158
CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> ID=14-20 IMA
8-97061-603-0
01
1
1304-
235
RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA
8-97214-235-0
01
1
1304-
235
RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA
8-97214-235-0
01
1
1304-
236
BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
01
1
1304-
80
78
39
39
78
80
39
39
39
39
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> ID=11-17 IMA
8-98173-762-1
08
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) IMA
8-97386-589-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA
8-98057-462-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) IMA
8-98112-680-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) IMA
8-98136-613-0
01
1
1304-
78
HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-98171-287-0
01
1
1304-
80
PIPE; VAC,ENG SIDE
FRAME STRAIGHT TYPE<7KJ> (B) IMA
8-97386-605-0
01
1
1304-
80
PIPE; VAC,ENG SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA
8-98097-788-0
01
1
1304-
165
184
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
165
BOLT; BRKT
(B) M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
165
BOLT; BRKT
(A) M6X20 W/LK&PL WASHER IMA
8-98031-842-0
02
1
1304-
184
BRACKET; UNION FIX
(A) IMA
8-98017-628-1
01
1
1304-
184
BRACKET; UNION FIX
(C) IMA
8-98156-526-0
01
1
1304-
184
BRACKET; UNION FIX
(B) IMA
8-98193-145-0
01
1
1304-
