4-01 — PROPELLER SHAFT (#119294) — 84 parça
çizim 350020
56 95 9 8 1 128 225 104 9 8 106 106 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=844 		1-37153-533-0 01 1 1305-
1 SHAFT; PROP
(A) L=1070 		8-98094-187-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1305-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1305-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1305-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1305-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1305-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1305-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1305-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1305-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1305-
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1305-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1305-
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 1305-

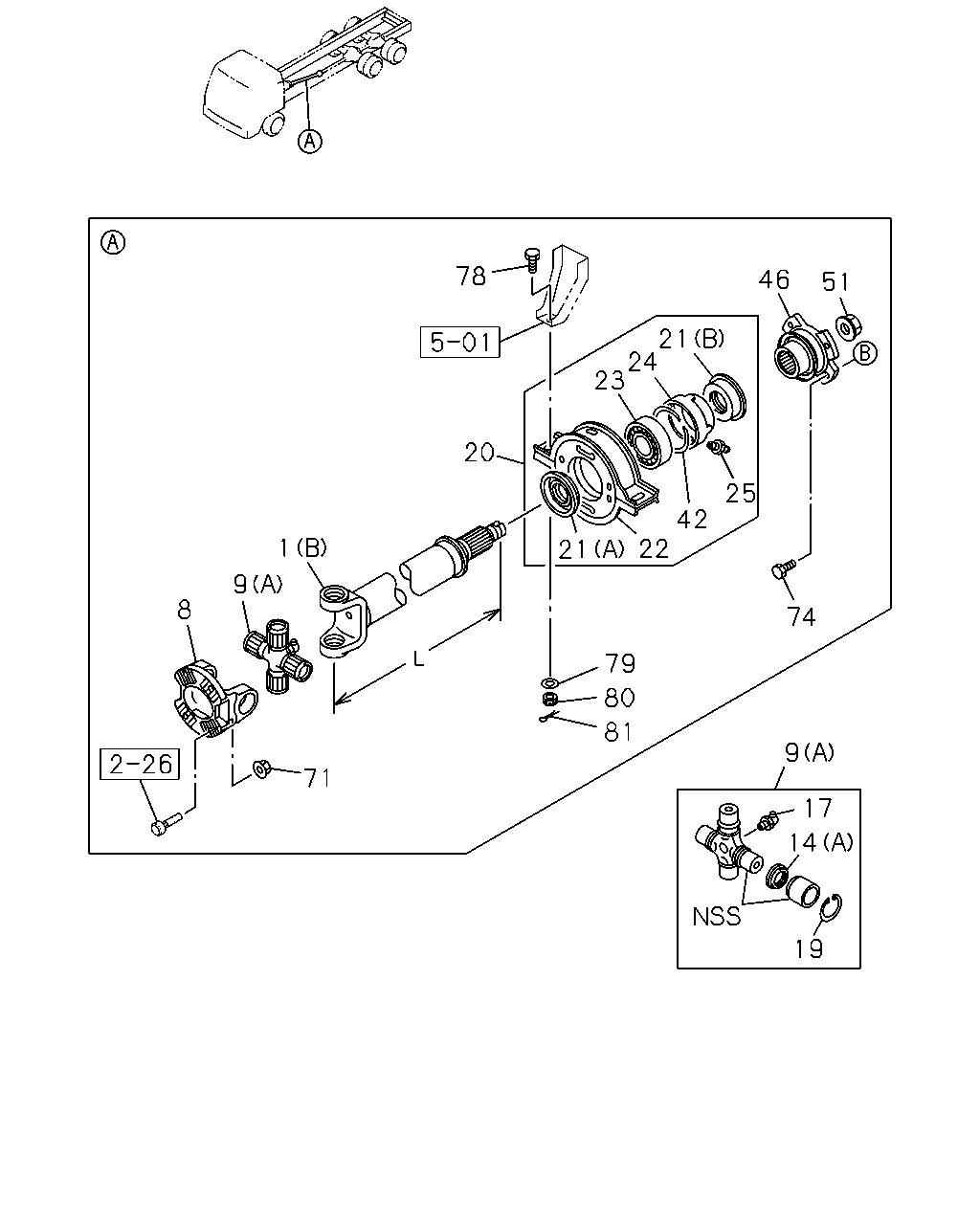

çizim 350982
78 46 51 25 21 24 23 42 22 21 20 1 9 8 71 79 80 81 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=844 		1-37153-533-0 01 1 1305-
1 SHAFT; PROP
(A) L=1070 		8-98094-187-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1305-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1305-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1305-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1305-
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1305-
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1305-
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1305-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1305-
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1305-
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1305-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1305-
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1305-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1305-
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1305-
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1305-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1305-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1305-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1305-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1305-

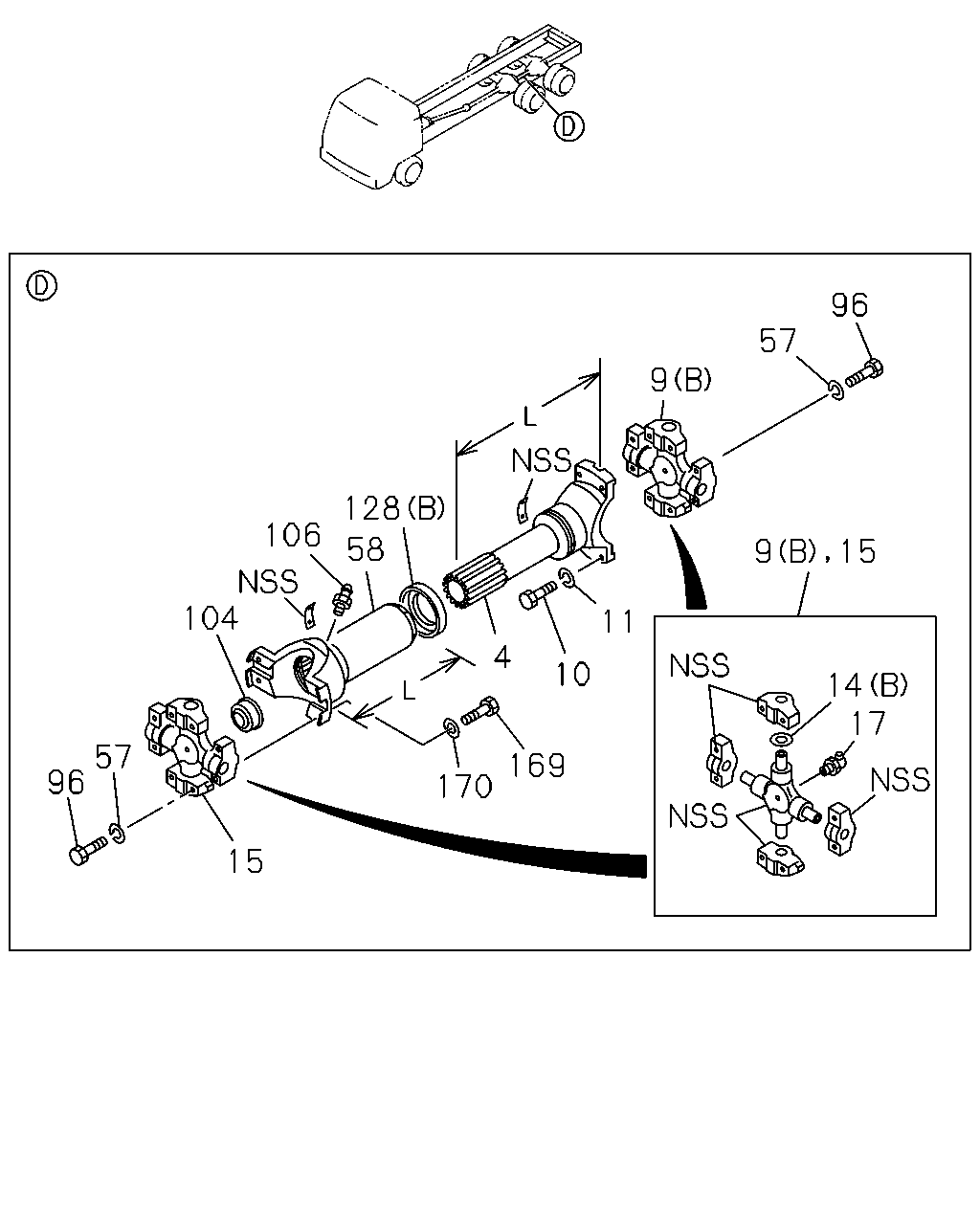

çizim 350993
96 57 9 128 106 104 58 57 96 15 170 10 169 4 11 9 15 14 17
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; PROP
L=418 		1-37171-129-3 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1305-
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1305-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1305-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1305-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1305-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1305-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1305-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1305-
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1305-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1305-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1305-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1305-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1305-
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1305-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1305-
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1305-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1305-
