9-32 — REAR BODY; GUARD FRAME (#119291) — 156 parça
çizim 351861
61 73 45 29 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1305-1506 ● ● ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1305-1506 ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1305-1506 ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1507- ● ● ● ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98103-280-7 01 1 1305- ● ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (D) 		8-98103-279-8 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98190-130-2 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98190-130-2 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (C) 		8-98190-131-1 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-98190-131-1 01 1 1305- ●
45 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-94221-150-0 13 1 1305- ● ● ● ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98104-382-6 01 1 1305- ● ● ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98133-143-6 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98133-143-6 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (C) 		8-98104-396-5 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-98104-396-5 01 1 1305- ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98187-269-0 01 1 1305-1408 ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-706-0 01 1 1305-1408 ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-226-0 01 1 1305- ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-227-0 01 1 1305- ● ●

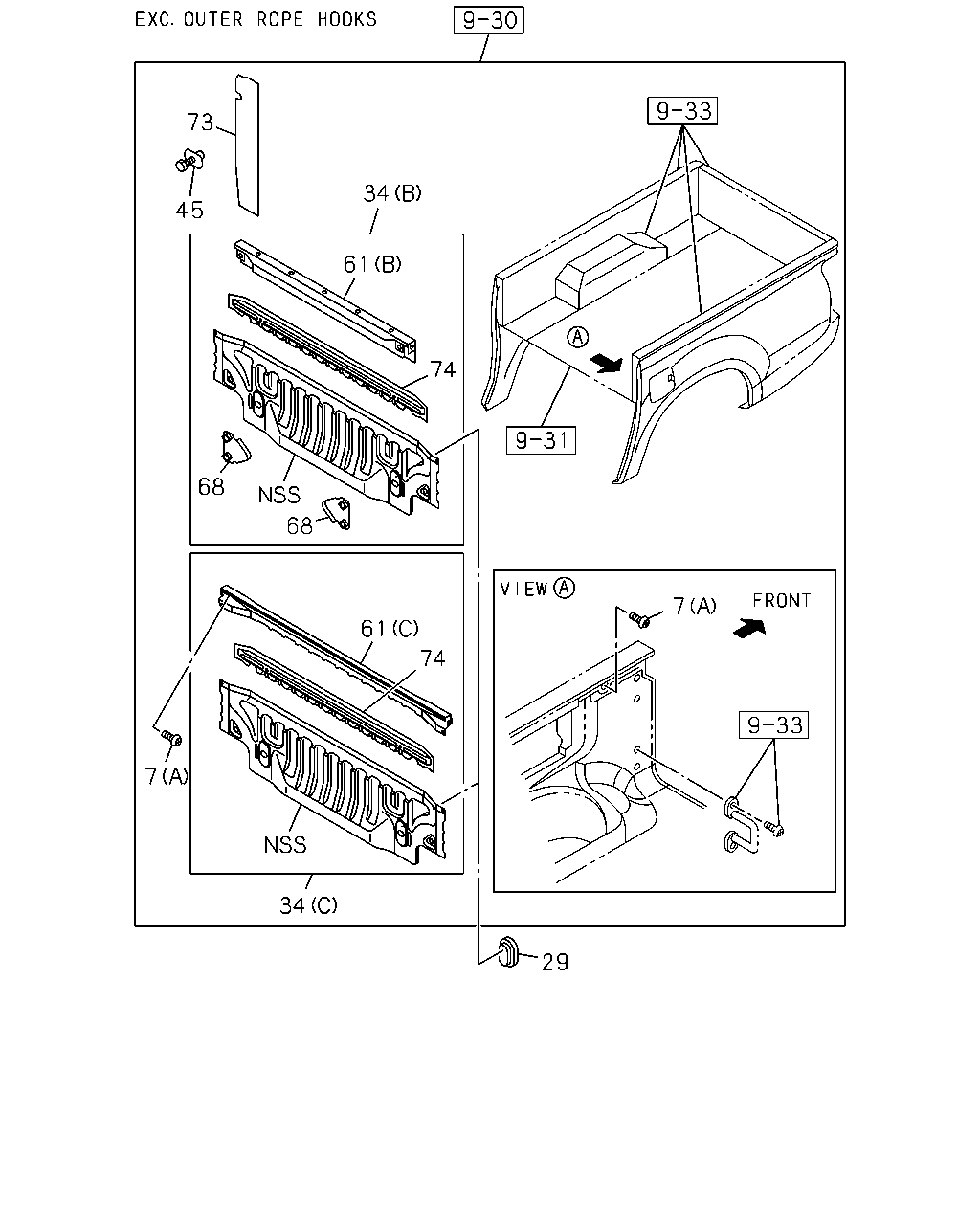

çizim 351862
34 45 73 61 74 68 68 61 74 7 34 7 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 1305- ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1506 ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY FLAT BED(E39) (B) 		8-98171-953-0 02 1 1305- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20 		8-98294-857-0 02 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 		8-98294-857-0 02 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1506 ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1305-1506 ● ● ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1305-1506 ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1305-1506 ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1507- ● ● ● ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98103-280-7 01 1 1305- ● ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (D) 		8-98103-279-8 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98190-130-2 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98190-130-2 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (C) 		8-98190-131-1 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-98190-131-1 01 1 1305- ●
45 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-94221-150-0 13 1 1305- ● ● ● ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98104-382-6 01 1 1305- ● ● ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98133-143-6 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98133-143-6 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (C) 		8-98104-396-5 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-98104-396-5 01 1 1305- ●
68 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> 		8-98180-183-0 02 1 1305- ●
68 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98180-183-0 02 1 1305- ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98187-269-0 01 1 1305-1408 ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-706-0 01 1 1305-1408 ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-226-0 01 1 1305- ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-227-0 01 1 1305- ● ●
74 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98187-068-2 01 1 1305- ●
74 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98187-068-2 01 1 1305- ●
74 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) 		8-98187-068-2 01 1 1305- ●

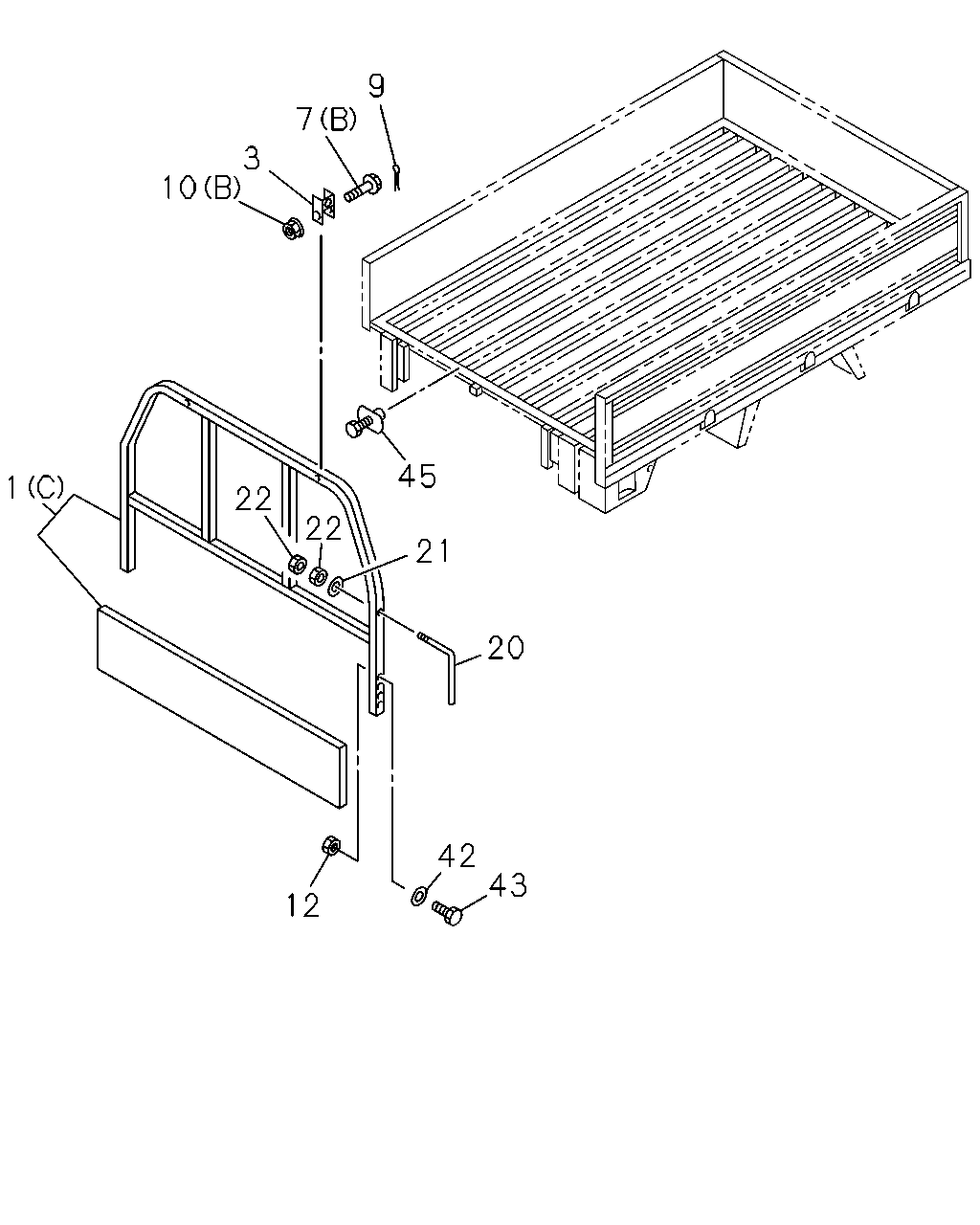

çizim 351863
43 42 12 20 21 45 22 22 1 10 3 7 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98103-983-3 01 1 1305- ● ●
1 FRAME; GUARD,RR BODY
REAR BODY FLAT BED(E39) (C) 		8-98165-735-0 01 1 1305- ●
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98119-578-2 01 1 1305- ●
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98103-992-4 01 1 1305- ●
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98103-992-4 01 1 1305- ●
3 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 1305- ● ● ● ●
3 STOPPER; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) 		8-97354-208-0 02 1 1305- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 1305- ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1506 ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY FLAT BED(E39) (B) 		8-98171-953-0 02 1 1305- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20 		8-98294-857-0 02 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 		8-98294-857-0 02 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1506 ●
9 PIN; SPLIT,GUARD FRAME
REAR BODY FLAT BED(E39) OD=1.8 L=20 		0-81122-020-0 02 1 1305- ●
10 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 		8-98056-127-0 02 1 1305- ● ● ● ●
10 NUT; GUARD FRAME STOPPER
REAR BODY FLAT BED(E39) (B) 		8-98171-950-0 02 1 1305- ●
12 NUT; GUARD FRAME
REAR BODY FLAT BED(E39) 		8-98171-952-0 08 1 1305- ●
20 HANDLE; FRT,RR BODY
REAR BODY FLAT BED(E39) 		8-98171-168-0 02 1 1305- ●
21 WASHER; LK,FRT HANDLE
REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 1305- ●
22 NUT; FRT HANDLE
REAR BODY FLAT BED(E39) M12 		0-91111-512-0 04 1 1305- ●
42 WASHER; PL
REAR BODY FLAT BED(E39) 		8-98171-955-0 12 1 1305- ●
43 BOLT; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) M8X25 FLANGE 		0-28650-825-0 07 1 1305- ●
43 BOLT; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) M10X22 FLANGE 		8-98171-954-0 12 1 1305- ●
45 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-94221-150-0 13 1 1305- ● ● ● ●

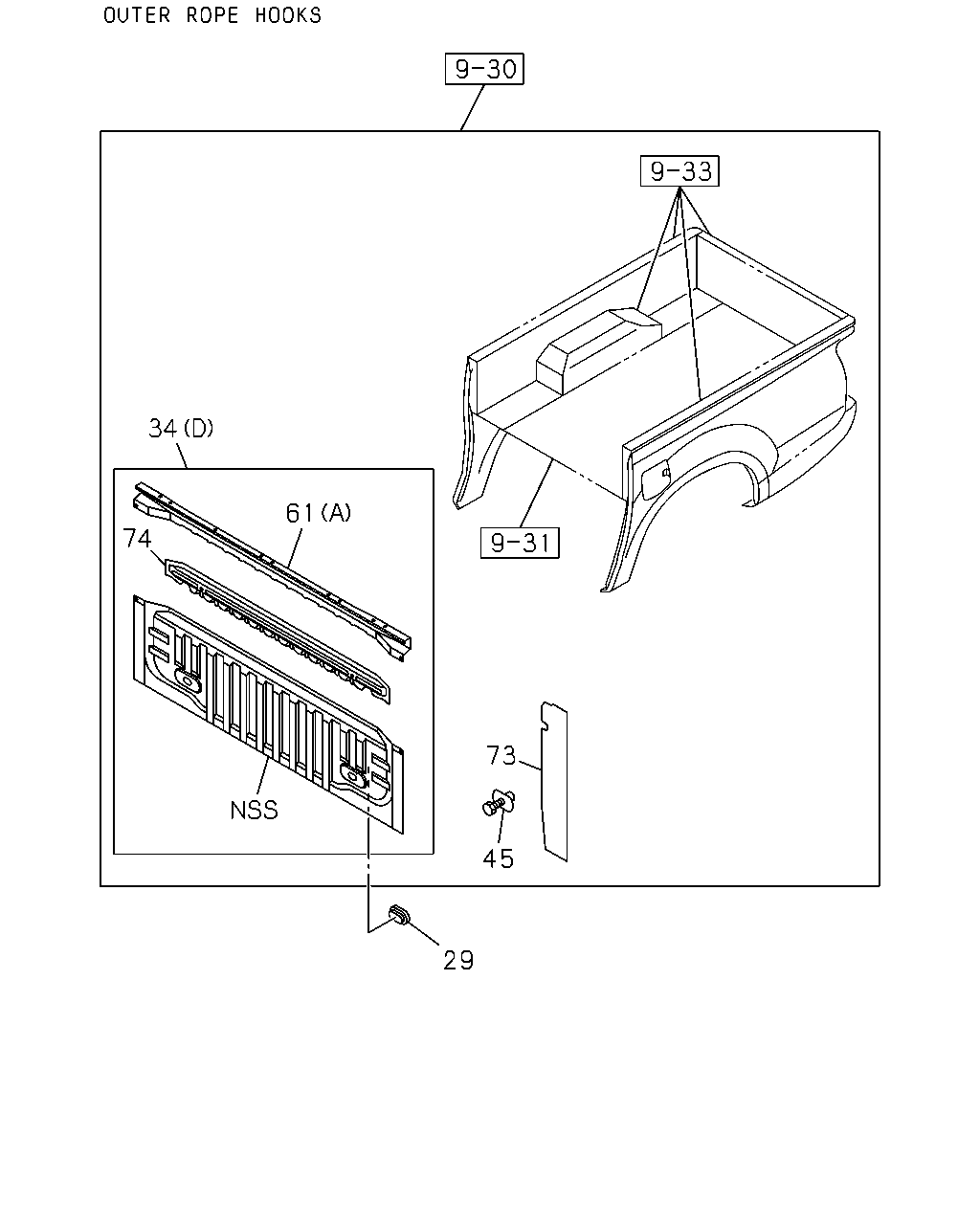

çizim 352285
34 74 61 73 45 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1305-1506 ● ● ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1305-1506 ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1305-1506 ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1507- ● ● ● ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98103-280-7 01 1 1305- ● ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (D) 		8-98103-279-8 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98190-130-2 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98190-130-2 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (C) 		8-98190-131-1 01 1 1305- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-98190-131-1 01 1 1305- ●
45 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-94221-150-0 13 1 1305- ● ● ● ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98104-382-6 01 1 1305- ● ● ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98133-143-6 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98133-143-6 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (C) 		8-98104-396-5 01 1 1305- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-98104-396-5 01 1 1305- ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98187-269-0 01 1 1305-1408 ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-706-0 01 1 1305-1408 ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-226-0 01 1 1305- ● ●
73 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-227-0 01 1 1305- ● ●
74 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98187-068-2 01 1 1305- ●
74 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98187-068-2 01 1 1305- ●
74 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) 		8-98187-068-2 01 1 1305- ●
çizim 352440
7 37 1 7 37 1 7 3 5 10 10 5 3 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98103-983-3 01 1 1305- ● ●
1 FRAME; GUARD,RR BODY
REAR BODY FLAT BED(E39) (C) 		8-98165-735-0 01 1 1305- ●
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98119-578-2 01 1 1305- ●
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98103-992-4 01 1 1305- ●
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98103-992-4 01 1 1305- ●
3 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 1305- ● ● ● ●
3 STOPPER; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) 		8-97354-208-0 02 1 1305- ●
5 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 1305- ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 1305- ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1506 ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY FLAT BED(E39) (B) 		8-98171-953-0 02 1 1305- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20 		8-98294-857-0 02 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 		8-98294-857-0 02 1 1507- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1506 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1506 ●
10 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 		8-98056-127-0 02 1 1305- ● ● ● ●
10 NUT; GUARD FRAME STOPPER
REAR BODY FLAT BED(E39) (B) 		8-98171-950-0 02 1 1305- ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> M6X12 FLANGE 		0-28050-612-0 05 1 1305-1506 ● ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE 		0-28050-612-0 05 1 1305-1506 ● ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) M6X12 FLANGE 		0-28050-612-0 05 1 1507- ● ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> M6X12 FLANGE 		0-28050-612-0 05 1 1507- ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M6X12 FLANGE 		0-28050-612-0 05 1 1507- ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE 		0-28050-612-0 05 1 1507- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
