Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

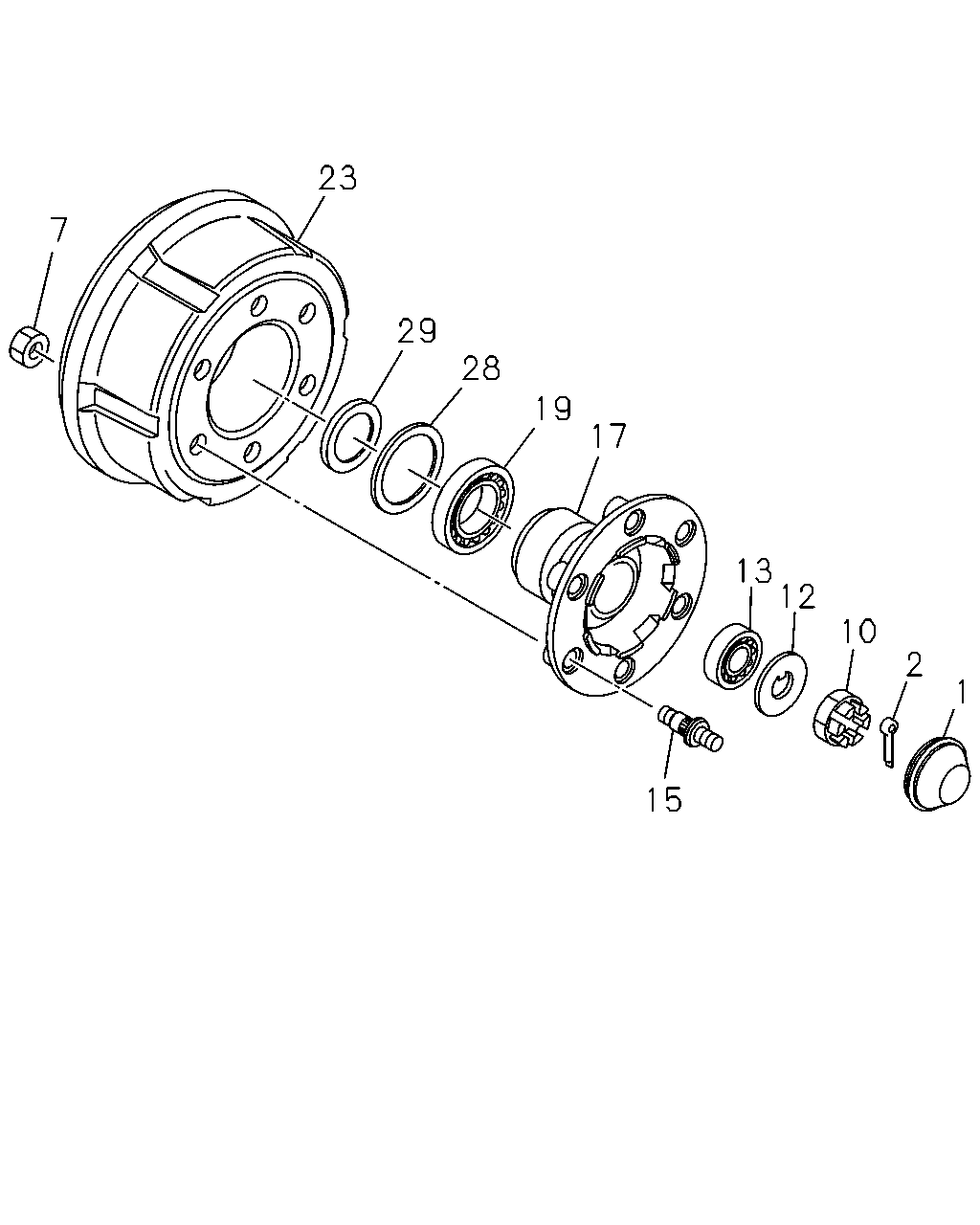

4-11 — FRONT HUB AND DRUM OR ROTOR
(#119290) — 17 parça
23
29
28
19
17
13
12
10
2
15
1
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
8-97360-101-0
02
1
1304-1407
1
CAP; HUB,FRT AXLE
IMA
8-98276-604-0
02
1
1408-
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 IMA
0-81125-040-0
02
1
1304-
7
NUT; FRT HUB
M22 IMA
0-91110-522-0
12
1
1304-
10
NUT; FRT HUB BRG
IMA
8-94247-357-1
02
1
1304-
12
WASHER; LK,FRT HUB BRG
IMA
8-94247-356-1
02
1
1304-1502
12
WASHER; LK,FRT HUB BRG
8-98282-435-0
02
1
1503-
13
BEARING; HUB OUTER,FRT AXLE
NSK IMA
9-00093-172-0
02
1
1304-
13
BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS
5-87610-134-0
02
1
1304-
15
PIN; WHEEL,FRT AXLE
M20X28,M22X50 RH THREAD
8-97131-283-3
06
1
1304-
15
PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X50 RH THREAD
8-97131-284-3
06
1
1304-
17
HUB; FRT AXLE
8-97131-236-0
02
1
1304-
19
BEARING; HUB INNER,FRT AXLE
JTEKT IMA
8-98171-254-0
02
1
1304-
19
BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS
1-87610-134-0
02
1
1304-
23
DRUM; BRK,FRT
THA
8-97188-115-0
02
1
1304-
28
SEAL; OIL,FRT HUB
IMA
8-94248-117-1
02
1
1304-
29
DISTANCE PIECE; HUB BRKT
NTN IMA
8-97234-513-0
02
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
