9-31 — REAR BODY; FLOOR AND FENDER (#119284) — 76 parça

11 117 180 121 175 175 180 174 181 180 117 117 174 117 180 117 117 117 116 19 117 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

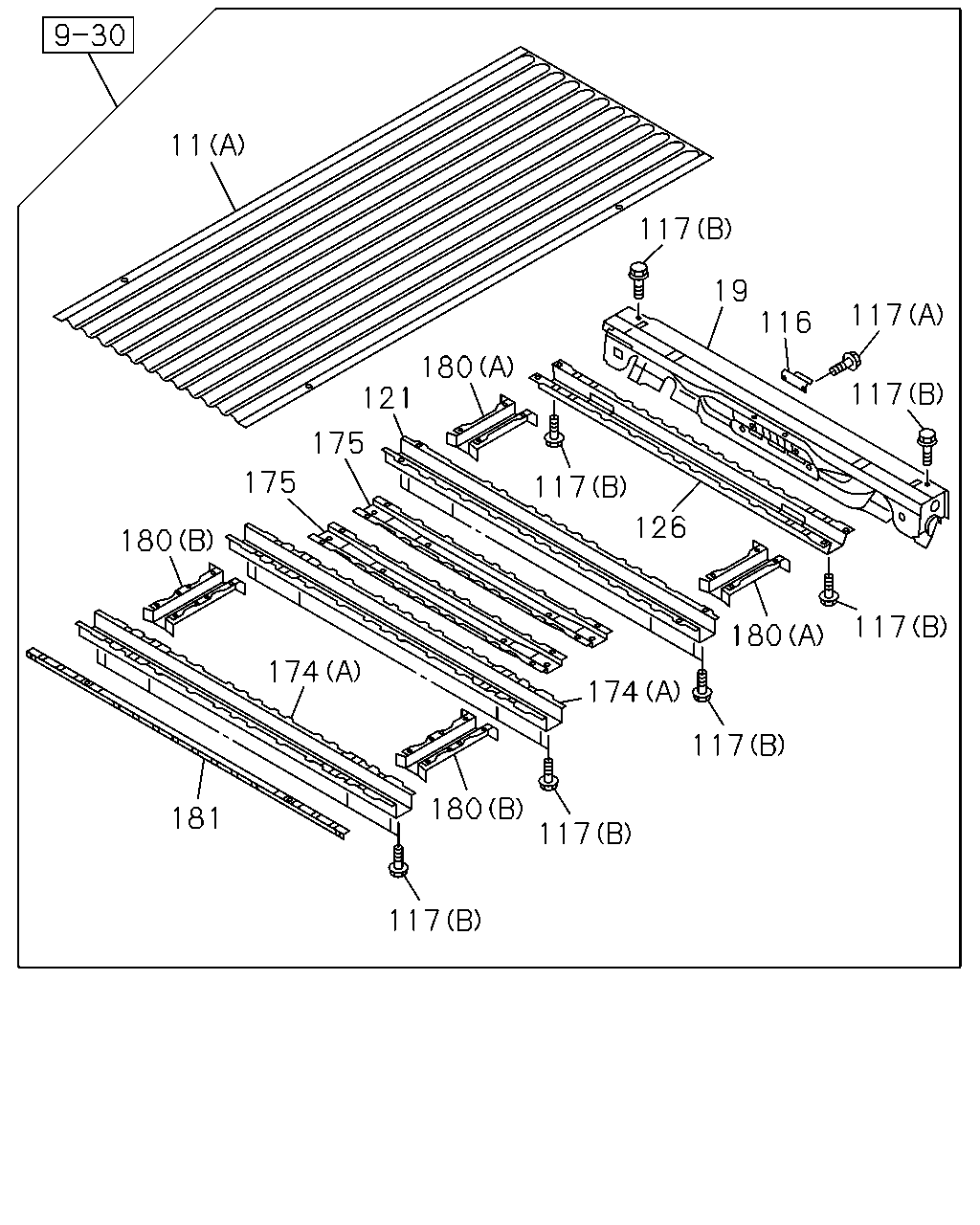

11	PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-150-1	01	1	1305-	●	●
11	PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-159-2	01	1	1305-			●	●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98210-518-0	01	1	1305-	●	●	●	●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98104-216-7	01	1	1305-	●	●	●	●
116	SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98104-017-1	01	1	1305-	●	●
116	SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ>	8-98104-017-1	01	1	1305-			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	10	1	1409-	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	18	1	1305-1408	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	08	1	1409-1411	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	08	1	1412-	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (A) M8X22	8-98050-437-0	02	1	1305-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X22	8-98050-437-0	02	1	1305-			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	12	1	1305-1411	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	12	1	1412-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	02	1	1305-1506			●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	02	1	1507-			●	●
121	BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-194-2	01	1	1305-	●	●	●	●
126	BOLSTER; FRT END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-201-2	01	1	1305-	●	●	●	●
174	SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-179-1	02	1	1305-	●	●
174	SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-258-3	01	1	1305-			●	●
175	SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	02	1	1305-	●	●
175	SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	01	1	1305-			●	●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-197-0	02	1	1305-	●	●	●	●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-185-0	02	1	1305-	●	●
181	EXTENSION; PUBX,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98104-171-1	01	1	1305-	●	●

11 19 180 126 180 121 174 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

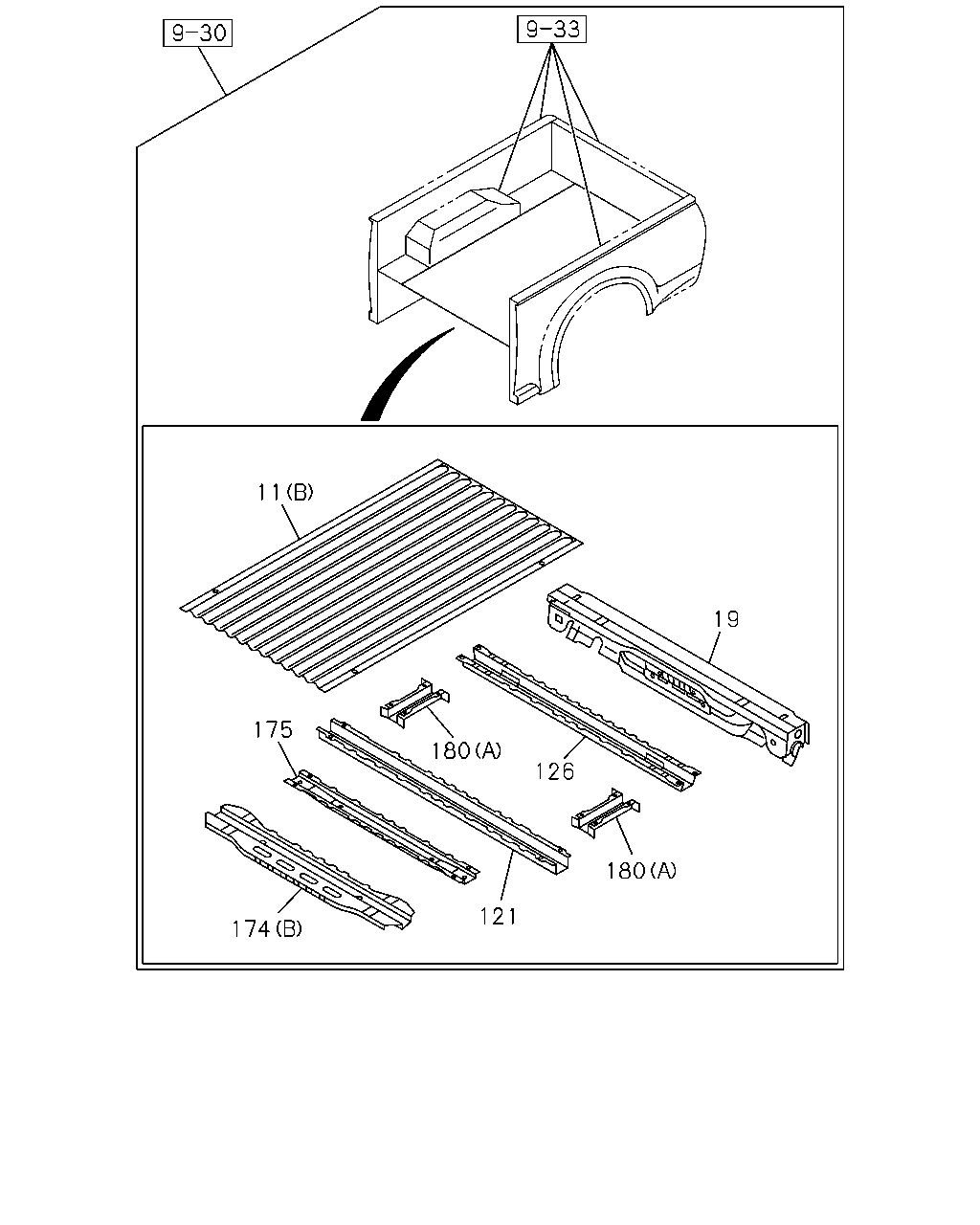

11	PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-150-1	01	1	1305-	●	●
11	PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-159-2	01	1	1305-			●	●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98210-518-0	01	1	1305-	●	●	●	●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98104-216-7	01	1	1305-	●	●	●	●
121	BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-194-2	01	1	1305-	●	●	●	●
126	BOLSTER; FRT END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-201-2	01	1	1305-	●	●	●	●
174	SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-179-1	02	1	1305-	●	●
174	SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-258-3	01	1	1305-			●	●
175	SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	02	1	1305-	●	●
175	SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	01	1	1305-			●	●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-197-0	02	1	1305-	●	●	●	●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-185-0	02	1	1305-	●	●

81 119 119 120 89 119 119 5 14 14 16 5 1 3 3 1 57 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A

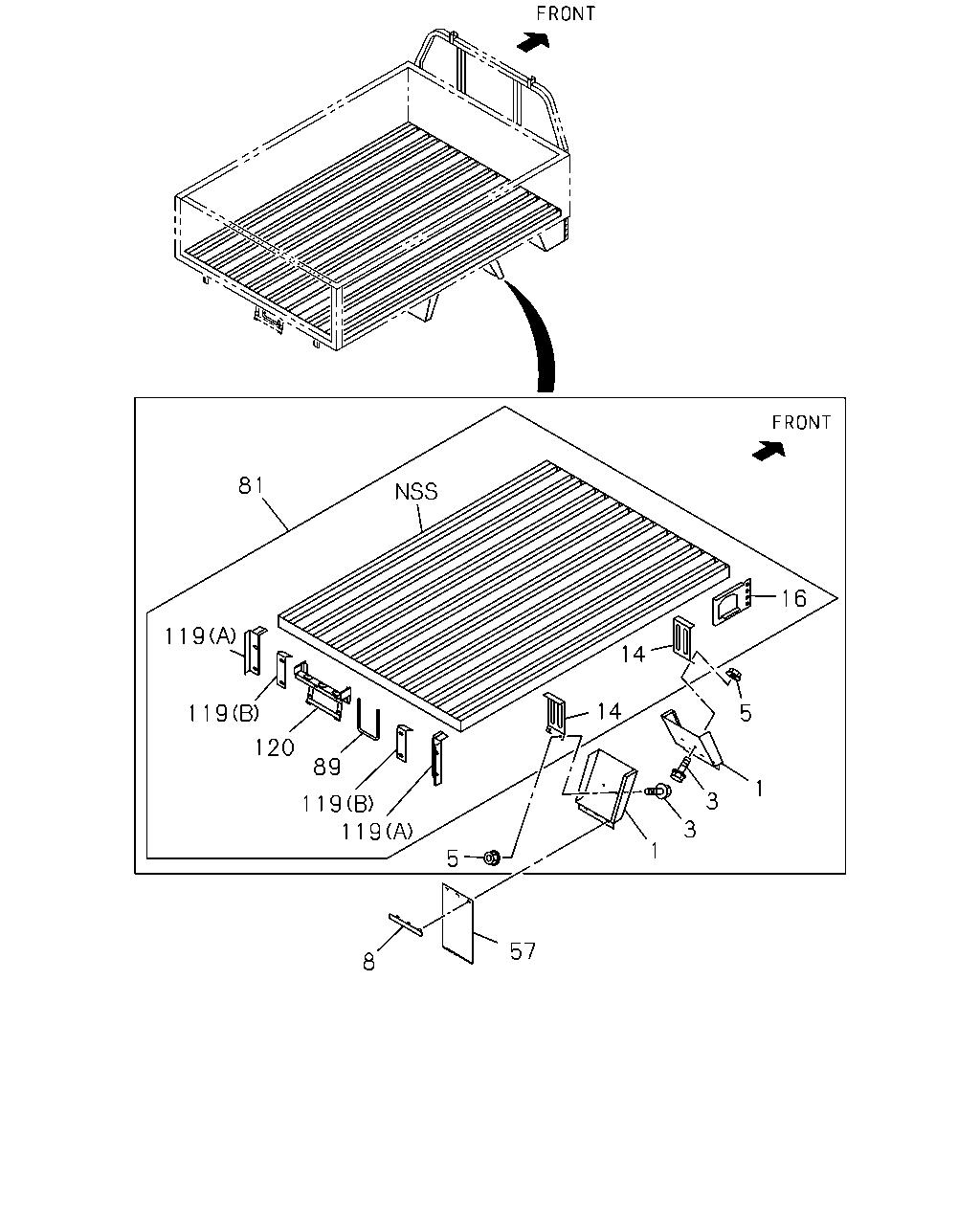

1	FENDER; RR,RR BODY REAR BODY FLAT BED(E39) FRONT	8-97263-540-2	01	1	1305-	●
1	FENDER; RR,RR BODY REAR BODY FLAT BED(E39) FRONT	8-97263-541-2	01	1	1305-	●
1	FENDER; RR,RR BODY REAR BODY FLAT BED(E39) REAR	8-97263-542-3	01	1	1305-	●
1	FENDER; RR,RR BODY REAR BODY FLAT BED(E39) REAR	8-97263-543-3	01	1	1305-	●
3	BOLT; FENDER TO RR BODY REAR BODY FLAT BED(E39)	8-98171-948-0	16	1	1305-	●
5	NUT; FENDER TO BRKT REAR BODY FLAT BED(E39)	8-98171-951-0	08	1	1305-	●
8	HOLDER; FLAP RUBBER REAR BODY FLAT BED(E39)	8-97354-203-0	02	1	1305-	●
14	SUPPORT; RR FENDER REAR BODY FLAT BED(E39)	8-98165-714-1	04	1	1305-	●
16	CONNECTOR; GUARD FRAME REAR BODY FLAT BED(E39)	8-98165-804-0	01	1	1305-	●
16	CONNECTOR; GUARD FRAME REAR BODY FLAT BED(E39)	8-98165-805-0	01	1	1305-	●
57	RUBBER; FLAP RR REAR BODY FLAT BED(E39)	8-97354-206-0	02	1	1305-	●
81	FLOOR ASM; RR BODY REAR BODY FLAT BED(E39)	8-98165-674-4	01	1	1305-	●
89	STEP; RR REAR BODY FLAT BED(E39)	8-97262-129-0	01	1	1305-	●
119	BRACKET; COMB LAMP REAR BODY FLAT BED(E39) (A)	8-97263-708-0	01	1	1305-	●
119	BRACKET; COMB LAMP REAR BODY FLAT BED(E39) (A)	8-97263-709-0	01	1	1305-	●
119	BRACKET; COMB LAMP REAR BODY FLAT BED(E39) (B)	8-97322-728-0	02	1	1305-	●
120	BRACKET; NUMBER PLATE REAR BODY FLAT BED(E39)	8-98165-704-0	01	1	1305-	●

117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	10	1	1409-	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	18	1	1305-1408	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	08	1	1409-1411	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	08	1	1412-	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (A) M8X22	8-98050-437-0	02	1	1305-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X22	8-98050-437-0	02	1	1305-			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	12	1	1305-1411	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	12	1	1412-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	02	1	1305-1506			●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	02	1	1507-			●	●

117 116 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

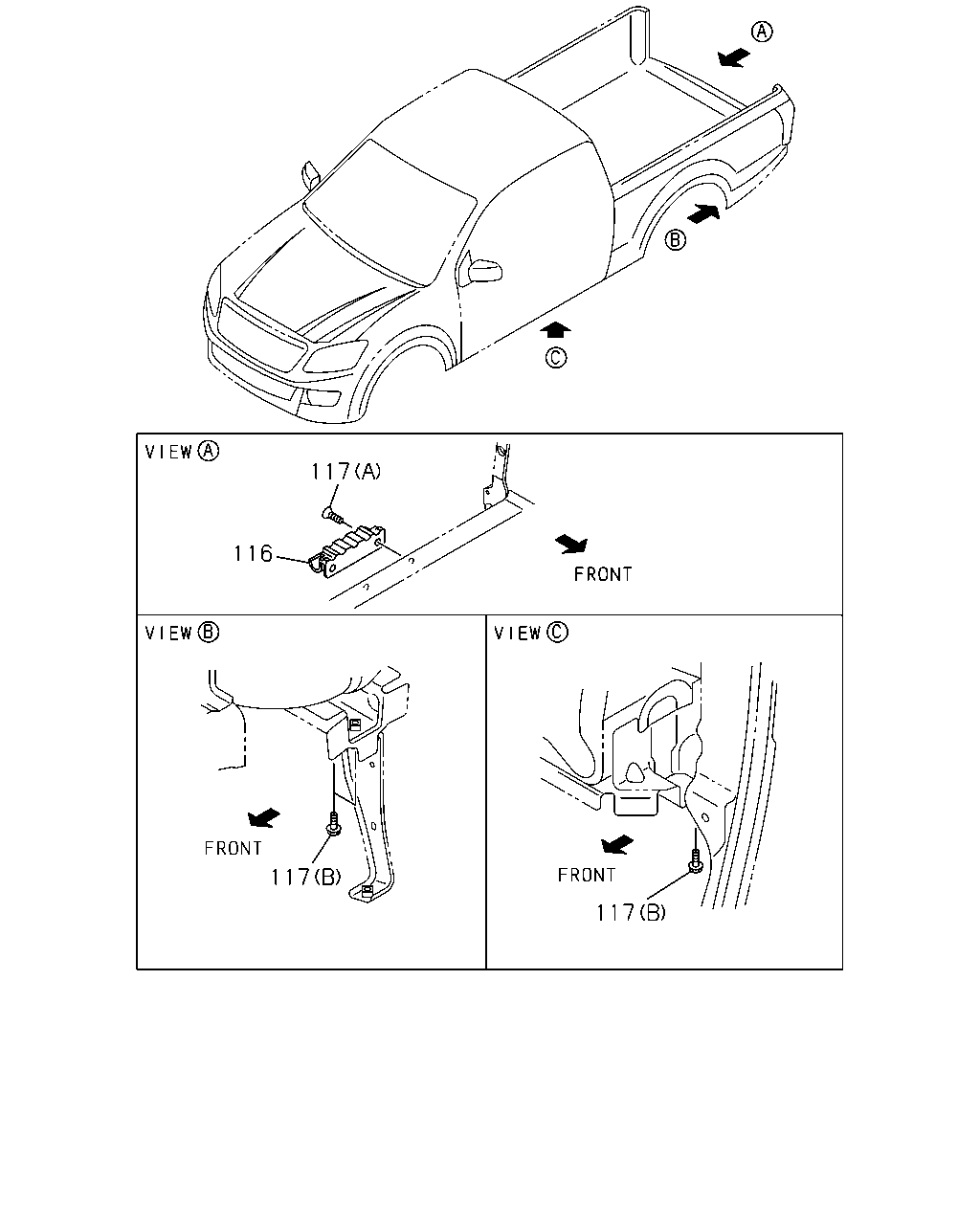

116	SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98104-017-1	01	1	1305-	●	●
116	SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ>	8-98104-017-1	01	1	1305-			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	10	1	1409-	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	18	1	1305-1408	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	08	1	1409-1411	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	08	1	1412-	●	●	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (A) M8X22	8-98050-437-0	02	1	1305-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X22	8-98050-437-0	02	1	1305-			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	12	1	1305-1411	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	12	1	1412-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	02	1	1305-1506			●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	02	1	1507-			●	●
