9-33 — REAR BODY; GATE AND SIDE GUARD (#119281) — 757 parça

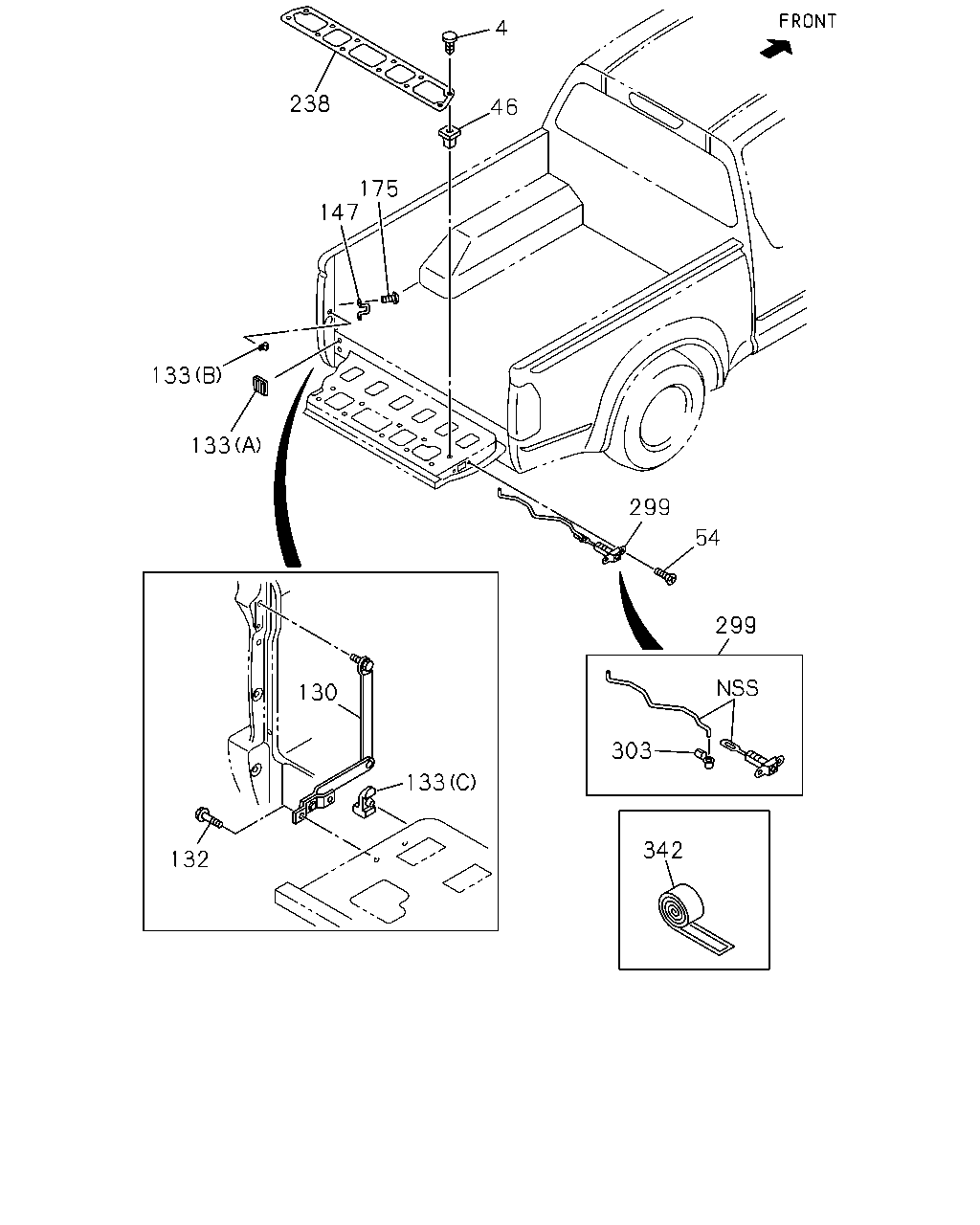

çizim 351853
342 303 299 54 299 133 130 132 133 133 147 175 238 46 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M4X10 		8-97043-528-0 12 1 1305-1505 ●
4 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) M4X10 		8-97043-528-0 12 1 1305-1505 ●
4 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M4X10 		8-97043-528-0 12 1 1506- ●
4 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 1506- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98165-002-2 12 1 1305-1505 ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98165-002-2 12 1 1305-1505 ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98165-002-2 12 1 1506- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
REAR BODY DBL WALL CTR PULL(E63) 		8-98165-002-2 12 1 1506- ●
54 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 		8-97247-699-0 04 1 1305- ●
54 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 		8-97247-699-0 04 1 1305- ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-461-1 01 1 1305- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-462-1 01 1 1305- ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE 		0-28650-820-0 04 1 1305- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-185-2 02 1 1305- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98110-231-2 02 1 1305- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-088-1 01 1 1305- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-088-1 01 1 1305- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-089-1 01 1 1305- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-089-1 01 1 1305- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ> (A) 		8-98134-726-1 01 1 1305- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-726-1 01 1 1305- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ> (A) 		8-98134-727-1 01 1 1305- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-727-1 01 1 1305- ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1305- ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1305- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305- ●
238 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98181-076-2 01 1 1305-1505 ●
238 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98181-076-2 01 1 1305-1505 ●
238 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98181-076-2 01 1 1506- ●
238 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98181-076-2 01 1 1506- ●
299 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-971-3 01 1 1305- ●
299 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-971-3 01 1 1305- ●
299 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-972-3 01 1 1305- ●
299 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-972-3 01 1 1305- ●
303 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-276-0 01 1 1305- ●
303 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 1305- ●
303 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-277-0 01 1 1305- ●
303 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 1305- ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-775-4 01 1 1305- ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98139-775-4 01 1 1305- ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1305- ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1305- ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98139-776-4 01 1 1305- ●

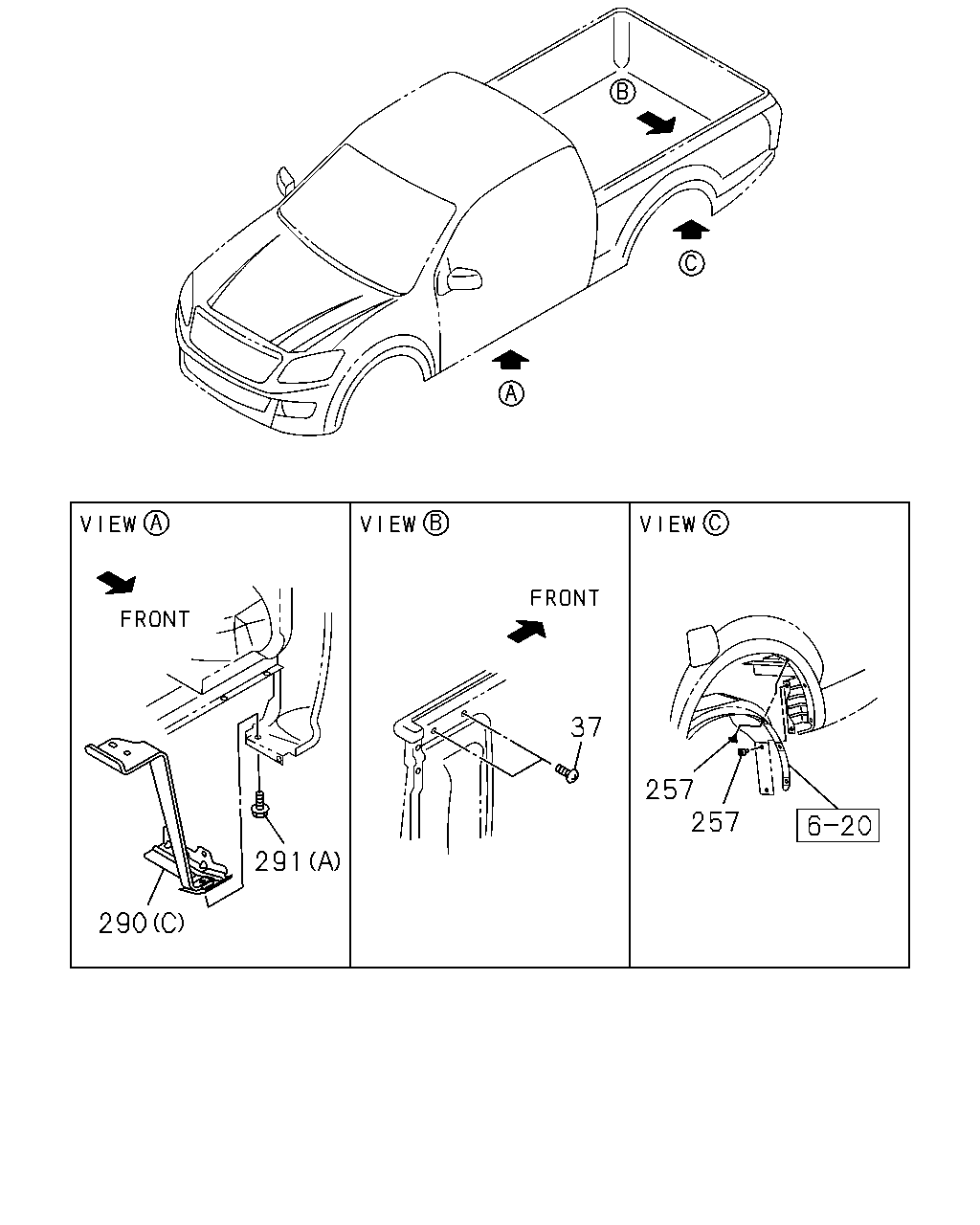

çizim 351854
290 291 37 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1408 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1506 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1506 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1507- ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1507- ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
257 RIVET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98057-864-0 04 1 1305- ●
257 RIVET
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98057-864-0 04 1 1305- ●
257 RIVET
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-864-0 04 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1507- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1305- ● ●

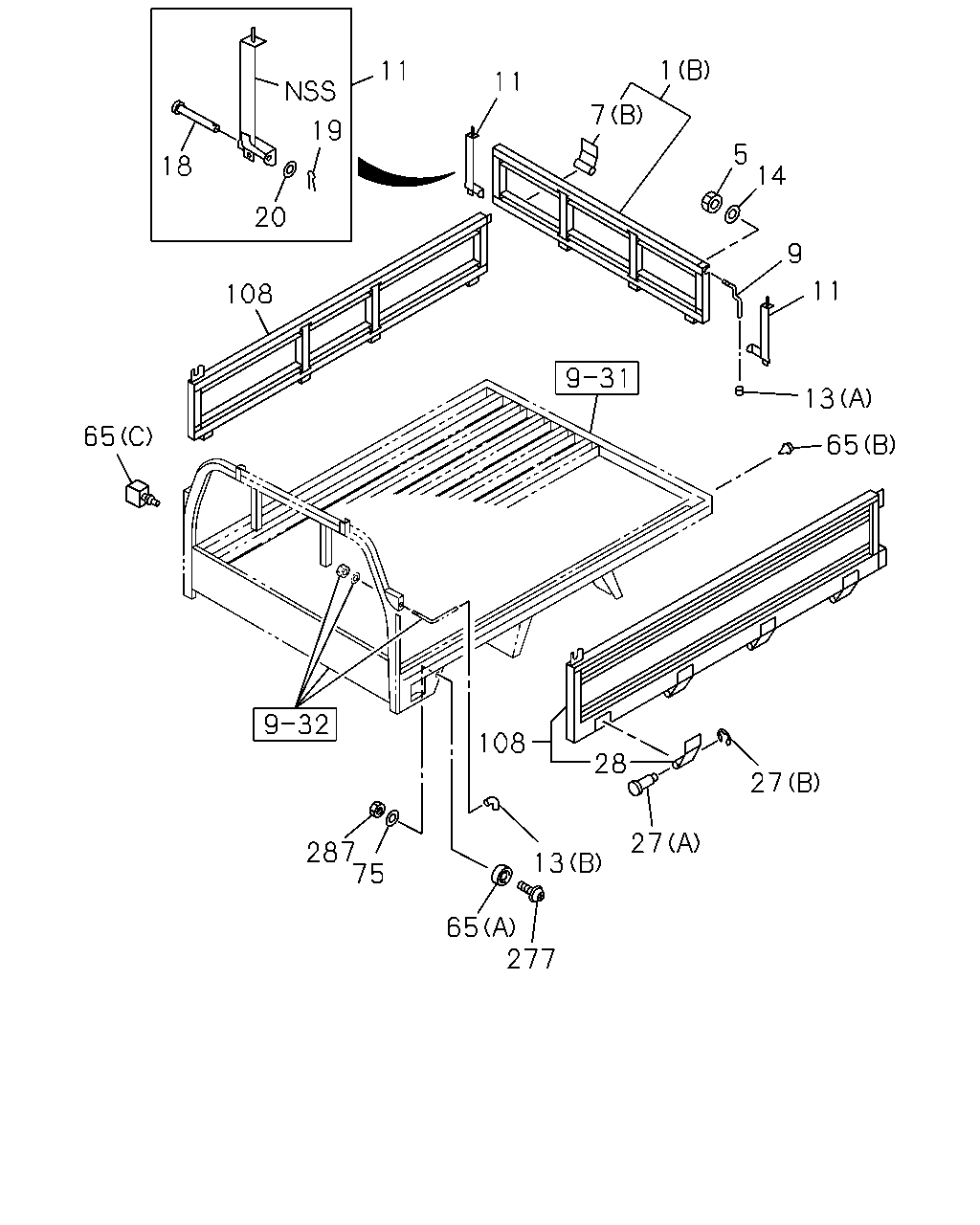

çizim 351856
277 65 75 287 108 28 27 13 27 65 13 11 9 14 5 1 7 11 11 19 20 108 65 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98198-539-2 01 1 1305- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1305- ●
1 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1305- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1305- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98104-362-9 01 1 1305- ●
5 NUT; LATCH HANDLE
REAR BODY FLAT BED(E39) M12 		0-91111-512-0 04 1 1305- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1305- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1305- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1305- ●
9 HANDLE; LATCH,RR GATE
REAR BODY FLAT BED(E39) 		8-98171-141-0 01 1 1305- ●
9 HANDLE; LATCH,RR GATE
REAR BODY FLAT BED(E39) 		8-98171-142-0 01 1 1305- ●
11 LOCK ASM; VERTICAL
REAR BODY FLAT BED(E39) 		8-98166-532-0 01 1 1305- ●
11 LOCK ASM; VERTICAL
REAR BODY FLAT BED(E39) 		8-98166-533-0 01 1 1305- ●
13 RUBBER; GATE HANDLE,RR BODY
REAR BODY FLAT BED(E39) (A) 		8-97354-210-0 02 1 1305- ●
13 RUBBER; GATE HANDLE,RR BODY
REAR BODY FLAT BED(E39) (B) 		8-97354-213-0 02 1 1305- ●
14 WASHER; PL,HANDLE
REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 1305- ●
18 PIN; VERTICAL LOCK
REAR BODY FLAT BED(E39) 		8-97353-379-0 02 1 1305- ●
19 PIN; SPLIT,VERTICAL LOCK
REAR BODY FLAT BED(E39) OD=2.8 L=18 		0-81123-018-0 02 1 1305- ●
20 WASHER; PL,VERTICAL LOCK
REAR BODY FLAT BED(E39) ID=10.5 		0-91610-510-0 02 1 1305- ●
27 PIN; HINGE,SIDE GATE
REAR BODY FLAT BED(E39) (A) 		8-98171-884-0 11 1 1305- ●
27 PIN; HINGE,SIDE GATE
REAR BODY FLAT BED(E39) (B) ID=6 		9-09185-006-0 11 1 1305- ●
28 HINGE; UPR,SIDE GATE
REAR BODY FLAT BED(E39) 		8-98171-876-0 08 1 1305- ●
65 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (A) 		8-97354-204-0 06 1 1305- ●
65 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (B) 		8-97354-205-0 02 1 1305- ●
65 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (C) 		8-97354-209-0 02 1 1305- ●
75 WASHER; PL
REAR BODY FLAT BED(E39) ID=6.4 		0-91610-606-0 06 1 1305- ●
108 GATE ASM; SIDE
REAR BODY FLAT BED(E39) 		8-98172-551-2 01 1 1305- ●
108 GATE ASM; SIDE
REAR BODY FLAT BED(E39) 		8-98172-554-2 01 1 1305- ●
277 BOLT; CUSHION
REAR BODY FLAT BED(E39) M6X30 W/PL WASHER 		0-36210-630-0 06 1 1305- ●
287 NUT; CUSHION
REAR BODY FLAT BED(E39) 		8-98171-949-0 06 1 1305- ●

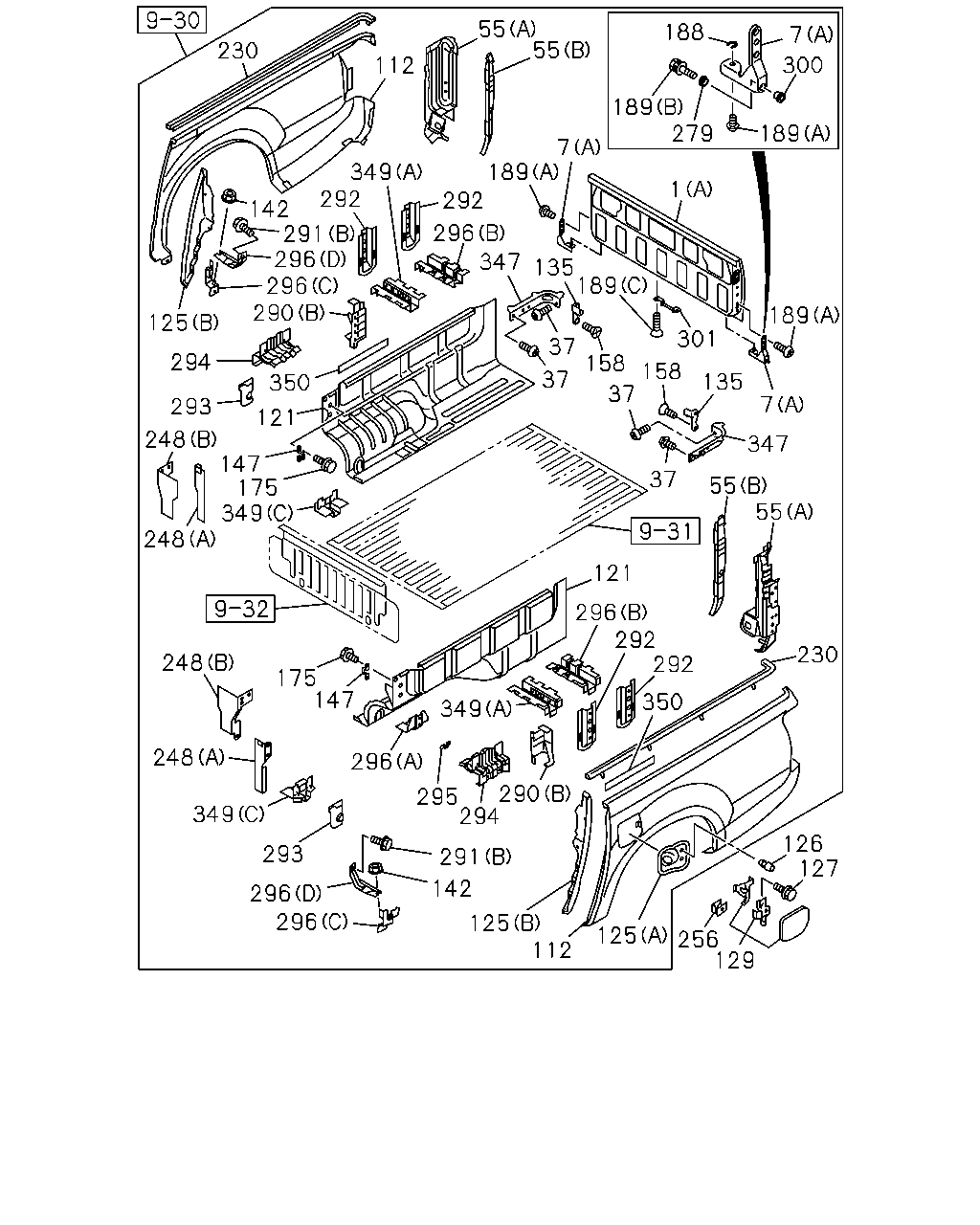

çizim 351984
129 256 125 112 125 142 127 126 291 296 296 349 248 248 175 147 296 295 294 349 248 349 175 147 248 293 350 121 294 125 290 296 292 292 350 290 230 55 55 37 347 7 135 158 37 158 37 37 189 301 189 1 135 347 296 292 349 292 291 296 296 142 230 112 189 7 189 188 7 189 279 55 55 300 121 293
BalonParca AdiParca NoAdetTipApplied Date A B C D

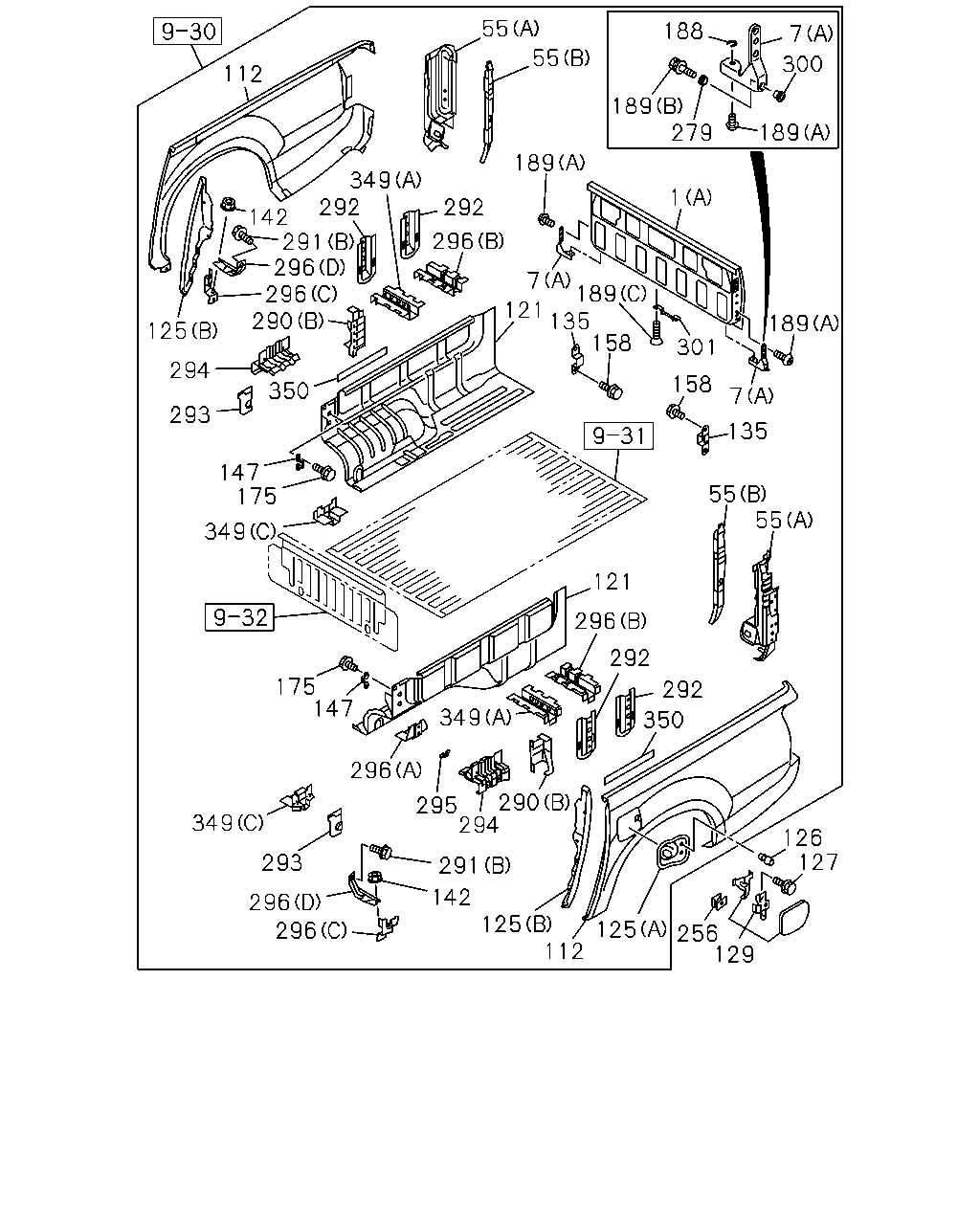

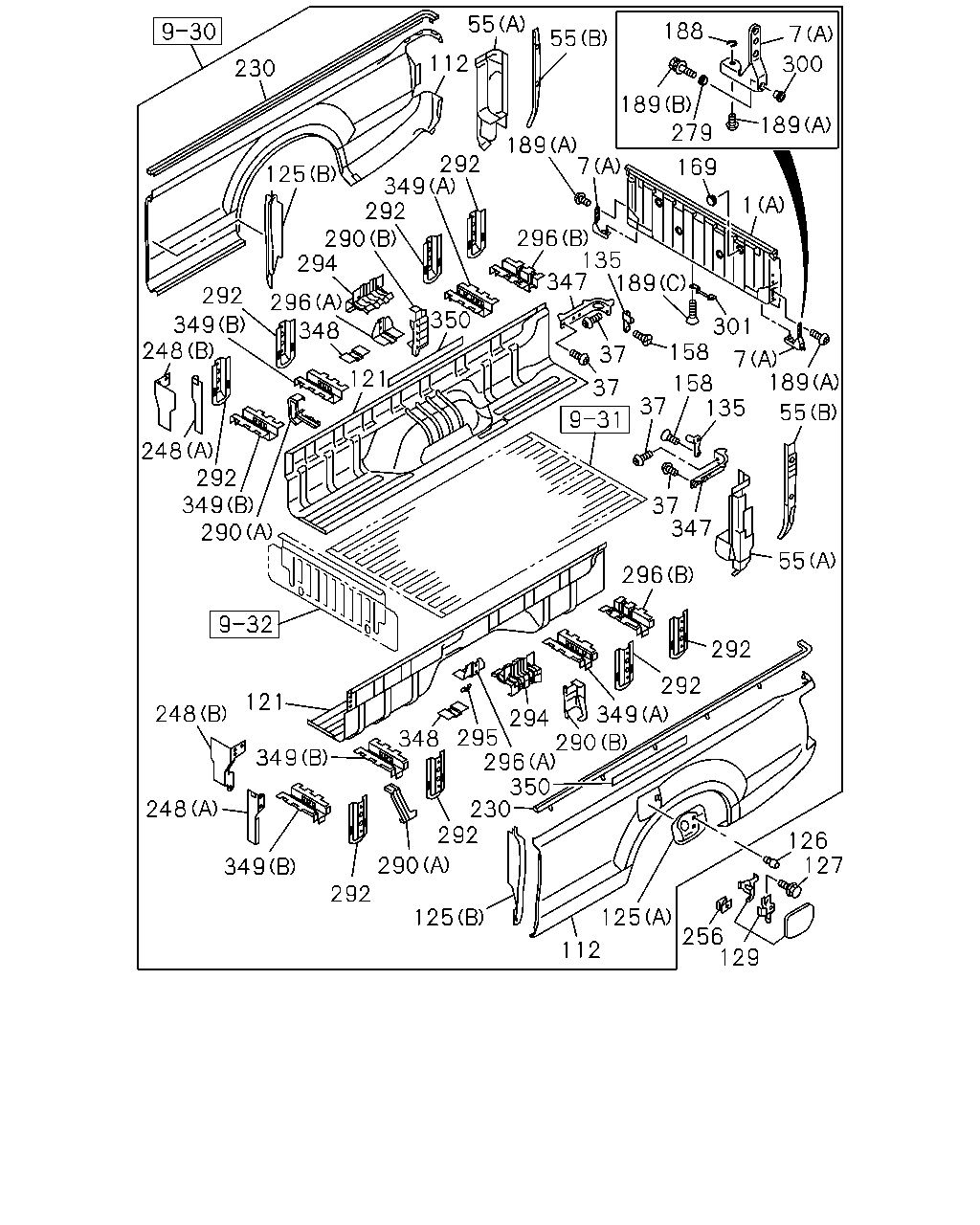

1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98198-539-2 01 1 1305- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1305- ●
1 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1305- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1305- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98104-362-9 01 1 1305- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1305- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1305- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1305- ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1408 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1506 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1506 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1507- ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1507- ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1305- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1305- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1305- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1305- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1305- ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1305- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1305- ● ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1305- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-656-2 01 1 1305-1505 ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1305-1505 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1506- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1506- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-657-2 01 1 1305-1505 ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1305-1505 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1506- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1506- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1305- ●
142 NUT
REAR BODY DBL WALL CTR PULL(E63) M8 FLANGE 		0-91180-108-0 02 1 1305- ● ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1305- ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1305- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) M8X22 		8-98050-437-0 04 1 1305-1505 ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X22 		8-98050-437-0 04 1 1305-1505 ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X22 		8-98050-437-0 04 1 1506- ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X22 		8-98050-437-0 04 1 1506- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 FLANGE 		0-28650-820-0 04 1 1305- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE 		0-28650-820-0 04 1 1305- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 02 1 1305-1408 ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1305- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) M8X22 		8-98050-437-0 02 1 1305- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1305- ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1305- ● ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1305- ● ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-983-1 01 1 1305- ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-984-1 01 1 1305- ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-333-0 01 1 1305- ● ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-336-0 01 1 1305- ● ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-590-0 01 1 1305- ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-591-0 01 1 1305- ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1305- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1305- ● ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1507- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1305- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-156-0 08 1 1305- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-156-0 04 1 1305- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-156-0 04 1 1305- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-156-0 04 1 1305- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1305- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1305- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1305- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1305- ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1305- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1305- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1507- ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1305- ● ● ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98053-899-0 01 1 1305- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1305- ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1305- ● ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-603-1 01 1 1305- ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1305- ● ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-604-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1305- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1305- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1305- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1305- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1305- ●
çizim 352237
129 256 127 126 125 112 125 290 292 292 230 350 290 292 349 292 55 296 294 295 296 349 349 121 248 248 348 347 37 37 158 135 55 189 7 158 301 189 347 135 37 37 350 296 292 349 292 290 294 296 348 121 292 290 349 248 248 349 292 125 230 112 55 188 7 189 189 1 169 279 7 189 55 300
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98198-539-2 01 1 1305- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1305- ●
1 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1305- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1305- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98104-362-9 01 1 1305- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1305- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1305- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1305- ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1408 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1506 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1506 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1507- ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1507- ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1305-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
37 SCREW
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1305- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1305- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1305- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1305- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1305- ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1305- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1305- ● ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1305- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-656-2 01 1 1305-1505 ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1305-1505 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1506- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1506- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-657-2 01 1 1305-1505 ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1305-1505 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1506- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1506- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1305- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) M8X22 		8-98050-437-0 04 1 1305-1505 ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X22 		8-98050-437-0 04 1 1305-1505 ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X22 		8-98050-437-0 04 1 1506- ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X22 		8-98050-437-0 04 1 1506- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 FLANGE 		0-28650-820-0 04 1 1305- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE 		0-28650-820-0 04 1 1305- ●
169 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1305- ● ●
169 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-97166-110-0 04 1 1305- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 02 1 1305-1408 ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1305- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) M8X22 		8-98050-437-0 02 1 1305- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1305- ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1305- ● ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1305- ● ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-983-1 01 1 1305- ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-984-1 01 1 1305- ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-333-0 01 1 1305- ● ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-336-0 01 1 1305- ● ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-590-0 01 1 1305- ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-591-0 01 1 1305- ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1305- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1305- ● ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1507- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-156-0 08 1 1305- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-156-0 04 1 1305- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-156-0 04 1 1305- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-156-0 04 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1305- ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1305- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1305- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1507- ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1305- ● ● ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98053-899-0 01 1 1305- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1305- ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1305- ● ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-603-1 01 1 1305- ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1305- ● ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-604-1 01 1 1305- ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1305- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1305- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1305- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1305- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1305- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1305- ●
çizim 352666
215 53 170 50
BalonParca AdiParca NoAdetTipApplied Date A B C D
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98061-099-0 02 1 1305-1505 ● ●
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98061-099-0 02 1 1305-1505 ●
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98061-099-0 02 1 1506- ● ●
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98061-099-0 02 1 1506- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 		8-98102-968-3 01 1 1305- ● ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20>,OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 		8-98102-967-3 01 1 1305- ● ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-969-3 01 1 1305- ● ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) M6X20 W/WASHER 		8-98056-282-0 04 1 1305-1505 ● ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M6X20 W/WASHER 		8-98056-282-0 04 1 1305-1505 ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) M6X20 W/WASHER 		8-98056-282-0 04 1 1506- ● ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M6X20 W/WASHER 		8-98056-282-0 04 1 1506- ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> M6X8 FLANGE 		8-98048-996-0 02 1 1305- ● ● ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> M6X14 FLANGE 		8-97247-698-0 01 1 1305- ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> M6X8 FLANGE 		8-98048-996-0 01 1 1305- ● ●
çizim 352847
112 142 292 349 55 188 7 300 189 279 189 189 55 1 189 301 135 7 158 158 135 189 7 121 55 296 292 55 129 256 127 126 125 112 125 142 294 291 296 296 349 293 295 296 147 175 349 290 292 350 292 296 121 175 349 147 293 294 125 350 290 296 296 291
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98198-539-2 01 1 1305- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1305- ●
1 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1305- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1305- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98104-362-9 01 1 1305- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1305- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1305- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1305- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1305- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1305- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1305- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1305- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1305- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1305- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1305- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1305- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1305- ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1305- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1305- ● ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1305- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1305- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-656-2 01 1 1305-1505 ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1305-1505 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1506- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1506- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98115-657-2 01 1 1305-1505 ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1305-1505 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1506- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1506- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1305- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1305- ●
142 NUT
REAR BODY DBL WALL CTR PULL(E63) M8 FLANGE 		0-91180-108-0 02 1 1305- ● ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1305- ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1305- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) M8X22 		8-98050-437-0 04 1 1305-1505 ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X22 		8-98050-437-0 04 1 1305-1505 ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X22 		8-98050-437-0 04 1 1506- ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> M8X22 		8-98050-437-0 04 1 1506- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 FLANGE 		0-28650-820-0 04 1 1305- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE 		0-28650-820-0 04 1 1305- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1305- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 02 1 1305-1408 ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1305- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1305- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) M8X22 		8-98050-437-0 02 1 1305- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1305- ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1305- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1305- ● ● ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1305- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1507- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1507- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1305-1506 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1507- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1305-1506 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1305- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-156-0 08 1 1305- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-156-0 04 1 1305- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-156-0 04 1 1305- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-156-0 04 1 1305- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1305- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1305- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1305- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1305- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1305- ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1305- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1305- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1305- ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1305- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1305-1506 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1507- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1507- ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1305- ● ● ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98053-899-0 01 1 1305- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1305- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1305- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1305- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1305- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1305- ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1305- ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
