Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11525 - CYZ CHINA EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#119265) — 32 parça
◀
[840A] DUCT NO.1 (8 parça)
[840A] DUCT NO.2 (13 parça)
[840A] GROMMET (1 parça)
[840A] CONTROL ASM;A/C (6 parça)
[840A] FIXING;HEATER AND BLOWER UNIT (4 parça)
▶

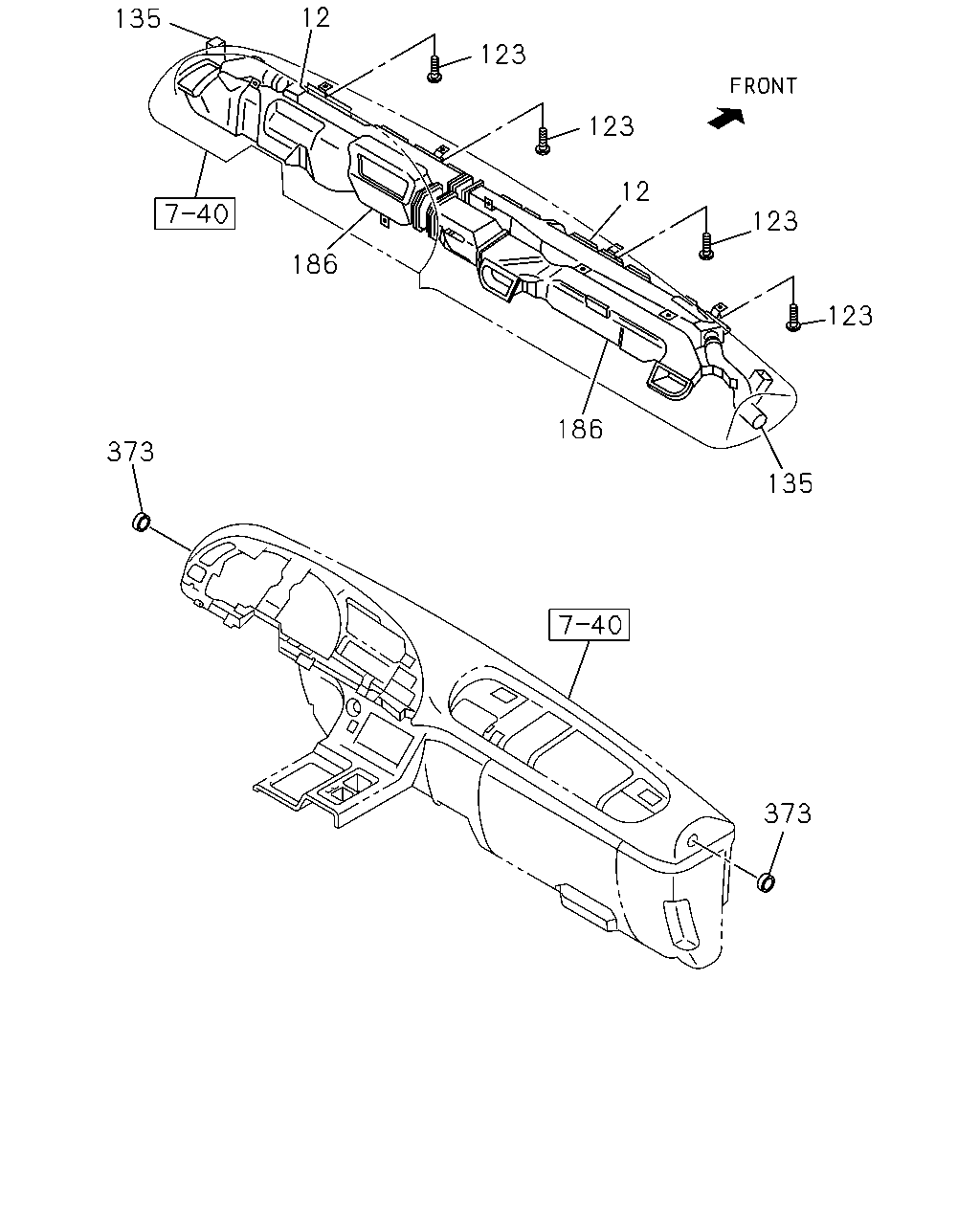

135
12
123
123
12
123
123
135
186
373
373
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
1-76378-360-2
01
1
1305-
12
NOZZLE; DEFROSTER
1-76377-196-1
01
1
1305-
123
SCREW; DUCT
M5X14
8-94279-325-0
11
1
1305-
135
HOSE; DEFROSTER
1-76378-364-3
01
1
1305-
135
HOSE; DEFROSTER
1-76377-231-0
01
1
1305-
186
DUCT; VENTILATOR
1-76378-362-4
01
1
1305-
186
DUCT; VENTILATOR
1-76377-197-2
01
1
1305-
373
RUBBER; JOINT
1-76378-291-0
02
1
1305-

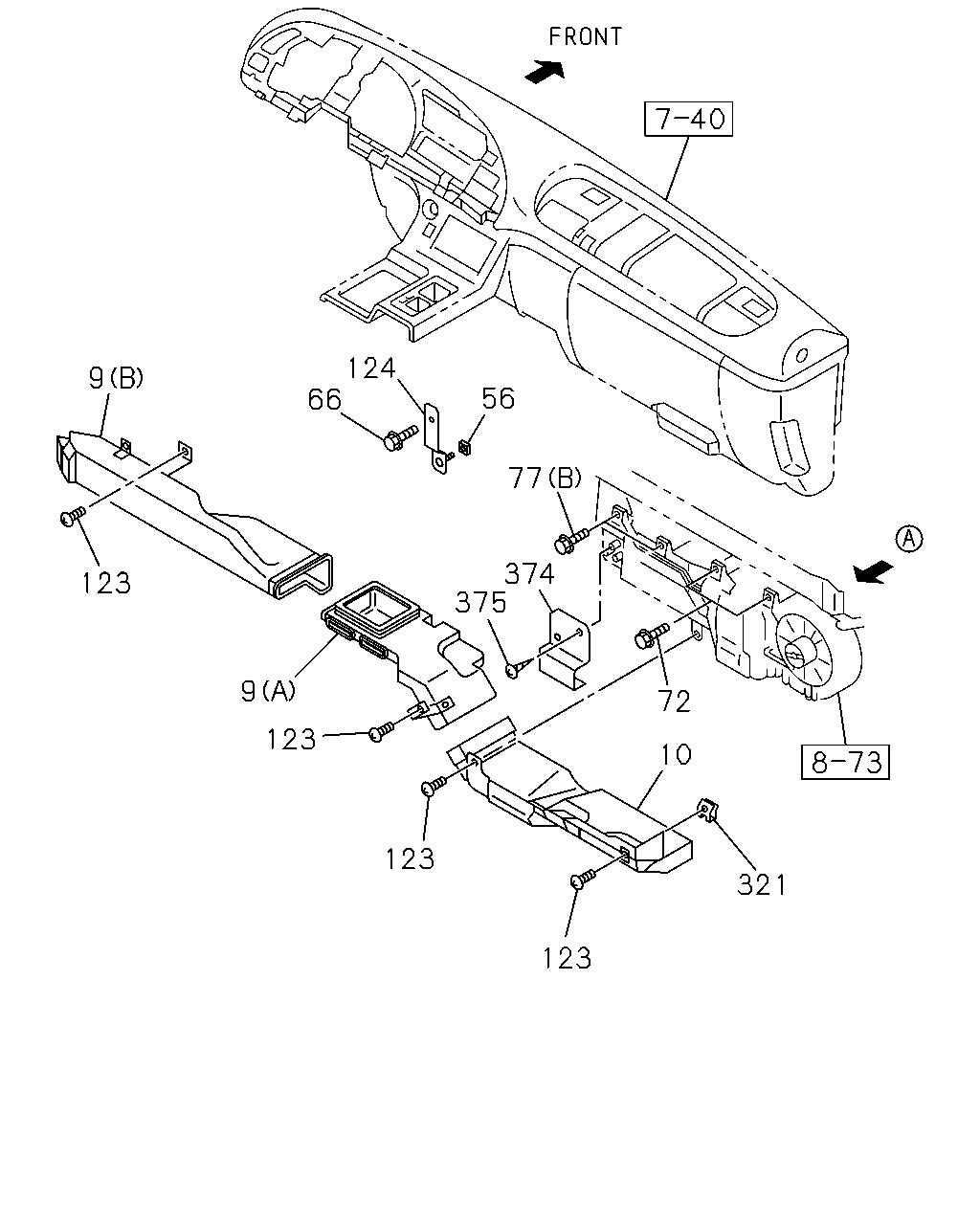

77
374
375
124
66
9
123
123
123
123
321
10
72
56
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
DUCT; HTR AIR,FOOT CENTER
(B)
1-76377-199-1
01
1
1305-
9
DUCT; HTR AIR,FOOT CENTER
(A)
1-76377-228-2
01
1
1305-
10
DUCT; HTR AIR,ASSIST FOOT
1-76377-200-1
01
1
1305-
56
NUT; INL DUCT
M6 FLANGE W/RUBBER
1-09984-180-0
01
1
1305-
66
BOLT; DUCT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1305-
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1305-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
1305-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1305-
123
SCREW; DUCT
M5X14
8-94279-325-0
11
1
1305-
124
BRACKET ASM; VENT DUCT
1-79738-186-1
01
1
1305-
321
NUT; DUCT FIX
M5
1-09984-196-0
01
1
1305-
374
HOLDER; DUCT
1-76398-012-1
01
1
1305-
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
1305-

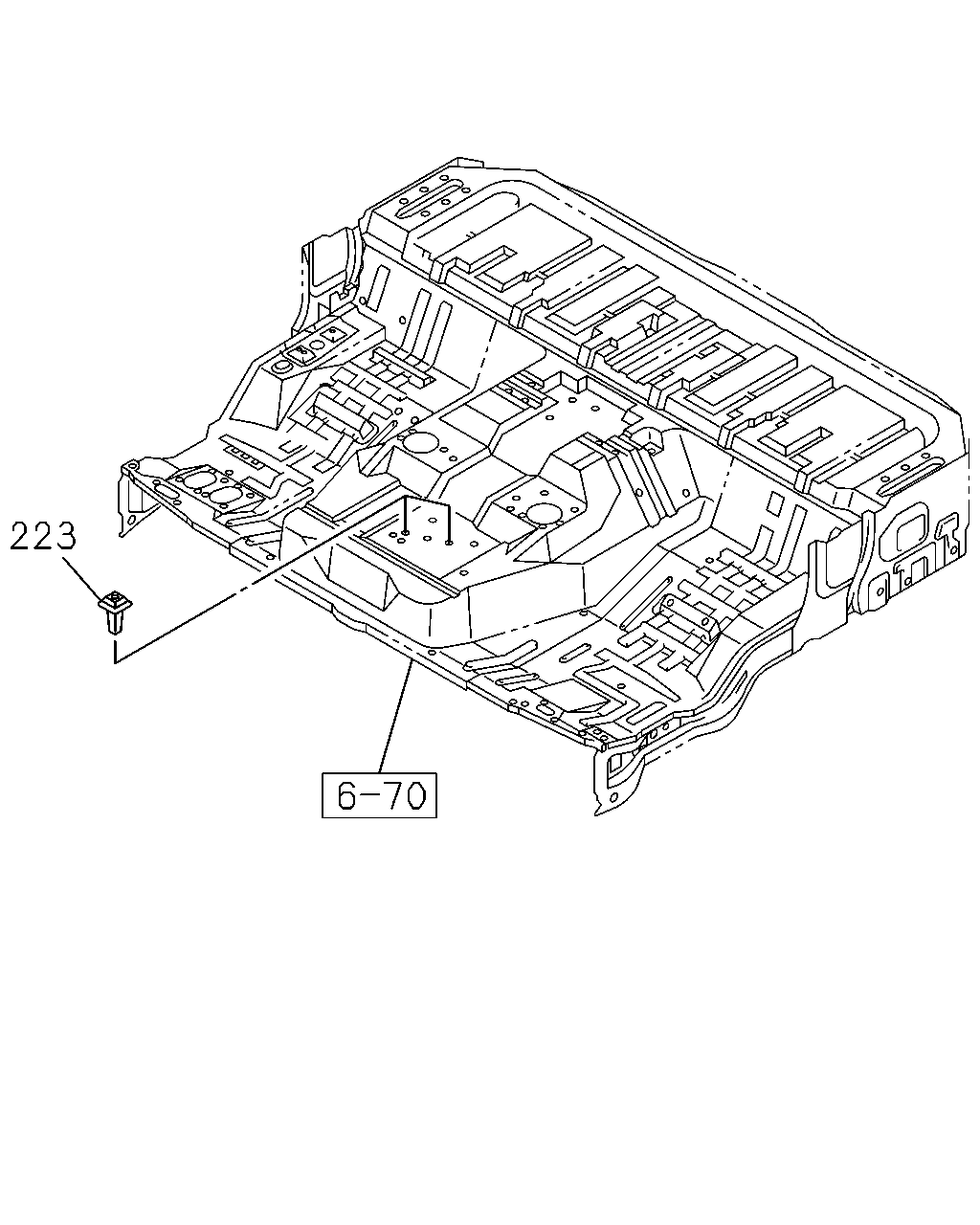

223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
223
GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1305-

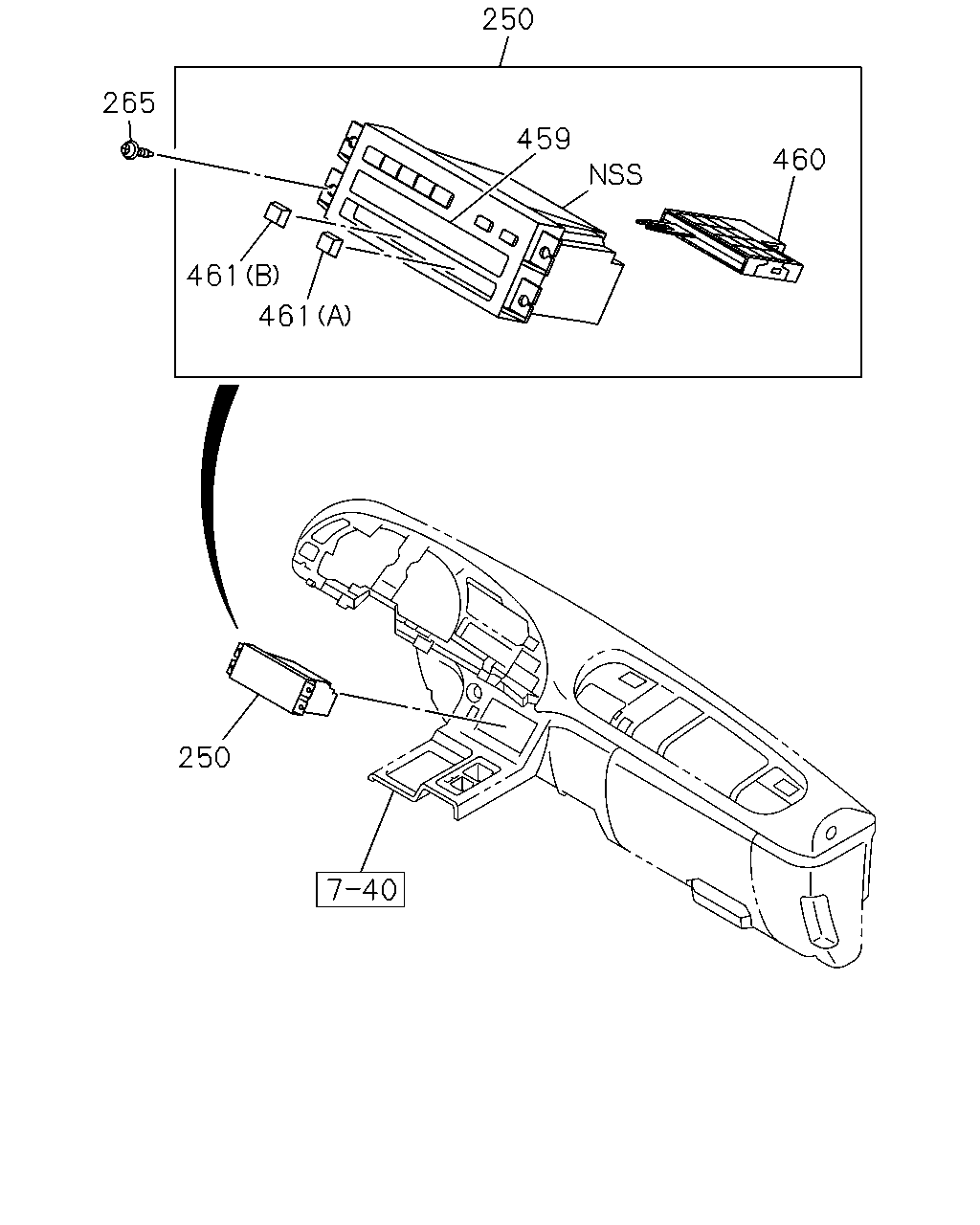

460
459
250
461
461
265
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
CONTROL ASM; A/C
8-98034-326-0
01
1
1305-
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74160-620-0
02
1
1305-
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
1305-
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
1305-
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
1305-
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
1305-
71
26
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1305-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
1305-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
1305-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1305-
