0-57 — EMISSION PIPING (#119264) — 43 parça

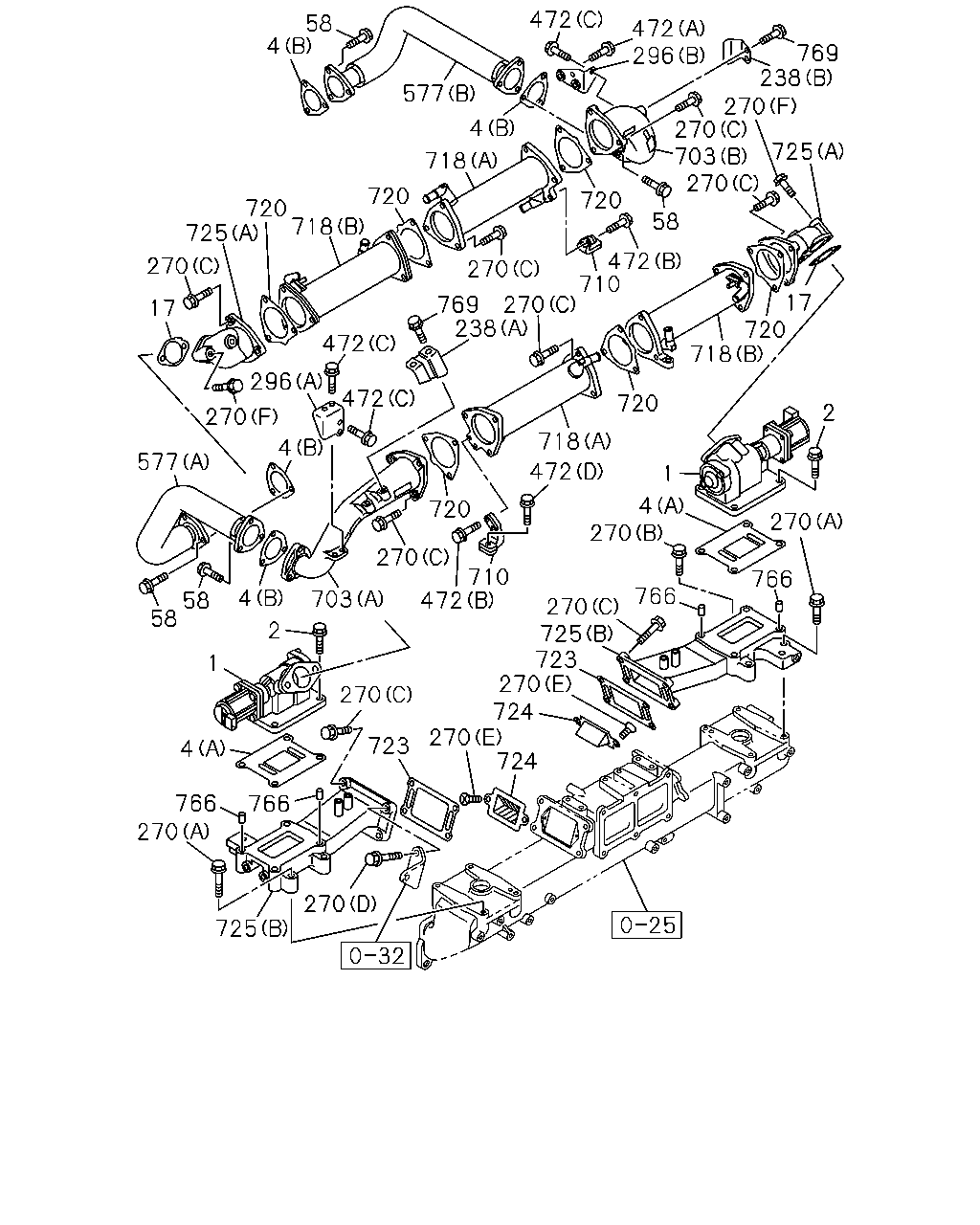

çizim 352559
718 270 472 720 718 720 17 710 472 270 270 238 769 720 718 720 725 270 17 296 270 577 58 58 1 4 4 472 472 720 710 472 270 723 270 724 724 723 270 766 766 270 1 703 2 270 766 766 270 725 270 725 4 720 718 577 58 4 472 472 270 270 238 769 725 703 58 270 4 2 4 270 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-98029-595-7 02 1 1305-1502 ● ●
1 VALVE; EGR 8-98238-266-1 02 1 1503- ● ●
2 BOLT; EGR VLV
M10X30 FLANGE 		0-28751-030-0 08 1 1305-1405 ● ●
2 BOLT; EGR VLV
M10X35 FLANGE 		0-28751-035-0 08 1 1406- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97601-836-0 04 1 1305- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 02 1 1305- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47 		8-97603-282-0 02 1 1305- ● ●
58 BOLT; PIPE
M8X23 FLANGE 		8-97378-077-0 12 1 1305- ● ●
238 PROTECTOR; HEAT,EGR
(A) 		8-98114-194-0 01 1 1305- ● ●
238 PROTECTOR; HEAT,EGR
(B) 		8-98114-195-0 01 1 1305- ● ●
270 BOLT
(A) M10X45 FLANGE 		0-28151-045-0 06 1 1305- ● ●
270 BOLT
(B) M10X50 FLANGE 		0-28151-050-0 02 1 1305- ● ●
270 BOLT
(F) M10X70 FLANGE 		0-28151-070-0 04 1 1305- ● ●
270 BOLT
(C) M10X35 FLANGE 		0-28751-035-0 26 1 1305- ● ●
270 BOLT
(D) M10X40 FLANGE 		0-28751-040-0 02 1 1305- ● ●
270 BOLT
(E) M6X12 HEX SOCKET 		9-05820-612-0 04 1 1305-1502 ● ●
270 BOLT
(E) M6X12 HEX SOCKET 		8-98272-417-0 04 1 1503- ● ●
296 BRACKET; DUCT
(A) 		8-98109-817-0 01 1 1305- ● ●
296 BRACKET; DUCT
(B) 		8-98109-818-0 01 1 1305- ● ●
472 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1305- ● ●
472 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 04 1 1305- ● ●
472 BOLT; BRKT
(C) M10X20 FLANGE 		0-28751-020-0 05 1 1305- ● ●
472 BOLT; BRKT
(D) M10X35 FLANGE 		0-28751-035-0 02 1 1305- ● ●
577 PIPE; AIR,EGR
(A) 		8-98105-624-1 01 1 1305- ● ●
577 PIPE; AIR,EGR
(B) 		8-98105-625-0 01 1 1305- ● ●
703 DUCT; EGR
(A) 		8-98105-622-1 01 1 1305-1412 ● ●
703 DUCT; EGR
(A) 		8-98292-630-0 01 1 1501- ● ●
703 DUCT; EGR
(B) 		8-98105-623-0 01 1 1305-1412 ● ●
703 DUCT; EGR
(B) 		8-98292-632-0 01 1 1501- ● ●
710 BRACKET; EGR COOLER 8-98106-748-1 02 1 1305- ● ●
718 COOLER; EGR
(A) 		8-97628-168-1 02 1 1305- ● ●
718 COOLER; EGR
(B) 		8-97628-169-0 02 1 1305- ● ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=80 		8-97603-889-0 06 1 1305- ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97621-936-0 02 1 1305-1502 ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97647-880-0 02 1 1503- ● ●
724 VALVE; REED 8-98186-738-0 02 1 1305-1502 ● ●
724 VALVE; REED 8-98272-702-0 02 1 1503-1503 ● ●
724 VALVE; REED 8-98291-639-0 02 1 1503- ● ●
725 DUCT; EGR VLV
(A) 		8-98239-398-1 02 1 1305- ● ●
725 DUCT; EGR VLV
(B) 		8-98239-399-0 02 1 1305-1502 ● ●
725 DUCT; EGR VLV
(B) 		8-98273-010-0 02 1 1503- ● ●
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 04 1 1305- ● ●
769 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1305- ● ●
