0-40 — FUEL INJECTION SYSTEM (#119263) — 74 parça

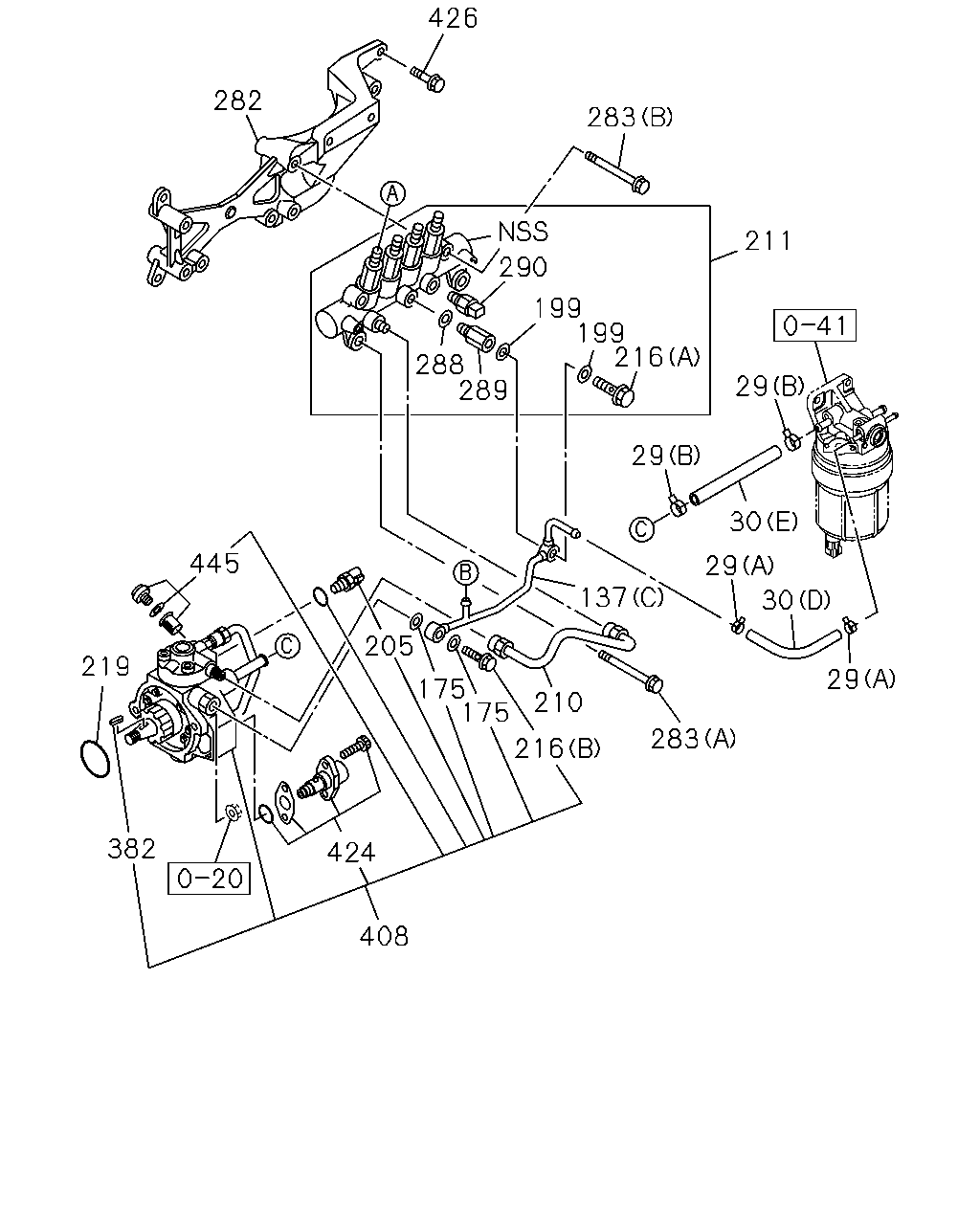

29 283 137 216 175 175 424 408 382 219 445 205 30 30 29 29 29 211 283 290 199 289 288 199 282 426 216 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; HOSE (A) ID=12 WO/PVC COATING THA	8-94123-526-1	02	1	1304-
29	CLIP; HOSE (B) ID=16 IMA	8-94392-924-0	02	1	1304-
29	CLIP; HOSE ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5 THA	8-97944-126-0	10	1	1304-
29	CLIP; HOSE EXC. ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5	8-97019-473-0	10	1	1304-
30	HOSE; RUBBER,FUEL LEAK (D) L=110 IMA	8-97377-894-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK (E) L=265 IMA	8-98169-863-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (A) L=130 THA	8-98053-692-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (B) L=96 THA	8-98053-693-0	03	1	1304-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (C) THA	8-98112-034-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (A) L=130 IMA	0-01804-130-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (B) L=98 IMA	8-97354-652-0	03	1	1304-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (C) L=150 IMA	8-97362-306-2	01	1	1304-
137	PIPE ASM; LEAK OFF (C) IMA	8-98009-699-0	01	1	1304-
137	PIPE ASM; LEAK OFF (D) IMA	8-98036-510-0	01	1	1304-
137	PIPE ASM; LEAK OFF (B) IMA	8-98161-061-0	03	1	1304-
137	PIPE ASM; LEAK OFF (A) IMA	8-98161-062-0	01	1	1304-
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=10.2 OD=15.2 IMA	1-09630-083-0	02	1	1304-
199	GASKET; EYE BOLT IMA	8-97602-218-0	02	1	1304-
205	SENSOR; FUEL TEMP IMA	8-98023-581-0	01	1	1304-
210	PIPE; INJ,C/R THA	8-97388-902-0	01	1	1304-
211	RAIL ASM; COMMON IMA	8-98011-888-2	01	1	1304-
216	BOLT; EYE (A) IMA	8-98043-033-0	01	1	1304-
216	BOLT; EYE (B) THA	9-88130-088-0	01	1	1304-
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 THA	1-09623-541-0	01	1	1304-
282	BRACKET; COMMON RAIL IMA	8-98147-694-0	01	1	1304-
283	BOLT; COMMON RAIL (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1304-
283	BOLT; COMMON RAIL (B) M8X81 FLANGE THA	8-97354-584-0	02	1	1304-
288	GASKET ID=11 OD=16.3 IMA	1-15641-046-0	01	1	1304-
289	LIMITER; FUEL PRESS THA	8-98032-549-0	01	1	1304-
290	SENSOR; PRESS IMA	8-98119-790-0	01	1	1304-
382	KEY; DRIVE SHAFT IMA	8-98161-995-0	01	1	1304-
408	PUMP ASM; FUEL,SUPPLY THA	8-97381-555-5	01	1	1304-
424	OVERHAUL KIT; SUPPLY PUMP IMA	8-98145-501-1	01	1	1304-
426	BOLT; BRACKET M8X60 FLANGE THA	0-28050-860-0	01	1	1304-
445	SCREW; FILTER,INLET THA	8-98204-986-0	01	1	1304-

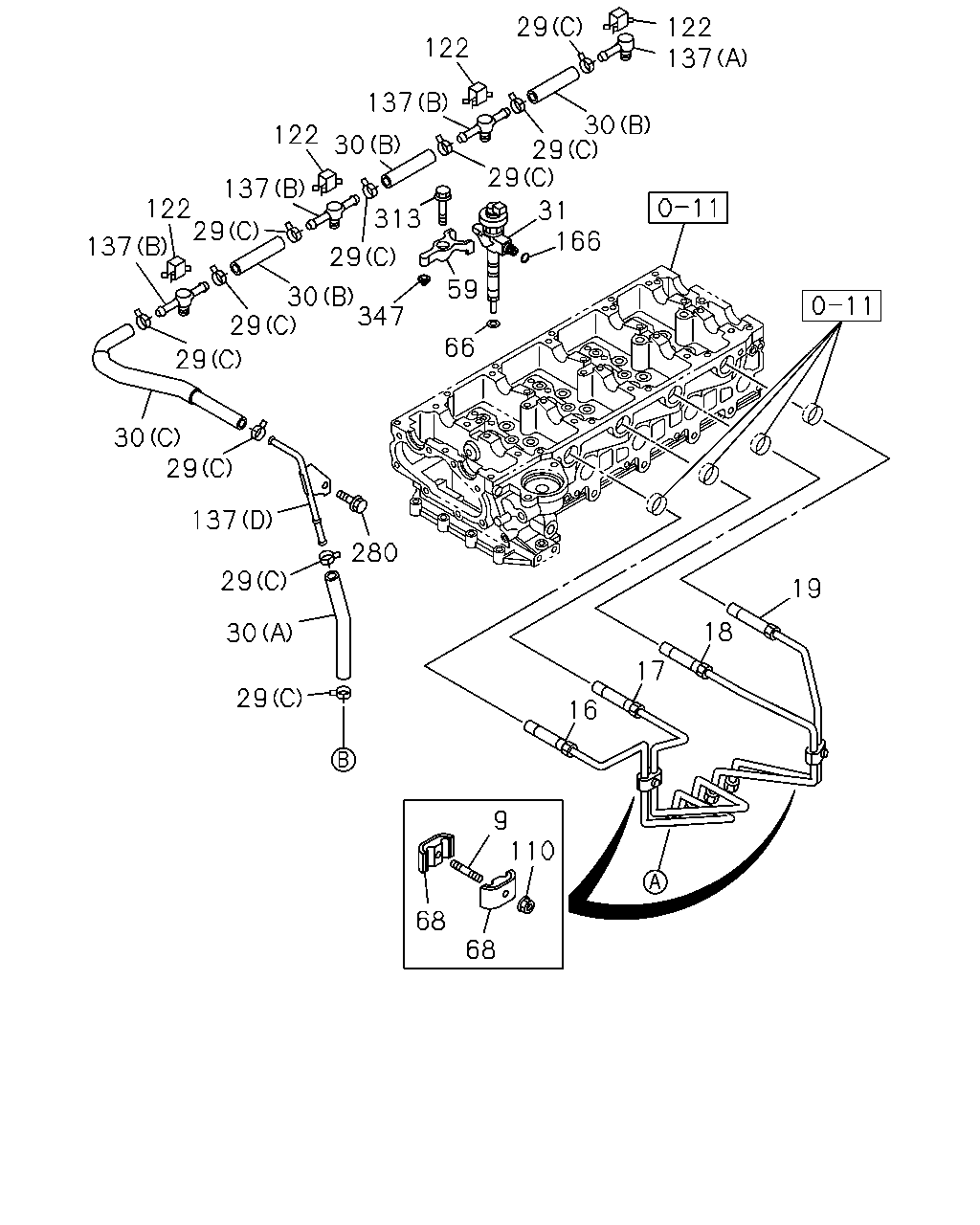

137 122 29 137 122 30 137 122 29 122 137 30 29 29 313 29 30 29 29 347 59 31 166 66 30 29 137 29 30 29 280 9 110 68 68 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	STUD; CLIP ENGINE MADE IN THAILAND<6ZP> M6X25 L=36 THA	8-97214-234-1	02	1	1304-
9	STUD; CLIP EXC. ENGINE MADE IN THAILAND<6ZP> M6X30 L=38 THA	0-41010-630-0	02	1	1304-
16	PIPE; INJ NO.1 ENGINE MADE IN THAILAND<6ZP> THA	8-98011-606-0	01	1	1304-
16	PIPE; INJ NO.1 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98203-719-0	01	1	1304-
17	PIPE; INJ NO.2 ENGINE MADE IN THAILAND<6ZP> THA	8-98043-684-0	01	1	1304-
17	PIPE; INJ NO.2 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98203-720-0	01	1	1304-
18	PIPE; INJ NO.3 ENGINE MADE IN THAILAND<6ZP> THA	8-98011-608-0	01	1	1304-
18	PIPE; INJ NO.3 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98203-721-0	01	1	1304-
19	PIPE; INJ NO.4 ENGINE MADE IN THAILAND<6ZP> THA	8-98011-609-0	01	1	1304-
19	PIPE; INJ NO.4 EXC. ENGINE MADE IN THAILAND<6ZP>	8-98203-722-0	01	1	1304-
29	CLIP; HOSE (A) ID=12 WO/PVC COATING THA	8-94123-526-1	02	1	1304-
29	CLIP; HOSE (B) ID=16 IMA	8-94392-924-0	02	1	1304-
29	CLIP; HOSE ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5 THA	8-97944-126-0	10	1	1304-
29	CLIP; HOSE EXC. ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5	8-97019-473-0	10	1	1304-
30	HOSE; RUBBER,FUEL LEAK (D) L=110 IMA	8-97377-894-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK (E) L=265 IMA	8-98169-863-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (A) L=130 THA	8-98053-692-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (B) L=96 THA	8-98053-693-0	03	1	1304-
30	HOSE; RUBBER,FUEL LEAK ENGINE MADE IN THAILAND<6ZP> (C) THA	8-98112-034-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (A) L=130 IMA	0-01804-130-0	01	1	1304-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (B) L=98 IMA	8-97354-652-0	03	1	1304-
30	HOSE; RUBBER,FUEL LEAK EXC. ENGINE MADE IN THAILAND<6ZP> (C) L=150 IMA	8-97362-306-2	01	1	1304-
31	NOZZLE ASM; INJ THA	8-98011-604-5	04	1	1304-
59	CLAMP; NOZZLE HOLDER THA	8-98092-539-0	04	1	1304-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA	8-98181-540-0	04	1	1304-
68	CLIP; INJ PIPE ENGINE MADE IN THAILAND<6ZP> THA	8-97213-481-0	04	1	1304-
68	CLIP; INJ PIPE EXC. ENGINE MADE IN THAILAND<6ZP> IMA	8-98039-293-0	04	1	1304-1405
68	CLIP; INJ PIPE EXC. ENGINE MADE IN THAILAND<6ZP> IMA	8-98148-996-2	04	1	1406-
110	NUT; CLIP M6 FLANGE THA	0-91180-106-0	02	1	1304-
122	CLIP; LEAK OFF PIPE IMA	8-97315-286-0	04	1	1304-
137	PIPE ASM; LEAK OFF (C) IMA	8-98009-699-0	01	1	1304-
137	PIPE ASM; LEAK OFF (D) IMA	8-98036-510-0	01	1	1304-
137	PIPE ASM; LEAK OFF (B) IMA	8-98161-061-0	03	1	1304-
137	PIPE ASM; LEAK OFF (A) IMA	8-98161-062-0	01	1	1304-
166	GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8 THA	9-09566-111-0	04	1	1304-
280	BOLT; CLIP,FUEL HOSE M8X12 FLANGE THA	0-28050-812-0	01	1	1304-
313	BOLT; BRKT,INJ NOZZLE ENGINE MADE IN THAILAND<6ZP> M8X50 W/WASHER THA	8-98095-575-0	04	1	1304-
313	BOLT; BRKT,INJ NOZZLE EXC. ENGINE MADE IN THAILAND<6ZP> M8X50 W/WASHER THA	8-97372-144-0	04	1	1304-
347	PIN THA	8-98165-035-0	04	1	1304-
