◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#119260) — 16 parça

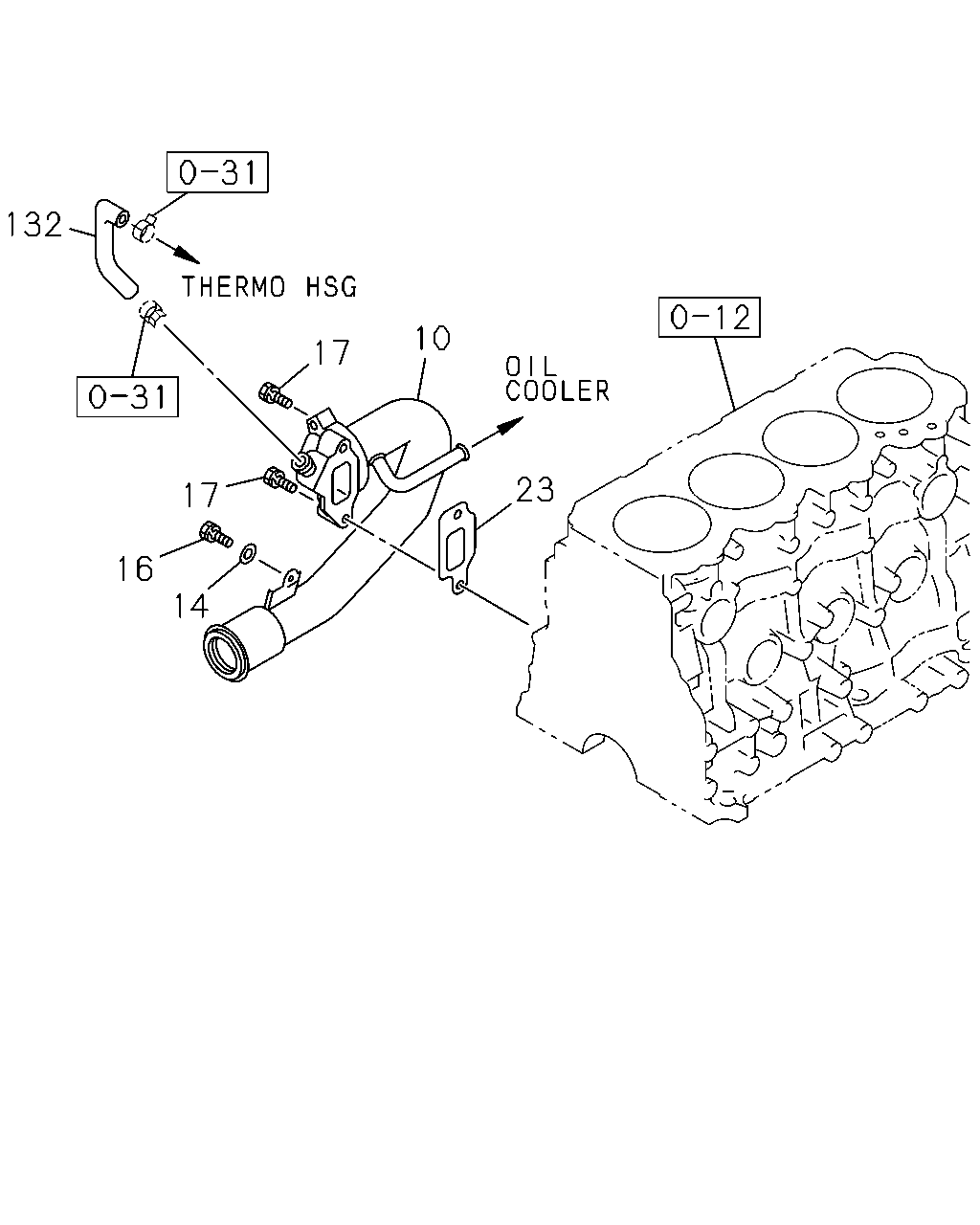

çizim 350197
132 17 17 16 23 14 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 PIPE; SUCTION 8-97381-633-0 01 1 1305- ●
14 WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1305- ●
16 BOLT; INL PIPE
M8X20 W/LK WASHER 		0-50540-820-0 01 1 1305- ●
17 BOLT; SUCTION PIPE
M8X50 W/LK WASHER 		0-50540-850-0 02 1 1305- ●
23 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1305- ●
23 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1305- ●
132 HOSE; WATER PIPE 8-94382-246-0 01 1 1305- ●

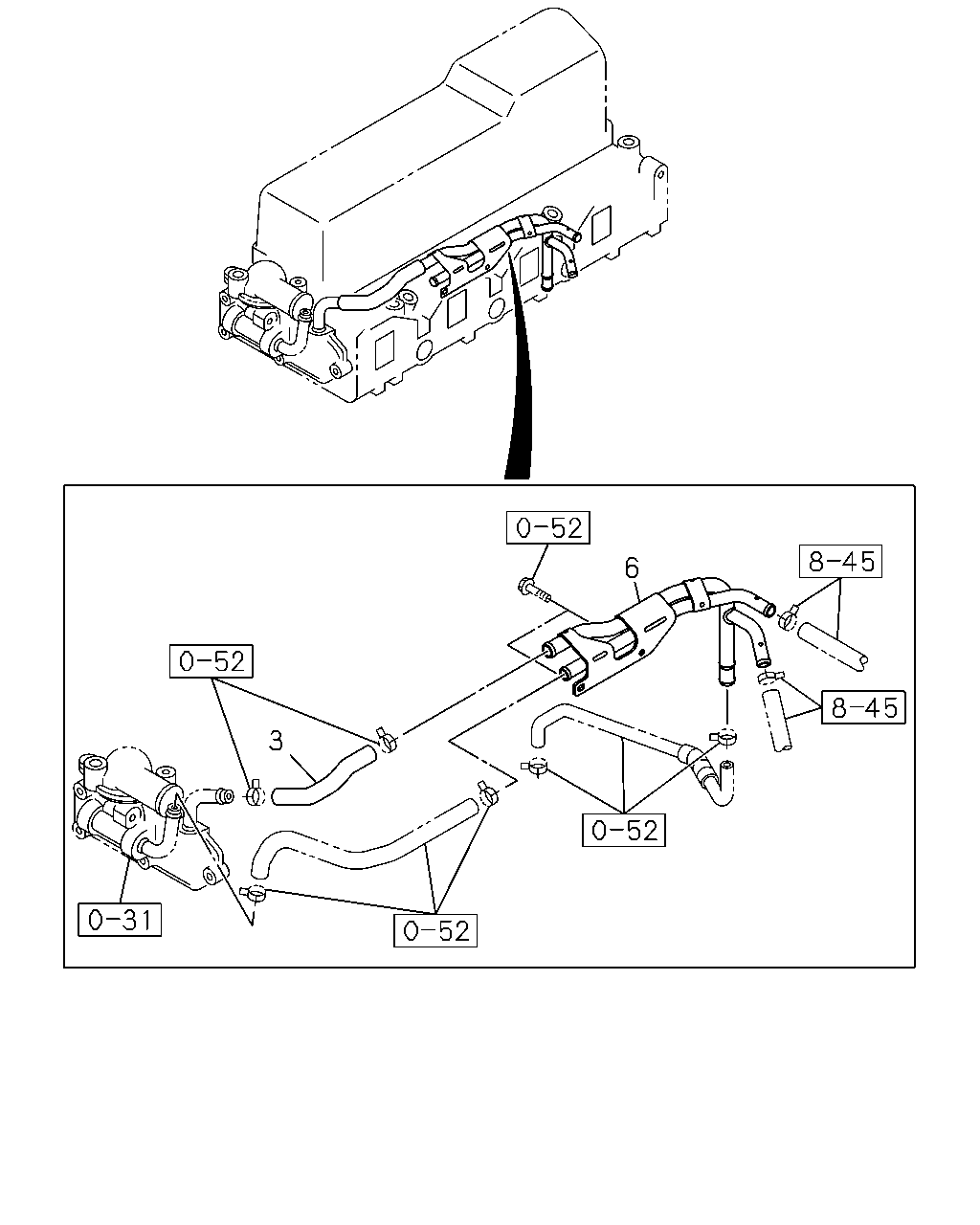

çizim 352063
6 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOSE; WATER,OIL COOLER 8-97354-155-1 01 1 1305- ●
6 CONNECTOR; HTR & COOLER HOSE 8-98200-080-2 01 1 1305- ●

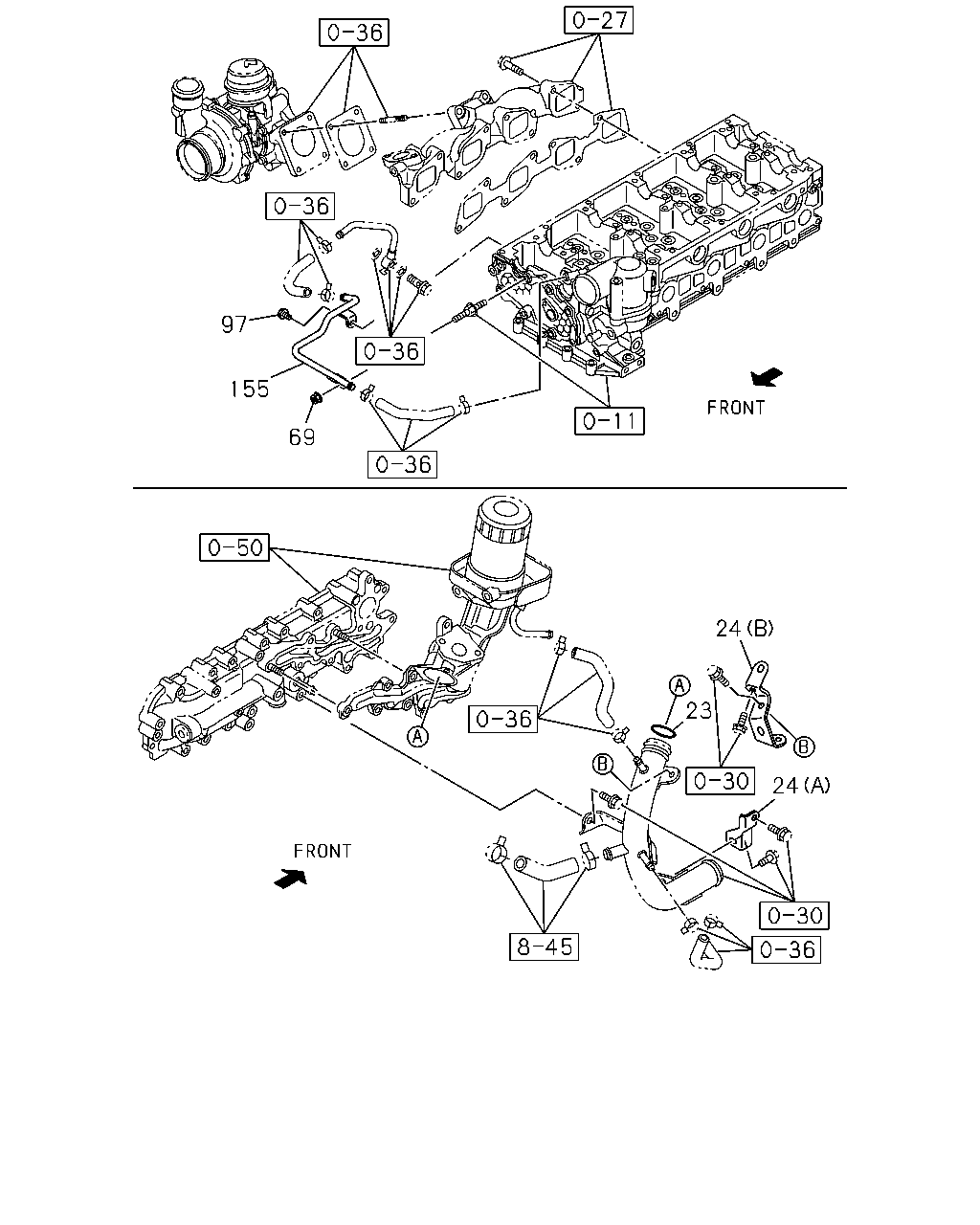

çizim 352655
97 155 69 23 24 24
BalonParca AdiParca NoAdetTipApplied Date A B
23 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1305- ●
23 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1305- ●
24 BRACKET; WATER PIPE
(A) 		8-97375-053-2 01 1 1305- ●
24 BRACKET; WATER PIPE
(B) 		8-98132-031-0 01 1 1305- ●
69 NUT; WATER PIPE
M6 FLANGE 		0-91180-206-0 01 1 1305- ●
97 BOLT; WATER PIPE
M6X12 FLANGE 		0-28050-612-0 01 1 1305- ●
155 PIPE ASM; WATER 8-98132-032-0 01 1 1305- ●
