Isuzu WW
▶
TRUCKS
▶
CYH
▶
11539 - CYH CHINA EURO4
▶
0 - Engine, Emission, Engine Electrical
▶

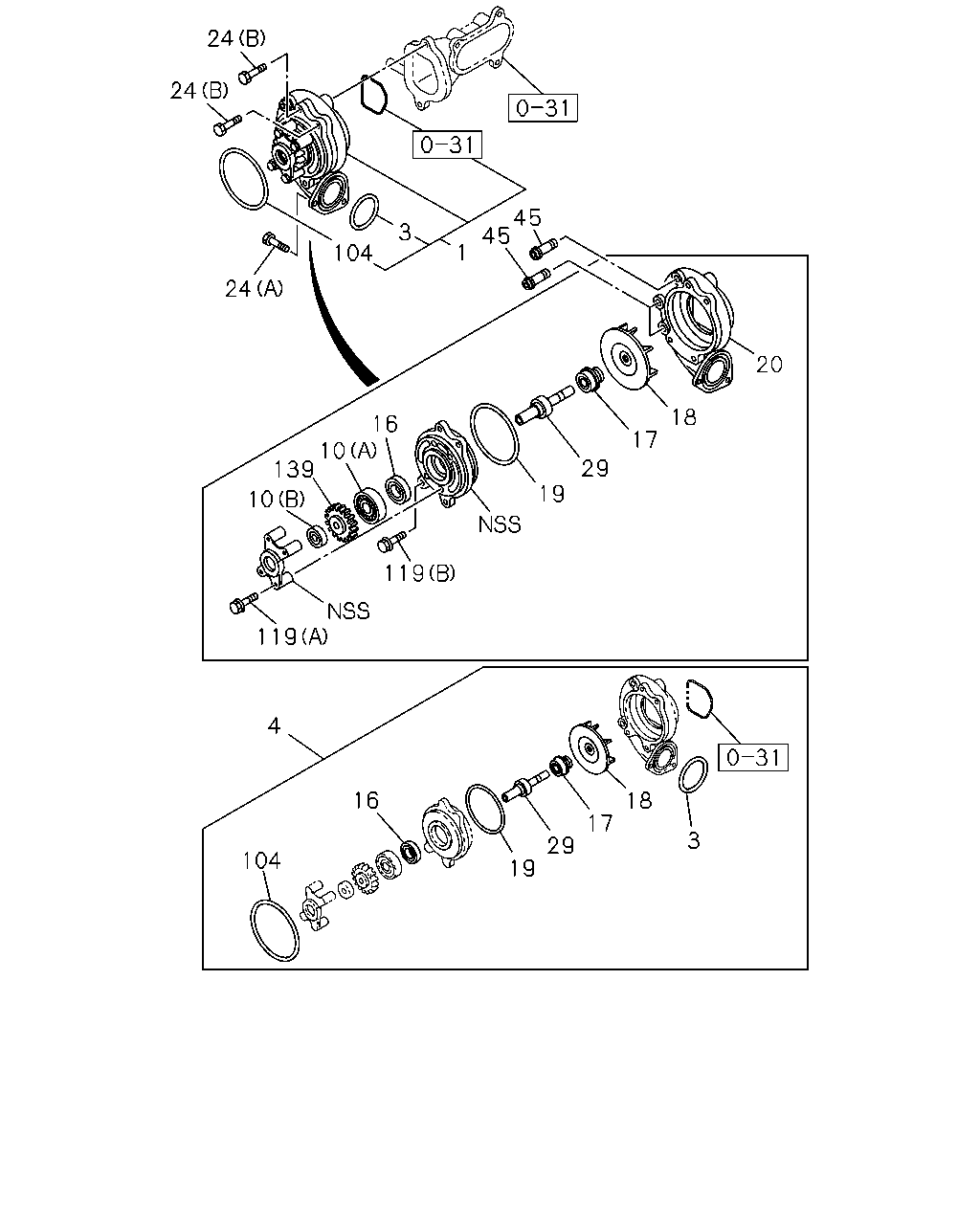

0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#119259) — 34 parça
Tümü
A - 6WG1 TC-N
B - 6WG1 TC-R
◀

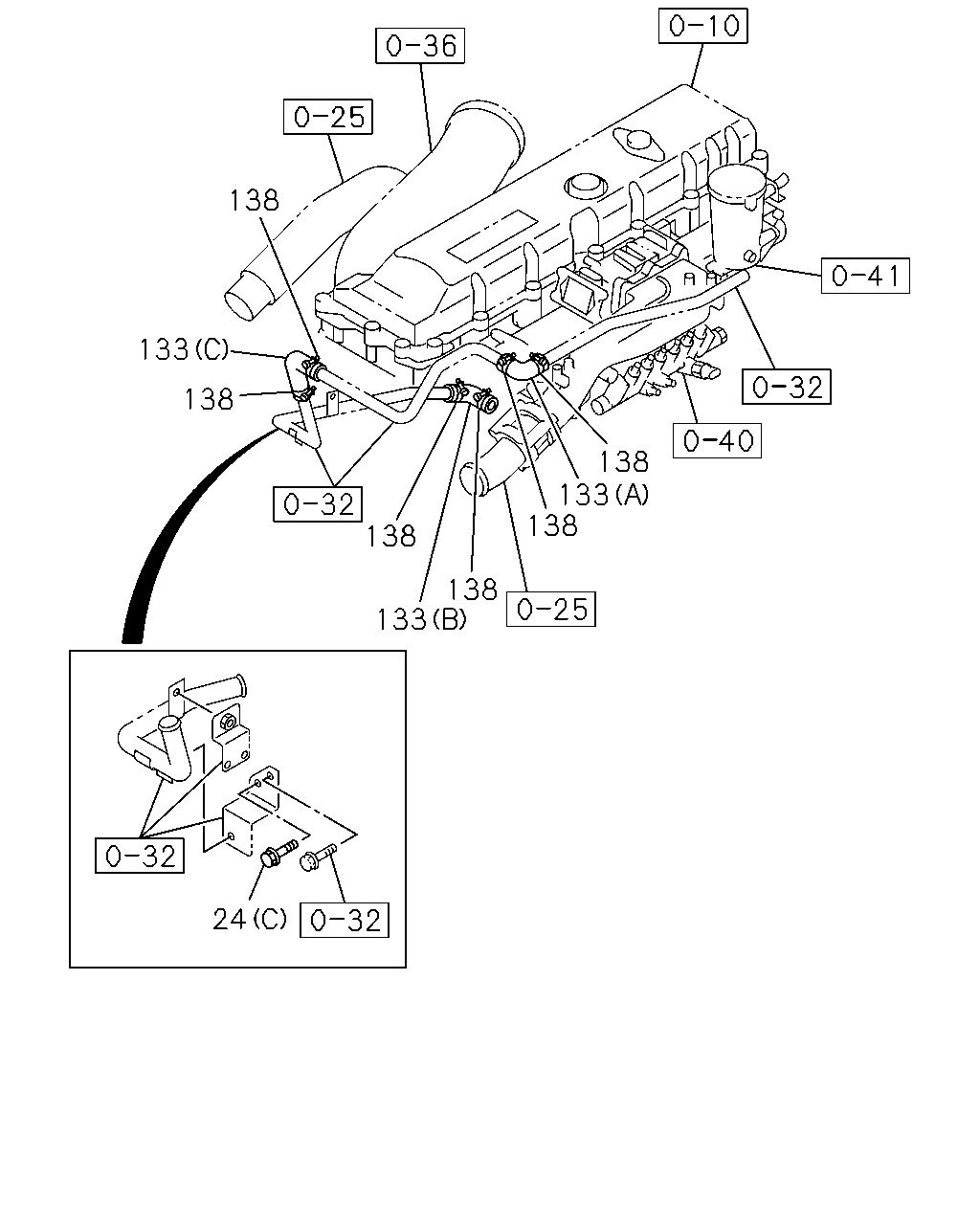

[030A] WATER HOSE (8 parça)
[030A] COMPONENT (26 parça)
▶
138
133
138
138
138
133
138
133
24
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
BOLT; WATER PUMP
(C) M10X100 FLANGE
0-28151-000-0
01
1
1305-
●
●
24
BOLT; WATER PUMP
(A) M10X25 FLANGE
0-28151-025-0
02
1
1305-
●
●
24
BOLT; WATER PUMP
(B) M10X90 FLANGE
0-28151-090-0
01
1
1305-
●
●
24
BOLT; WATER PUMP
(B) M10X95 FLANGE
8-94397-027-1
02
1
1305-
●
●
133
HOSE; RUBBER,WATER PIPE
(A)
8-97612-998-0
01
1
1305-
●
●
133
HOSE; RUBBER,WATER PIPE
(B)
8-97617-185-0
01
1
1305-
●
●
133
HOSE; RUBBER,WATER PIPE
(C)
8-98193-296-2
01
1
1305-
●
●
138
CLIP; RUBBER HOSE
ID=44
1-09704-077-0
06
1
1305-
●
●
24
24
24
104
3
45
45
1
20
18
17
29
19
119
119
10
139
10
16
4
104
16
19
29
17
3
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
1-87310-864-0
01
1
1305-1312
●
●
1
PUMP ASM; WATER,W/GASKET
1-87310-956-0
01
1
1401-1406
●
●
1
PUMP ASM; WATER,W/GASKET
1-87310-995-0
01
1
1407-
●
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-586-1
01
1
1305-
●
●
4
REPAIR KIT; WATER PUMP
1-87813-955-0
01
1
1305-1312
●
●
4
REPAIR KIT; WATER PUMP
1-87813-815-0
01
1
1401-1406
●
●
4
REPAIR KIT; WATER PUMP
1-87814-620-0
01
1
1407-
●
●
10
BEARING; WATER PUMP
(A)
1-09800-252-0
01
1
1305-
●
●
10
BEARING; WATER PUMP
(B)
1-09800-253-0
01
1
1305-
●
●
16
SEAL; OIL,WATER PUMP
1-09625-551-0
01
1
1305-
●
●
17
SEAL UNIT; WATER PUMP
8-98221-159-0
01
1
1305-1312
●
●
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1401-1406
●
●
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1407-
●
●
18
IMPELLER; WATER PUMP
8-98075-723-0
01
1
1305-
●
●
19
GASKET; COVER TO BODY
8-97606-729-0
01
1
1305-
●
●
20
COVER; WATER PUMP
8-97611-134-0
01
1
1305-
●
●
24
BOLT; WATER PUMP
(C) M10X100 FLANGE
0-28151-000-0
01
1
1305-
●
●
24
BOLT; WATER PUMP
(A) M10X25 FLANGE
0-28151-025-0
02
1
1305-
●
●
24
BOLT; WATER PUMP
(B) M10X90 FLANGE
0-28151-090-0
01
1
1305-
●
●
24
BOLT; WATER PUMP
(B) M10X95 FLANGE
8-94397-027-1
02
1
1305-
●
●
29
SHAFT; WATER PUMP
8-98141-463-0
01
1
1305-
●
●
45
JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47
9-09903-631-0
03
1
1305-
●
●
104
GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-494-0
01
1
1305-
●
●
119
BOLT; PUMP COVER
(A) M8X40 FLANGE
0-28050-840-0
04
1
1305-
●
●
119
BOLT; PUMP COVER
(B) M10X20 FLANGE
0-28151-020-0
01
1
1305-
●
●
139
GEAR; WATER PUMP,DRIVE
8-97606-219-1
01
1
1305-
●
●
