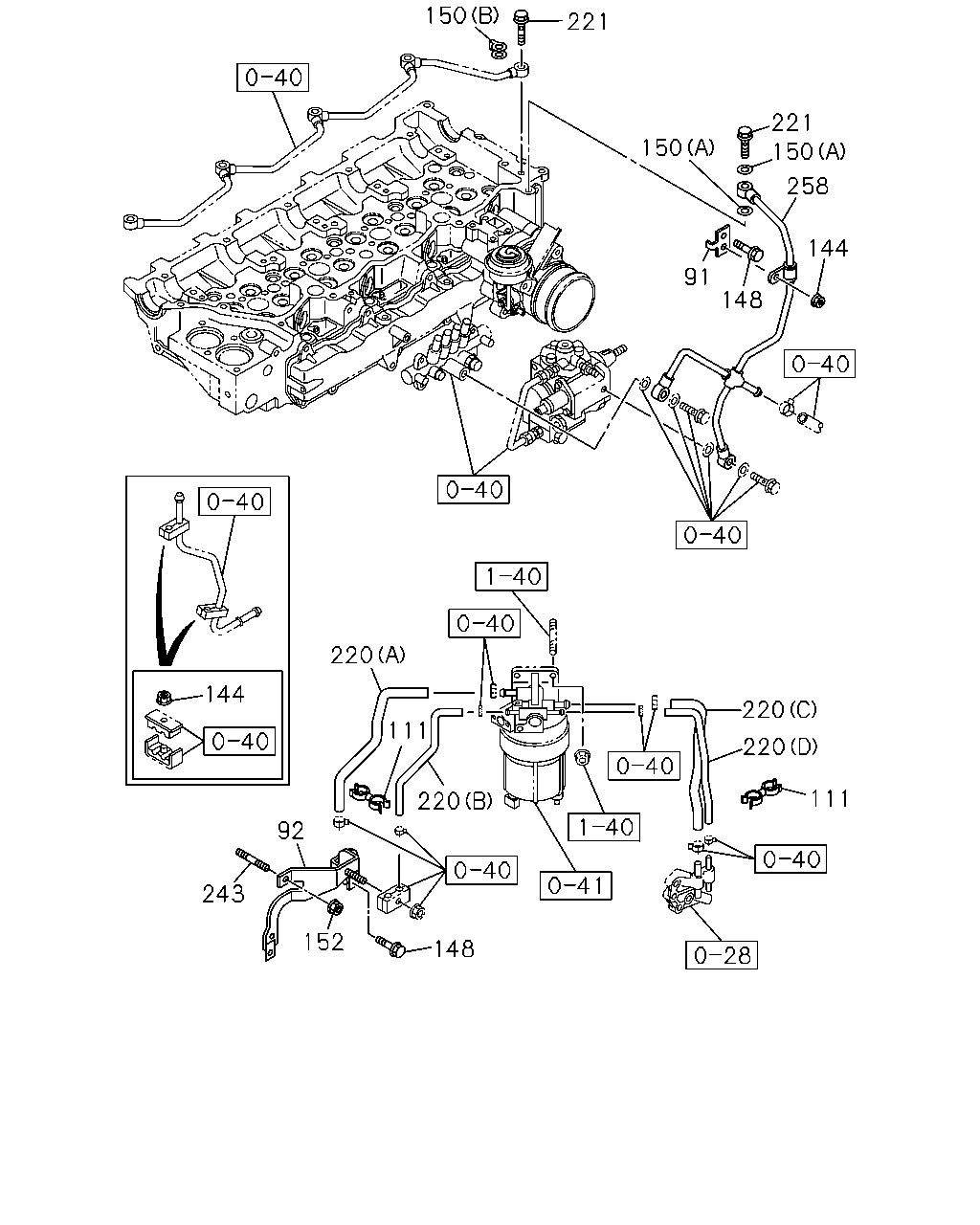

0-42 — FUEL PUMP AND PIPE
(#119253) — 15 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
144
243
92
152
220
220
148
220
220
111
150
221
150
221
150
258
91
148
144
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
91
BRACKET; FUEL PIPE TO INL MANIF
IMA
8-98033-979-0
01
1
1304-
●
●
92
BRACKET; FUEL PIPE
IMA
8-98051-532-1
01
1
1304-
●
●
111
CLIP; FUEL PIPE
ID=13 & 16.5 IMA
8-94169-028-0
03
1
1304-
●
●
144
NUT; CLIP
M6 FLANGE THA
0-91180-106-0
03
1
1304-
●
●
148
BOLT; BRKT
M6X12 FLANGE THA
0-28050-612-0
03
1
1304-
●
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 IMA
1-09630-083-0
02
1
1304-
●
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17 IMA
8-98079-755-0
01
1
1304-
●
●
152
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1304-
●
●
220
HOSE; FUEL
(C) IMA
8-98036-180-3
01
1
1304-
●
●
220
HOSE; FUEL
(D) IMA
8-98036-181-2
01
1
1304-
●
●
220
HOSE; FUEL
(A) IMA
8-98076-056-1
01
1
1304-
●
●
220
HOSE; FUEL
(B) IMA
8-98076-057-1
01
1
1304-
●
●
221
BOLT; FUEL PIPE
M10X21 FLANGE IMA
8-94396-711-0
02
1
1304-
●
●
243
STUD; BRKT
M8X15,M8X17 L=40 IMA
8-98009-913-0
01
1
1304-
●
●
258
PIPE ASM; FUEL,LEAK OFF
IMA
8-98033-718-0
01
1
1304-
●
●
