0-13 — OIL PAN AND LEVEL GAUGE (#119249) — 11 parça

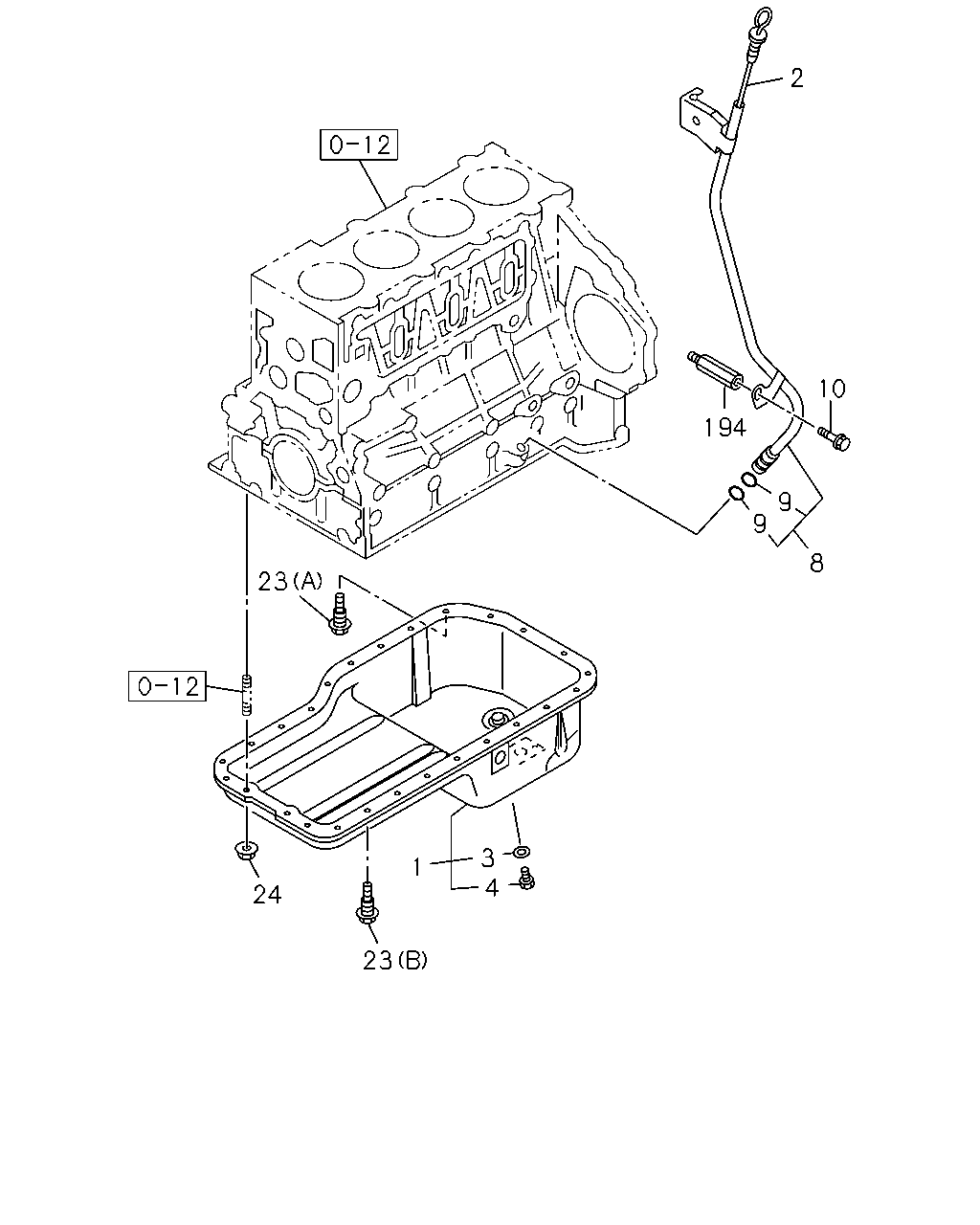

çizim 350066
23 3 4 1 24 23 194 10 8 9 9 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
IMA 		8-98191-050-0 01 1 1304- ● ●
2 GAUGE; OIL LEVEL
IMA 		8-98183-344-0 01 1 1304- ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 1304- ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-94152-613-0 01 1 1304- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
IMA 		8-98039-161-0 01 1 1304- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 IMA 		1-09623-469-0 02 1 1304- ● ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1304- ● ●
23 BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP IMA 		8-97047-004-1 01 1 1304- ● ●
23 BOLT; OIL PAN
(B) M8X14 IMA 		8-97047-005-0 18 1 1304- ● ●
24 NUT; OIL PAN
M8 W/LK WASHER THA 		8-97581-234-0 07 1 1304- ● ●
194 SPACER; GUIDE TUBE
IMA 		8-97101-215-0 01 1 1304- ● ●
