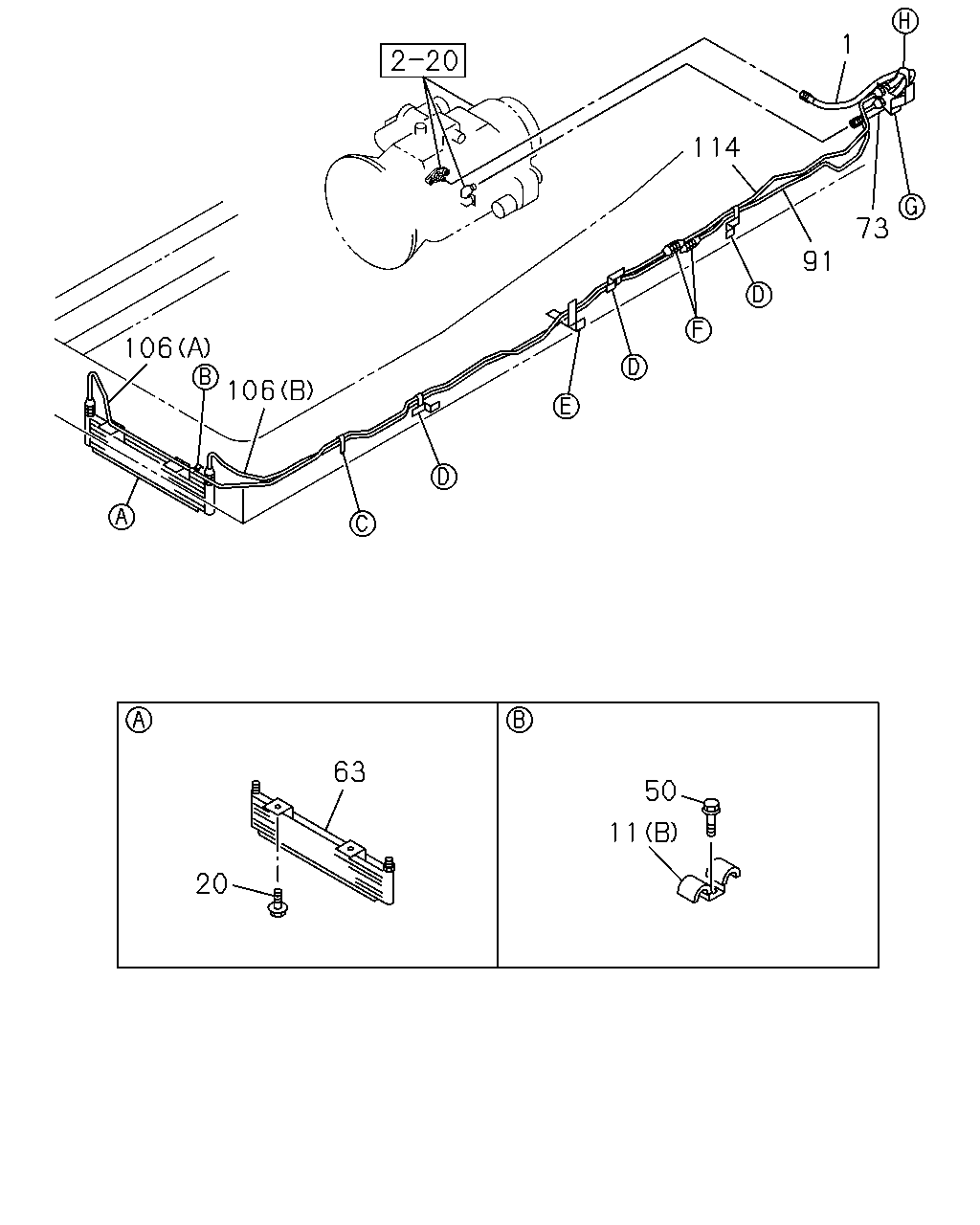

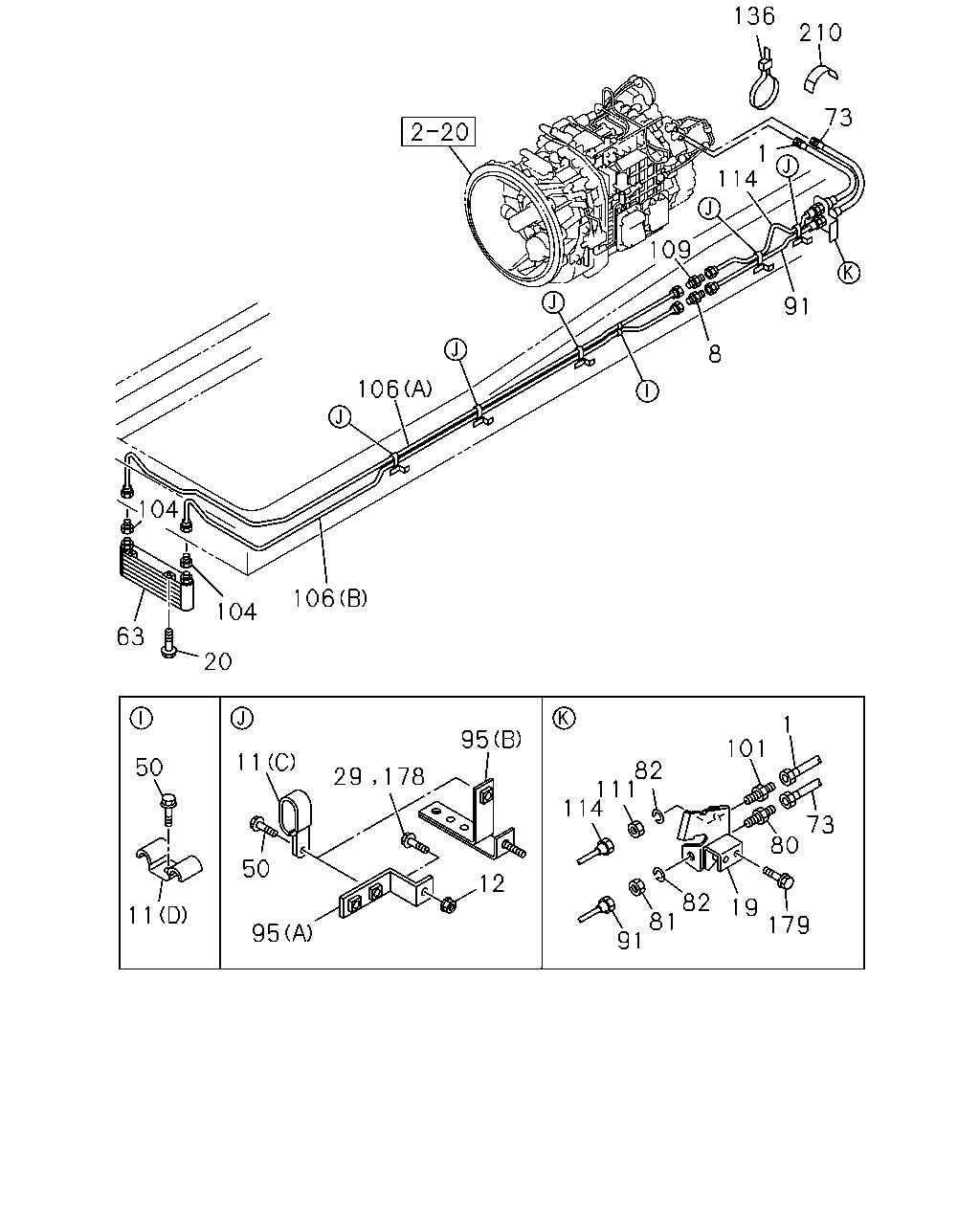

2-53 — TRANSMISSION OIL COOLER SYSTEM (#119240) — 128 parça

11 50 11 50 95 12 8 109 136 210 73 48 1 179 117 116 114 91 76 77 19 50 11 178 12 95 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1305-
1	HOSE; ATF MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1305-
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1305-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1305-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	05	1	1305-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1305-
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16X2 L=20	0-95325-535-0	05	1	1305-1305
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16X2 L=20	0-95325-535-0	04	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1305-
12	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	03	1	1306-
12	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	1306-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1305-1305
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47471-245-0	01	1	1305-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	8-98225-107-0	01	1	1305-
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1305-
48	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	02	1	1305-
50	BOLT; CLIP MJT7S M/T(Y3E) M8X25 FLANGE	0-28650-825-0	03	1	1306-
50	BOLT; CLIP MJX16P M/T(Y3Z) M8X25 FLANGE	0-28650-825-0	02	1	1306-
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	04	1	1305-1305
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1305-
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1305-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1305-
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1305-
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1305-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=851	8-98241-422-0	01	1	1305-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=802	8-98229-900-0	01	1	1305-
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1305-
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1305-1305
95	BRACKET; CLIP MJT7S M/T(Y3E) (B)	8-98199-287-2	01	1	1306-
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1305-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1305-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=752	8-98229-901-0	01	1	1305-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=878	8-98229-807-0	01	1	1305-
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1305-
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1305-
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1305-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1305-
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1305-
179	BOLT; BRKT MJT7S M/T(Y3E) M8X40 FLANGE	0-28650-840-0	02	1	1305-
179	BOLT; BRKT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	1305-
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1305-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1305-

104 104 106 20 63 50 11 11 50 95 29 178 12 95 114 91 111 82 81 82 19 179 73 1 101 80 8 91 210 136 73 114 1 109 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1305-
1	HOSE; ATF MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1305-
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1305-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1305-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	05	1	1305-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1305-
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16X2 L=20	0-95325-535-0	05	1	1305-1305
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16X2 L=20	0-95325-535-0	04	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1305-
12	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	03	1	1306-
12	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	1306-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1305-1305
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47471-245-0	01	1	1305-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	8-98225-107-0	01	1	1305-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1305-
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1305-
50	BOLT; CLIP MJT7S M/T(Y3E) M8X25 FLANGE	0-28650-825-0	03	1	1306-
50	BOLT; CLIP MJX16P M/T(Y3Z) M8X25 FLANGE	0-28650-825-0	02	1	1306-
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	04	1	1305-1305
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1305-
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
63	COOLER; OIL	1-21700-394-0	01	1	1305-1405
63	COOLER; OIL	8-98269-766-0	01	1	1406-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1305-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1305-
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1305-
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1305-
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	1305-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=851	8-98241-422-0	01	1	1305-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=802	8-98229-900-0	01	1	1305-
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1305-
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1305-1305
95	BRACKET; CLIP MJT7S M/T(Y3E) (B)	8-98199-287-2	01	1	1306-
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1305-
104	CONNECTOR; COOLER MJX16P M/T(Y3Z)	1-09654-398-0	02	1	1305-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B)	8-98230-099-0	01	1	1305-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A)	8-98230-100-0	01	1	1305-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98230-097-0	01	1	1305-1305
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98247-368-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A)	8-98230-098-0	01	1	1305-1305
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A)	8-98247-370-0	01	1	1306-
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1305-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1305-
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1305-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=752	8-98229-901-0	01	1	1305-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=878	8-98229-807-0	01	1	1305-
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1305-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1305-
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1305-
179	BOLT; BRKT MJT7S M/T(Y3E) M8X40 FLANGE	0-28650-840-0	02	1	1305-
179	BOLT; BRKT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	1305-
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1305-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1305-

106 106 63 20 50 11 114 91 73 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1305-
1	HOSE; ATF MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1305-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11X2 L=20	0-95325-035-0	05	1	1305-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1305-
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16X2 L=20	0-95325-535-0	05	1	1305-1305
11	CLIP; PIPE MJX16P M/T(Y3Z) (C) ID=16X2 L=20	0-95325-535-0	04	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1305-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1305-
50	BOLT; CLIP MJT7S M/T(Y3E) M8X25 FLANGE	0-28650-825-0	03	1	1306-
50	BOLT; CLIP MJX16P M/T(Y3Z) M8X25 FLANGE	0-28650-825-0	02	1	1306-
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	04	1	1305-1305
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1305-
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
63	COOLER; OIL	1-21700-394-0	01	1	1305-1405
63	COOLER; OIL	8-98269-766-0	01	1	1406-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1305-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1305-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=851	8-98241-422-0	01	1	1305-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=802	8-98229-900-0	01	1	1305-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B)	8-98230-099-0	01	1	1305-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A)	8-98230-100-0	01	1	1305-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98230-097-0	01	1	1305-1305
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98247-368-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A)	8-98230-098-0	01	1	1305-1305
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A)	8-98247-370-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=752	8-98229-901-0	01	1	1305-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=878	8-98229-807-0	01	1	1305-
