51421 - TFR/TFS(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-10 - ENGINE HOOD AND LOCK
▶
6-10 — ENGINE HOOD AND LOCK
(#119238) — 33 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5SF
D - TFS5WF
◀

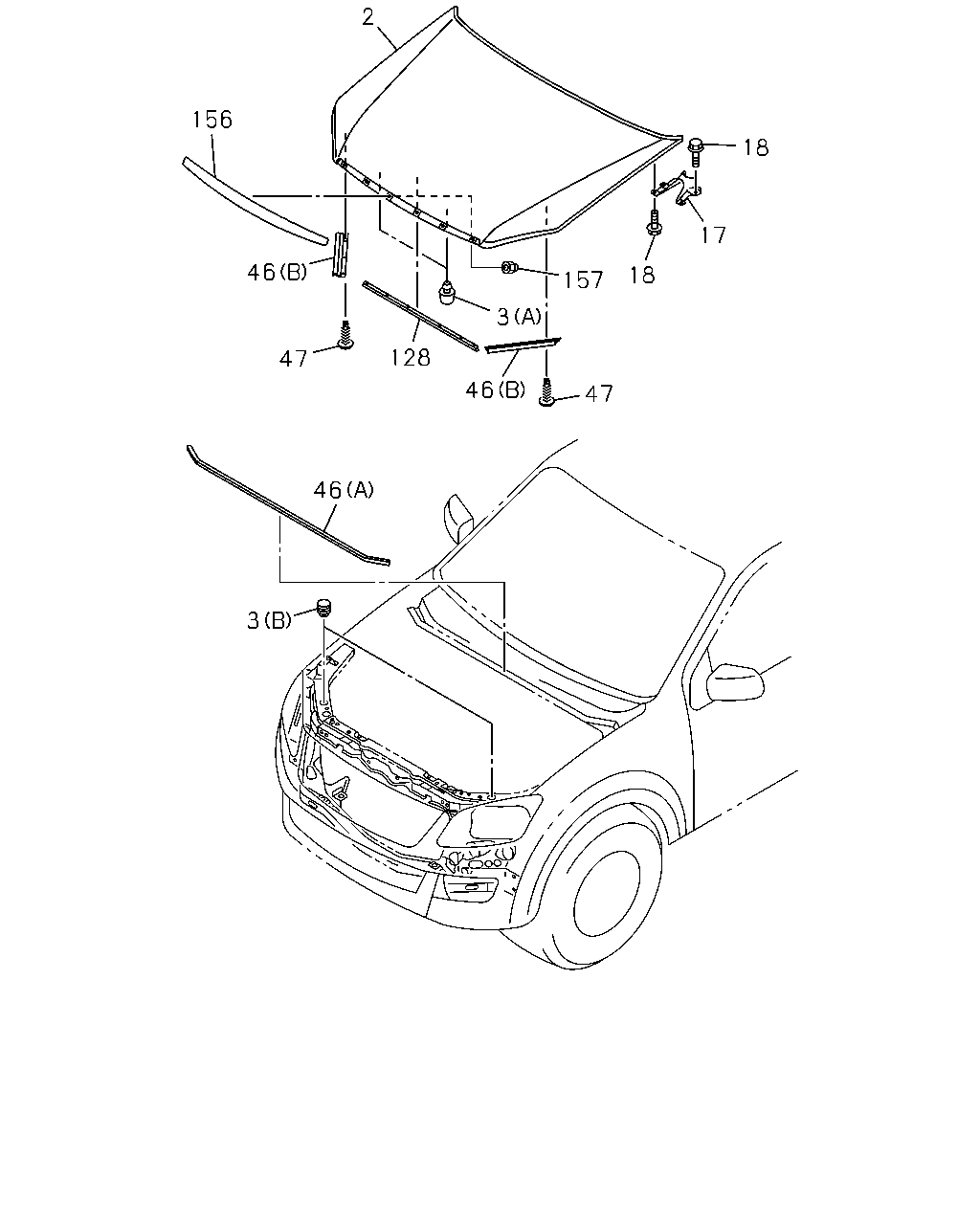

[610A] ENG HOOD (18 parça)

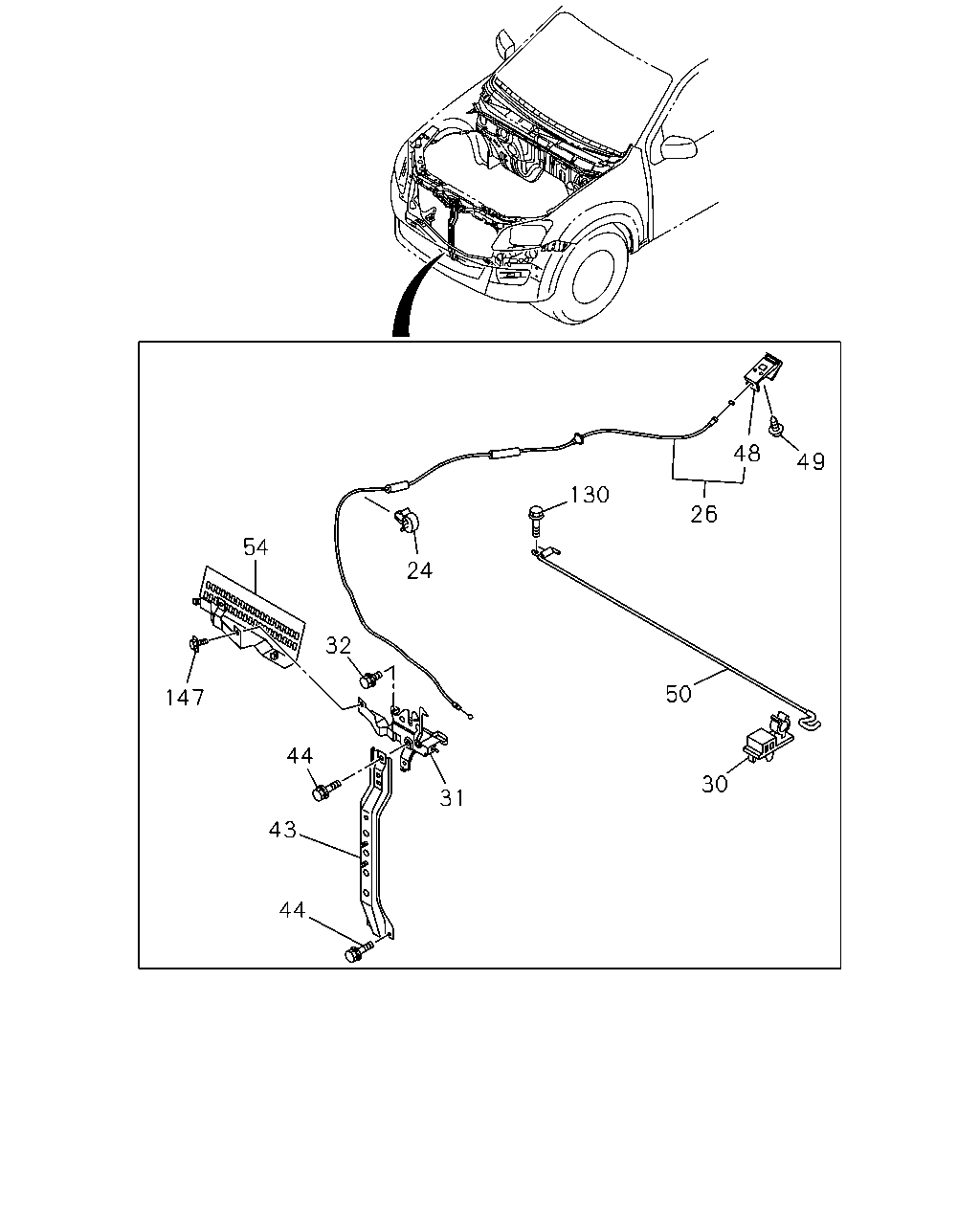

[610A] CABLE;ENG HOOD (15 parça)
▶
2
156
46
47
128
3
157
47
18
17
18
46
3
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
PANEL; ENG HOOD
8-98193-817-0
01
1
1305-
●
●
●
●
3
BUFFER; ENG HOOD,FRT
(A)
8-94358-581-0
02
1
1305-1308
●
●
●
●
3
BUFFER; ENG HOOD,FRT
(A)
8-97948-266-0
02
1
1309-
●
●
●
●
3
BUFFER; ENG HOOD,FRT
(B)
8-98195-454-0
02
1
1305-
●
●
●
●
17
HINGE; ENG HOOD
8-98104-099-2
01
1
1305-
●
●
●
●
17
HINGE; ENG HOOD
8-98104-100-2
01
1
1305-
●
●
●
●
18
BOLT; HINGE
M8X16
8-98056-122-0
04
1
1305-
●
●
●
●
18
BOLT; HINGE
M8X16
8-98056-122-0
04
1
1305-
●
●
●
●
46
SEAL; ENG HOOD
(A)
8-98065-805-1
01
1
1305-
●
●
●
●
46
SEAL; ENG HOOD
(B)
8-98160-815-1
01
1
1305-
●
●
●
●
46
SEAL; ENG HOOD
(B)
8-98165-802-1
01
1
1305-
●
●
●
●
47
CLIP; HOOD SEAL
OD=12 L=14.8
8-94279-921-0
06
1
1305-
●
●
●
●
128
SEAL; PLATFORM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF)
8-98102-230-0
01
1
1305-
●
●
●
●
156
MOLDING; HOOD
8-98181-163-3
01
1
1305-
●
●
156
MOLDING; HOOD
EXC. BRIGHT RAD GRILLE<V22>
8-98181-163-3
01
1
1305-
●
●
156
MOLDING; HOOD
BRIGHT RAD GRILLE<V22> PLATED
8-98181-164-3
01
1
1305-1401
●
●
156
MOLDING; HOOD
BRIGHT RAD GRILLE<V22> PLATED
8-98269-566-0
01
1
1402-
●
●
157
NUT; MOLDING
M6 CAP NUT
8-98049-850-0
06
1
1305-
●
●
●
●
147
54
32
24
31
44
43
44
130
26
50
30
48
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
24
CLIP; CONT CABLE
8-97182-405-0
03
1
1305-
●
●
●
●
26
CABLE; ENG HOOD CONT
8-98071-759-1
01
1
1305-
●
●
●
●
30
CLIP; SUPPORT ROD,HOOD
8-97301-356-0
01
1
1305-
●
●
●
●
31
LOCK; ENG HOOD
8-98074-561-4
01
1
1305-
●
●
31
LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>
8-98074-561-4
01
1
1305-
●
●
31
LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>
8-98074-562-4
01
1
1305-
●
●
32
BOLT; HOOD LK
M6X20 W/PL WASHER
8-97370-668-0
02
1
1305-
●
●
●
●
43
STAY; ENG HOOD,FRT END
8-98165-341-0
01
1
1305-
●
●
●
●
44
BOLT; STAY,HOOD
M6X20 W/PL WASHER
8-97370-668-0
04
1
1305-
●
●
●
●
48
LEVER; ENG HOOD
8-98204-979-0
01
1
1305-
●
●
●
●
49
SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING
8-98167-449-0
02
1
1305-
●
●
●
●
50
ROD; SUPPORT,ENG HOOD
8-98101-948-1
01
1
1305-
●
●
●
●
54
PROTECTOR; ENG HOOD CABLE
8-98160-811-2
01
1
1305-
●
●
●
●
130
BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE
0-28650-625-0
01
1
1305-
●
●
●
●
147
CLIP; COVER
8-94221-150-0
02
1
1305-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
