0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#119236) — 90 parça

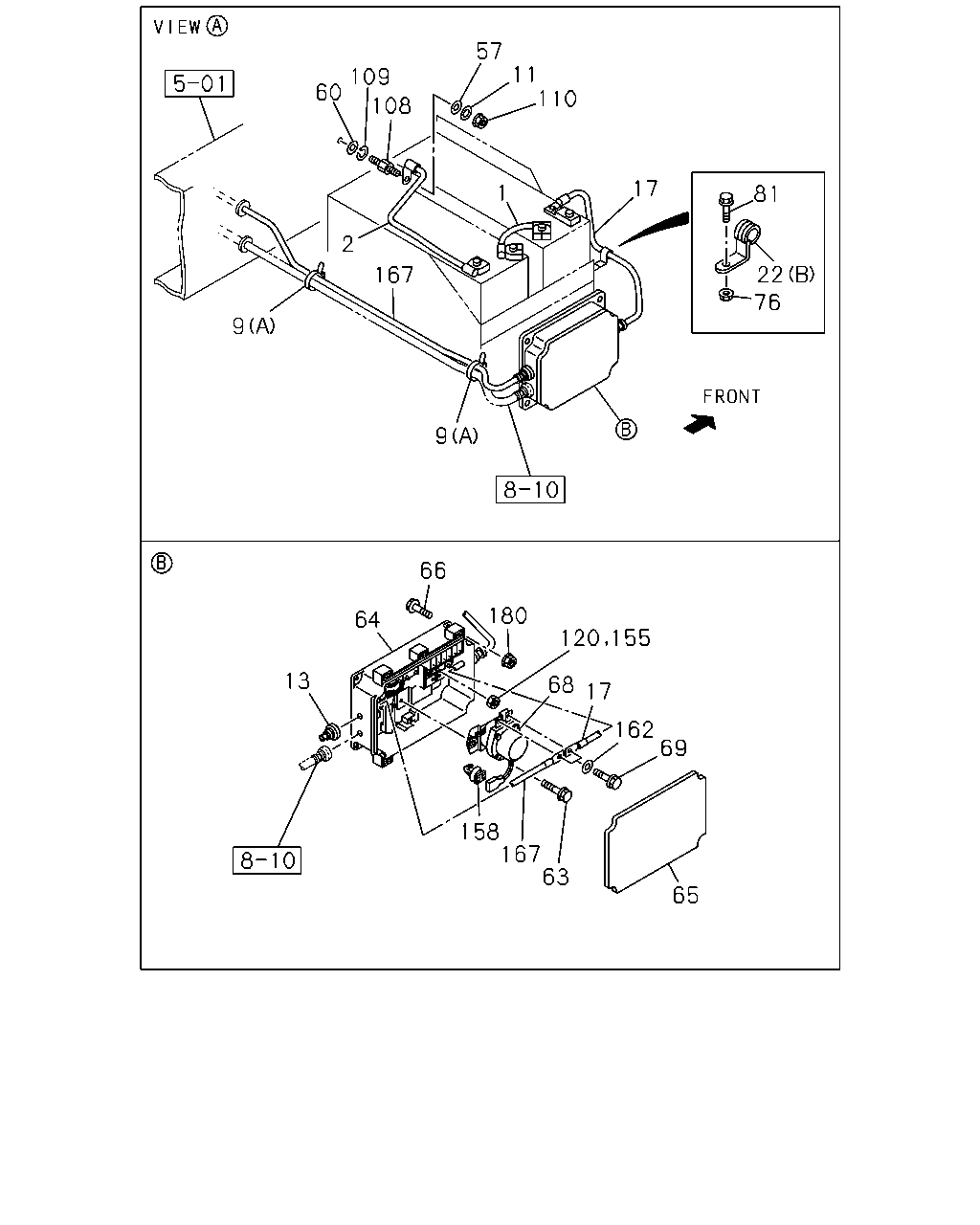

çizim 350355
60 109 57 11 110 108 2 167 9 9 1 17 81 22 76 66 180 120 155 68 17 162 69 65 63 167 158 64 13
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=265 		1-82650-388-1 01 1 1305-
2 CABLE; BATTERY
L=640 		8-98223-230-0 01 1 1305-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 H=30 		1-09701-110-0 02 1 1305-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 03 1 1305-
9 CLIP; BATTERY CABLE
(E) ID=21 L=24 		8-94176-807-1 02 1 1305-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1305-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 1305-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1305-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1305-
17 CABLE; BATTERY (+) TO RELAY
L=480 		8-98239-412-0 01 1 1305-
22 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305-
22 CLIP; BATTERY CABLE
(B) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 1305-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 1305-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1305-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1305-
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 		1-82510-648-0 01 1 1305-
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-82510-651-0 01 1 1305-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 1305-
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1305-
68 RELAY; BATTERY 1-82550-313-0 01 1 1305-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1305-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 04 1 1305-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 02 1 1305-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1305-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1305-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1305-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1305-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1305-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1305-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1305-
167 CABLE; BATTERY RELAY TO STARTER 8-98198-307-1 01 1 1305-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1305-
çizim 350365
9 9 18 22 99 25 99 9 9 22 9 9 158 99
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 H=30 		1-09701-110-0 02 1 1305-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 03 1 1305-
9 CLIP; BATTERY CABLE
(E) ID=21 L=24 		8-94176-807-1 02 1 1305-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1305-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 1305-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 1305-
22 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305-
22 CLIP; BATTERY CABLE
(B) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 1305-
25 CLIP; BATTERY CABLE TO BRKT
ID=18 H=23 L=28 		1-09701-070-0 03 1 1305-
99 CLIP; BATTERY CABLE
(B) ID=18 L=28 H=30 		1-09701-110-0 03 1 1305-
99 CLIP; BATTERY CABLE
(C) ID=18 L=54 		1-09701-068-0 01 1 1305-
99 CLIP; BATTERY CABLE
(A) ID=18 L=25 H=50 		1-09701-096-0 01 1 1305-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1305-

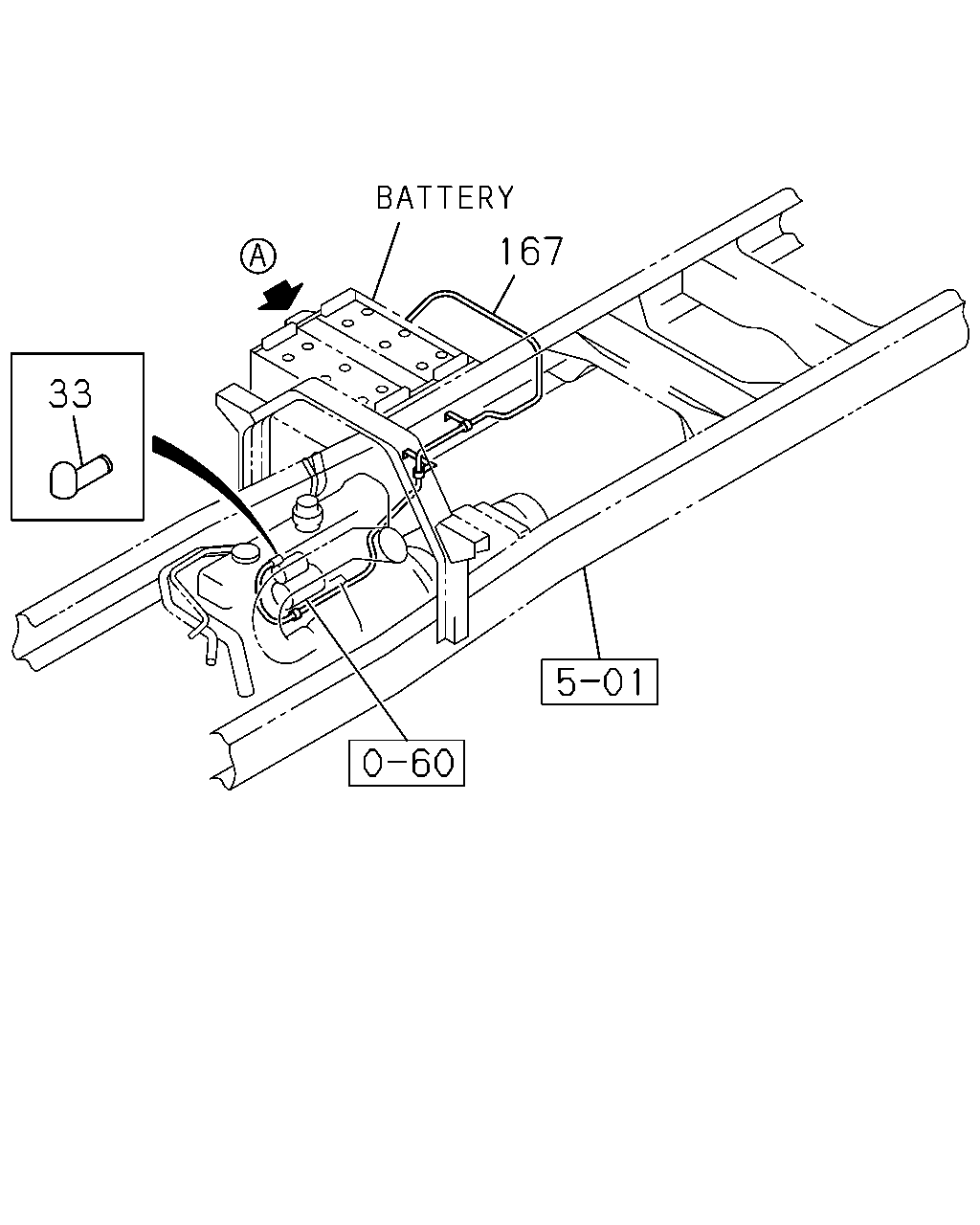

çizim 352076
167 33
BalonParca AdiParca NoAdetTipApplied Date
33 CAP; INSULATOR 8-97181-965-0 01 1 1305-
167 CABLE; BATTERY RELAY TO STARTER 8-98198-307-1 01 1 1305-
çizim 352284
64 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 		1-82510-648-0 01 1 1305-
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-82510-651-0 01 1 1305-
208 FUSE
(C) 80A 		1-82516-031-0 01 1 1305-
208 FUSE
(A) 40A GREEN 		8-94468-662-0 05 1 1305-
208 FUSE
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (B) 100A 		1-82516-032-0 01 1 1305-
208 FUSE
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 125A 		9-82941-130-1 01 1 1305-
çizim 352312
23 23 23 23 23 23 61 26 75 10 24 81 100 10 24 69 63 66 108 110 12 27 28 76 101 120 155 180 57 11 162 60 109 77 20
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 1305-
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1305-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1305-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 09 1 1305-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1305-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 1305-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82698-557-0 01 1 1305-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-574-0 01 1 1305-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		1-82698-575-1 01 1 1305-
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-590-0 01 1 1305-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98171-604-0 01 1 1305-
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1305-
24 BOLT; BRKT TO FRAME
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1305-
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1305-
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 03 1 1305-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1305-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 1305-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1305-
61 BRACKET; BATTERY CABLE 8-98147-302-0 01 1 1305-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1305-
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1305-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1305-
75 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 1305-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 04 1 1305-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1305-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 02 1 1305-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 1305-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1305-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1305-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1305-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1305-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1305-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1305-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1305-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1305-
