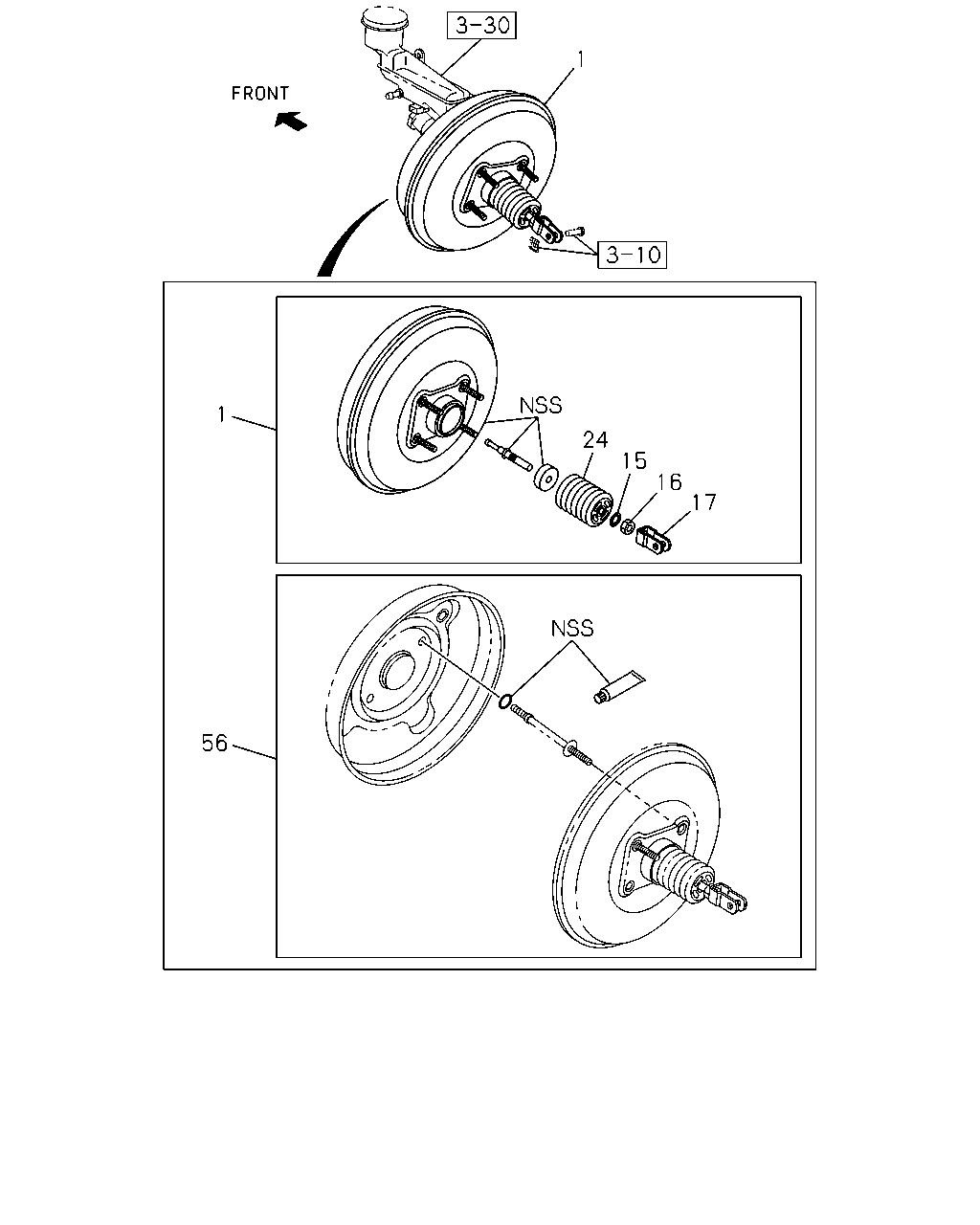

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#119235) — 8 parça

17 16 15 24 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MASTER VAC ASM; BRK	8-98163-231-1	01	1	1305-	●
1	MASTER VAC ASM; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98163-231-1	01	1	1305-		●	●	●
1	MASTER VAC ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98163-232-1	01	1	1305-		●	●	●
15	RETAINER; GUARD,M/VAC	8-98048-040-0	01	1	1305-	●	●	●	●
16	NUT; VLV ROD,M/VAC	8-98048-038-0	01	1	1305-	●	●	●	●
17	CLEVIS; YOKE,M/VAC	8-98048-039-0	01	1	1305-	●	●	●	●
24	GUARD; VLV BODY,M/VAC	8-98185-212-0	01	1	1305-	●	●	●	●
56	GASKET KIT; M/CYL TO SERVO UNIT	8-98185-211-0	01	1	1305-	●	●	●	●
