◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#119233) — 21 parça

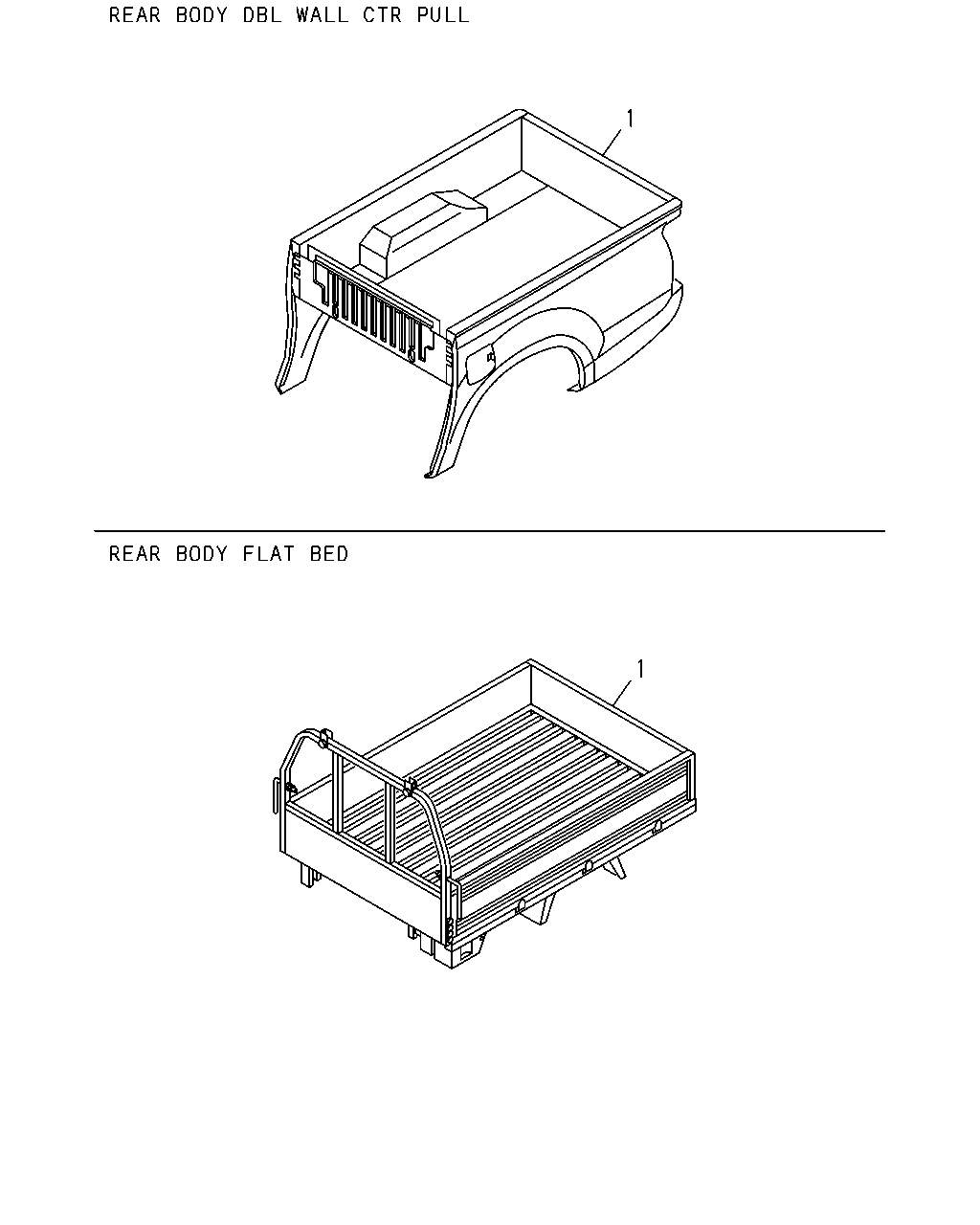

çizim 351848
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> 		8-98193-783-0 01 1 1305- ●
1 BODY ASM; REAR
BODY COLOR SPLASH WHITE(527) REAR BODY FLAT BED(E39) WHITE 		8-97423-013-6 01 1 1305- ●
1 BODY ASM; REAR
BODY COLOR TITANIUM SILVER MET(529) REAR BODY FLAT BED(E39) SILVER 		8-97423-014-6 01 1 1305- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-790-0 01 1 1305- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98193-794-0 01 1 1305- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-794-0 01 1 1305- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-792-0 01 1 1305- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1305- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1305- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-791-0 01 1 1305- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1305- ●

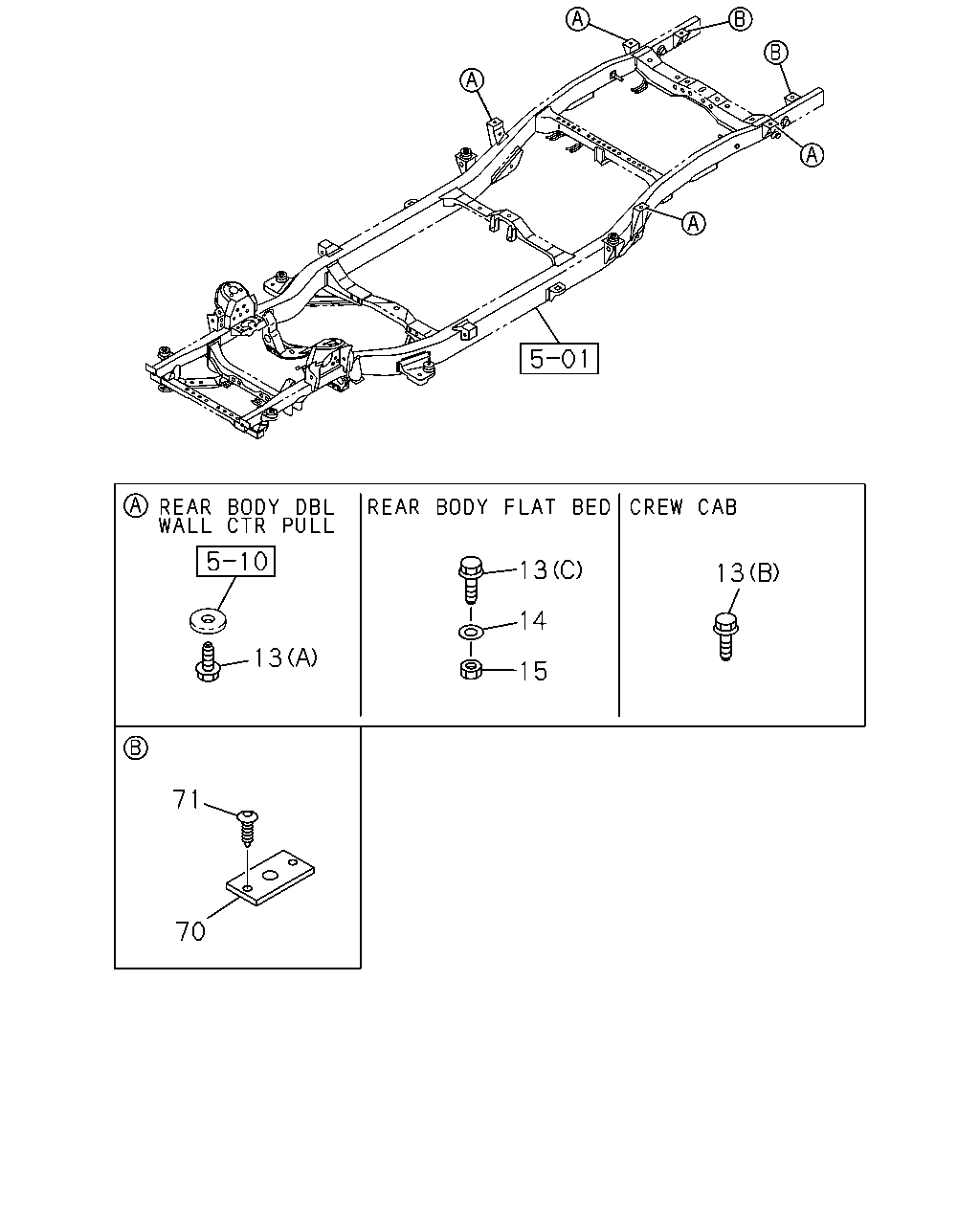

çizim 352073
13 13 14 15 13 71 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER 		8-98056-124-0 06 1 1305- ●
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X35 FLANGE 		0-28651-235-0 08 1 1305- ● ●
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X35 FLANGE 		0-28651-235-0 04 1 1305- ● ●
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98176-522-0 02 1 1305- ● ●
14 WASHER; PL,RR BODY MTG
REAR BODY FLAT BED(E39) ID=13 OD=40 T=6 		8-98098-458-0 08 1 1305- ●
15 NUT; RR BODY MTG
REAR BODY FLAT BED(E39) M12 LOCK NUT 		8-98029-927-0 08 1 1305- ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 04 1 1305- ● ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 02 1 1305- ● ●
71 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) ID=6 OD=16 L=18 		8-94178-705-0 08 1 1305- ● ●
71 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) ID=6 OD=16 L=18 		8-94178-705-0 04 1 1305- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
