Isuzu WW
▶
TRUCKS
▶
NLR
▶
51479 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

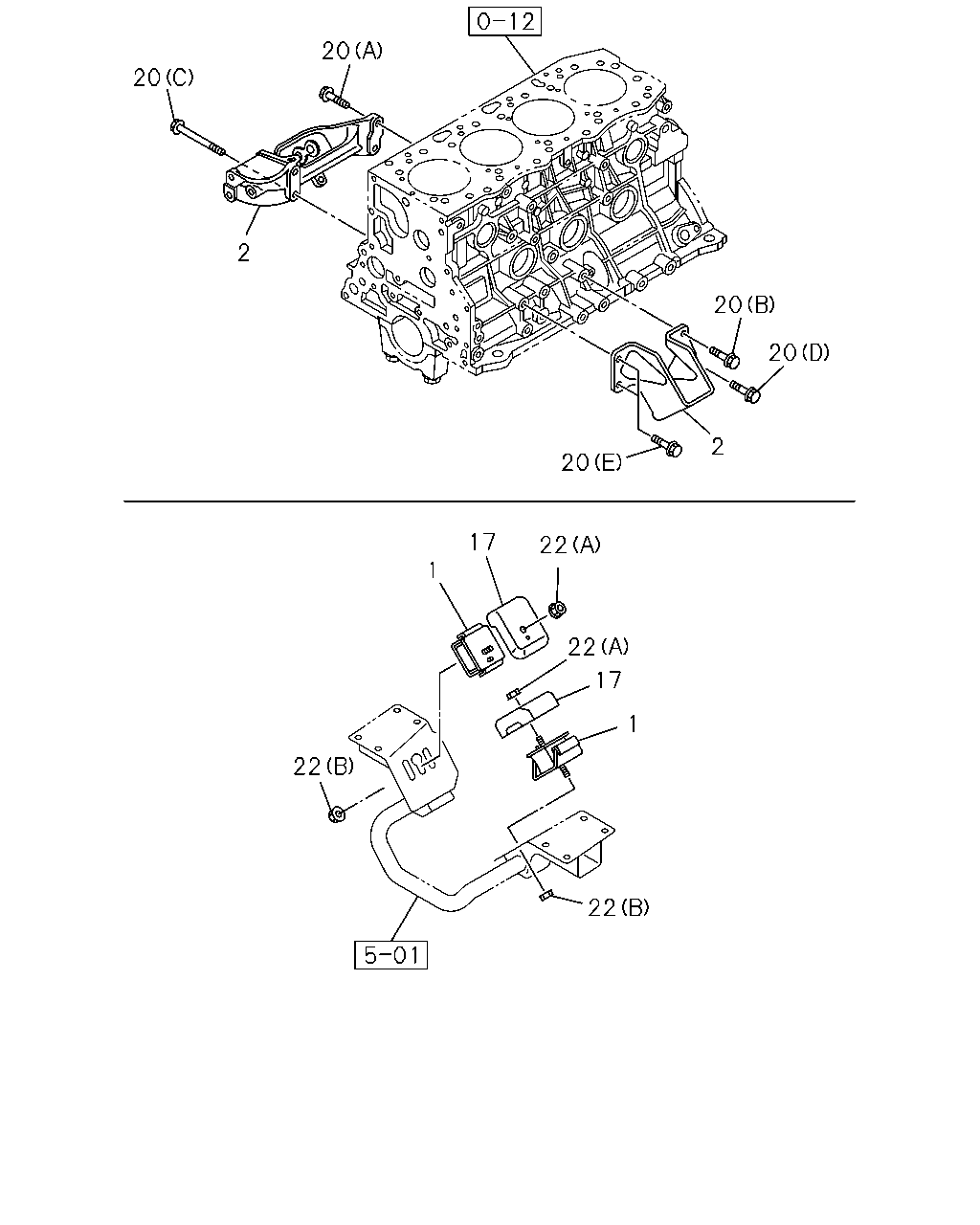

0-22 — ENGINE MOUNTING
(#119230) — 23 parça
◀
[022A] REAR (10 parça)
[022A] FRONT (13 parça)
▶
87
84
76
71
134
78
134
52
76
76
67
71
67
76
71
76
76
71
78
134
134
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
RUBBER; CUSHION,ENG MTG,RR
IMA
8-94111-903-1
02
1
1304-
67
BRACKET; SUPPORT,ENG MTG,RR
IMA
8-97354-876-1
01
1
1304-
67
BRACKET; SUPPORT,ENG MTG,RR
IMA
8-97354-877-1
01
1
1304-
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE THA
0-91180-110-0
04
1
1304-
76
STOPPER; ENG MTG RUBBER
(B) IMA
8-94111-904-0
02
1
1304-
76
STOPPER; ENG MTG RUBBER
(A) IMA
8-97039-947-1
04
1
1304-
78
BRACKET; ENG MTG,RR
IMA
8-98053-902-1
02
1
1304-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 IMA
0-91614-810-0
04
1
1304-
87
NUT; ENG MTG RR
M10 FLANGE THA
0-91180-110-0
04
1
1304-
134
BOLT; SUPPORT BRKT
M12X25 FLANGE IMA
0-28751-225-0
06
1
1304-
20
20
20
20
20
2
17
1
22
22
17
1
22
22
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
IMA
8-98043-000-0
01
1
1304-
1
RUBBER; ENG FOOT,FRT
IMA
8-98043-001-0
01
1
1304-
2
FOOT; ENG
IMA
8-97381-514-2
01
1
1304-
2
FOOT; ENG
IMA
8-97381-513-1
01
1
1304-
17
COVER; CUSHION RUBBER,FRT
IMA
8-97229-825-0
01
1
1304-
17
COVER; CUSHION RUBBER,FRT
IMA
8-97383-796-0
01
1
1304-
20
BOLT; ENG FOOT
(C) M10X70 FLANGE THA
0-28051-070-0
01
1
1304-
20
BOLT; ENG FOOT
(A) M10X30 FLANGE THA
0-28651-030-0
03
1
1304-
20
BOLT; ENG FOOT
(D) M10X20 FLANGE THA
0-28651-020-0
01
1
1304-
20
BOLT; ENG FOOT
(E) M10X25 FLANGE THA
0-28651-025-0
02
1
1304-
20
BOLT; ENG FOOT
(B) M10X35 FLANGE THA
0-28651-035-0
01
1
1304-
22
NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE THA
0-91180-112-0
02
1
1304-
22
NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE IMA
8-98046-987-0
02
1
1304-
