◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#119221) — 242 parça

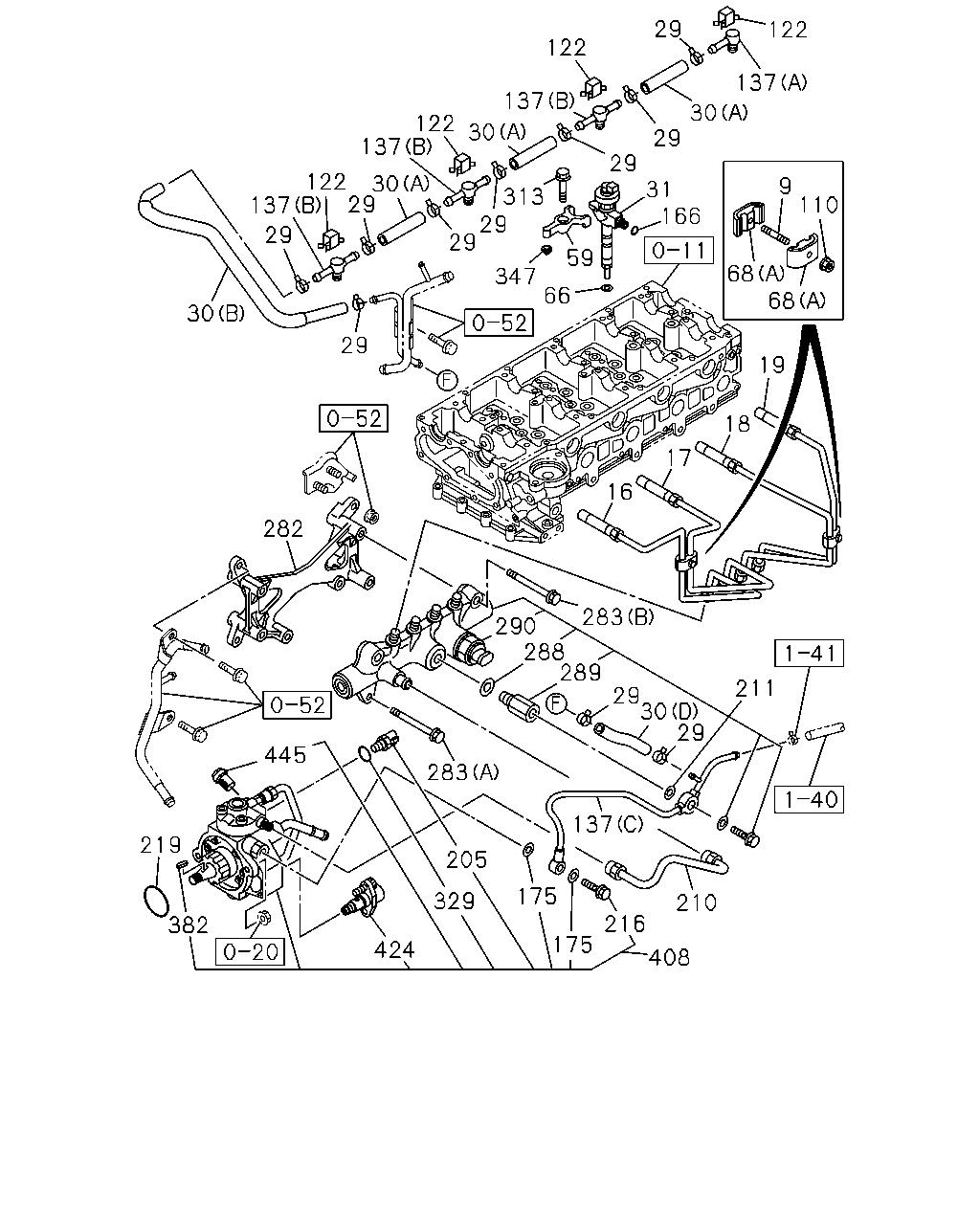

çizim 350247
122 29 137 122 137 30 122 137 122 30 29 137 29 30 29 29 29 313 29 29 30 9 110 68 68 31 166 59 347 66 282 445 283 205 329 219 382 424 175 175 216 408 210 137 29 211 30 29 289 288 290 283 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 1305- ●
16 PIPE; INJ NO.1 8-97373-733-0 01 1 1305- ●
16 PIPE; INJ NO.1 8-98203-719-0 01 1 1305- ●
17 PIPE; INJ NO.2 8-97365-210-0 01 1 1305- ●
17 PIPE; INJ NO.2 8-98203-720-0 01 1 1305- ●
18 PIPE; INJ NO.3 8-97373-734-0 01 1 1305- ●
18 PIPE; INJ NO.3 8-98203-721-0 01 1 1305- ●
19 PIPE; INJ NO.4 8-97373-735-0 01 1 1305- ●
19 PIPE; INJ NO.4 8-98203-722-0 01 1 1305- ●
29 CLIP; HOSE
ID=11 		8-97173-219-0 02 1 1305- ●
29 CLIP; HOSE
ID=10.5 		8-97019-473-0 10 1 1305- ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=320 		8-98135-263-1 01 1 1305- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=98 		8-97354-652-0 03 1 1305- ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=96 		8-98053-693-0 01 1 1305- ●
30 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1305- ●
31 NOZZLE ASM; INJ 8-97382-946-0 04 1 1305- ●
31 NOZZLE ASM; INJ 8-98119-228-3 04 1 1305- ●
59 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1305- ●
59 CLAMP; NOZZLE HOLDER 8-98113-691-0 04 1 1305- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1305- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1305- ●
68 CLIP; INJ PIPE
(C) 		1-09701-240-0 04 1 1305- ●
68 CLIP; INJ PIPE
(B) 		8-98227-926-0 01 1 1305- ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 04 1 1305-1405 ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 02 1 1305- ● ●
122 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1305- ●
137 PIPE ASM; LEAK OFF
(C) 		8-98132-085-0 01 1 1305- ●
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1305- ●
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1305- ●
166 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8 		9-09566-111-0 04 1 1305- ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 1305-1509 ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-508-0 02 1 1510- ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1305- ●
210 PIPE; INJ,C/R 8-97388-902-0 01 1 1305- ●
211 RAIL ASM; COMMON 8-98132-055-1 01 1 1305- ●
216 BOLT; EYE 9-88130-088-0 01 1 1305-1410 ●
216 BOLT; EYE 8-98209-777-0 01 1 1411- ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1305- ●
282 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1305- ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1305- ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1305- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1305- ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1305- ●
290 SENSOR; PRESS 8-98181-616-0 01 1 1305- ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1305- ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1305-1410 ●
347 PIN 8-98165-035-0 04 1 1305- ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1305-1410 ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1411- ●
408 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1305- ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1305- ●
445 SCREW; FILTER,INLET 8-98209-778-0 01 1 1305- ●

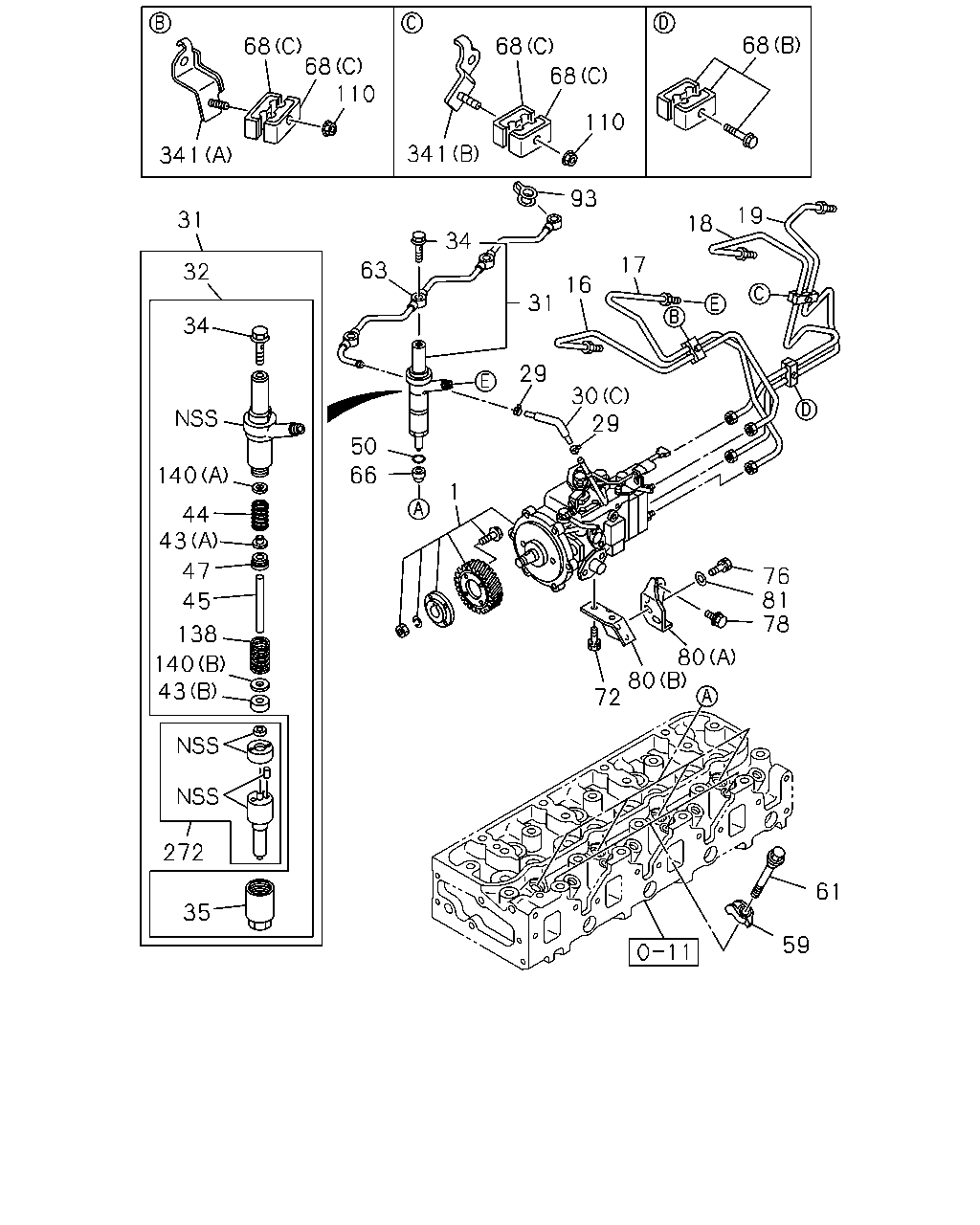

çizim 352023
341 68 68 110 341 68 110 68 68 19 18 17 16 31 34 93 63 50 66 29 30 29 31 32 34 140 43 44 47 45 138 140 43 272 35 72 80 80 78 81 76 61 59 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) 		8-97350-398-3 01 1 1305- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) 		8-97350-396-4 01 1 1305- ●
16 PIPE; INJ NO.1 8-97373-733-0 01 1 1305- ●
16 PIPE; INJ NO.1 8-98203-719-0 01 1 1305- ●
17 PIPE; INJ NO.2 8-97365-210-0 01 1 1305- ●
17 PIPE; INJ NO.2 8-98203-720-0 01 1 1305- ●
18 PIPE; INJ NO.3 8-97373-734-0 01 1 1305- ●
18 PIPE; INJ NO.3 8-98203-721-0 01 1 1305- ●
19 PIPE; INJ NO.4 8-97373-735-0 01 1 1305- ●
19 PIPE; INJ NO.4 8-98203-722-0 01 1 1305- ●
29 CLIP; HOSE
ID=11 		8-97173-219-0 02 1 1305- ●
29 CLIP; HOSE
ID=10.5 		8-97019-473-0 10 1 1305- ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=320 		8-98135-263-1 01 1 1305- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=98 		8-97354-652-0 03 1 1305- ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=96 		8-98053-693-0 01 1 1305- ●
30 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1305- ●
31 NOZZLE ASM; INJ 8-97382-946-0 04 1 1305- ●
31 NOZZLE ASM; INJ 8-98119-228-3 04 1 1305- ●
32 HOLDER ASM; NOZZLE 8-97217-835-0 04 1 1305- ●
34 BOLT; EYE,NOZZLE HOLDER 8-94320-307-0 04 1 1305- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 		8-97223-343-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.02 		8-97223-344-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.04 		8-97223-345-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.06 		8-97223-346-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.08 		8-97223-347-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 		8-97223-348-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.12 		8-97223-349-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.14 		8-97223-350-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.16 		8-97223-351-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.18 		8-97223-352-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.20 		8-97223-353-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.22 		8-97223-354-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.24 		8-97223-355-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.26 		8-97223-356-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.28 		8-97223-357-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.30 		8-97223-358-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.32 		8-97223-359-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.34 		8-97223-360-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.36 		8-97223-361-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.38 		8-97223-362-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.40 		8-97223-363-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.42 		8-97223-364-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.44 		8-97223-365-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.46 		8-97223-366-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.48 		8-97223-367-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.50 		8-97223-368-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.52 		8-97223-369-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.54 		8-97223-370-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.56 		8-97223-371-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.58 		8-97223-372-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.60 		8-97223-373-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.62 		8-97223-374-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.64 		8-97223-375-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.66 		8-97223-376-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.68 		8-97223-377-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.70 		8-97223-378-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.72 		8-97223-379-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.74 		8-97223-380-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.76 		8-97223-381-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.78 		8-97223-382-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.80 		8-97223-383-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.82 		8-97223-384-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.84 		8-97223-385-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.86 		8-97223-386-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.88 		8-97223-387-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.90 		8-97223-388-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.92 		8-97223-389-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.94 		8-97223-390-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.96 		8-97223-391-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.98 		8-97223-392-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=3.00 		8-97223-393-0 04 1 1305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) 		8-97361-697-0 04 1 1305- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 1305- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 1305- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 1305- ●
50 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 1305- ●
59 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1305- ●
59 CLAMP; NOZZLE HOLDER 8-98113-691-0 04 1 1305- ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 1305- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 1305- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1305- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1305- ●
68 CLIP; INJ PIPE
(C) 		1-09701-240-0 04 1 1305- ●
68 CLIP; INJ PIPE
(B) 		8-98227-926-0 01 1 1305- ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 04 1 1305-1405 ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 1305- ●
76 BOLT; BRKT TO BRKT
M8X25 W/LK WASHER 		0-50540-825-0 02 1 1305- ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE 		0-28650-820-0 02 1 1305- ●
80 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 1305- ●
80 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 1305- ●
81 WASHER; PL,BRKT TO PUMP
ID=8.4 OD=22 		0-91614-708-0 02 1 1305- ●
93 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 1305- ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 02 1 1305- ● ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 		1-15349-004-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		1-15349-044-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		1-15349-045-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		1-15349-046-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		1-15349-047-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.60 		1-15349-048-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.70 		1-15349-049-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 		8-97116-029-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 		8-97116-032-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 		8-97116-033-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		8-97116-034-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		8-97116-035-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 		8-97116-036-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		8-97116-037-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 		8-97116-038-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		8-97116-039-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 		8-97116-040-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		8-97116-041-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 		8-97116-042-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		8-97116-043-0 AR 1 1305- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 		8-97116-044-0 AR 1 1305- ●
272 NOZZLE KIT; INJ 8-97362-572-0 04 1 1305- ●
341 BRACKET; CLIP,INJ PIPE
(B) 		8-97333-806-1 01 1 1305- ●
341 BRACKET; CLIP,INJ PIPE
(A) 		8-97365-211-1 01 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
