Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#11922) — 100 parça

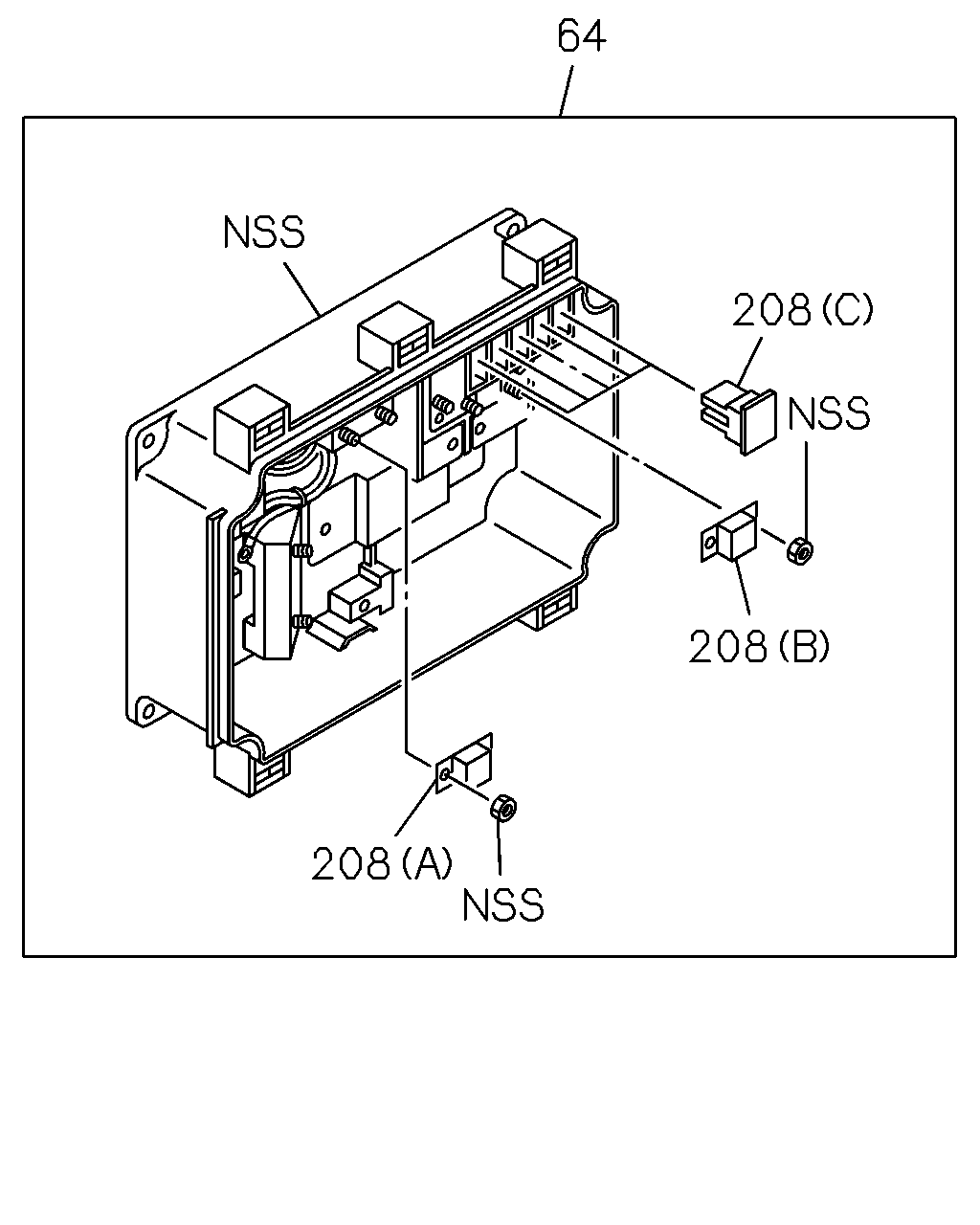

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0105-
208	FUSE (A) 80A	1-82516-031-0	01	1	0105-
208	FUSE (B) 100A	1-82516-032-0	01	1	0105-
208	FUSE (C) 40A GREEN	8-94468-662-0	05	1	0105-

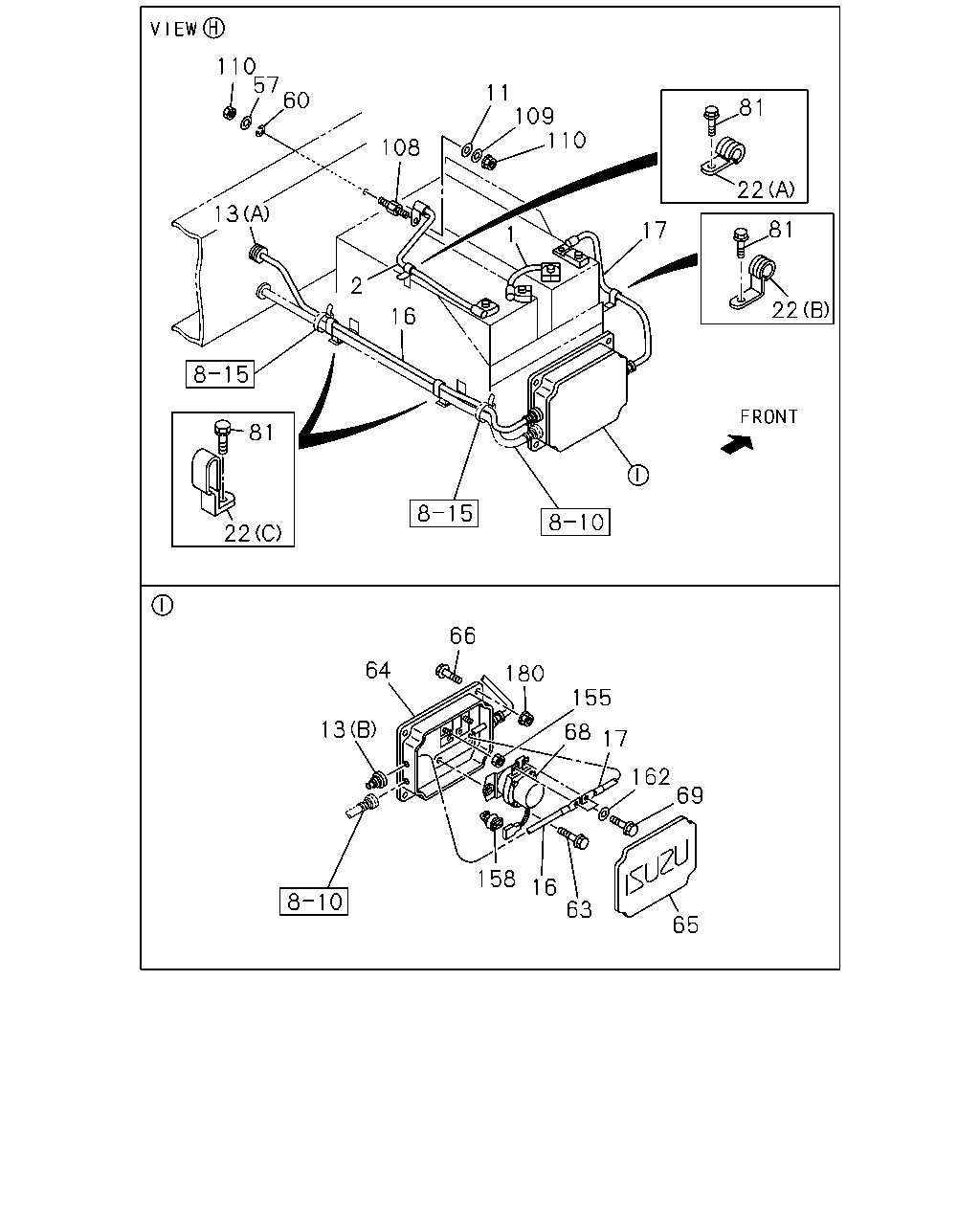

110 57 60 11 109 110 81 108 22 13 81 17 1 2 22 16 81 22 66 64 180 155 13 68 17 162 69 158 16 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	0105-
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	0105-
2	CABLE; BATTERY L=680	1-82650-319-0	01	1	0105-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0105-0605
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	0105-
16	CABLE; STARTER TO RELAY L=4910	1-82652-758-0	01	1	0105-
17	CABLE; BATTERY (+) TO RELAY L=530	1-82652-672-4	01	1	0105-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0105-
22	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	01	1	0105-
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0105-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0106-
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0106-0603
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0105-0512
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0105-
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0105-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0105-0512
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-
68	RELAY; BATTERY	1-82550-313-0	01	1	0105-
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	0-50040-820-0	02	1	0105-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	04	1	0601-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0105-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-508-0	01	1	0105-0105
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0106-0603
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0105-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0105-0602
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0603-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0105-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0105-0605
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-
180	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0105-0602
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-

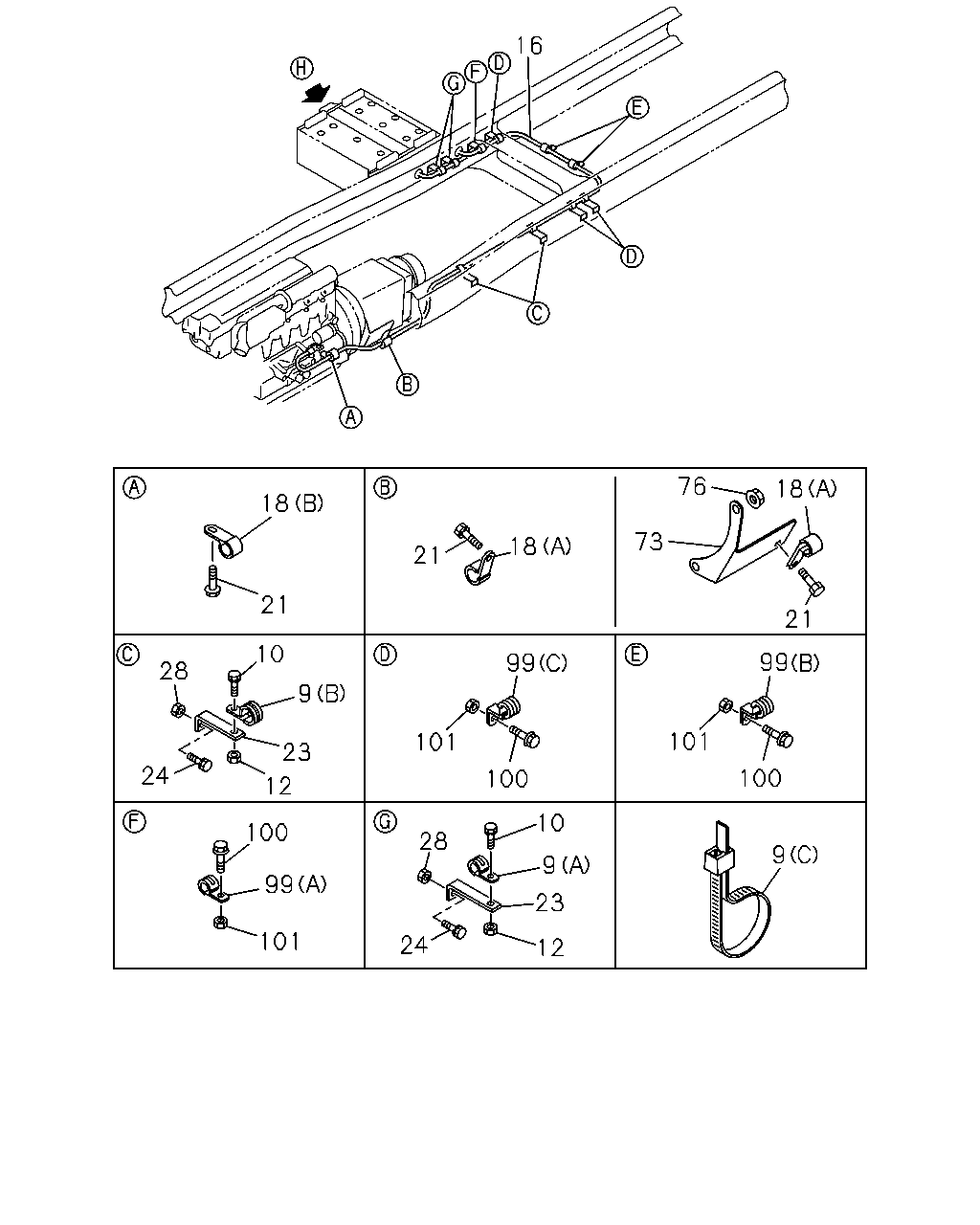

16 76 18 18 73 18 21 21 21 10 28 9 24 101 101 23 100 100 12 10 100 28 9 9 99 23 101 24 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	0105-
9	CLIP; BATTERY CABLE ANTILOCK BRAKE SYSTEM(BFA) (A) ID=18 H=23 L=28	1-09701-070-0	01	1	0105-
9	CLIP; BATTERY CABLE (A) ID=19 L=32	9-09525-866-0	01	1	0107-0112
9	CLIP; BATTERY CABLE (A) ID=19 L=32	9-09525-866-0	03	1	0201-0606
9	CLIP; BATTERY CABLE (A) ID=19 L=32	0-95235-866-0	03	1	0607-
9	CLIP; BATTERY CABLE (C) L=300	1-09707-001-1	01	1	0105-0504
9	CLIP; BATTERY CABLE (C) L=350	1-09707-183-0	01	1	0505-
9	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	02	1	0105-0112
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	03	1	0105-0512
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-
10	BOLT; BATTERY CABLE CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
10	BOLT; BATTERY CABLE CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	0601-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-0602
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
12	NUT; BATTERY CABLE CLIP ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	01	1	0105-0602
12	NUT; BATTERY CABLE CLIP ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	0603-
16	CABLE; STARTER TO RELAY L=4910	1-82652-758-0	01	1	0105-
18	CLIP; BATTERY CABLE MJX16P M/T(Y3Z) EXC. ZF M/T<X9E> (A) ID=19 L=28	9-09525-856-0	01	1	0201-0606
18	CLIP; BATTERY CABLE ZF M/T<X9E> (A) ID=19 L=28	9-09525-856-0	01	1	0201-0606
18	CLIP; BATTERY CABLE MJX16P M/T(Y3Z) EXC. ZF M/T<X9E> (A) ID=19 L=28	0-95235-856-0	01	1	0607-
18	CLIP; BATTERY CABLE ZF M/T<X9E> (A) ID=19 L=28	0-95235-856-0	01	1	0607-
18	CLIP; BATTERY CABLE (A) ID=19 L=28	9-09525-856-0	01	1	0105-0106
18	CLIP; BATTERY CABLE FULLER M/T<X9B> (A) ID=19 L=28	9-09525-856-0	01	1	0105-0106
18	CLIP; BATTERY CABLE (A) ID=19 L=28	9-09525-856-0	01	1	0107-0112
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=19 L=28	9-09525-856-0	01	1	0107-0112
18	CLIP; BATTERY CABLE MJD7S M/T(Y2Y) EXC. FULLER M/T<X9B> (A) ID=19 L=28	9-09525-856-0	02	1	0201-0606
18	CLIP; BATTERY CABLE FULLER M/T<X9B> (A) ID=19 L=28	9-09525-856-0	02	1	0201-0606
18	CLIP; BATTERY CABLE MJD7S M/T(Y2Y) EXC. FULLER M/T<X9B> (A) ID=19 L=28	0-95235-856-0	02	1	0607-
18	CLIP; BATTERY CABLE FULLER M/T<X9B> (A) ID=19 L=28	0-95235-856-0	02	1	0607-
18	CLIP; BATTERY CABLE ZF M/T<X9E> (B) ID=19 L=60	9-09525-896-0	01	1	0105-0112
18	CLIP; BATTERY CABLE MJX16P M/T(Y3Z) EXC. ZF M/T<X9E> (B) ID=19 L=60	9-09525-896-0	01	1	0201-0606
18	CLIP; BATTERY CABLE ZF M/T<X9E> (B) ID=19 L=60	9-09525-896-0	01	1	0201-0606
18	CLIP; BATTERY CABLE MJX16P M/T(Y3Z) EXC. ZF M/T<X9E> (B) ID=19 L=60	0-95235-896-0	01	1	0607-
18	CLIP; BATTERY CABLE ZF M/T<X9E> (B) ID=19 L=60	0-95235-896-0	01	1	0607-
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	02	1	0601-
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	02	1	0105-0107
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	0108-
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	01	1	0105-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	03	1	0105-0107
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	04	1	0108-0512
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0601-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	0105-0107
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	04	1	0108-0602
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0603-
73	BRACKET; BATTERY CABLE FULLER M/T<X9B>	1-82699-104-0	01	1	0105-
73	BRACKET; BATTERY CABLE MJD7S M/T(Y2Y)	1-82699-493-0	01	1	0107-
76	NUT; BATTERY CABLE FULLER M/T<X9B> M10 FLANGE	0-91150-210-0	01	1	0105-0602
76	NUT; BATTERY CABLE FULLER M/T<X9B> M10 FLANGE	0-91180-210-0	01	1	0603-
76	NUT; BATTERY CABLE MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	0107-0602
76	NUT; BATTERY CABLE MJD7S M/T(Y2Y) M10 FLANGE	0-91180-210-0	02	1	0603-
99	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	01	1	0105-
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	02	1	0105-0302
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	05	1	0303-
99	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	03	1	0105-0302
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28680-825-0	06	1	0105-0512
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	06	1	0601-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	06	1	0105-0602
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	06	1	0603-
