8-52 — PIPING; AIR CONDITIONING (#119219) — 51 parça

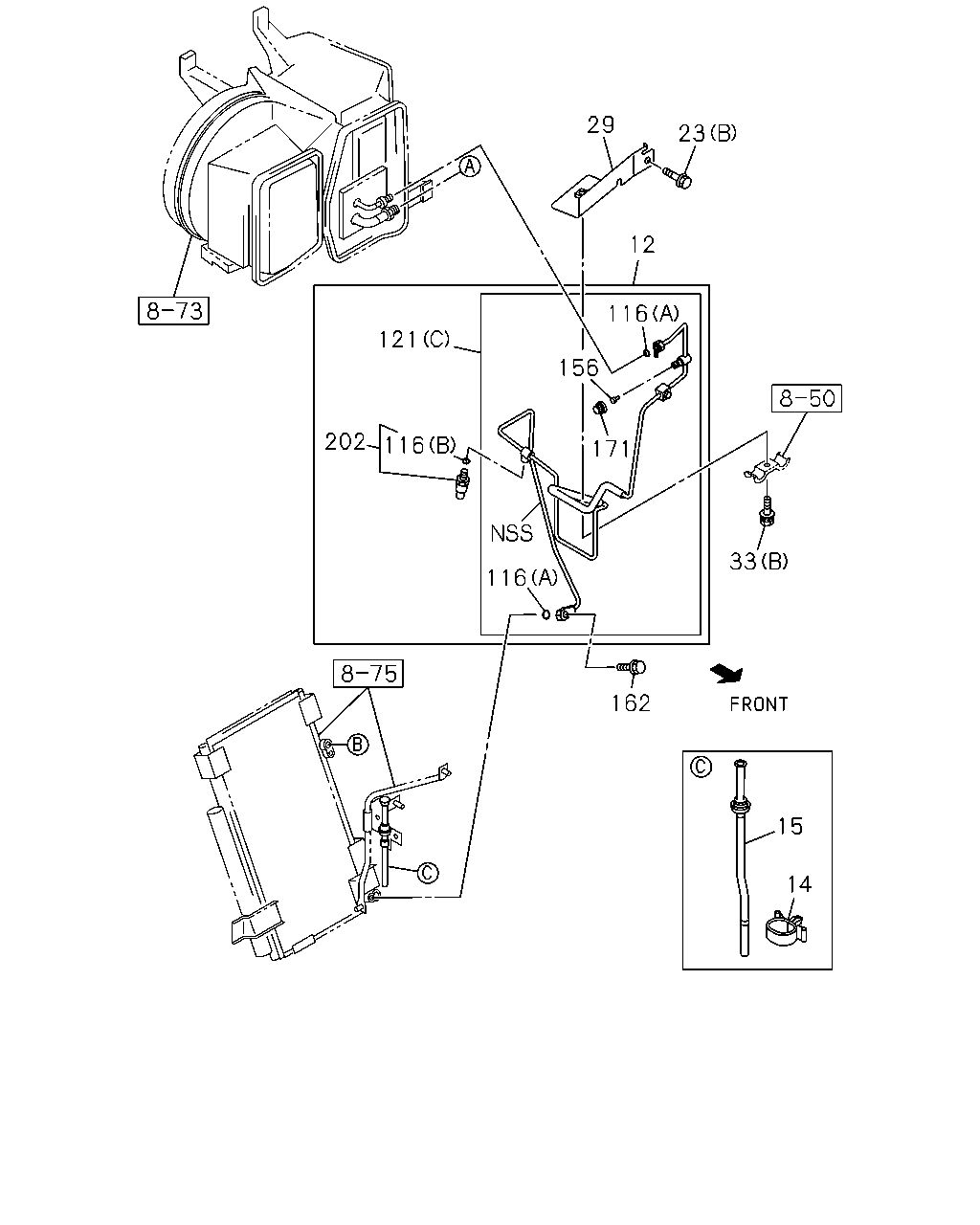

15 14 162 33 116 171 116 202 121 12 116 156 29 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-386-0	01	1	1305-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	1305-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	1305-
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	1305-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	1305-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1305-
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-480-1	01	1	1305-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	1305-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1305-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1305-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98232-119-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98232-120-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98234-979-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98234-980-0	01	1	1305-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1305-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1305-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1305-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	1305-

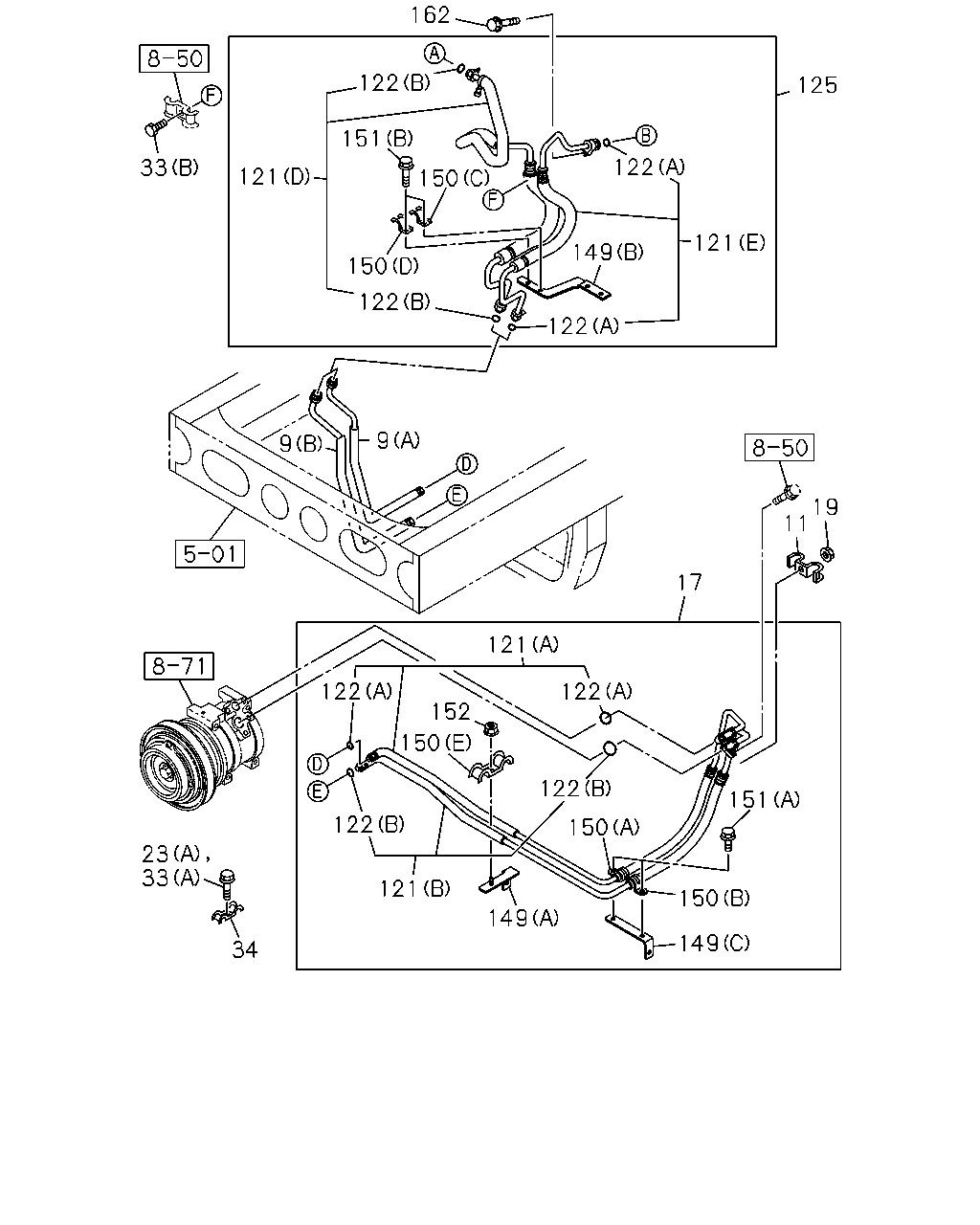

33 121 150 151 122 150 149 121 122 122 122 125 9 9 11 19 17 151 150 149 149 121 122 122 150 122 121 122 150 23 33 162 152 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98231-468-0	01	1	1305-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98231-469-0	01	1	1305-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12 & 14.5	1-83574-257-0	01	1	1305-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98218-183-0	01	1	1305-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1305-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	1305-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1305-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	1305-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1305-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	02	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98232-119-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98232-120-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98234-979-0	01	1	1305-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98234-980-0	01	1	1305-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	02	1	1305-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	02	1	1305-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98231-552-0	01	1	1305-1305
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98247-290-0	01	1	1306-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-1	01	1	1305-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98232-117-0	01	1	1305-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98232-118-0	01	1	1305-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1305-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	1305-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	1305-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1305-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83574-288-0	01	1	1305-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1305-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	1305-
152	NUT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	1-83539-319-0	01	1	1305-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1305-
