Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶

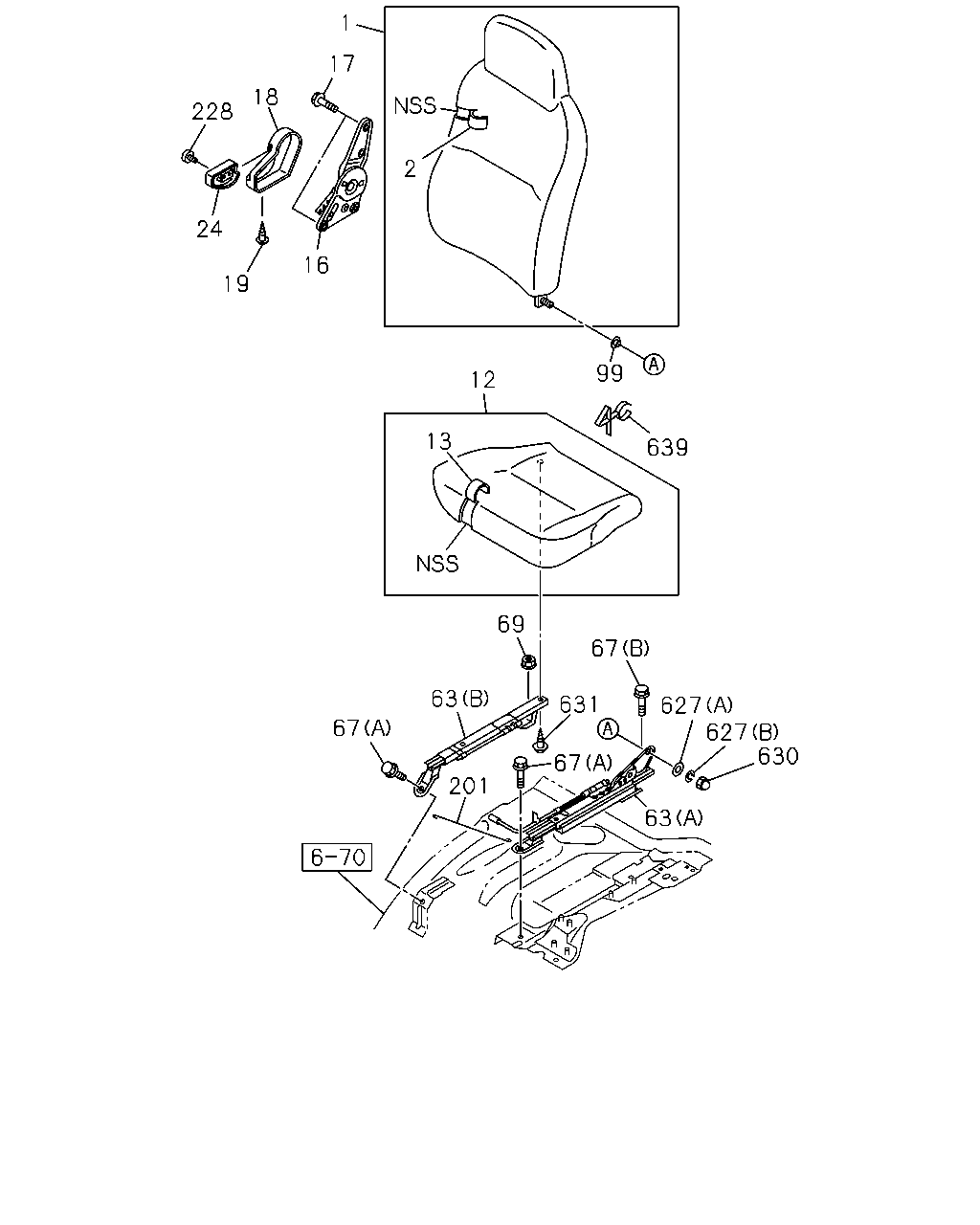

7-50 — FRONT SEAT
(#119205) — 23 parça
1
2
17
18
228
24
19
16
12
99
639
13
69
67
631
627
627
630
63
67
63
67
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
DARK GRAY THA
8-97421-234-1
01
1
1304-
2
COVER; TRIM,FRT SEAT,BACK
DARK GRAY THA
8-97421-253-0
01
1
1304-
12
CUSHION; SEAT,FRT
DARK GRAY IMA
8-97421-247-1
01
1
1304-
13
COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY IMA
8-97421-267-1
01
1
1304-
16
ADJUSTER ASM; RECLINING
THA
8-98003-087-1
01
1
1304-
17
BOLT; RECLINING
M10X20 THA
8-98062-661-0
04
1
1304-
18
COVER; RECLINING
GRAY THA
8-97409-332-0
01
1
1304-
19
SCREW; COVER
M5 THA
8-98062-663-0
01
1
1304-
24
KNOB; RECLINING,FRT,SEAT
GRAY THA
8-97409-333-0
01
1
1304-
63
ADJUSTER; SEAT SLIDE
(A) THA
8-97382-800-2
01
1
1304-
63
ADJUSTER; SEAT SLIDE
(B) THA
8-97382-801-1
01
1
1304-
67
BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE IMA
8-98055-941-0
02
1
1304-
67
BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE IMA
8-98055-942-0
01
1
1304-
69
NUT; FRT SEAT
M10 FLANGE IMA
8-98055-961-0
01
1
1304-
99
BUSHING; SEAT BACK
THA
8-98112-751-0
01
1
1304-
201
CABLE; ADJ
THA
8-98003-086-1
01
1
1304-
228
SCREW; KNOB
M4 THA
8-98062-662-0
01
1
1304-
627
WASHER; FRT SEAT
(A) THA
8-98063-223-0
01
1
1304-
627
WASHER; FRT SEAT
(B) THA
8-98063-224-0
01
1
1304-
630
NUT; CAP
M8 THA
8-98063-225-0
01
1
1304-
631
BOLT; ADJ,SEAT
M8X25 W/LK WASHER THA
8-98062-658-0
02
1
1304-
631
BOLT; ADJ,SEAT
M8X32 W/LK WASHER THA
8-98062-659-0
02
1
1304-
639
CLIP; SEAT
IMA
8-98097-693-0
01
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
