Sayfa 4-65 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶

4-65 — REAR LEAF SPRING (#119203) — 116 parça

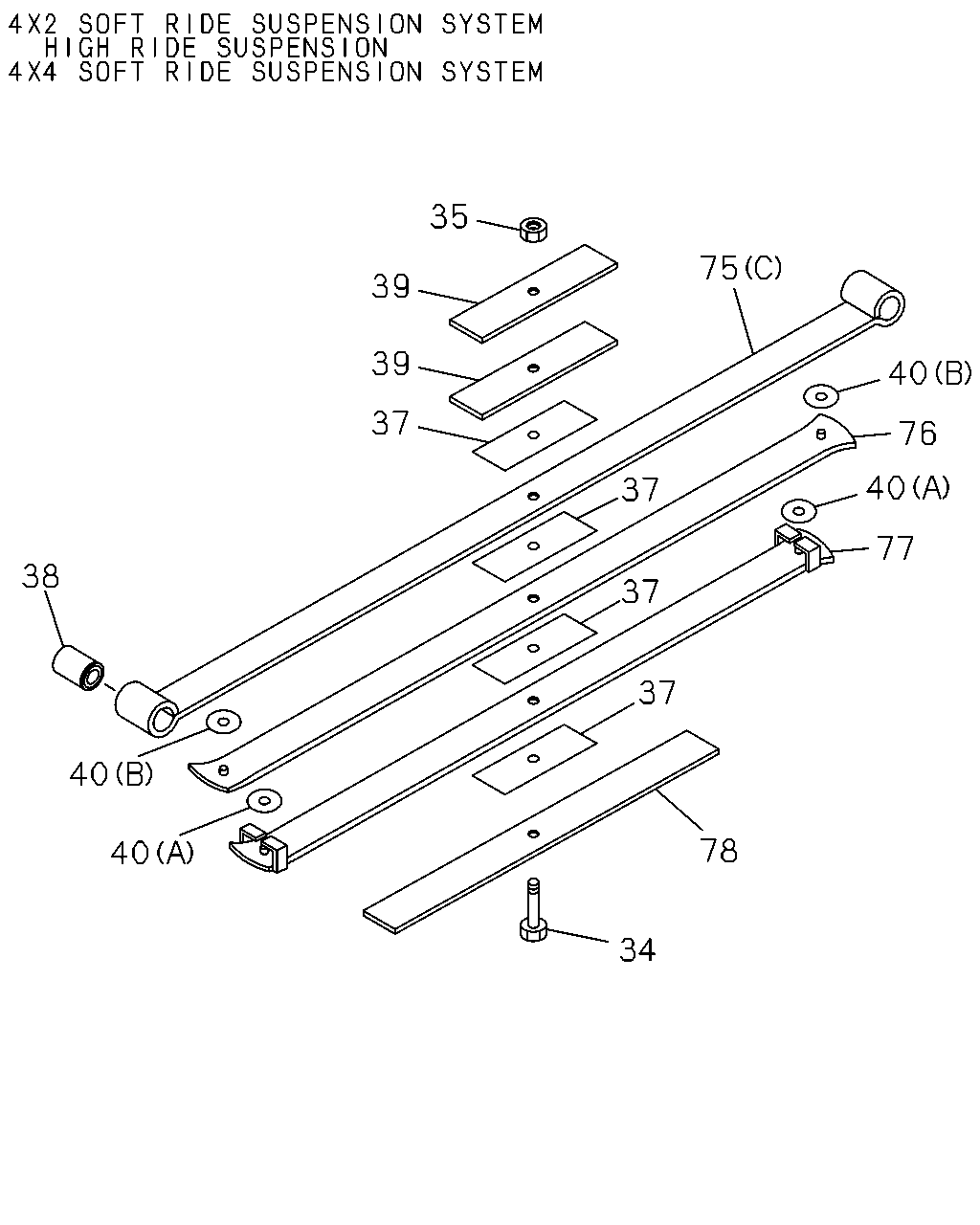

34 78 37 37 37 35 39 39 37 75 40 6 40 77 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: A = 8-98218-543-0	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: B = 8-98218-545-0	8-97947-210-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98161-928-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98218-543-0, B = 8-98218-545-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98218-543-0, B = 8-98218-545-0	8-97947-195-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98161-302-0	04	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-97947-171-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN ASM PART: E = 8-98218-556-0	8-98161-304-0	02	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98218-543-0	8-97947-425-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-98218-545-0	8-97947-436-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D) ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-97947-441-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C) ASM PART: E = 8-98218-556-0	8-97947-451-1	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: A = 8-98218-543-0	8-98218-566-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: B = 8-98218-545-0	8-98218-568-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: D = 8-98218-549-0	8-98218-572-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: C = 8-98218-548-0	8-98218-573-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: E = 8-98218-556-0	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: A = 8-98218-543-0	8-97947-428-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: B = 8-98218-545-0	8-97947-439-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-97947-444-2	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: E = 8-98218-556-0	8-98215-884-0	01	1	-

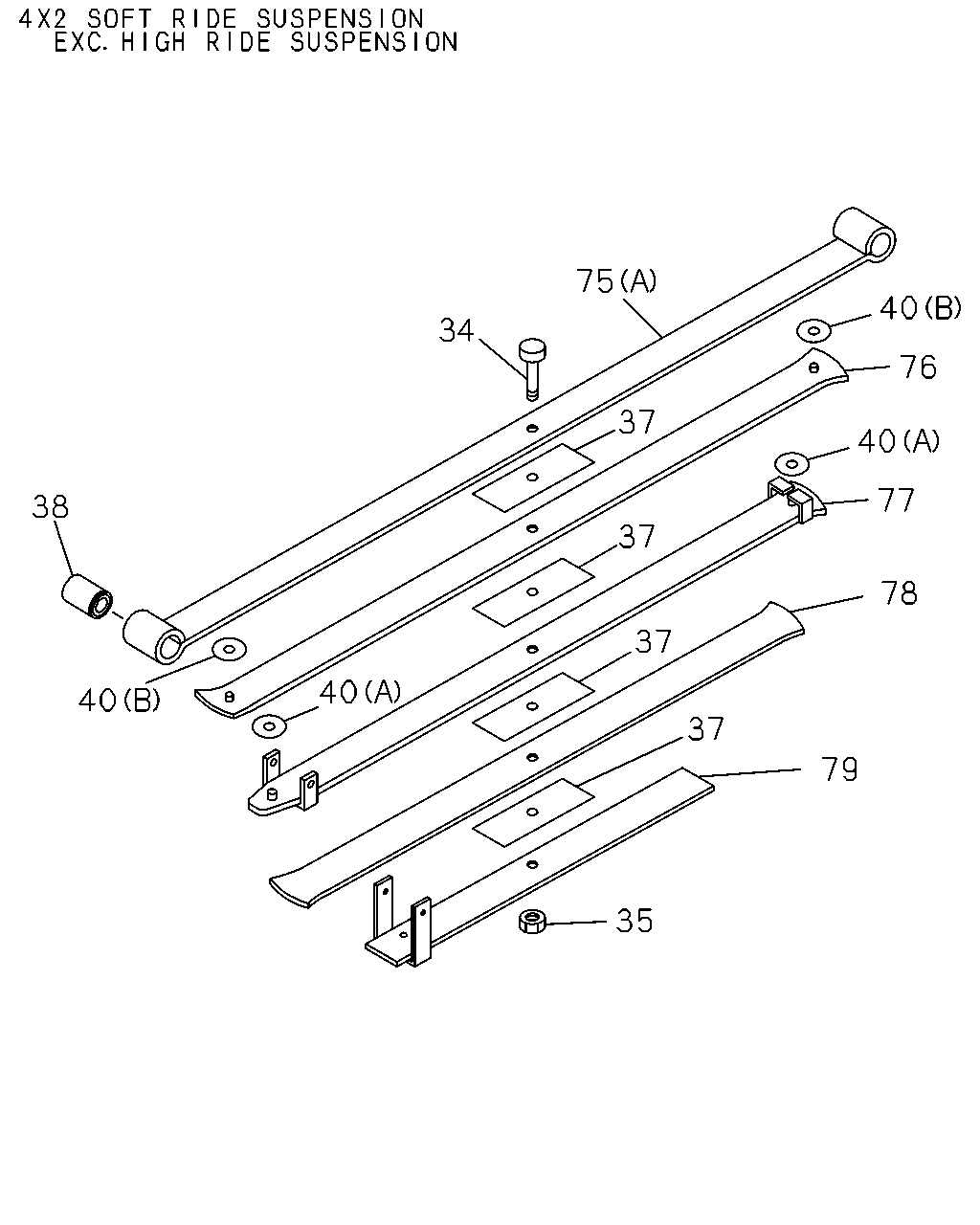

79 78 77 40 76 40 75 35 70 38 40 36 40 37 37 37 37 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: A = 8-98218-543-0	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: B = 8-98218-545-0	8-97947-210-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98161-928-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98218-543-0, B = 8-98218-545-0	8-97945-821-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: C = 8-98218-548-0	8-98161-948-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98218-543-0, B = 8-98218-545-0	8-97947-195-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98161-302-0	04	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98218-584-0	02	1	-
70	RUBBER; LEAF SPR,RR ASM PART: C = 8-98218-548-0	8-98170-912-0	01	1	-
75	SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98218-543-0	8-97947-425-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-98218-545-0	8-97947-436-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D) ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-97947-441-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C) ASM PART: E = 8-98218-556-0	8-97947-451-1	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: A = 8-98218-543-0	8-98218-563-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: B = 8-98218-545-0	8-98218-567-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-98218-571-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: E = 8-98218-556-0	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: A = 8-98218-543-0	8-98218-566-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: B = 8-98218-545-0	8-98218-568-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: D = 8-98218-549-0	8-98218-572-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: C = 8-98218-548-0	8-98218-573-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: E = 8-98218-556-0	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: A = 8-98218-543-0	8-97947-428-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: B = 8-98218-545-0	8-97947-439-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-97947-444-2	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: E = 8-98218-556-0	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: A = 8-98218-543-0	8-98215-878-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: B = 8-98218-545-0	8-98215-880-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-98215-881-0	01	1	-

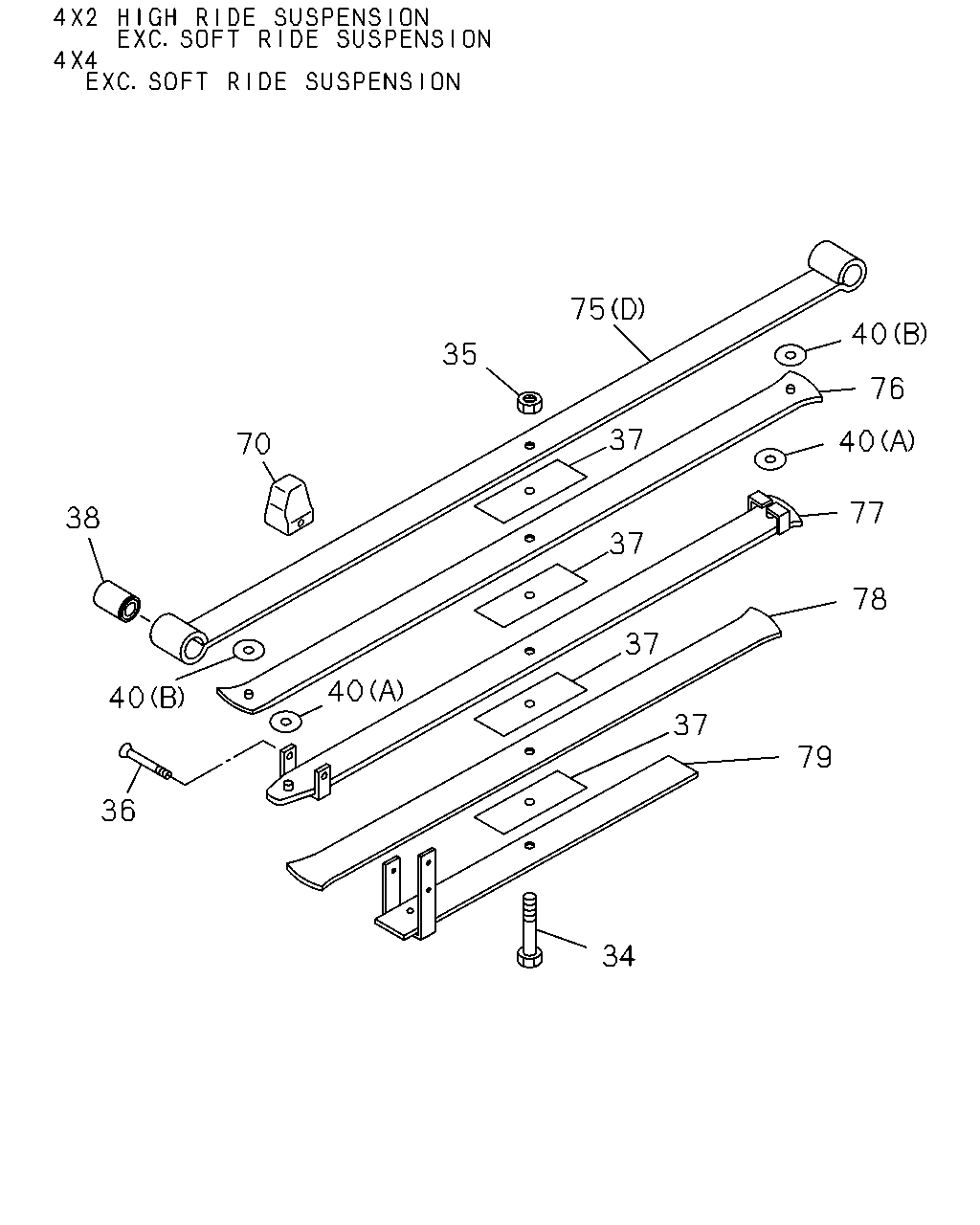

35 37 37 37 37 75 34 38 40 40 40 40 76 77 78 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: A = 8-98218-543-0	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: B = 8-98218-545-0	8-97947-210-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98161-928-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98218-543-0, B = 8-98218-545-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98218-543-0, B = 8-98218-545-0	8-97947-195-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98161-302-0	04	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98218-543-0	8-97947-425-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-98218-545-0	8-97947-436-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D) ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-97947-441-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C) ASM PART: E = 8-98218-556-0	8-97947-451-1	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: A = 8-98218-543-0	8-98218-563-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: B = 8-98218-545-0	8-98218-567-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-98218-571-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: E = 8-98218-556-0	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: A = 8-98218-543-0	8-98218-566-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: B = 8-98218-545-0	8-98218-568-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: D = 8-98218-549-0	8-98218-572-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: C = 8-98218-548-0	8-98218-573-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: E = 8-98218-556-0	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: A = 8-98218-543-0	8-97947-428-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: B = 8-98218-545-0	8-97947-439-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-97947-444-2	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: E = 8-98218-556-0	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: A = 8-98218-543-0	8-98215-878-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: B = 8-98218-545-0	8-98215-880-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-98215-881-0	01	1	-

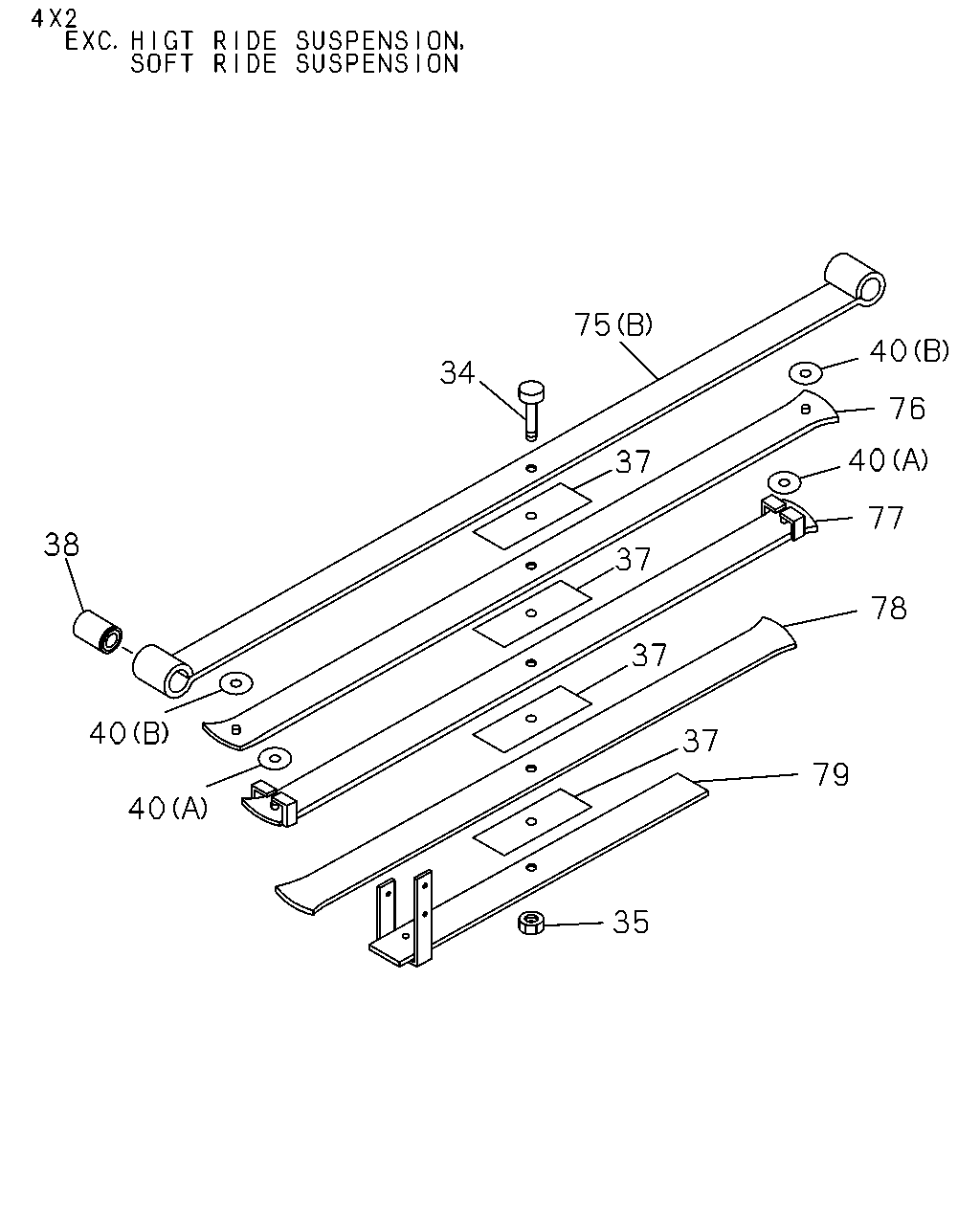

75 34 38 40 40 37 37 37 40 40 76 77 78 37 79 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: A = 8-98218-543-0	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: B = 8-98218-545-0	8-97947-210-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98161-928-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98218-543-0, B = 8-98218-545-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98218-543-0, B = 8-98218-545-0	8-97947-195-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98161-302-0	04	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-98218-543-0, B = 8-98218-545-0, C = 8-98218-548-0, D = 8-98218-549-0, E = 8-98218-556-0	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98218-543-0	8-97947-425-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-98218-545-0	8-97947-436-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D) ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-97947-441-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C) ASM PART: E = 8-98218-556-0	8-97947-451-1	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: A = 8-98218-543-0	8-98218-563-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: B = 8-98218-545-0	8-98218-567-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-98218-571-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: E = 8-98218-556-0	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: A = 8-98218-543-0	8-98218-566-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: B = 8-98218-545-0	8-98218-568-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: D = 8-98218-549-0	8-98218-572-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: C = 8-98218-548-0	8-98218-573-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: E = 8-98218-556-0	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: A = 8-98218-543-0	8-97947-428-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: B = 8-98218-545-0	8-97947-439-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-97947-444-2	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: E = 8-98218-556-0	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: A = 8-98218-543-0	8-98215-878-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: B = 8-98218-545-0	8-98215-880-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: C = 8-98218-548-0, D = 8-98218-549-0	8-98215-881-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
