Sayfa 0-57 - Isuzu EPC

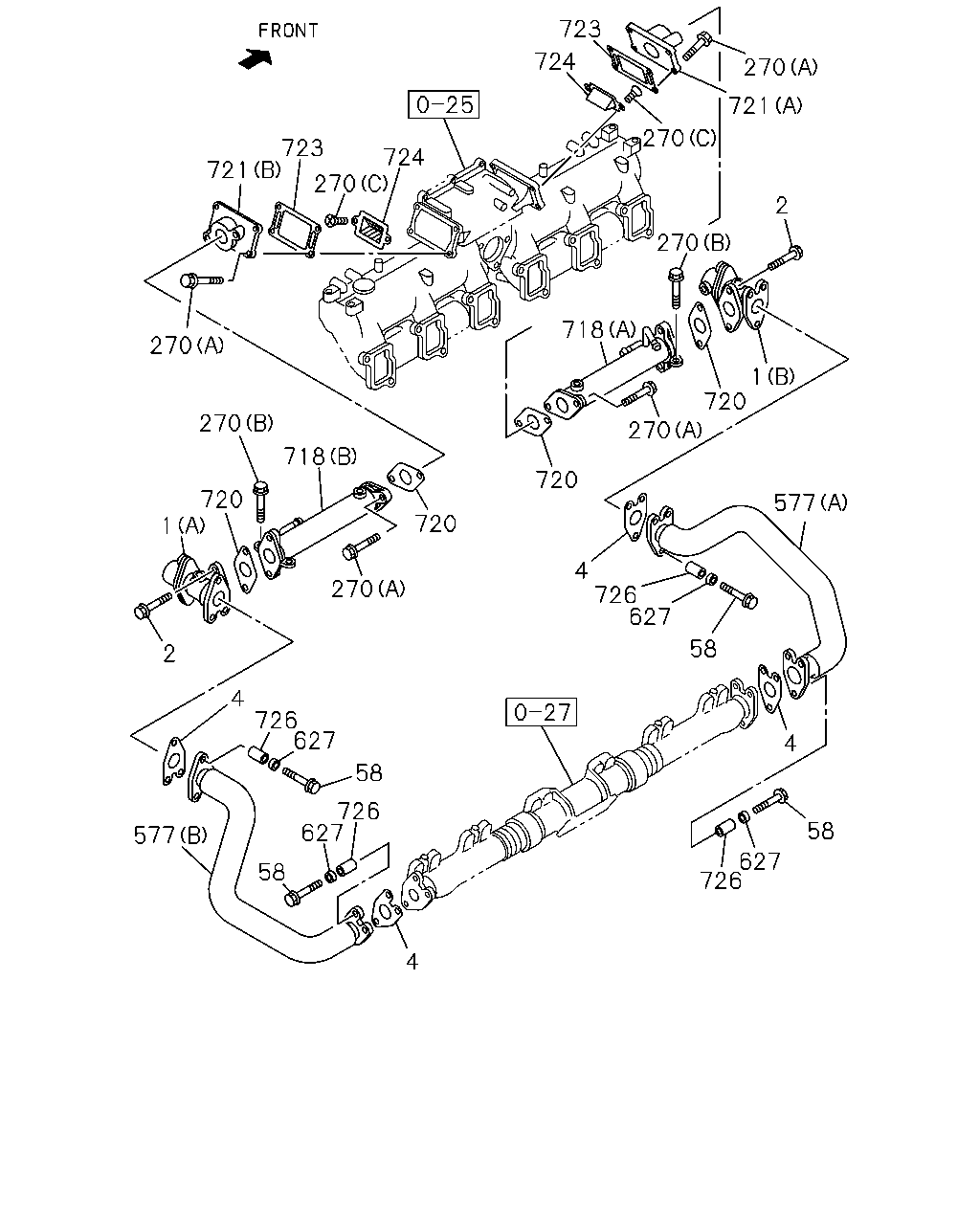

0-57 — EMISSION PIPING (#11920) — 45 parça

723 724 270 721 270 723 721 724 270 2 270 718 270 1 720 270 270 718 720 720 577 720 1 4 726 627 270 58 2 4 726 627 4 58 726 627 58 577 627 726 58 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; EGR EURO3 SPECIFICATION<NJX> (A)	1-16110-015-2	01	1	0107-
1	VALVE; EGR EURO3 SPECIFICATION<NJX> (B)	1-16110-016-2	01	1	0107-
2	BOLT; EGR VLV EURO3 SPECIFICATION<NJX> M10X20 FLANGE	0-28181-020-0	04	1	0107-0512
2	BOLT; EGR VLV EURO3 SPECIFICATION<NJX> M10X20 FLANGE	0-28151-020-0	04	1	0601-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>	1-16157-015-0	04	1	0107-
58	BOLT; PIPE EURO3 SPECIFICATION<NJX> M10X55 FLANGE	8-94399-863-1	12	1	0107-
270	BOLT (A) M10X30 FLANGE	0-28181-030-0	08	1	0105-0406
270	BOLT (A) M10X35 FLANGE	0-28181-035-0	08	1	0407-0512
270	BOLT (A) M10X35 FLANGE	0-28151-035-0	08	1	0601-
270	BOLT EURO3 SPECIFICATION<NJX> (B) M10X20 FLANGE	0-28181-020-0	04	1	0107-0512
270	BOLT EURO3 SPECIFICATION<NJX> (B) M10X20 FLANGE	0-28151-020-0	04	1	0601-
270	BOLT EURO3 SPECIFICATION<NJX> (A) M10X30 FLANGE	0-28181-030-0	04	1	0107-0512
270	BOLT EURO3 SPECIFICATION<NJX> (A) M10X30 FLANGE	0-28151-030-0	04	1	0601-
270	BOLT EURO3 SPECIFICATION<NJX> (C) M6X12 HEX SOCKET	9-05820-612-0	04	1	0107-
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NJX> (A)	1-16181-052-3	01	1	0107-0206
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NJX> (A)	1-16181-083-2	01	1	0207-
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NJX> (B)	1-16181-053-3	01	1	0107-0206
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NJX> (B)	1-16181-084-2	01	1	0207-
627	WASHER; LK,EGR PIPE EURO3 SPECIFICATION<NJX> T=2.2	1-09556-015-0	12	1	0107-
718	COOLER; EGR EURO3 SPECIFICATION<NJX> (A)	1-16127-009-4	01	1	0107-0201
718	COOLER; EGR EURO3 SPECIFICATION<NJX> (A)	1-16127-016-2	01	1	0202-
718	COOLER; EGR EURO3 SPECIFICATION<NJX> (B)	1-16127-011-3	01	1	0107-0201
718	COOLER; EGR EURO3 SPECIFICATION<NJX> (B)	1-16127-017-2	01	1	0202-
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>	1-16157-016-0	04	1	0107-
721	DUCT; COOLER EURO3 SPECIFICATION<NJX> (A)	1-16183-035-1	01	1	0107-0406
721	DUCT; COOLER EURO3 SPECIFICATION<NJX> (A)	1-16183-064-0	01	1	0407-
721	DUCT; COOLER EURO3 SPECIFICATION<NJX> (B)	1-16183-036-1	01	1	0107-0406
721	DUCT; COOLER EURO3 SPECIFICATION<NJX> (B)	1-16183-065-0	01	1	0407-
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	0105-
724	VALVE; REED EURO3 SPECIFICATION<NJX>	8-98186-738-0	02	1	0107-
726	TUBE; DISTANCE EURO3 SPECIFICATION<NJX> L=28	8-94395-679-0	12	1	0107-0209
726	TUBE; DISTANCE EURO3 SPECIFICATION<NJX> L=28	8-97250-073-1	12	1	0210-

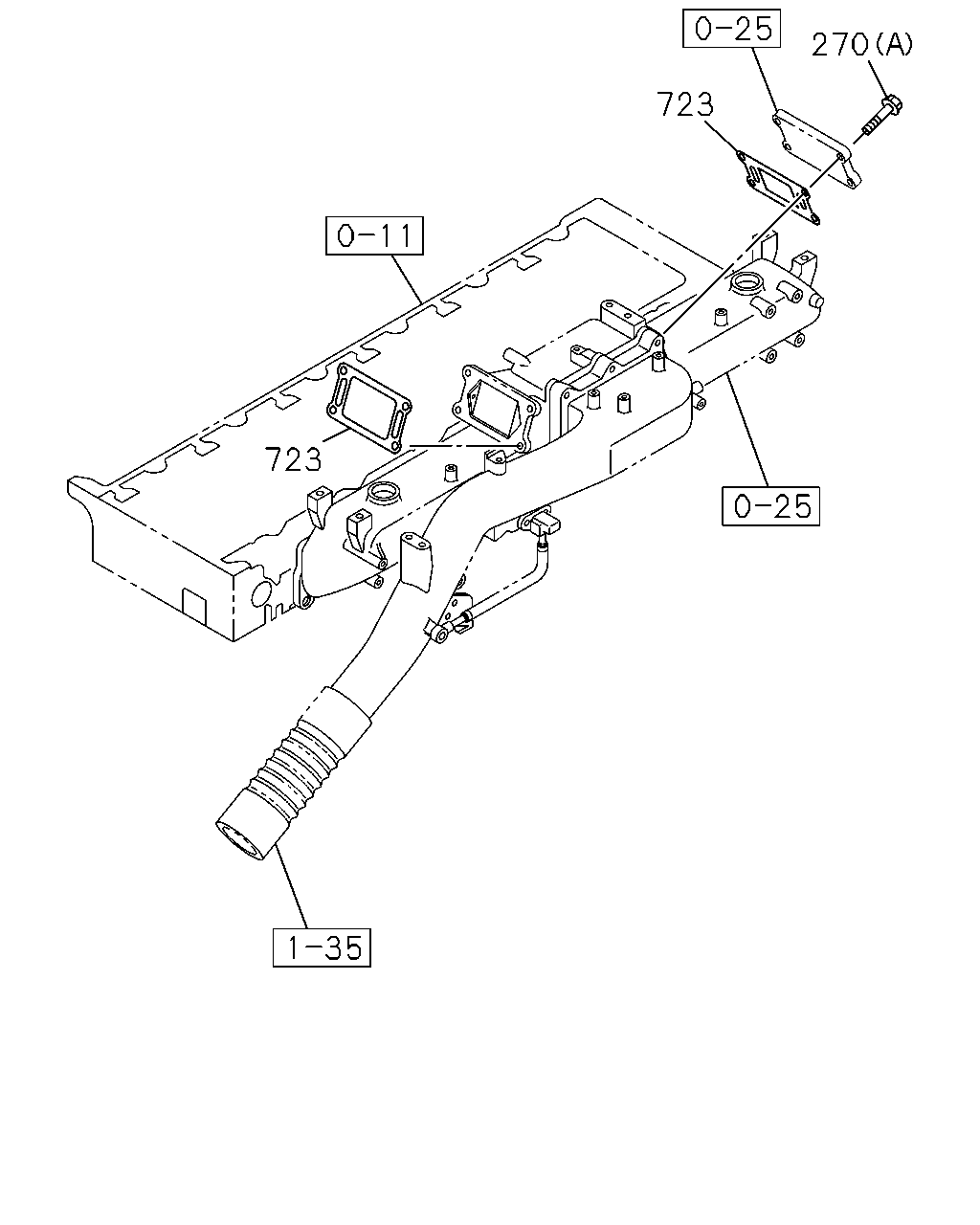

270 723 723

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
270	BOLT (A) M10X30 FLANGE	0-28181-030-0	08	1	0105-0406
270	BOLT (A) M10X35 FLANGE	0-28181-035-0	08	1	0407-0512
270	BOLT (A) M10X35 FLANGE	0-28151-035-0	08	1	0601-
270	BOLT EURO3 SPECIFICATION<NJX> (B) M10X20 FLANGE	0-28181-020-0	04	1	0107-0512
270	BOLT EURO3 SPECIFICATION<NJX> (B) M10X20 FLANGE	0-28151-020-0	04	1	0601-
270	BOLT EURO3 SPECIFICATION<NJX> (A) M10X30 FLANGE	0-28181-030-0	04	1	0107-0512
270	BOLT EURO3 SPECIFICATION<NJX> (A) M10X30 FLANGE	0-28151-030-0	04	1	0601-
270	BOLT EURO3 SPECIFICATION<NJX> (C) M6X12 HEX SOCKET	9-05820-612-0	04	1	0107-
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	0105-

712 713 49 712 713

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	CLIP; HOSE EURO3 SPECIFICATION<NJX> ID=10 & 10	1-09709-277-1	01	1	0107-
712	NUT; FLEX HOSE EURO3 SPECIFICATION<NJX> M12	9-09840-280-0	02	1	0107-
713	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	9-09150-512-0	02	1	0107-0603
713	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	0-91510-512-0	02	1	0604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
