2-20 — MANUAL TRANSMISSION ASM AND CASE (#119187) — 97 parça

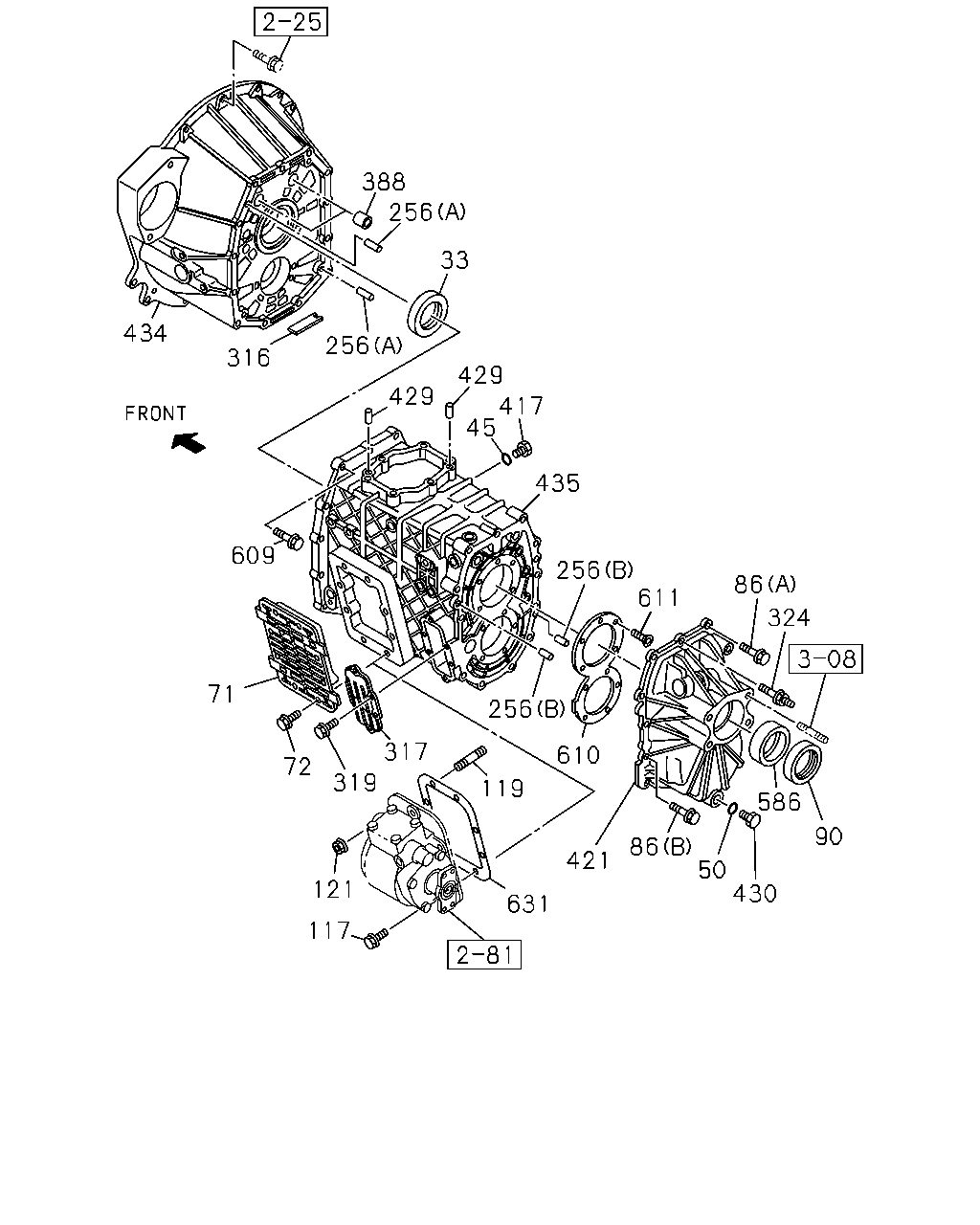

388 256 33 256 316 434 429 429 417 45 435 256 611 86 324 256 610 586 90 430 50 86 421 119 631 317 319 121 117 72 71 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97253-550-0	01	1	1304-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1304-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	02	1	1304-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1304-	●
71	COVER; SIDE,TRANS CASE 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA	8-97252-625-0	01	1	1304-		●
71	COVER; SIDE,TRANS CASE 4HK1-TCS ENG<RJS> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA	8-97252-624-2	01	1	1304-	●
72	BOLT; SIDE COVER 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X20 FLANGE IMA	8-98014-142-0	06	1	1304-		●
72	BOLT; SIDE COVER 4HK1-TCS ENG<RJS> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X20 FLANGE IMA	8-98014-142-0	08	1	1304-	●
86	BOLT; RR COVER (A) M10X40 FLANGE IMA	0-28151-040-0	10	1	1406-	●
86	BOLT; RR COVER (A) M10X40 FLANGE IMA	0-28151-040-0	10	1	1304-1405	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE IMA	0-28151-040-0	09	1	1406-		●
86	BOLT; RR COVER (B) M10X40 FLANGE IMA	8-97365-377-0	02	1	1304-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97253-552-1	01	1	1304-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97253-551-1	01	1	1304-	●
117	BOLT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 FLANGE IMA	0-28751-030-0	02	1	1304-		●
117	BOLT; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X28 FLANGE IMA	8-98044-944-0	06	1	1304-	●
119	STUD; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 L=45 IMA	0-44011-030-0	02	1	1304-		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X25 L=40 THA	0-44011-025-0	02	1	1304-	●	●
121	NUT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA	0-91180-210-0	04	1	1304-		●
121	NUT; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA	0-91180-210-0	02	1	1304-	●
256	PIN; KNOCK (A) OD=10 L=20 IMA	8-97135-423-0	02	1	1304-	●	●
256	PIN; KNOCK (B) ID=6 L=12 THA	9-08160-612-0	02	1	1304-	●	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1304-	●	●
317	COVER; CASE IMA	8-97252-626-0	01	1	1304-	●	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	1304-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65 IMA	8-97365-379-0	01	1	1406-	●
324	STUD; RR COVER M10X15,M10X40 L=65 IMA	8-97365-379-0	01	1	1304-1405	●	●
324	STUD; RR COVER M10X15,M10X40 L=65 IMA	8-97365-379-0	02	1	1406-		●
388	BUSHING; CLU HSG IMA	8-97241-326-2	02	1	1304-	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1304-	●	●
421	COVER; RR,TRANS IMA	8-98020-028-0	01	1	1304-		●
421	COVER; RR,TRANS IMA	8-97238-934-5	01	1	1304-	●
429	PIN; STRAIGHT OD=10 L=20 IMA	8-97135-423-0	02	1	1304-	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	02	1	1304-		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1304-	●
434	HOUSING; CLU IMA	8-97237-099-5	01	1	1304-		●
434	HOUSING; CLU IMA	8-97238-930-4	01	1	1304-	●
435	CASE; TRANS IMA	8-97379-374-0	01	1	1304-		●
435	CASE; TRANS IMA	8-97382-868-1	01	1	1304-	●
586	BEARING; NEEDLE IMA	8-97253-109-0	01	1	1304-		●
586	BEARING; NEEDLE IMA	8-97253-108-0	01	1	1304-	●
609	BOLT; HSG TO CASE M10X40 FLANGE IMA	0-28151-040-0	13	1	1304-	●	●
610	RETAINER; BRG IMA	8-97241-315-1	01	1	1304-		●
610	RETAINER; BRG IMA	8-97241-314-2	01	1	1304-	●
611	SCREW M10X27 TORQUES IMA	8-97365-354-0	11	1	1304-		●
611	SCREW M10X27 TORQUES IMA	8-97365-354-0	10	1	1304-	●
631	SPACER; PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97328-662-0	01	1	1304-	●

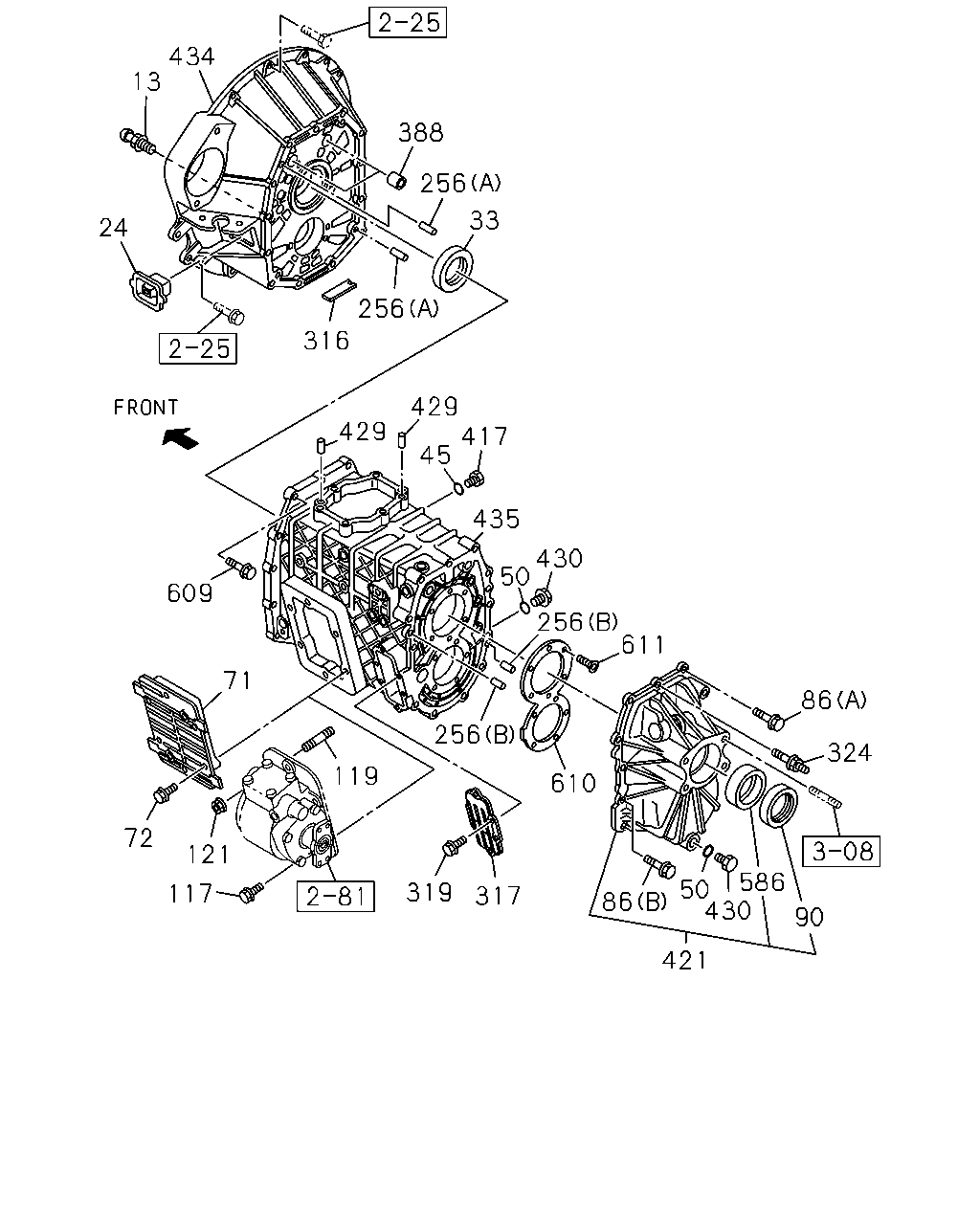

86 324 90 421 586 50 86 317 610 611 256 430 50 435 417 45 429 429 609 71 119 71 121 117 319 256 316 256 33 256 388 434 13 24 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	SUPPORT; SHIFT FORK IMA	8-97255-385-1	01	1	1304-		●
24	COVER; CHECK HOLE,DUST IMA	8-97255-201-0	01	1	1304-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97253-550-0	01	1	1304-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1304-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	02	1	1304-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1304-	●
71	COVER; SIDE,TRANS CASE 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA	8-97252-625-0	01	1	1304-		●
71	COVER; SIDE,TRANS CASE 4HK1-TCS ENG<RJS> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA	8-97252-624-2	01	1	1304-	●
86	BOLT; RR COVER (A) M10X40 FLANGE IMA	0-28151-040-0	10	1	1406-	●
86	BOLT; RR COVER (A) M10X40 FLANGE IMA	0-28151-040-0	10	1	1304-1405	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE IMA	0-28151-040-0	09	1	1406-		●
86	BOLT; RR COVER (B) M10X40 FLANGE IMA	8-97365-377-0	02	1	1304-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97253-552-1	01	1	1304-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97253-551-1	01	1	1304-	●
117	BOLT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 FLANGE IMA	0-28751-030-0	02	1	1304-		●
117	BOLT; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X28 FLANGE IMA	8-98044-944-0	06	1	1304-	●
119	STUD; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 L=45 IMA	0-44011-030-0	02	1	1304-		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X25 L=40 THA	0-44011-025-0	02	1	1304-	●	●
121	NUT; PTO FIX 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA	0-91180-210-0	04	1	1304-		●
121	NUT; PTO FIX 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA	0-91180-210-0	02	1	1304-	●
256	PIN; KNOCK (A) OD=10 L=20 IMA	8-97135-423-0	02	1	1304-	●	●
256	PIN; KNOCK (B) ID=6 L=12 THA	9-08160-612-0	02	1	1304-	●	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1304-	●	●
317	COVER; CASE IMA	8-97252-626-0	01	1	1304-	●	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	1304-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65 IMA	8-97365-379-0	01	1	1406-	●
324	STUD; RR COVER M10X15,M10X40 L=65 IMA	8-97365-379-0	01	1	1304-1405	●	●
324	STUD; RR COVER M10X15,M10X40 L=65 IMA	8-97365-379-0	02	1	1406-		●
388	BUSHING; CLU HSG IMA	8-97241-326-2	02	1	1304-	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1304-	●	●
421	COVER; RR,TRANS IMA	8-98020-028-0	01	1	1304-		●
421	COVER; RR,TRANS IMA	8-97238-934-5	01	1	1304-	●
429	PIN; STRAIGHT OD=10 L=20 IMA	8-97135-423-0	02	1	1304-	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	02	1	1304-		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1304-	●
434	HOUSING; CLU IMA	8-97237-099-5	01	1	1304-		●
434	HOUSING; CLU IMA	8-97238-930-4	01	1	1304-	●
435	CASE; TRANS IMA	8-97379-374-0	01	1	1304-		●
435	CASE; TRANS IMA	8-97382-868-1	01	1	1304-	●
586	BEARING; NEEDLE IMA	8-97253-109-0	01	1	1304-		●
586	BEARING; NEEDLE IMA	8-97253-108-0	01	1	1304-	●
609	BOLT; HSG TO CASE M10X40 FLANGE IMA	0-28151-040-0	13	1	1304-	●	●
610	RETAINER; BRG IMA	8-97241-315-1	01	1	1304-		●
610	RETAINER; BRG IMA	8-97241-314-2	01	1	1304-	●
611	SCREW M10X27 TORQUES IMA	8-97365-354-0	11	1	1304-		●
611	SCREW M10X27 TORQUES IMA	8-97365-354-0	10	1	1304-	●

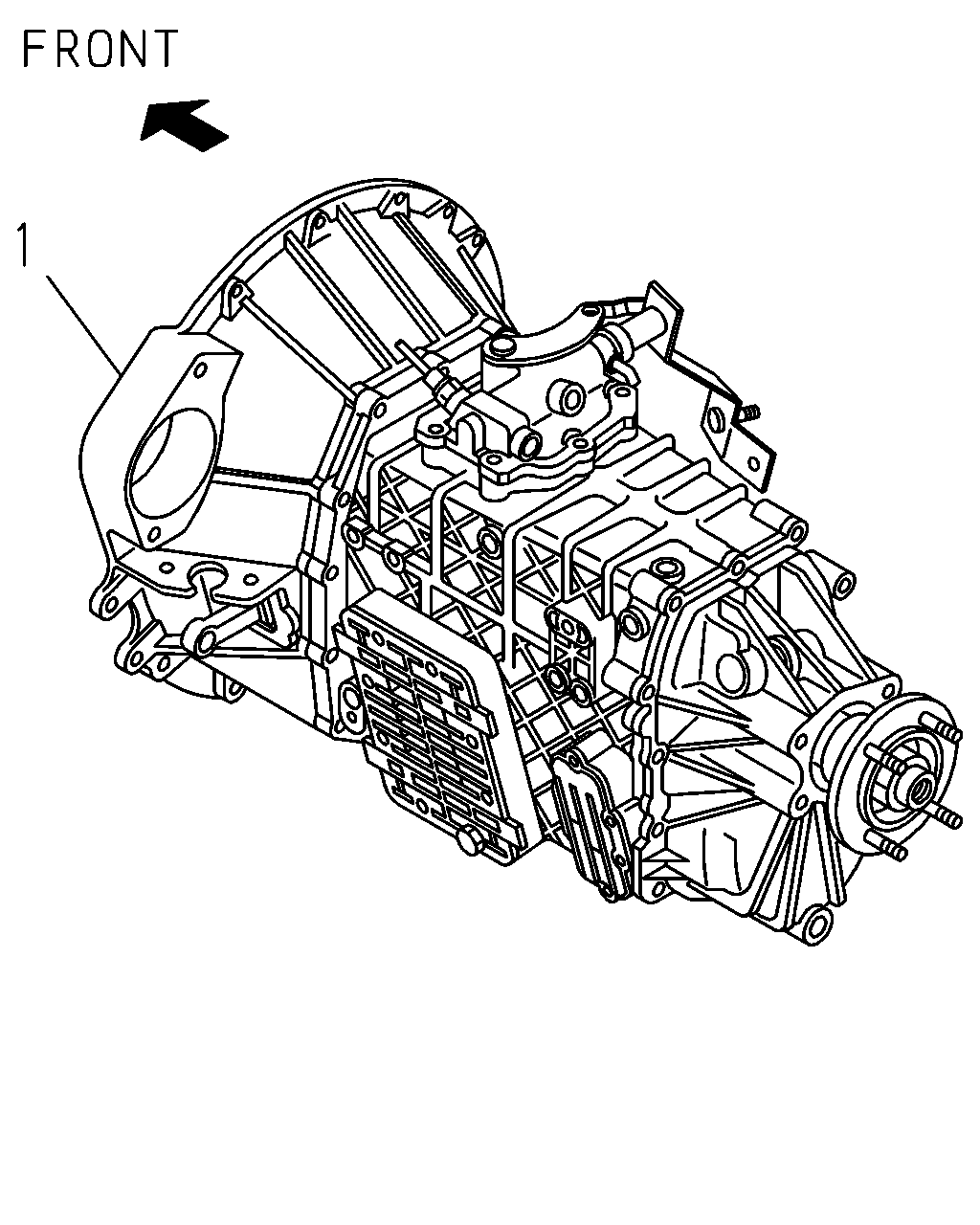

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IMA	8-98067-680-0	01	1	1304-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA	8-98067-680-0	01	1	1304-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IMA	8-98066-931-0	01	1	1304-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG<RJS> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA	8-98066-931-0	01	1	1304-	●
