9-01 — TOOLS (#119182) — 104 parça

4 42 43 31 32 33 34 35 30 9 13 17 363 20 21 22 23 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	1305-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1305-
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	1305-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	1305-
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	1305-
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	1305-
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	1305-
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	1305-
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	1305-
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	1305-
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1305-
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	1305-
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	1305-
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	1305-
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	1305-
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1305-
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	1305-
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	1305-
43	BAR; EXTENSION,SOCKET WRENCH (B) OD=25 L=480	8-98257-407-0	01	1	1502-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1305-
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1305-

162 162 167 169 182 173 172 171 186 189 192 193 208 231 230 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	1305-
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	1305-
167	ALIGNER; CLU PILOT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) L=300 OD=52.5	1-85253-025-0	01	1	1305-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1305-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1305-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1305-
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	1305-
182	REMOVER ASM	1-85239-008-0	01	1	1305-
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1305-
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1305-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1305-
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1305-
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1305-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1305-
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	1305-
231	HOSE; FLEX,GREASE PUMP TOOL B KIT<SL1>	8-98228-834-0	01	1	1305-

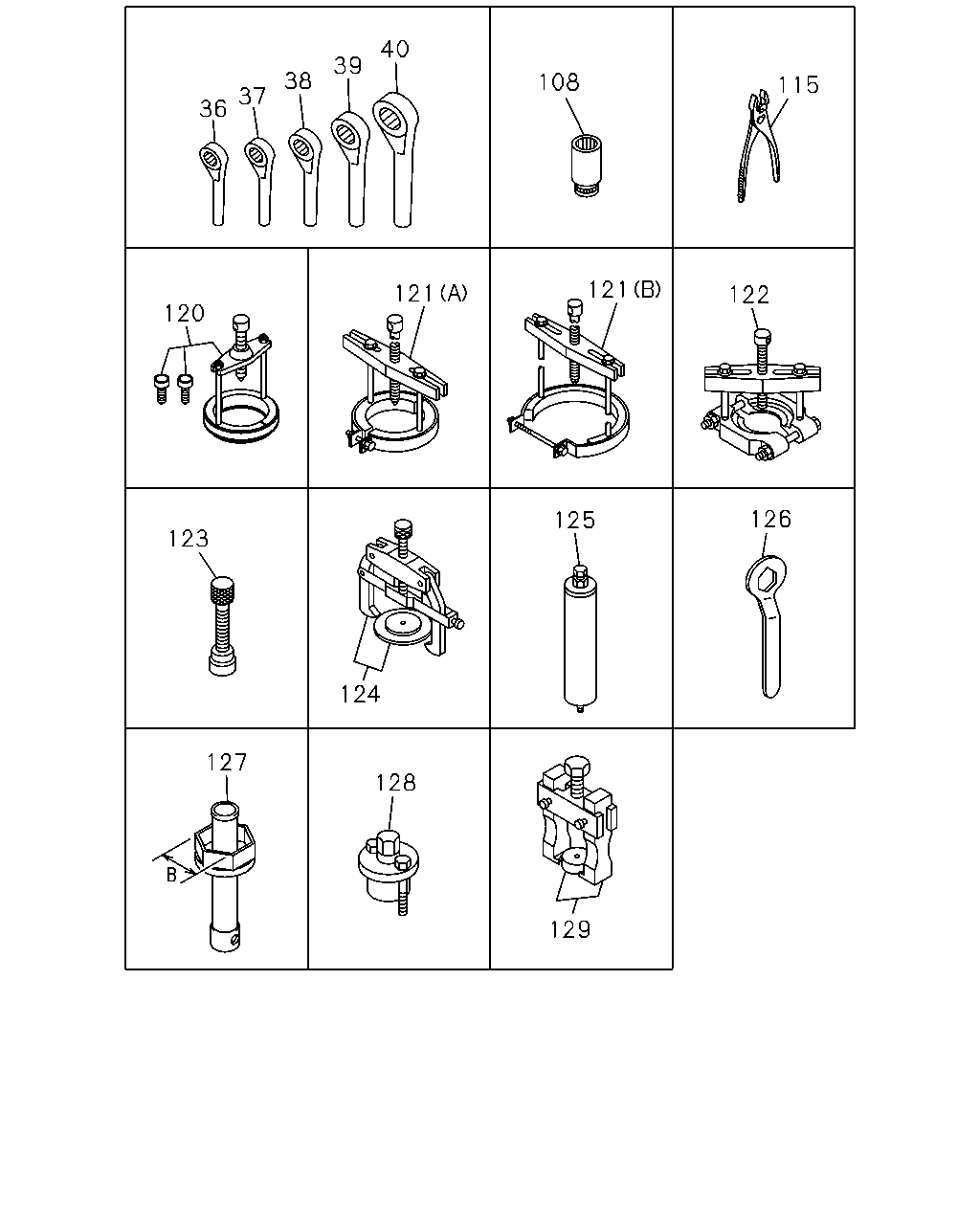

129 128 124 127 123 120 121 121 122 115 108 40 39 38 37 36 125 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	1305-
37	WRENCH; 27	9-85111-375-0	01	1	1305-
38	WRENCH; 32	9-85111-358-0	01	1	1305-
39	WRENCH; 36	9-85111-374-0	01	1	1305-
40	WRENCH; 41	9-85111-356-0	01	1	1305-
108	WRENCH; SOCKET	9-85113-132-0	01	1	1305-
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	1305-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	1305-
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	1305-
121	PULLER ASM; COUNTER REAR MJT7S M/T(Y3E) (A) OD=146	1-85210-074-0	01	1	1305-
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	1305-
123	PULLER; SPEEDOMETER BUSHING MJT7S M/T(Y3E)	9-85210-091-0	01	1	1305-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1305-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1305-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1305-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1305-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	1305-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1305-

12 141 43 130 135 143 144 145 146 151 153 154 156 160 163 163 163 163 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	1305-1501
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-
43	BAR; EXTENSION,SOCKET WRENCH (B) OD=25 L=480	8-98257-407-0	01	1	1502-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1305-
130	WRENCH; BOX B=63	9-85111-368-0	01	1	1305-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1305-
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	1305-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1305-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	1305-
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	1305-
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1305-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1305-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1305-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1305-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1305-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	02	1	1305-
163	TOOL; SETTING MJT7S M/T(Y3E) (D) L=150	1-85221-163-0	01	1	1305-
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1305-
163	TOOL; SETTING (A)	9-85221-231-0	01	1	1305-
163	TOOL; SETTING MJT7S M/T(Y3E) (B) OD=150	1-85221-167-0	01	1	1305-
164	GUIDE; SNAP RING PILOT BRG	1-85176-001-0	01	1	1305-

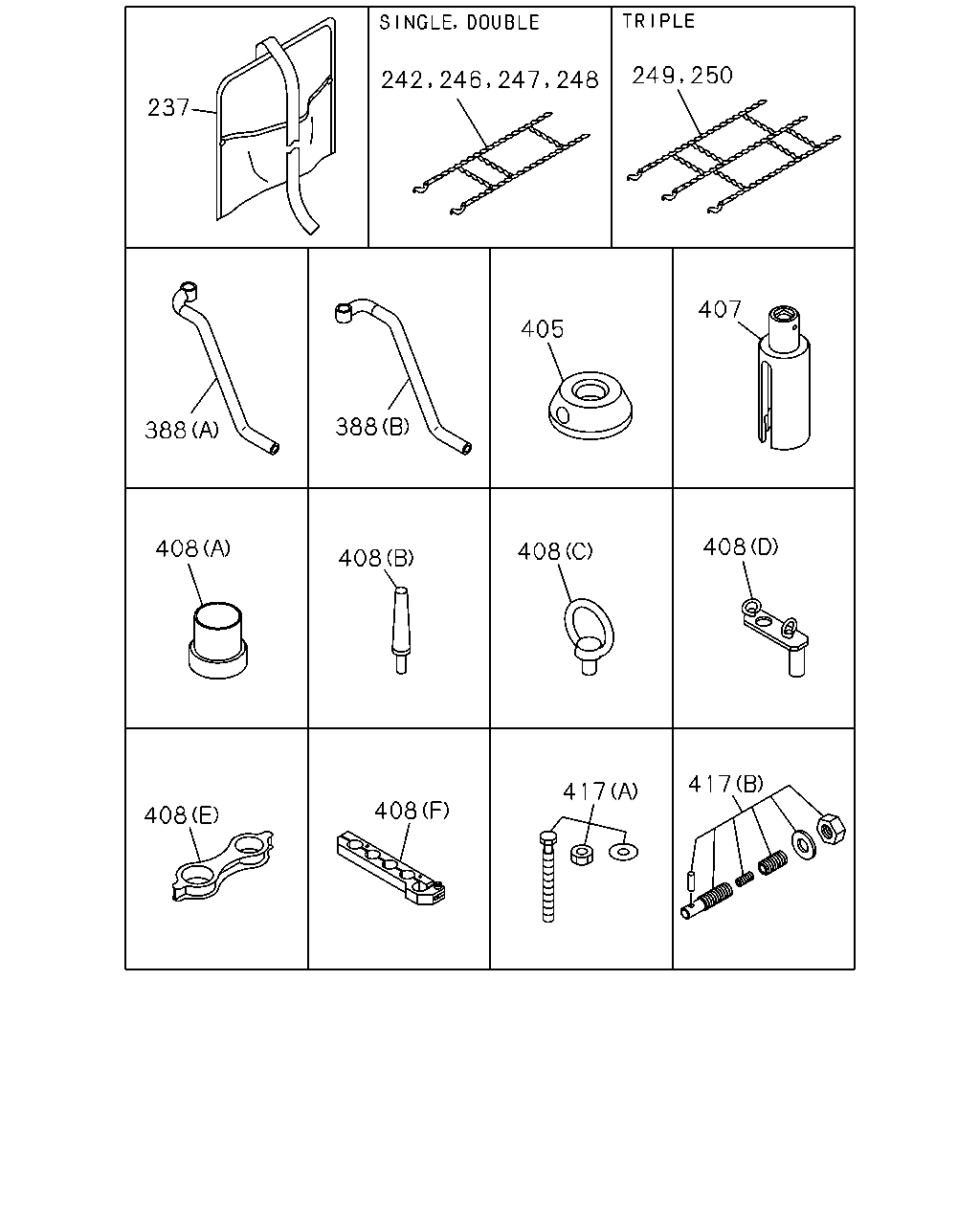

237 242 246 247 248 249 250 407 405 388 388 408 408 408 408 417 417 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	1305-
242	DRAWER ASM; ENG TRANS & DIFF 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	1305-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	1305-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	1305-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	1305-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	1305-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	1305-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	1305-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	1305-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	1305-
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	1305-
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	1305-
405	GUIDE; COUNTER	1-85221-264-0	01	1	1305-
407	SOCKET; SW	1-85221-267-1	01	1	1305-
408	TOOL; SETTING,SHIFT ASSISTER (C)	1-85221-262-0	02	1	1305-
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	1305-
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	1305-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (D)	1-85221-257-0	02	1	1305-1305
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (D)	1-85221-257-0	01	1	1306-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (E)	1-85221-259-0	02	1	1305-1305
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (E)	1-85221-259-0	01	1	1306-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (F)	1-85221-260-0	02	1	1305-1305
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (F)	1-85221-260-0	01	1	1306-
417	BOLT; CHAMBER RELEASE (A) 1/2-13 UNC L=124 2-SETS	1-85576-329-1	01	1	1305-
417	BOLT; CHAMBER RELEASE (A) 1/2-13 UNC L=124 3-SETS	1-85576-330-1	01	1	1305-
417	BOLT; CHAMBER RELEASE (B)	1-85576-378-1	01	1	1305-
