1-40 — FUEL TANK (#119169) — 93 parça

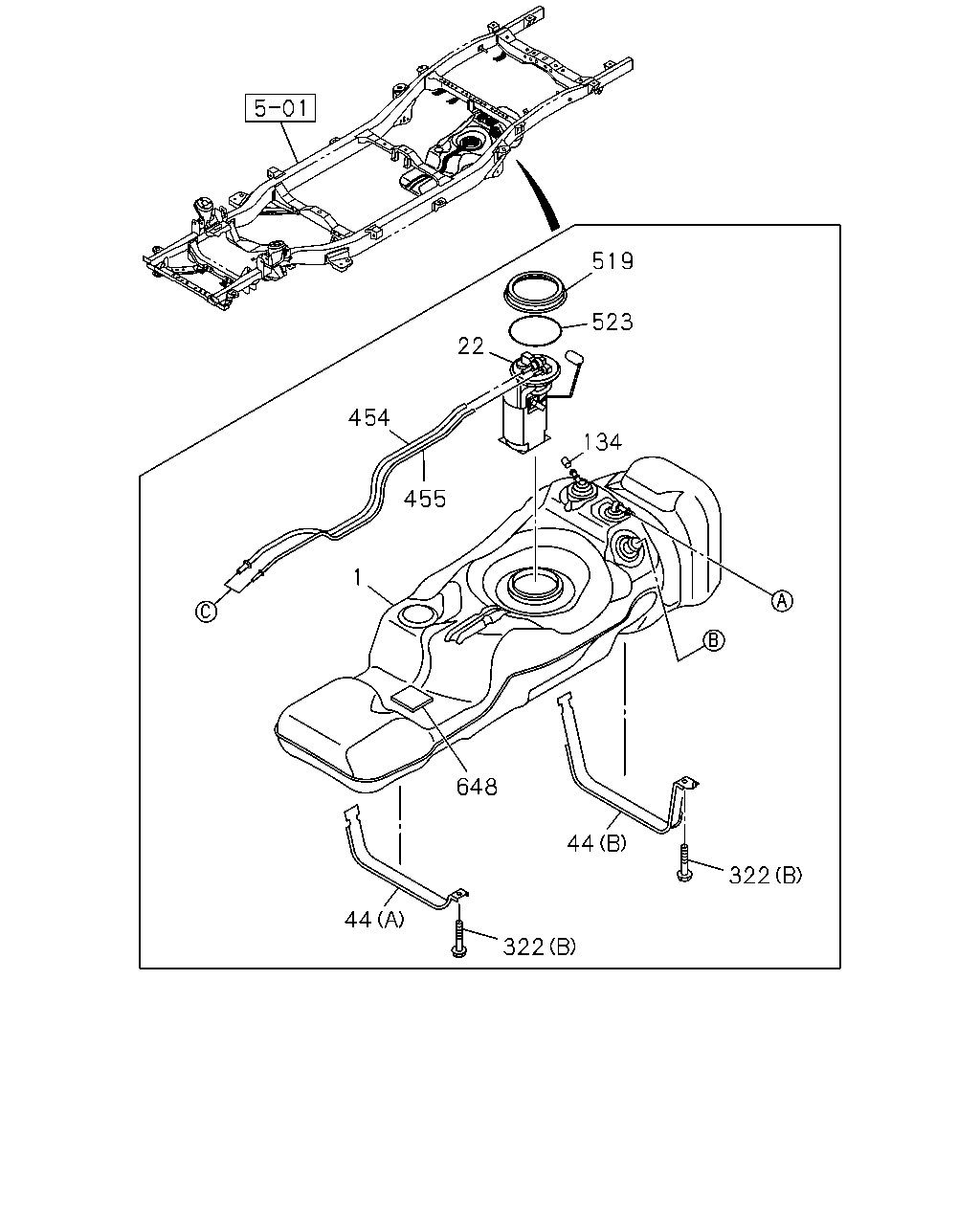

519 523 22 454 455 134 1 648 44 322 322 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL 76L	8-97947-077-3	01	1	1305-	●	●
22	UNIT; FUEL TANK	8-97947-151-3	01	1	1305-	●	●
44	BAND; FUEL TANK (A)	8-97947-085-4	01	1	1305-	●	●
44	BAND; FUEL TANK (B)	8-97947-086-2	01	1	1305-	●	●
134	CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1305-	●	●
322	BOLT; BRKT FIX (B) M10X50 FLANGE	8-97301-165-0	02	1	1305-	●	●
322	BOLT; BRKT FIX REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A) M12X40 FLANGE	0-28051-240-0	01	1	1305-	●	●
322	BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1305-	●	●
454	PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1305-	●	●
455	PIPE; FUEL,RETURN	8-97947-153-0	01	1	1305-	●	●
519	RETAINER; FUEL PUMP	8-97947-157-0	01	1	1305-	●	●
523	SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1305-	●	●
648	RUBBER	8-98191-468-0	01	1	1305-	●	●

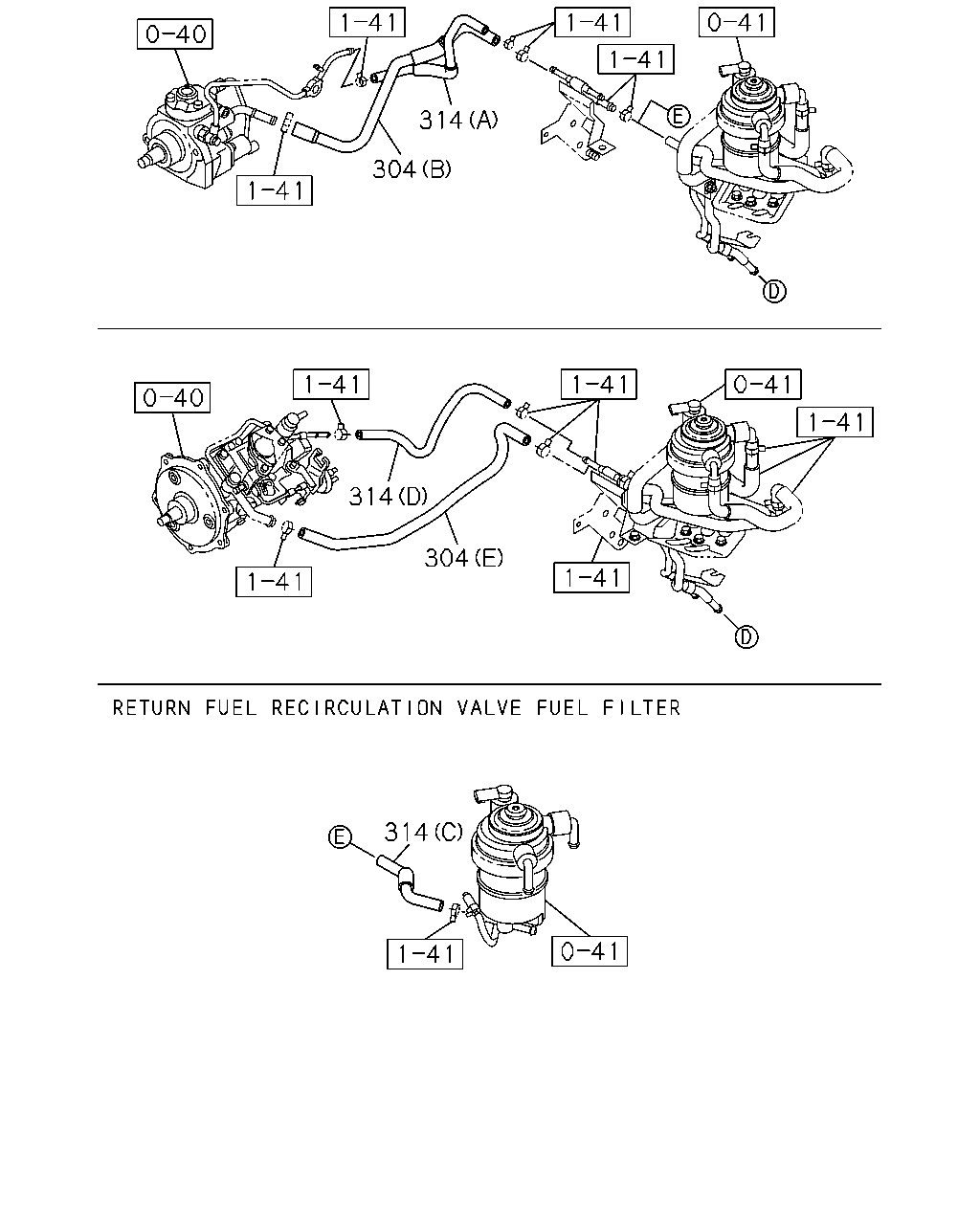

314 304 304 314 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (E)	8-98100-730-1	01	1	1305-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-98164-019-0	01	1	1305-1402	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> (A)	8-98164-019-0	01	1	1305-1402		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-98164-019-0	01	1	1403-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98164-019-0	01	1	1403-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> (A)	8-98164-019-0	01	1	1403-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98196-949-0	01	1	1305-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98100-728-6	01	1	1305-1402		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-728-6	01	1	1403-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-728-6	01	1	1403-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-772-0	01	1	1305-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-97351-313-0	01	1	1305-		●
314	HOSE; RUBBER,FUEL RETURN (D)	8-98100-721-1	01	1	1305-	●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98113-323-1	01	1	1305-1402	●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-323-1	01	1	1305-1402		●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98113-323-1	01	1	1403-1404	●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-323-1	01	1	1403-1404		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-323-1	01	1	1403-1404		●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1405-	●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98258-246-0	01	1	1405-		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> (B)	8-98258-246-0	01	1	1405-		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> (A)	8-98113-329-4	01	1	1305-1402		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98113-329-4	01	1	1403-		●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98113-329-4	01	1	1403-		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-723-2	01	1	1305-1402		●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-723-2	01	1	1403-		●

422

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	422	PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-98154-084-0	01	1	1305-	●	●

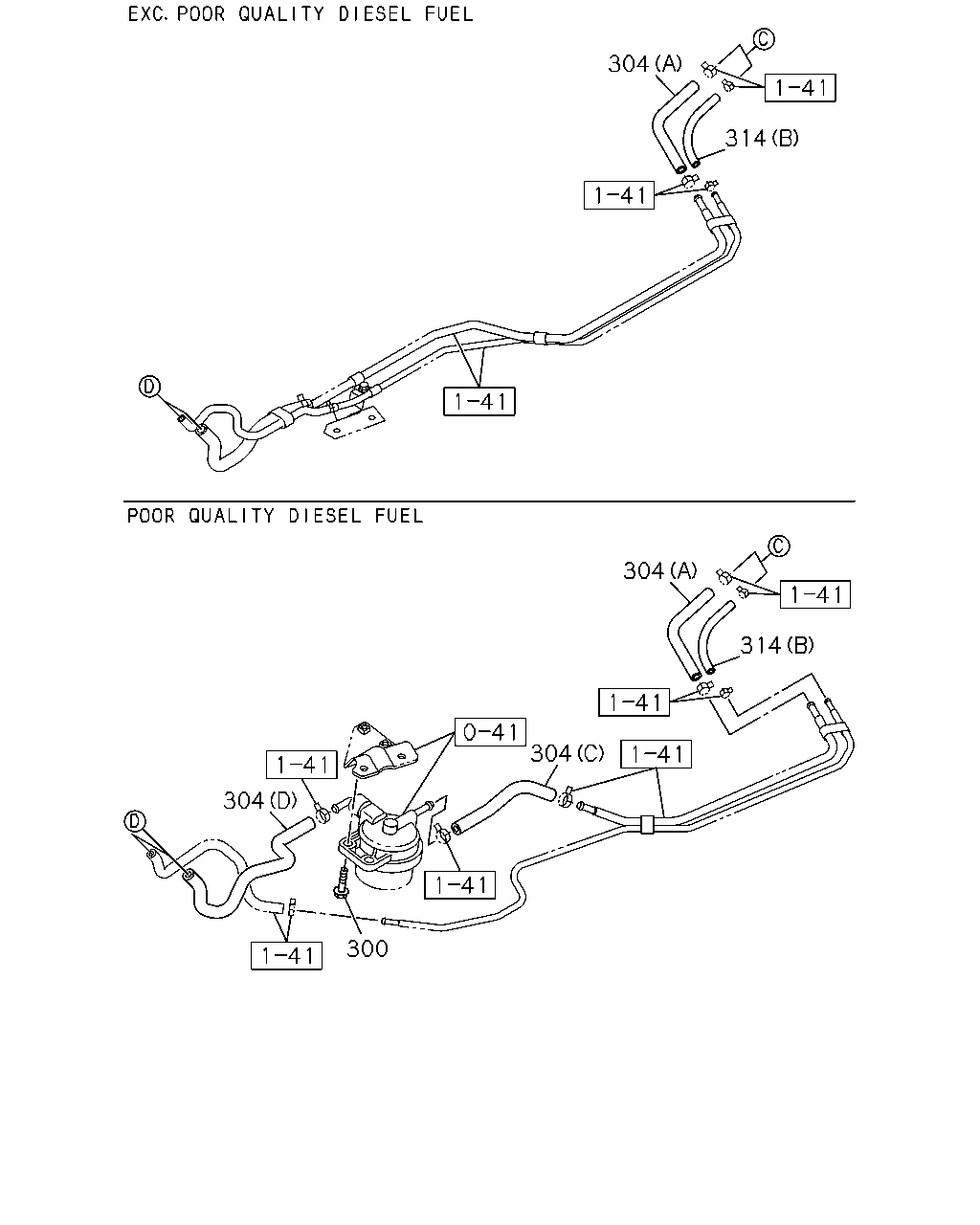

304 314 304 314 304 304 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE	0-28650-830-0	02	1	1305-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (E)	8-98100-730-1	01	1	1305-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-98164-019-0	01	1	1305-1402	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> (A)	8-98164-019-0	01	1	1305-1402		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-98164-019-0	01	1	1403-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98164-019-0	01	1	1403-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> (A)	8-98164-019-0	01	1	1403-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98196-949-0	01	1	1305-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98100-728-6	01	1	1305-1402		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-728-6	01	1	1403-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-728-6	01	1	1403-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-772-0	01	1	1305-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-97351-313-0	01	1	1305-		●
314	HOSE; RUBBER,FUEL RETURN (D)	8-98100-721-1	01	1	1305-	●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98113-323-1	01	1	1305-1402	●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-323-1	01	1	1305-1402		●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98113-323-1	01	1	1403-1404	●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-323-1	01	1	1403-1404		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-323-1	01	1	1403-1404		●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1405-	●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98258-246-0	01	1	1405-		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> (B)	8-98258-246-0	01	1	1405-		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> (A)	8-98113-329-4	01	1	1305-1402		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98113-329-4	01	1	1403-		●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98113-329-4	01	1	1403-		●
314	HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-723-2	01	1	1305-1402		●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-723-2	01	1	1403-		●

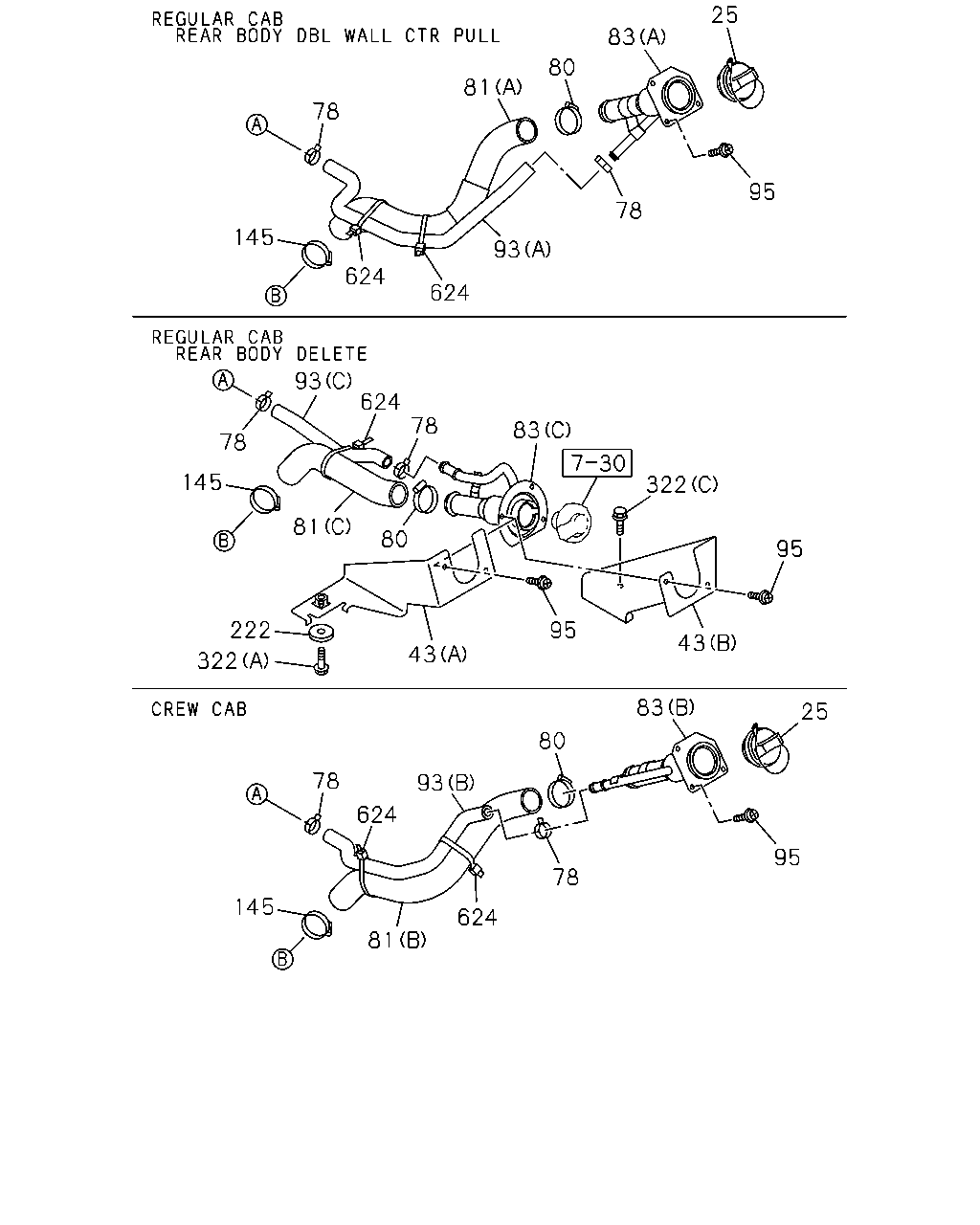

25 95 78 93 624 624 145 78 81 80 83 78 93 78 624 83 322 95 95 43 43 80 81 145 222 322 145 624 78 93 80 83 95 25 78 624 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98088-024-0	01	1	1305-1510	●	●
25	CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98327-664-0	01	1	1511-	●	●
43	BRACKET; FUEL TANK REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A)	8-97947-120-0	01	1	1305-	●	●
43	BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1305-	●	●
78	CLIP; BREATHER HOSE ID=20.8	8-97944-127-0	01	1	1305-	●	●
78	CLIP; BREATHER HOSE ID=20.8	8-97944-127-0	01	1	1305-	●	●
80	CLIP; FILLER HOSE ID=30-45	8-98115-807-0	01	1	1305-	●	●
81	HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-481-0	01	1	1305-	●	●
81	HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-177-2	01	1	1305-	●	●
81	HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-192-0	01	1	1305-	●	●
81	HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (C)	8-97947-482-0	01	1	1305-	●	●
83	NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-479-2	01	1	1305-	●	●
83	NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-175-1	01	1	1305-	●	●
83	NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-181-0	01	1	1305-	●	●
93	HOSE; BREATHER,FUEL TANK REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-480-1	01	1	1305-	●	●
93	HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-176-2	01	1	1305-	●	●
93	HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-193-0	01	1	1305-	●	●
95	SCREW; FILLER NECK REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63)	8-98139-595-0	03	1	1305-	●	●
95	SCREW; FILLER NECK REAR BODY DELETE(8HH)	8-98139-595-0	02	1	1305-	●	●
145	CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1305-	●	●
222	WASHER; BRKT,FUEL TANK REGULAR CAB(TF*S) REAR BODY DELETE(8HH) ID=13 OD=40 T=6	8-98098-458-0	01	1	1305-	●	●
322	BOLT; BRKT FIX (B) M10X50 FLANGE	8-97301-165-0	02	1	1305-	●	●
322	BOLT; BRKT FIX REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A) M12X40 FLANGE	0-28051-240-0	01	1	1305-	●	●
322	BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1305-	●	●
624	CLIP; BAND REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) L=330	5-09709-118-0	01	1	1305-	●	●
624	CLIP; BAND REAR BODY DBL WALL CTR PULL(E63) L=330	5-09709-118-0	02	1	1305-	●	●
