Isuzu WW
▶
TRUCKS
▶
NLR
▶
51479 - NLR/NMR(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

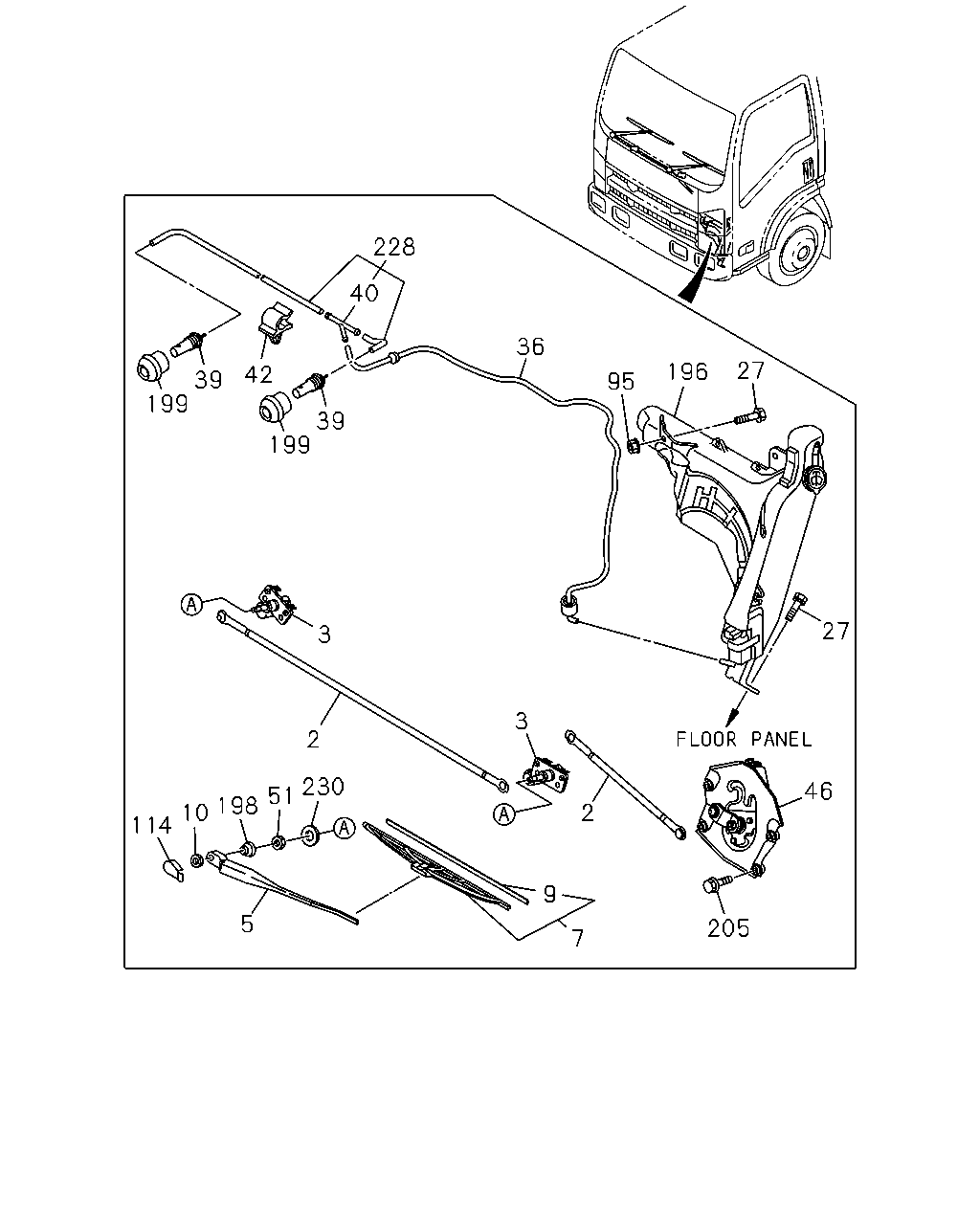

8-80 — WINDSHIELD WIPER AND WASHER
(#119166) — 36 parça
Tümü
A - NMR5SE
B - NMR5SN
◀
[880A] NO.1 (24 parça)
[880A] NO.2 (12 parça)
▶
196
27
46
27
205
7
9
2
3
230
51
198
10
114
5
3
199
39
199
42
39
40
228
36
95
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LINK; FRT WIPER
L=400 W/CAP STAMP M IMA
8-98053-767-0
01
1
1304-
●
●
2
LINK; FRT WIPER
L=590 W/CAP IMA
8-98053-770-0
01
1
1304-
●
●
3
PIVOT ASM; FRT WIPER
IMA
8-98053-763-0
01
1
1304-
●
●
3
PIVOT ASM; FRT WIPER
IMA
8-98053-764-0
01
1
1304-
●
●
5
ARM; WIPER
DRIVER SIDE IMA
8-98053-784-0
01
1
1304-
●
●
5
ARM; WIPER
PASSENGER SIDE IMA
8-98053-785-0
01
1
1304-
●
●
7
BLADE; WIPER
IMA
8-98053-790-0
02
1
1304-
●
●
9
RUBBER; FRT WIPER BLADE
L=475 IMA
8-98053-793-0
02
1
1304-
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
M8 IMA
0-91110-508-0
02
1
1304-
●
●
27
BOLT; WASHER TANK
M8X16 W/LK&PL WASHER IMA
8-94310-730-0
02
1
1304-
●
●
36
HOSE; WASHER
L=1070
8-98029-171-2
01
1
1304-
●
●
39
NOZZLE; WINDSHIELD WASHER
IMA
8-98029-139-1
02
1
1304-
●
●
40
JOINT; WASHER HOSE
3WAY IMA
5-83363-033-0
01
1
1304-
●
●
42
CLIP; WASHER HOSE
IMA
8-94144-956-0
01
1
1304-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
IMA
8-98029-123-3
01
1
1304-
●
●
51
NUT; WIPER MOTOR LINK
M24 IMA
8-98029-167-0
02
1
1304-
●
●
95
NUT; WASHER TANK
M8 FLANGE THA
0-91180-108-0
01
1
1304-
●
●
114
COVER; FRT WIPER ARM
BLACK IMA
8-94282-851-0
02
1
1304-
●
●
196
TANK; WASHER
IMA
8-98029-135-3
01
1
1304-
●
●
198
COVER; PIVOT,WIPER
IMA
8-98029-164-0
02
1
1304-
●
●
199
COVER; NOZZLE,WIPER
IMA
8-98079-030-0
02
1
1304-
●
●
205
BOLT; WIPER MOTOR
M6X25 W/LK&PL WASHER IMA
8-98018-440-0
04
1
1304-
●
●
228
HOSE ASM; WASHER
IMA
8-98029-169-1
01
1
1304-
●
●
230
COLLAR; WIPER LINK
IMA
8-98029-097-0
02
1
1304-
●
●
235
229
43
30
196
34
46
135
48
137
33
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
MOTOR ASM; FRT WASHER TANK
IMA
8-97855-139-0
01
1
1304-
●
●
33
NUT; MOTOR TO ARM
M8 IMA
8-97855-157-0
01
1
1304-
●
●
34
CAP; WASHER TANK
IMA
8-97855-140-0
01
1
1304-
●
●
43
RUBBER; GASKET,TANK
IMA
8-94352-050-0
01
1
1304-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
IMA
8-98029-123-3
01
1
1304-
●
●
48
ARM; WIPER MOTOR
IMA
8-98052-215-0
01
1
1304-
●
●
74
WASHER; ARM TO MOTOR
ID=8 IMA
8-97855-158-0
01
1
1304-
●
●
135
RUBBER; CUSHION,WIPER MOTOR
IMA
8-98052-214-0
04
1
1304-
●
●
137
SEAL; JOINT,WIPER MOTOR
IMA
8-98052-218-0
01
1
1304-
●
●
196
TANK; WASHER
IMA
8-98029-135-3
01
1
1304-
●
●
229
HARNESS; WASHER TANK
8-98236-608-0
01
1
1304-1308
●
●
235
INSULATOR; HARNESS
8-98236-321-0
01
1
1304-1308
●
●
