Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

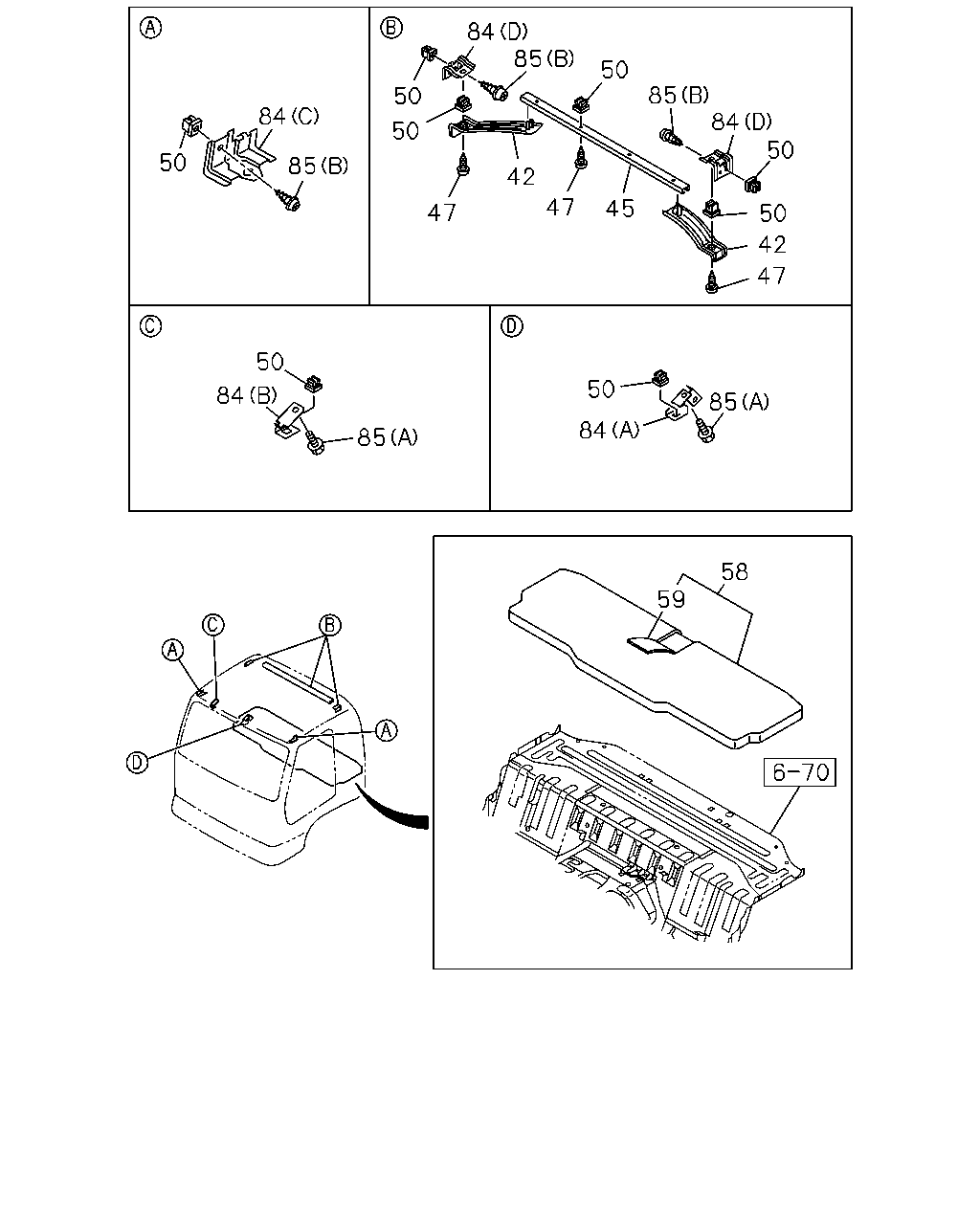

7-70 — SEPARATER AND BED
(#119163) — 17 parça
50
85
84
47
42
50
50
84
85
50
85
84
45
47
42
47
50
50
85
84
50
85
84
50
58
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1305-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1305-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1305-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1305-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
10
1
1305-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
08
1
1406-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> THA
8-97924-780-0
01
1
1305-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> THA
8-97924-821-0
01
1
1305-
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
1305-1405
84
BRACKET; CURTAIN RAIL
(D)
8-98042-152-0
02
1
1305-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-98049-290-1
01
1
1305-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98074-740-0
01
1
1305-
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
04
1
1305-1405
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
02
1
1406-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE
8-97108-669-0
02
1
1305-1306
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) THA
8-97948-268-0
02
1
1307-1308
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE THA
0-28450-612-0
02
1
1309-
