◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51479 - NLR/NMR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#119162) — 40 parça

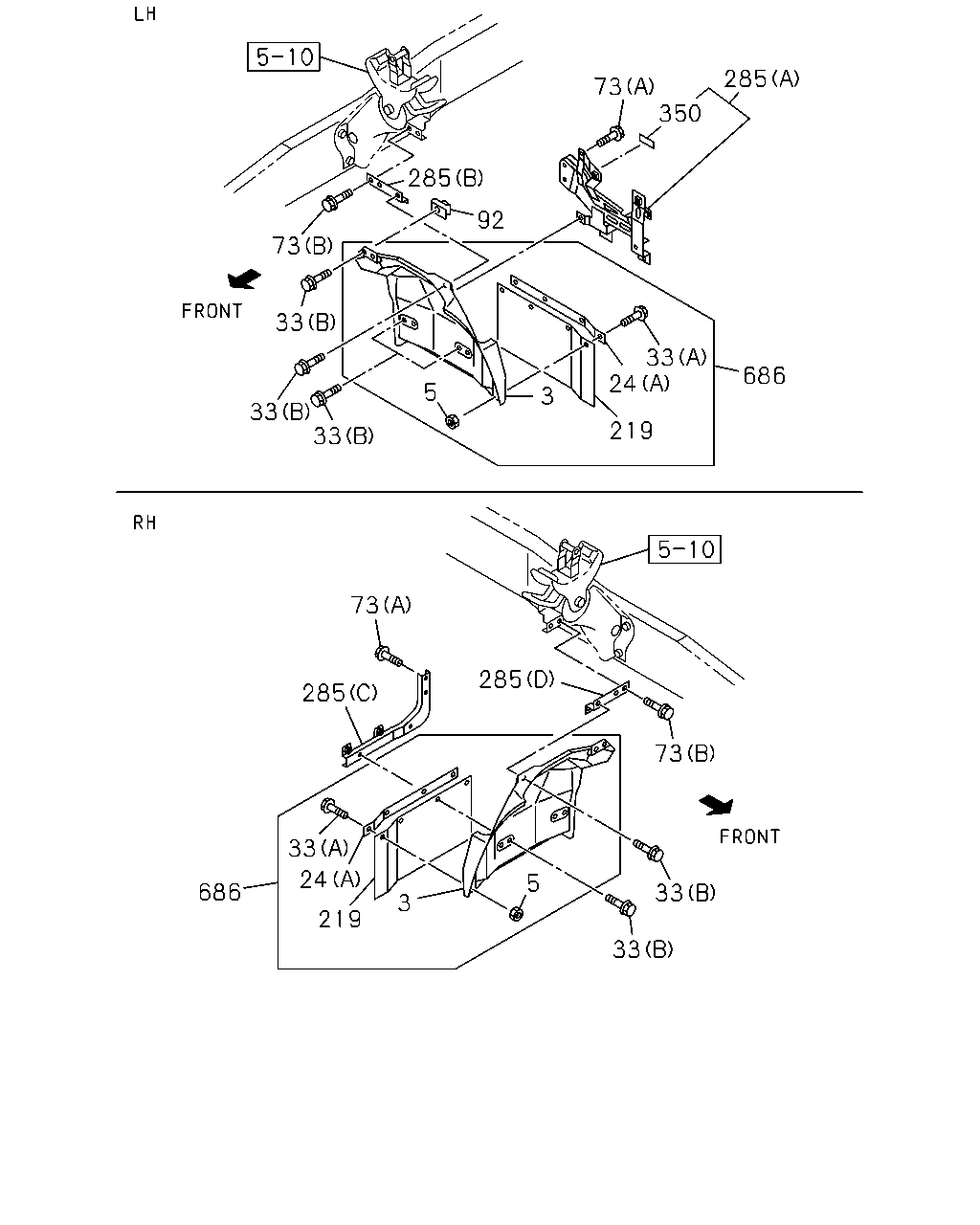

çizim 351355
73 285 92 73 285 350 33 24 219 686 33 33 5 3 33 73 285 73 33 33 5 3 219 24 33 686 285
BalonParca AdiParca NoAdetTipApplied Date A B
3 GUARD; MUD,RR
IMA 		8-98004-030-4 01 1 1304- ● ●
3 GUARD; MUD,RR
IMA 		8-98054-793-3 01 1 1304- ● ●
5 NUT; FLAP RUBBER
M6 IMA 		8-98227-380-0 08 1 1304- ● ●
24 PLATE; MUD COVER
(A) IMA 		8-98004-031-1 02 1 1304- ● ●
24 PLATE; MUD COVER
(B) IMA 		8-98154-261-0 02 1 1304- ● ●
33 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER IMA 		1-09030-093-0 08 1 1304- ● ●
33 BOLT; MUD COVER
(C) M6X16 FLANGE IMA 		8-98061-108-0 04 1 1304- ● ●
33 BOLT; MUD COVER
(A) M6X16 FLANGE IMA 		8-98227-381-0 08 1 1304- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 04 1 1304- ● ●
73 BOLT; MUD COVER BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 1304- ● ●
92 NUT; MUD COVER
M8 SPIRE NUT IMA 		8-98039-860-2 02 1 1304- ● ●
219 FLAP; MUD GUARD
IMA 		8-98010-741-1 02 1 1304- ● ●
285 BRACKET; MUD COVER
(B) THA 		8-98038-865-1 01 1 1304- ● ●
285 BRACKET; MUD COVER
(D) IMA 		8-98059-689-0 01 1 1304- ● ●
285 BRACKET; MUD COVER
(A) IMA 		8-98082-272-0 01 1 1304- ● ●
285 BRACKET; MUD COVER
(C) IMA 		8-98131-079-0 01 1 1304- ● ●
350 PROTECTOR; EDGE,MUD COVER
L=80 IMA 		5-22439-006-0 01 1 1304- ● ●
686 FLAP ASM; MUD
IMA 		8-98001-302-6 01 1 1304- ● ●
686 FLAP ASM; MUD
IMA 		8-98048-568-5 01 1 1304- ● ●

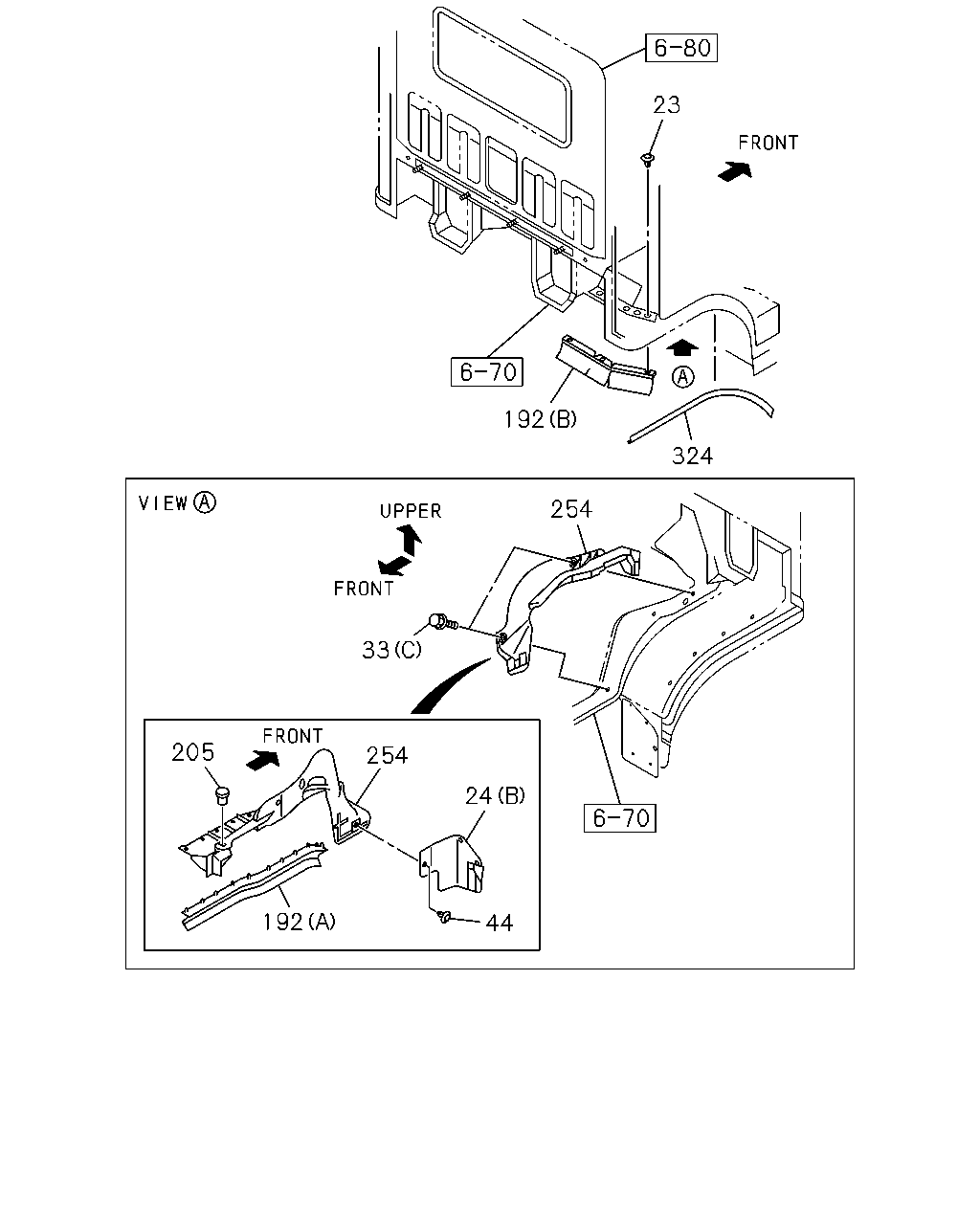

çizim 351357
23 324 192 254 33 254 24 44 192 205
BalonParca AdiParca NoAdetTipApplied Date A B
23 FASTENER; MUD COVER
OD=8.3 IMA 		8-97997-832-0 06 1 1304- ● ●
24 PLATE; MUD COVER
(A) IMA 		8-98004-031-1 02 1 1304- ● ●
24 PLATE; MUD COVER
(B) IMA 		8-98154-261-0 02 1 1304- ● ●
33 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER IMA 		1-09030-093-0 08 1 1304- ● ●
33 BOLT; MUD COVER
(C) M6X16 FLANGE IMA 		8-98061-108-0 04 1 1304- ● ●
33 BOLT; MUD COVER
(A) M6X16 FLANGE IMA 		8-98227-381-0 08 1 1304- ● ●
44 CLIP; ANCHOR
OD=16 L=11 IMA 		1-76378-155-0 06 1 1304- ● ●
192 SEAL; MUD COVER
(A) IMA 		8-98022-755-1 01 1 1304- ● ●
192 SEAL; MUD COVER
(A) IMA 		8-98022-756-1 01 1 1304- ● ●
192 SEAL; MUD COVER
(B) THA 		8-98022-785-2 02 1 1304- ● ●
205 FASTENER; MUD COVER
D=5.8 SCREW & GROMMET NYLON IMA 		8-94242-150-0 02 1 1304- ● ●
254 COVER; MUD,VALANCE
IMA 		8-98115-263-0 01 1 1304- ● ●
254 COVER; MUD,VALANCE
IMA 		8-98115-264-0 01 1 1304- ● ●
324 PROTECTOR; FRT FENDER 8-98022-786-2 02 1 1304- ● ●
çizim 351360
61 139 90 140 90 139 150 140
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER
IMA 		8-98033-140-0 01 1 1304- ● ●
90 BOLT; COVER
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1304- ● ●
90 BOLT; COVER
(B) M8X25 W/LK&PL WASHER IMA 		1-09030-093-0 01 1 1304- ● ●
139 PANEL; SIDE
IMA 		8-97385-590-3 01 1 1304- ● ●
139 PANEL; SIDE
IMA 		8-98053-670-1 01 1 1304- ● ●
140 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER IMA 		1-09030-094-0 02 1 1304- ● ●
150 NUT; SIDE PANEL
M8 W/DISHED WASHER IMA 		8-97329-625-0 01 1 1304- ● ●
