0-42 — FUEL PUMP AND PIPE (#11916) — 99 parça

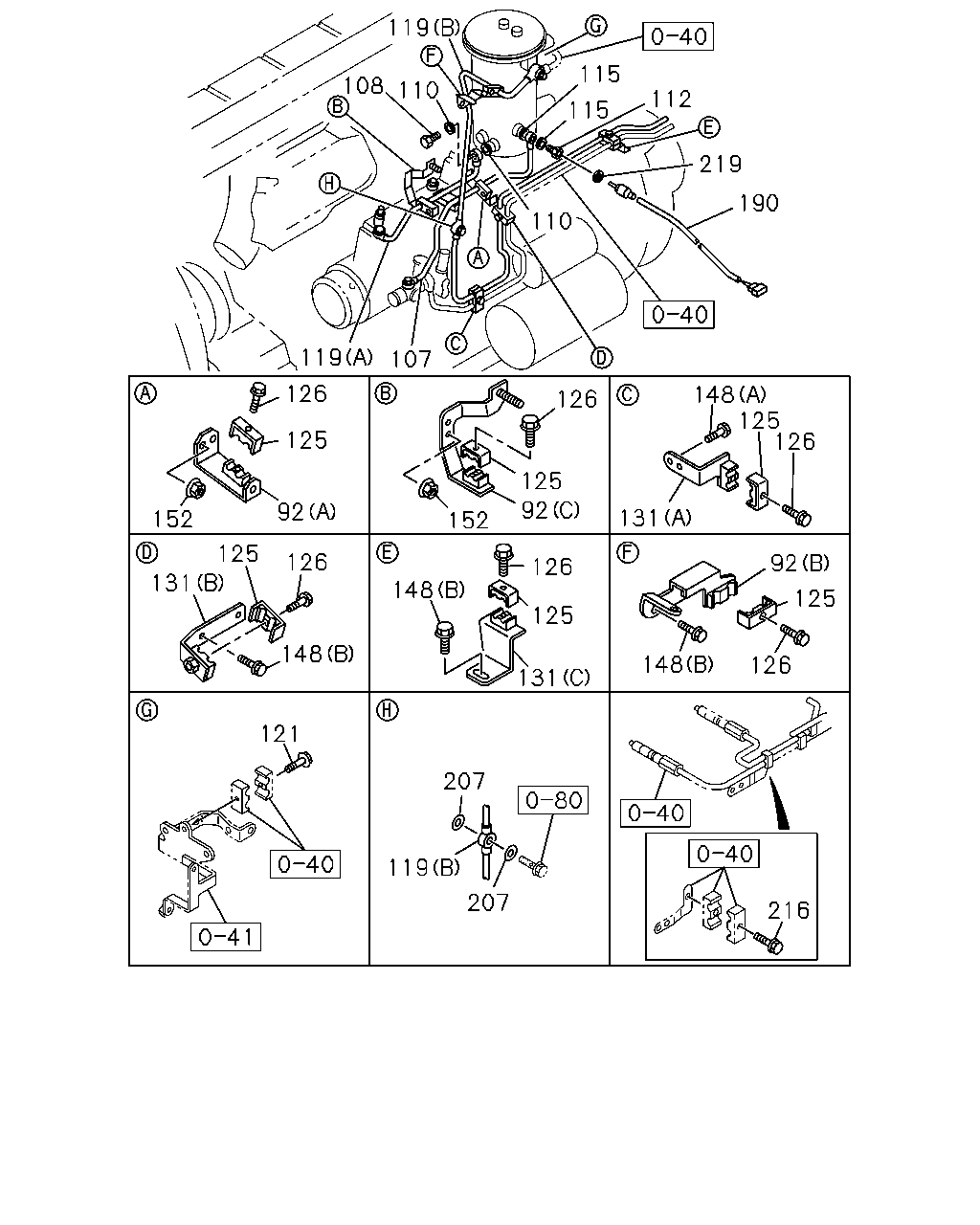

119 115 108 110 112 115 219 110 190 119 107 126 148 125 126 126 125 152 125 92 152 125 131 92 131 126 92 126 148 125 125 148 148 126 131 121 207 119 207 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	0105-	●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0105-	●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-430-0	01	1	0105-				●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●	●
108	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0105-				●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0105-0312	●	●	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0401-		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0105-0312				●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0401-	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-241-0	01	1	0105-				●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0105-0512	●	●	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-	●	●	●	●
125	CLIP; FUEL PIPE ID=9 & 9 L=25	8-94393-280-3	06	1	0105-	●	●	●
125	CLIP; FUEL PIPE ID=9 & 9 L=25	8-94393-280-3	04	1	0105-				●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0105-0512	●	●	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-	●	●	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	04	1	0105-0512				●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	04	1	0601-				●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	0105-	●	●	●	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	0105-	●	●	●	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	0105-	●	●	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-473-1	01	1	0105-				●
131	BRACKET; FUEL PIPE CLIP (E)	1-15419-577-0	01	1	0105-				●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0105-0512	●	●	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-	●	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0105-0512				●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	02	1	0601-				●
148	BOLT; BRKT (D) M10X20 FLANGE	0-28181-020-0	03	1	0105-0512				●
148	BOLT; BRKT (D) M10X20 FLANGE	0-28151-020-0	03	1	0601-				●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
190	SENSOR; FUEL TEMP	1-81535-035-3	01	1	0311-				●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0105-0310	●	●	●	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0311-0312	●	●	●
190	SENSOR; FUEL TEMP	1-81535-036-7	01	1	0401-		●	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●	●
207	GASKET; EYE BOLT ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	0105-0512	●	●	●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0105-0312	●	●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0401-		●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0105-				●

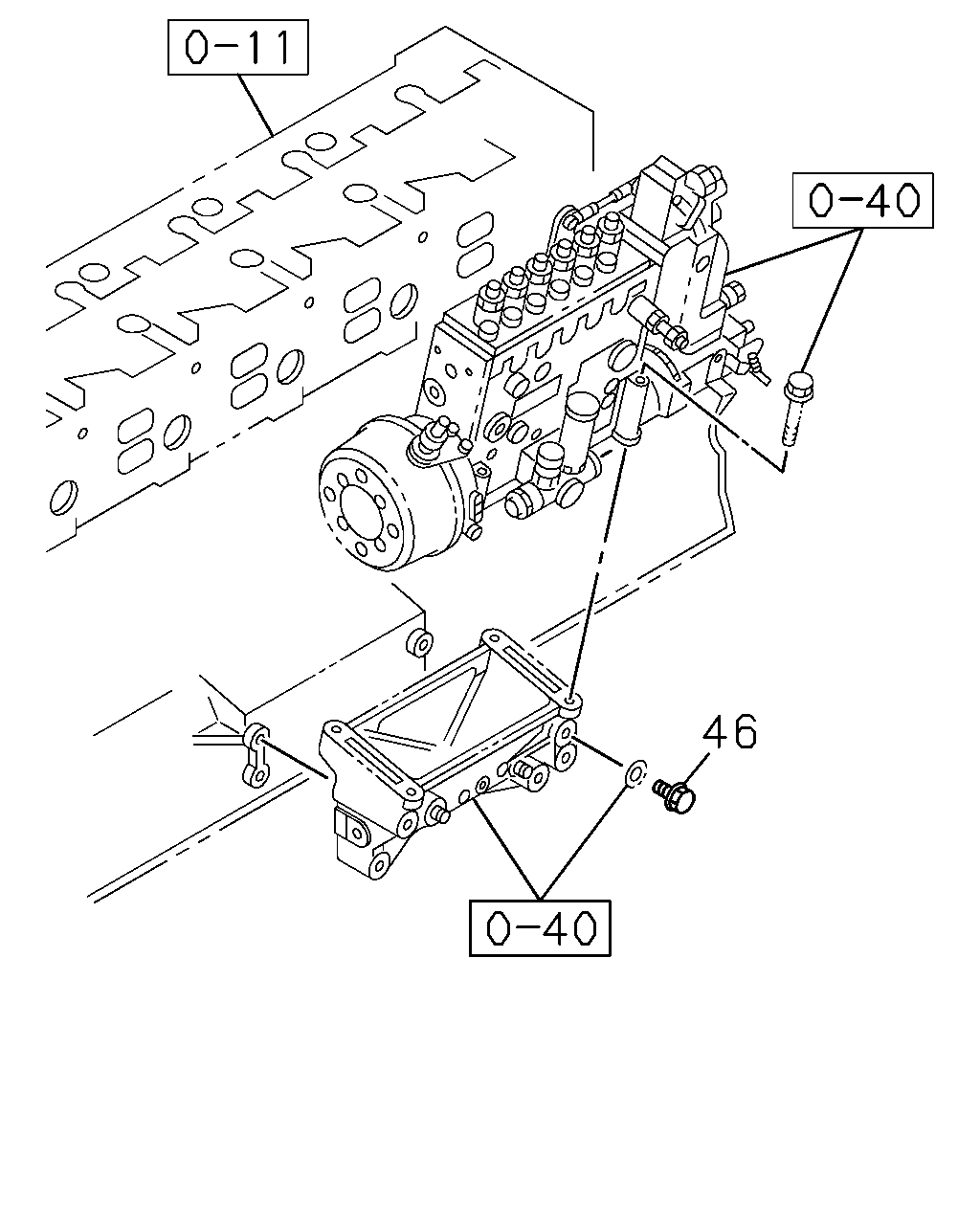

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	46	PLUG M14X9	9-99202-314-0	01	1	0105-	●

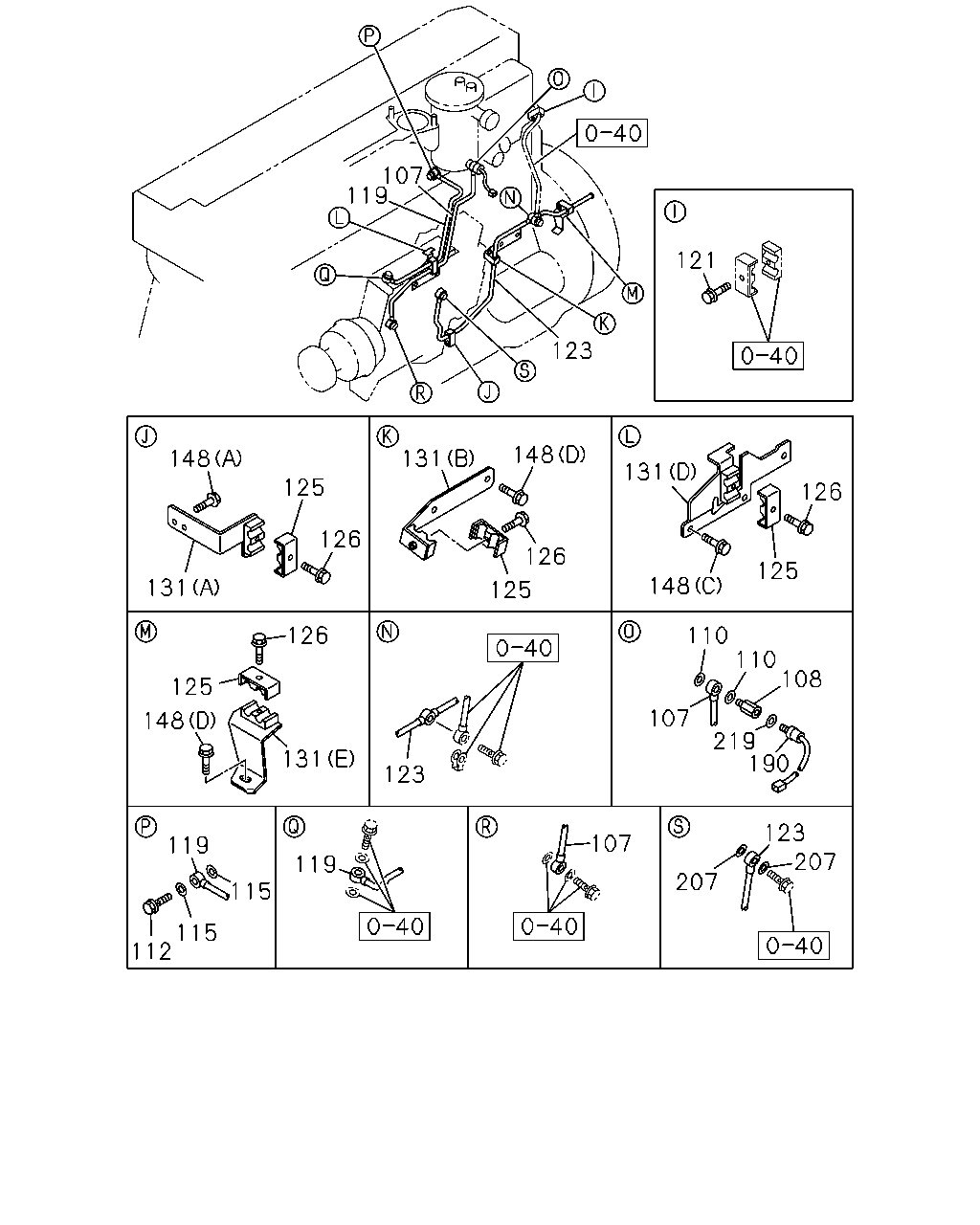

107 119 121 123 148 131 148 131 125 126 126 126 125 148 131 125 126 110 110 108 125 107 148 219 190 131 123 123 107 119 207 119 207 115 115 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0105-	●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-430-0	01	1	0105-				●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●	●
108	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0105-				●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0105-0312	●	●	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0401-		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0105-0312				●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0401-	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-241-0	01	1	0105-				●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0105-0512	●	●	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-	●	●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-242-1	01	1	0105-				●
125	CLIP; FUEL PIPE ID=9 & 9 L=25	8-94393-280-3	06	1	0105-	●	●	●
125	CLIP; FUEL PIPE ID=9 & 9 L=25	8-94393-280-3	04	1	0105-				●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0105-0512	●	●	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-	●	●	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	04	1	0105-0512				●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	04	1	0601-				●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	0105-	●	●	●	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	0105-	●	●	●	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	0105-	●	●	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-473-1	01	1	0105-				●
131	BRACKET; FUEL PIPE CLIP (E)	1-15419-577-0	01	1	0105-				●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0105-0512	●	●	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-	●	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0105-0512				●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	02	1	0601-				●
148	BOLT; BRKT (D) M10X20 FLANGE	0-28181-020-0	03	1	0105-0512				●
148	BOLT; BRKT (D) M10X20 FLANGE	0-28151-020-0	03	1	0601-				●
190	SENSOR; FUEL TEMP	1-81535-035-3	01	1	0311-				●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0105-0310	●	●	●	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0311-0312	●	●	●
190	SENSOR; FUEL TEMP	1-81535-036-7	01	1	0401-		●	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●	●
207	GASKET; EYE BOLT ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0105-0312	●	●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0401-		●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0105-				●
