Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#119159) — 20 parça
◀
[850A] NO.1 (8 parça)
[850A] NO.2 (10 parça)
[850A] NO.3 (2 parça)
▶

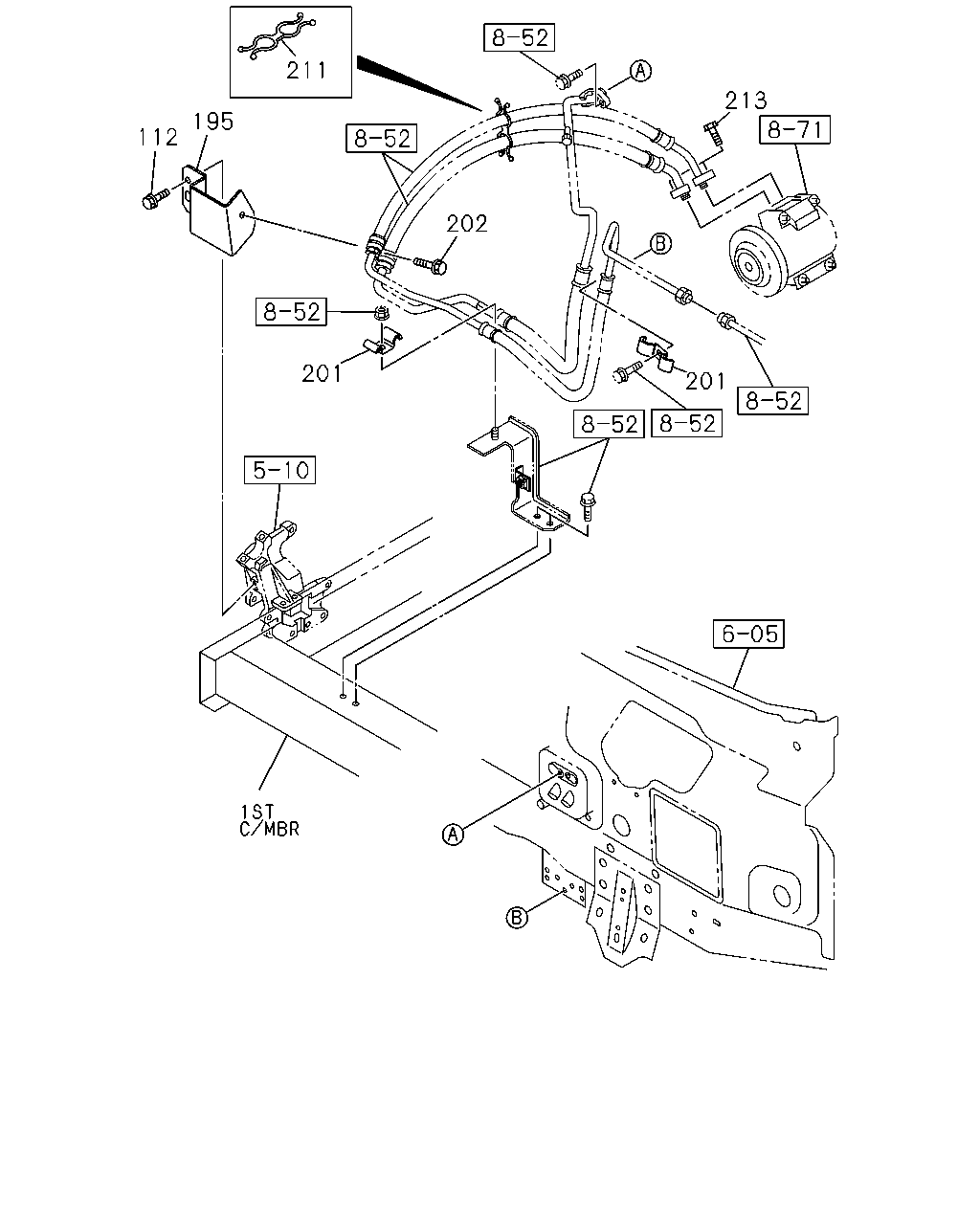

211
195
112
202
213
201
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
112
BOLT; STAY
M8X20 FLANGE THA
0-28650-820-0
02
1
1305-
195
STAY; CLIP
8-98055-465-0
01
1
1305-
201
CLIP; HOSE,CMPR TO EVAP
8-98043-673-0
02
1
1305-
202
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE THA
0-28650-820-0
01
1
1305-
211
CLIP; HOSE
8-94423-042-0
02
1
1305-
213
BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE THA
0-28650-625-0
02
1
1305-1307
213
BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE
0-28050-625-0
02
1
1308-1308
213
BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE THA
0-28650-625-0
02
1
1309-

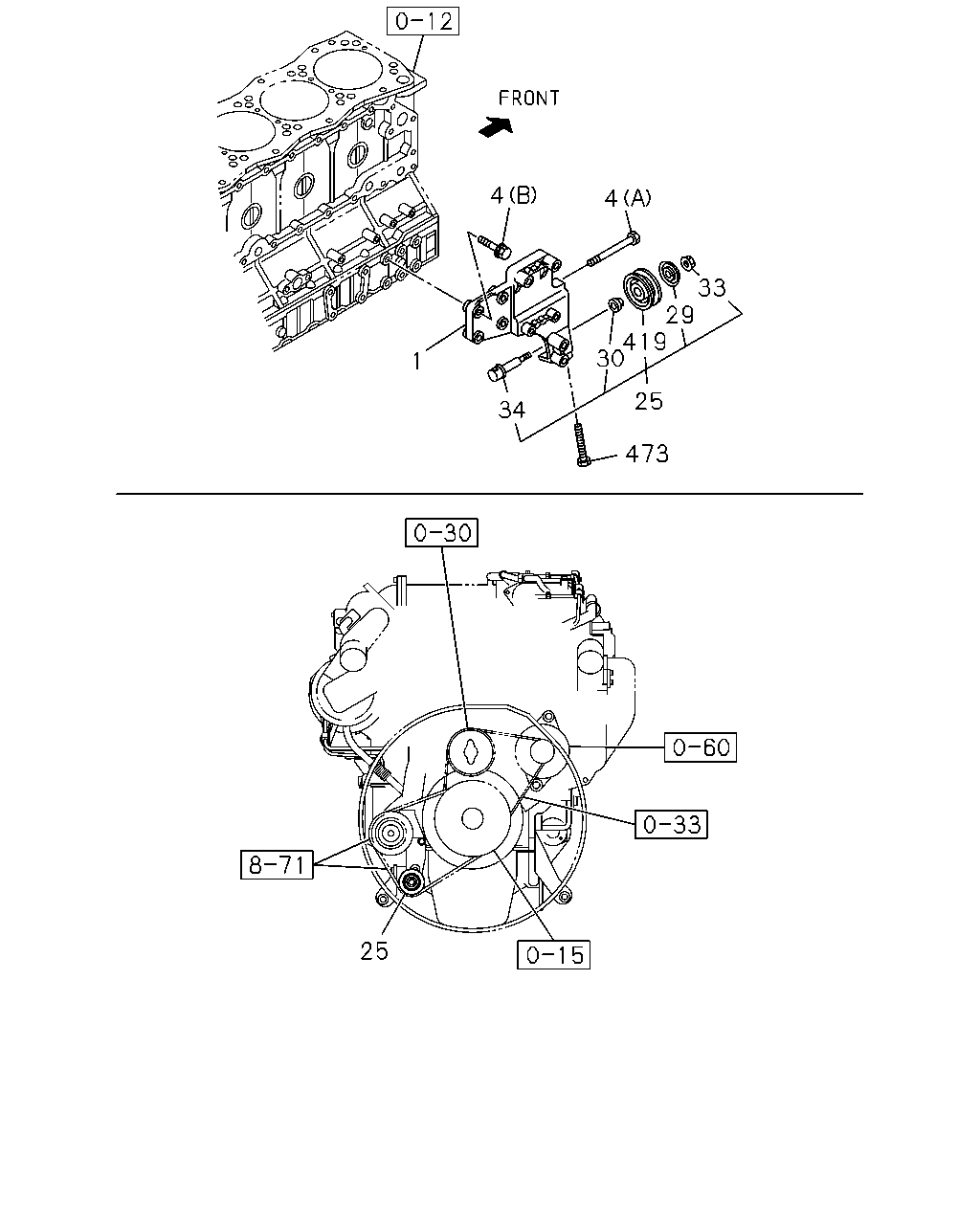

4
1
34
473
25
30
419
29
33
25
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; A/C
8-97606-311-1
01
1
1305-
4
BOLT; A/C CMPR BRKT
(B) M10X45 FLANGE THA
0-28151-045-0
04
1
1305-
4
BOLT; A/C CMPR BRKT
(A) M10X150 FLANGE
0-28156-015-0
01
1
1305-
25
PULLEY ASM; IDLER,CMPR
8-97603-949-0
01
1
1305-
29
COVER; DUST,IDLE PULLEY
1-83578-100-0
01
1
1305-
30
COLLAR; IDLE PULLEY
1-87540-319-0
01
1
1305-
33
NUT; IDLER PULLEY
1-83579-985-0
01
1
1305-
34
SHAFT; IDLE PULLEY
1-83579-982-0
01
1
1305-
419
PULLEY; IDLE
1-87540-322-0
01
1
1305-
473
BOLT; TENSIONER
M8X80 FLANGE
1-09044-091-0
01
1
1305-
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
378
HOSE; DRAIN,EVAPORATOR
(A)
8-98041-428-0
01
1
1305-
378
HOSE; DRAIN,EVAPORATOR
(B)
8-98204-844-0
01
1
1305-
