Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

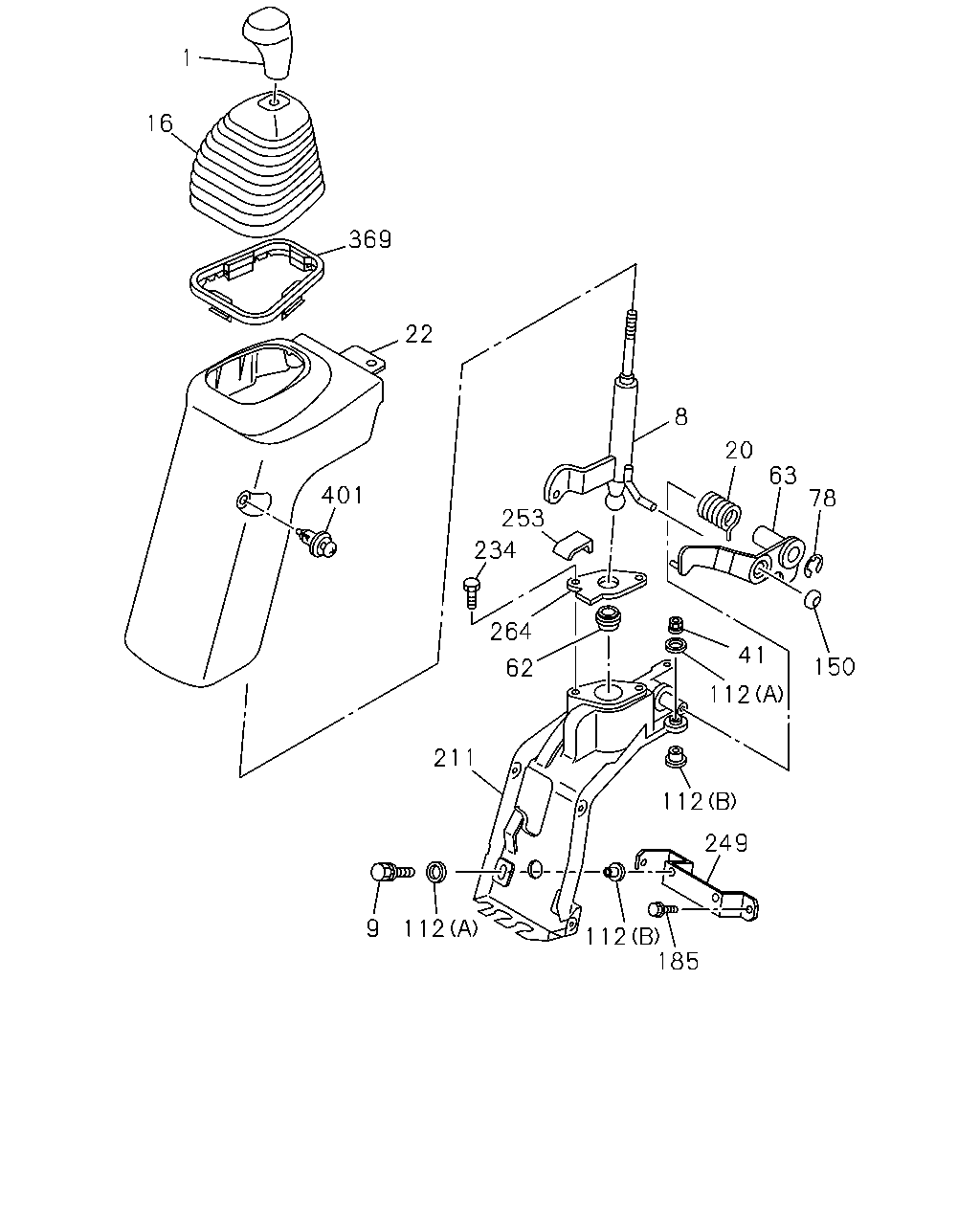

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#119143) — 21 parça
Tümü
A - M/T MZZ6F
B - M/T MYY6S
1
16
369
22
401
253
234
264
62
211
9
112
112
185
249
112
112
150
41
78
63
20
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
KNOB; CHANGE LEVER
BLACK IMA
8-97196-287-1
01
1
1304-
●
●
8
LEVER; CHANGE
IMA
8-97204-507-0
01
1
1304-
●
●
9
BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER IMA
8-94438-324-1
02
1
1304-
●
●
16
BOOT; CHANGE LEVER
IMA
8-98035-063-0
01
1
1304-
●
●
20
SPRING; CHANGE LEVER
IMA
8-97204-514-1
01
1
1304-
●
●
22
COVER; DUST,CHANGE LEVER
GRAY IMA
8-97408-728-1
01
1
1304-
●
●
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER IMA
8-97329-625-0
02
1
1304-
●
●
62
SEAT; BALL,CHANGE LEVER
IMA
8-97011-895-1
01
1
1304-
●
●
63
LEVER; RELAY,SELECT
IMA
8-97163-768-0
01
1
1304-
●
●
78
RING; SNAP,CHANGE LEVER
ID=10 IMA
0-91805-510-0
01
1
1304-
●
●
112
RUBBER; CUSHION
(A) IMA
8-97091-426-0
04
1
1304-
●
●
112
RUBBER; CUSHION
(B) IMA
8-97091-427-0
04
1
1304-
●
●
150
BALL; DETENT,CONT LEVER
IMA
8-97049-147-0
01
1
1304-
●
●
185
BOLT; BRKT,COVER
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
●
●
211
BRACKET; CHANGE LEVER
IMA
8-97204-505-1
01
1
1304-
●
●
234
BOLT; BRKT
M6X12 FLANGE IMA
1-33739-842-0
02
1
1304-
●
●
249
BRACKET; COVER
IMA
8-97387-767-0
01
1
1304-
●
●
253
STOPPER; CHANGE LEVER
IMA
8-97204-510-0
01
1
1304-
●
●
264
PLATE; COVER
IMA
8-97204-511-0
01
1
1304-
●
●
369
RETAINER; REINF
IMA
8-98032-213-1
01
1
1304-
●
●
401
CLIP; COVER
GRAY IMA
8-97406-179-0
04
1
1304-
●
●
