0-12 — CYLINDER BLOCK (#119141) — 61 parça

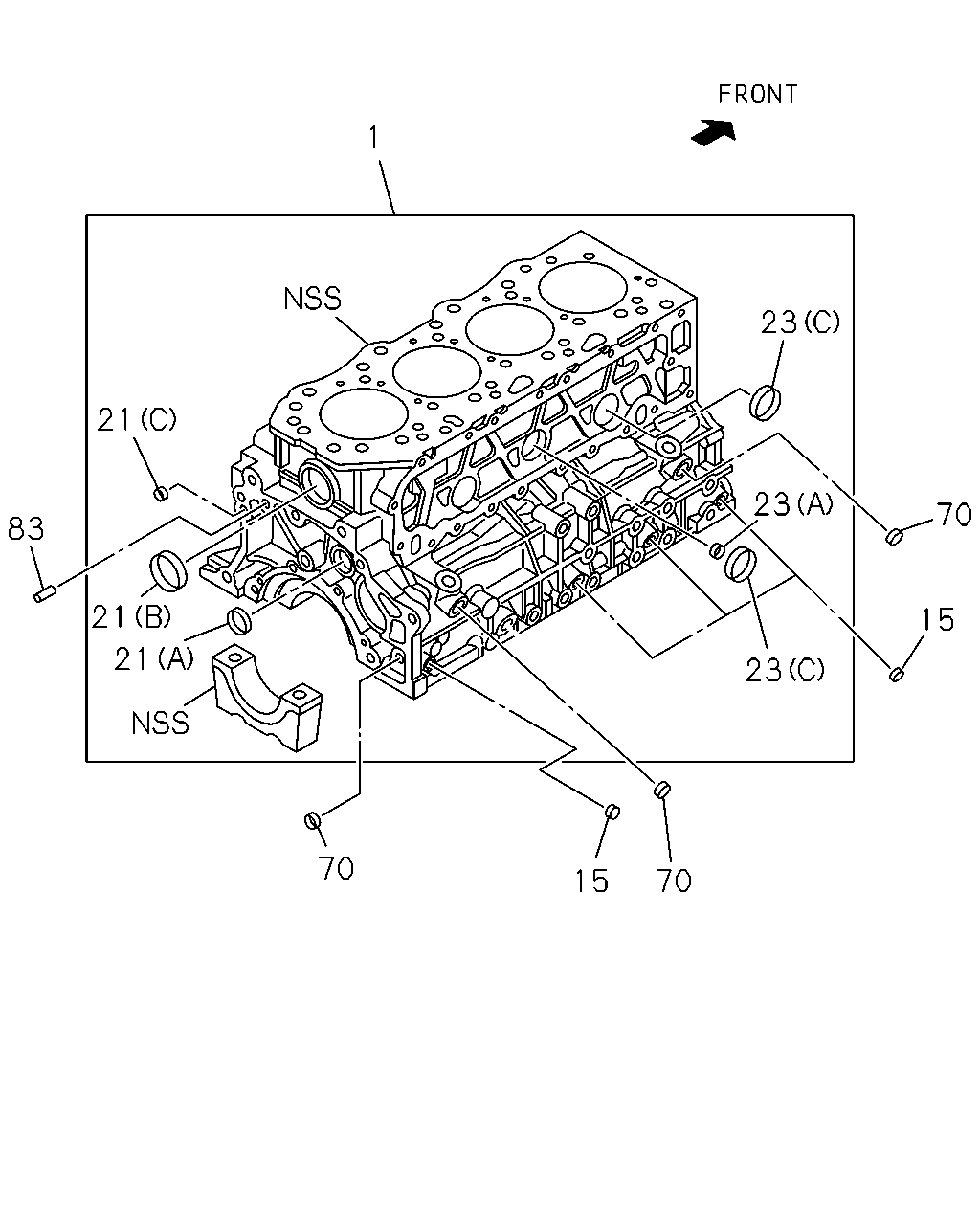

83 70 15 70 21 21 1 23 23 70 15 23 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL ENGINE MADE IN THAILAND<6ZP>	8-98239-516-0	01	1	1304-
1	BLOCK ASM; CYL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98240-635-1	01	1	1304-
15	PLUG; OIL GALLERY PT1/8 IMA	1-09605-050-0	04	1	1304-
21	CUP; SEALING,RR EXC. ENGINE MADE IN THAILAND<6ZP> (C) OD=12.3 IMA	5-09600-013-0	01	1	1406-
21	CUP; SEALING,RR EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=38 IMA	5-11219-017-0	01	1	1406-
21	CUP; SEALING,RR EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=36 IMA	5-11219-018-0	01	1	1406-
21	CUP; SEALING,RR (C) OD=12.3 IMA	5-09600-013-0	01	1	1304-1405
21	CUP; SEALING,RR ENGINE MADE IN THAILAND<6ZP> (C) OD=12.3 IMA	5-09600-013-0	01	1	1406-
21	CUP; SEALING,RR (A) OD=38 IMA	5-11219-017-0	01	1	1304-1405
21	CUP; SEALING,RR ENGINE MADE IN THAILAND<6ZP> (A) OD=38 IMA	5-11219-017-0	01	1	1406-
21	CUP; SEALING,RR (B) OD=36 IMA	5-11219-018-0	01	1	1304-1405
21	CUP; SEALING,RR ENGINE MADE IN THAILAND<6ZP> (B) OD=36 IMA	5-11219-018-0	01	1	1406-
23	CUP; SEALING,C/BL FRT & RR EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=18 IMA	5-11219-008-0	02	1	1406-
23	CUP; SEALING,C/BL FRT & RR EXC. ENGINE MADE IN THAILAND<6ZP> (D) OD=32 IMA	5-11219-015-0	04	1	1406-
23	CUP; SEALING,C/BL FRT & RR EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=45 IMA	8-97036-550-1	03	1	1406-
23	CUP; SEALING,C/BL FRT & RR (A) OD=18 IMA	5-11219-008-0	02	1	1304-1405
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (A) OD=18 IMA	5-11219-008-0	02	1	1406-
23	CUP; SEALING,C/BL FRT & RR (D) OD=32 IMA	5-11219-015-0	04	1	1304-1405
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (D) OD=32 IMA	5-11219-015-0	04	1	1406-
23	CUP; SEALING,C/BL FRT & RR (C) OD=36 IMA	5-11219-018-0	02	1	1304-
23	CUP; SEALING,C/BL FRT & RR (B) OD=45 IMA	8-97036-550-1	03	1	1304-1405
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (B) OD=45 IMA	8-97036-550-1	03	1	1406-
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	06	1	1304-
83	PIN; FLYWHEEL HSG OD=10 L=32 THA	9-08161-032-0	01	1	1304-

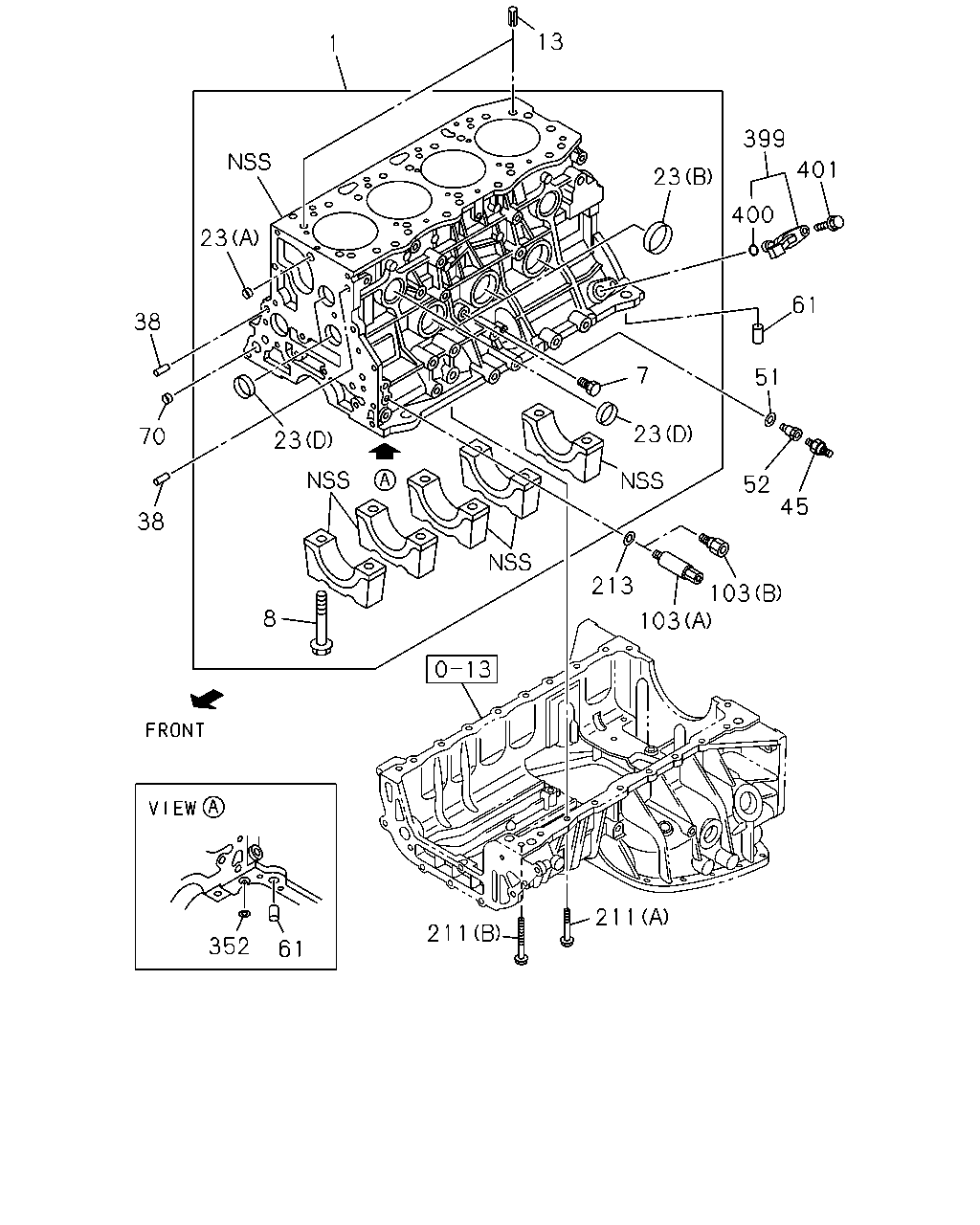

1 13 23 38 70 38 8 23 213 103 52 51 7 23 400 401 399 23 61 45 103 211 211 61 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL ENGINE MADE IN THAILAND<6ZP>	8-98239-516-0	01	1	1304-
1	BLOCK ASM; CYL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98240-635-1	01	1	1304-
7	PLUG; WATER DRAIN EXC. ENGINE MADE IN THAILAND<6ZP> PT1/4 IMA	9-09664-001-0	01	1	1406-
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	1304-1405
7	PLUG; WATER DRAIN ENGINE MADE IN THAILAND<6ZP> PT1/4 IMA	9-09664-001-0	01	1	1406-
8	BOLT; BRG CAP ENGINE MADE IN THAILAND<6ZP> M14X89 FLANGE THA	8-97941-068-0	10	1	1406-
8	BOLT; BRG CAP M14X89 FLANGE IMA	8-94432-642-0	10	1	1304-
13	DOWEL; C/BL TO HD OD=14 IMA	8-94453-344-0	02	1	1304-
23	CUP; SEALING,C/BL FRT & RR EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=18 IMA	5-11219-008-0	02	1	1406-
23	CUP; SEALING,C/BL FRT & RR EXC. ENGINE MADE IN THAILAND<6ZP> (D) OD=32 IMA	5-11219-015-0	04	1	1406-
23	CUP; SEALING,C/BL FRT & RR EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=45 IMA	8-97036-550-1	03	1	1406-
23	CUP; SEALING,C/BL FRT & RR (A) OD=18 IMA	5-11219-008-0	02	1	1304-1405
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (A) OD=18 IMA	5-11219-008-0	02	1	1406-
23	CUP; SEALING,C/BL FRT & RR (D) OD=32 IMA	5-11219-015-0	04	1	1304-1405
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (D) OD=32 IMA	5-11219-015-0	04	1	1406-
23	CUP; SEALING,C/BL FRT & RR (C) OD=36 IMA	5-11219-018-0	02	1	1304-
23	CUP; SEALING,C/BL FRT & RR (B) OD=45 IMA	8-97036-550-1	03	1	1304-1405
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (B) OD=45 IMA	8-97036-550-1	03	1	1406-
38	PIN; TIMING GEAR CASE ENGINE MADE IN THAILAND<6ZP> OD=10 L=20 THA	9-08151-020-0	02	1	1304-
38	PIN; TIMING GEAR CASE EXC. ENGINE MADE IN THAILAND<6ZP> OD=10 L=20 IMA	8-97135-423-0	02	1	1304-
45	SWITCH; OIL PRESSURE IMA	8-97176-230-0	01	1	1304-
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA	8-97912-498-0	01	1	1304-
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP>	8-94336-292-0	01	1	1304-
52	NIPPLE; OIL PRESS WARNING SW,C/BL IMA	8-98089-872-0	01	1	1304-1501
52	NIPPLE; OIL PRESS WARNING SW,C/BL IMA	8-94167-750-2	01	1	1502-
61	PIN; STRAIGHT ENGINE MADE IN THAILAND<6ZP> L=31 THA	8-97920-964-1	02	1	1304-
61	PIN; STRAIGHT EXC. ENGINE MADE IN THAILAND<6ZP> L=31	9-09878-597-0	02	1	1304-
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	06	1	1304-
103	NIPPLE; OIL FEED ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97316-983-4	01	1	1304-
103	NIPPLE; OIL FEED EXC. ENGINE MADE IN THAILAND<6ZP> (B) IMA	8-94469-596-0	01	1	1304-
211	BOLT; CRANKCASE (A) M8X25 FLANGE THA	0-28650-825-0	19	1	1304-
211	BOLT; CRANKCASE (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1304-
213	GASKET; NIPPLE,OIL FEED ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1304-
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE). THA	9-09566-116-0	01	1	1304-
399	SENSOR; CRANKSHAFT POSITION IMA	8-97312-108-1	01	1	1304-
400	GASKET; CRANKSHAFT POSITION SENSOR ID=14.2 OD=18.8 IMA	8-97369-404-0	01	1	1304-
401	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	1304-
