Sayfa 0-39 - Isuzu EPC

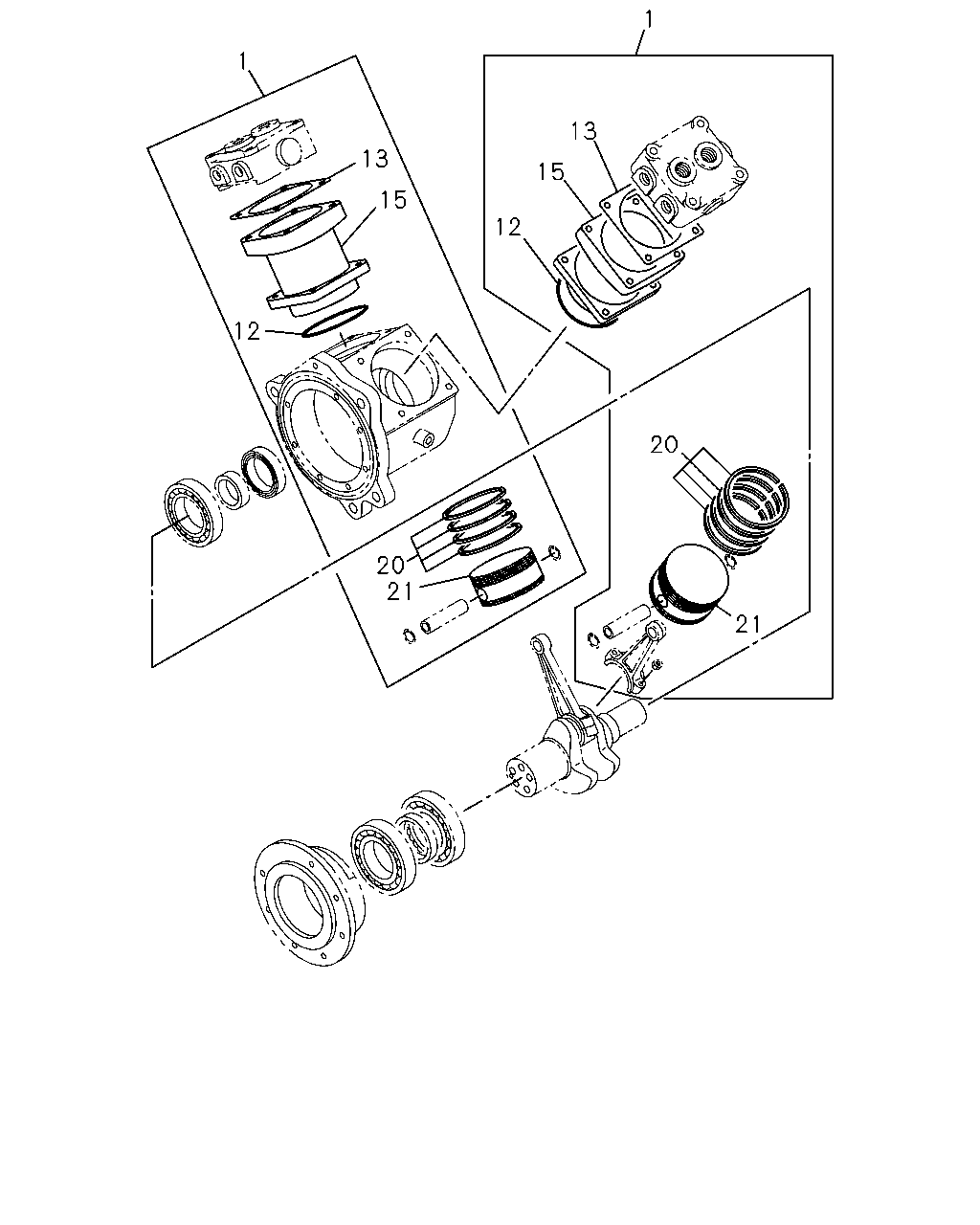

0-39 — AIR COMPRESSOR; BRAKE (#11913) — 281 parça

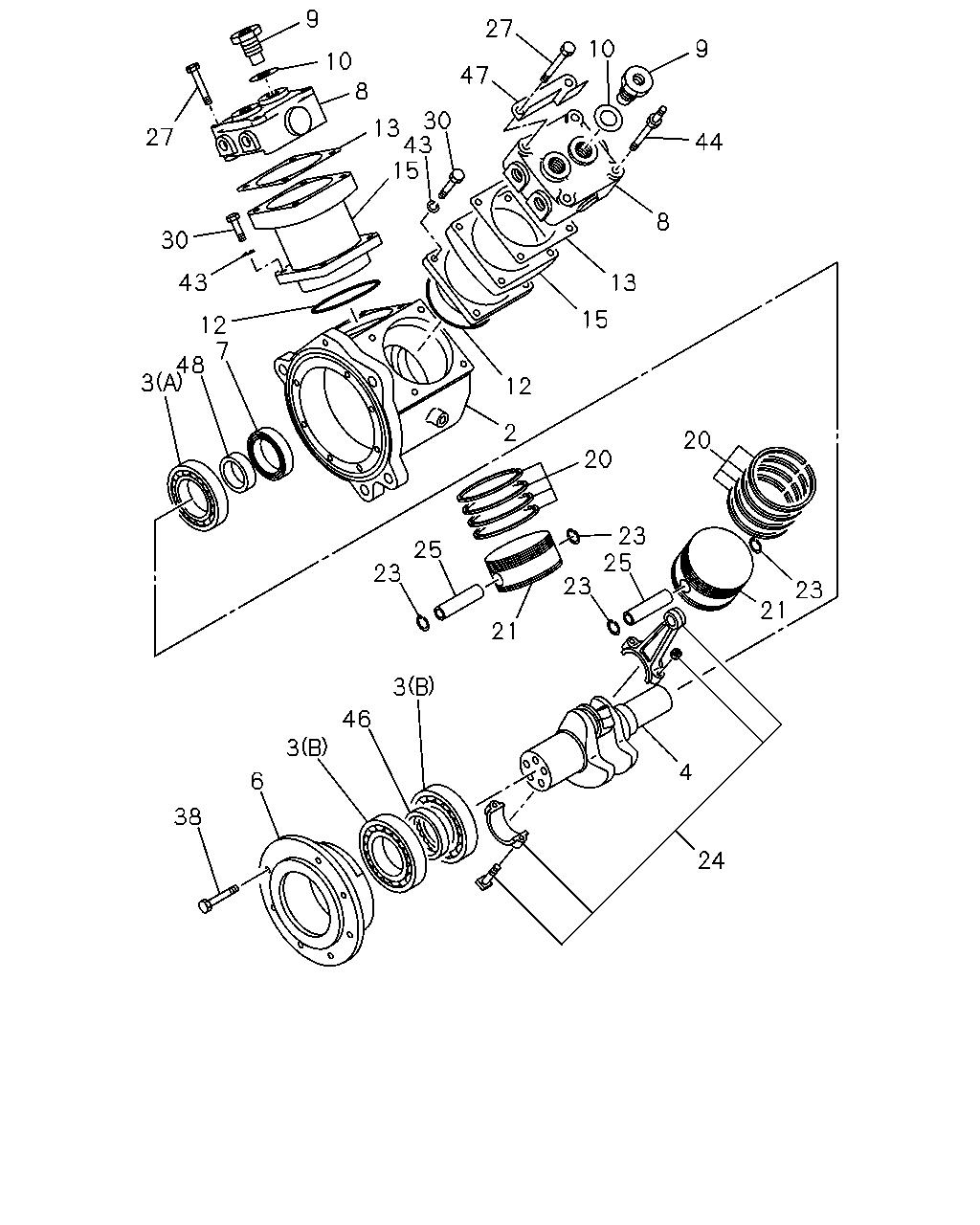

9 27 10 9 10 8 47 30 13 43 15 27 44 8 30 43 13 15 12 7 48 3 12 2 20 20 23 25 23 25 23 23 21 21 3 46 3 4 6 38 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR	1-19151-269-5	01	1	0105-0107	●	●	●
2	CRANKCASE; AIR CMPR	1-19151-269-6	01	1	0108-	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-6	01	1	0108-				●
2	CRANKCASE; AIR CMPR	1-19151-286-2	01	1	0105-0107				●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-286-3	01	1	0108-				●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0105-0107	●	●	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0108-	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-232-0	01	1	0108-				●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0105-0107	●	●	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0108-0310	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09800-246-0	02	1	0108-0310				●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0311-	●	●	●	●
3	BEARING; AIR CMPR (C)	8-98171-672-0	01	1	0105-0107				●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-98171-672-0	01	1	0108-				●
3	BEARING; AIR CMPR (D)	1-09800-281-0	02	1	0105-0107				●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	1-09800-281-0	02	1	0108-0310				●
4	CRANKSHAFT; AIR CMPR	1-19171-068-0	01	1	0105-0107	●	●	●
4	CRANKSHAFT; AIR CMPR	1-19171-068-0	01	1	0108-0301	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	0108-0301				●
4	CRANKSHAFT; AIR CMPR	1-19171-088-0	01	1	0302-	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-088-0	01	1	0302-				●
4	CRANKSHAFT; AIR CMPR	1-19171-080-0	01	1	0105-0107				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-080-0	01	1	0108-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0105-0107	●	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0108-	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-068-1	01	1	0108-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0105-0107				●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-079-1	01	1	0108-				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0105-0107	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0108-	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-534-0	01	1	0108-				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0105-0107				●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-619-0	01	1	0108-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0105-0107				●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-072-0	01	1	0108-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	02	1	0105-0107	●	●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	02	1	0108-	●	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	0108-				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	02	1	0105-0107	●	●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	02	1	0108-	●	●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	0108-				●
10	SHIM; AIR CMPR	9-19139-021-0	02	1	0105-0107	●	●	●
10	SHIM; AIR CMPR	9-19139-021-0	02	1	0108-	●	●	●
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	0108-				●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0105-0107	●	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0108-	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0108-				●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0105-0107				●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-				●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	0105-0107	●	●	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	0108-	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	0108-				●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0105-0107				●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-				●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0105-0107				●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-				●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	0105-0107	●	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	0108-	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0108-				●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0105-0107				●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	0105-0107	●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	0108-	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0108-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0105-0107				●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-				●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	0105-0107	●	●	●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	0108-	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0108-				●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0105-0107				●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	0105-0107	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	0108-	●	●	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	0108-				●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0105-0107				●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-001-0	02	1	0108-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	0105-0107	●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	0108-	●	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	0108-				●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0105-0107				●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-078-0	01	1	0108-				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	02	1	0105-0107	●	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	02	1	0108-	●	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	0108-				●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0105-0107				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	0108-				●
27	BOLT; HD M10X60	9-01066-060-0	07	1	0105-0107	●	●	●
27	BOLT; HD M10X60	9-01066-060-0	07	1	0108-	●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	07	1	0108-				●
27	BOLT; HD (A)	1-09044-071-0	01	1	0105-0107				●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09044-071-0	01	1	0108-				●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0105-0107				●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X80	1-19119-024-0	04	1	0108-				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	08	1	0105-0107	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	08	1	0108-	●	●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	0108-				●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0105-0107				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	04	1	0108-				●
38	BOLT; COVER FIX	1-19159-016-0	07	1	0105-0107	●	●	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	0108-	●	●	●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19159-016-0	07	1	0108-				●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0105-0107				●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30	0-20800-830-0	07	1	0108-				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	08	1	0105-0107	●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	08	1	0108-	●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	0108-				●
44	STUD; CYL HD,AIR CMPR	1-19119-019-1	01	1	0105-0107	●	●	●
44	STUD; CYL HD,AIR CMPR	1-19119-019-1	01	1	0108-	●	●	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-019-1	01	1	0108-				●
46	SPACER; BRG	1-19179-016-0	01	1	0105-0107	●	●	●
46	SPACER; BRG	1-19179-016-0	01	1	0108-	●	●	●
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-016-0	01	1	0108-				●
46	SPACER; BRG	1-19179-029-0	01	1	0105-0107				●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-029-0	01	1	0108-				●
47	BRACKET; PIPE	1-19119-028-0	02	1	0105-0107	●	●	●
47	BRACKET; PIPE	1-19119-028-0	02	1	0108-	●	●	●
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	0108-				●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0105-0107	●	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0108-	●	●	●
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-018-0	01	1	0108-				●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0105-0107				●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-027-0	01	1	0108-				●

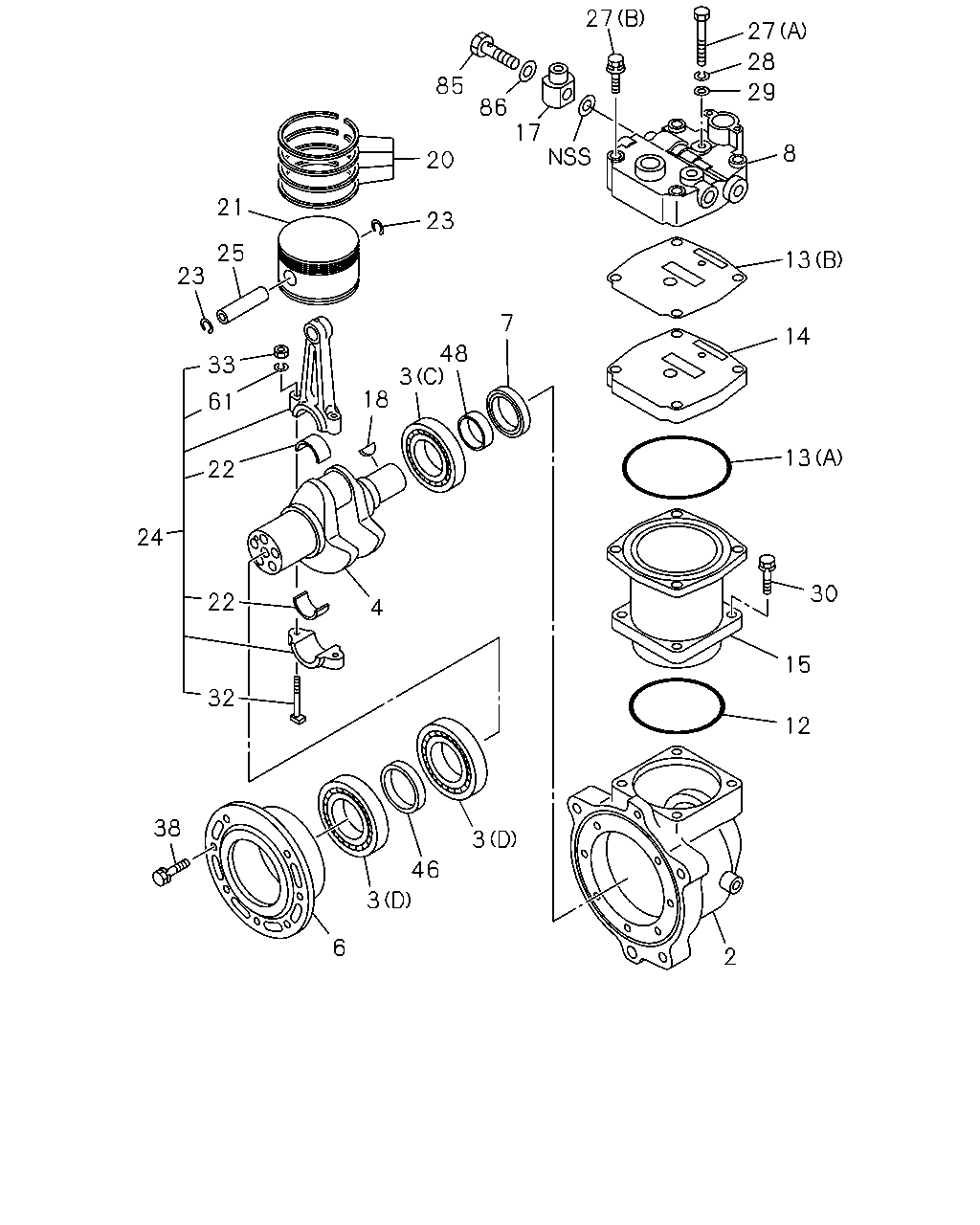

27 27 28 85 29 86 17 8 20 21 23 25 13 23 7 14 48 3 33 18 61 13 22 24 30 22 4 15 32 12 38 3 46 3 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR	1-19151-269-5	01	1	0105-0107	●	●	●
2	CRANKCASE; AIR CMPR	1-19151-269-6	01	1	0108-	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-6	01	1	0108-				●
2	CRANKCASE; AIR CMPR	1-19151-286-2	01	1	0105-0107				●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-286-3	01	1	0108-				●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0105-0107	●	●	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0108-	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-232-0	01	1	0108-				●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0105-0107	●	●	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0108-0310	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09800-246-0	02	1	0108-0310				●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0311-	●	●	●	●
3	BEARING; AIR CMPR (C)	8-98171-672-0	01	1	0105-0107				●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-98171-672-0	01	1	0108-				●
3	BEARING; AIR CMPR (D)	1-09800-281-0	02	1	0105-0107				●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	1-09800-281-0	02	1	0108-0310				●
4	CRANKSHAFT; AIR CMPR	1-19171-068-0	01	1	0105-0107	●	●	●
4	CRANKSHAFT; AIR CMPR	1-19171-068-0	01	1	0108-0301	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	0108-0301				●
4	CRANKSHAFT; AIR CMPR	1-19171-088-0	01	1	0302-	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-088-0	01	1	0302-				●
4	CRANKSHAFT; AIR CMPR	1-19171-080-0	01	1	0105-0107				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-080-0	01	1	0108-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0105-0107	●	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0108-	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-068-1	01	1	0108-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0105-0107				●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-079-1	01	1	0108-				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0105-0107	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0108-	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-534-0	01	1	0108-				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0105-0107				●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-619-0	01	1	0108-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0105-0107				●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-072-0	01	1	0108-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	02	1	0105-0107	●	●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	02	1	0108-	●	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	0108-				●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0105-0107	●	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0108-	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0108-				●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0105-0107				●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-				●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	0105-0107	●	●	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	0108-	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	0108-				●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0105-0107				●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-				●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0105-0107				●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-				●
14	PLATE; AIR CMPR	1-19110-064-1	01	1	0105-0107				●
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-064-1	01	1	0108-				●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	0105-0107	●	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	0108-	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0108-				●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0105-0107				●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-				●
17	ADAPTER; AIR CMPR	1-19119-034-1	01	1	0105-0107				●
17	ADAPTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-034-1	01	1	0108-				●
18	KEY; AIR CMPR	9-08055-622-0	01	1	0105-0107				●
18	KEY; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	0105-0107	●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	0108-	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0108-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0105-0107				●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-				●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	0105-0107	●	●	●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	0108-	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0108-				●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0105-0107				●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-				●
22	METAL; CONNROD,AIR CMPR	1-19179-025-0	02	1	0105-0107				●
22	METAL; CONNROD,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-025-0	02	1	0108-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	0105-0107	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	0108-	●	●	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	0108-				●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0105-0107				●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-001-0	02	1	0108-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	0105-0107	●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	0108-	●	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	0108-				●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0105-0107				●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-078-0	01	1	0108-				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	02	1	0105-0107	●	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	02	1	0108-	●	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	0108-				●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0105-0107				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	0108-				●
27	BOLT; HD M10X60	9-01066-060-0	07	1	0105-0107	●	●	●
27	BOLT; HD M10X60	9-01066-060-0	07	1	0108-	●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	07	1	0108-				●
27	BOLT; HD (A)	1-09044-071-0	01	1	0105-0107				●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09044-071-0	01	1	0108-				●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0105-0107				●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X80	1-19119-024-0	04	1	0108-				●
28	WASHER; LK,HD BOLT ID=8.2	9-09150-508-0	01	1	0105-0107				●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2	9-09150-508-0	01	1	0108-				●
29	WASHER; PL,HD BOLT ID=8.4	9-09160-508-0	01	1	0105-0107				●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4	9-09160-508-0	01	1	0108-				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	08	1	0105-0107	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	08	1	0108-	●	●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	0108-				●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0105-0107				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	04	1	0108-				●
32	BOLT; CONNROD	1-19179-021-0	02	1	0105-0107				●
32	BOLT; CONNROD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-021-0	02	1	0108-				●
33	NUT; CONNROD BOLT	1-19179-026-0	02	1	0105-0107				●
33	NUT; CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-026-0	02	1	0108-				●
38	BOLT; COVER FIX	1-19159-016-0	07	1	0105-0107	●	●	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	0108-	●	●	●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19159-016-0	07	1	0108-				●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0105-0107				●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30	0-20800-830-0	07	1	0108-				●
46	SPACER; BRG	1-19179-016-0	01	1	0105-0107	●	●	●
46	SPACER; BRG	1-19179-016-0	01	1	0108-	●	●	●
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-016-0	01	1	0108-				●
46	SPACER; BRG	1-19179-029-0	01	1	0105-0107				●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-029-0	01	1	0108-				●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0105-0107	●	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0108-	●	●	●
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-018-0	01	1	0108-				●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0105-0107				●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-027-0	01	1	0108-				●
61	WASHER; LK,CONNROD BOLT	1-19179-022-0	02	1	0105-0107				●
61	WASHER; LK,CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-022-0	02	1	0108-				●
85	BOLT; ADAPTER M14X39 FLANGE	1-09675-089-0	01	1	0105-0107				●
85	BOLT; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X39 FLANGE	1-09675-089-0	01	1	0108-				●
86	GASKET; ADAPTER ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-0107				●
86	GASKET; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-				●

1 1 13 13 15 15 12 12 20 20 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR	1-19163-060-1	02	1	0105-0107	●	●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-060-1	02	1	0108-	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	0108-				●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0105-0107	●	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0108-	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0108-				●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0105-0107				●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-				●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	0105-0107	●	●	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	0108-	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	0108-				●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0105-0107				●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-				●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0105-0107				●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-				●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	0105-0107	●	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	0108-	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0108-				●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0105-0107				●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	0105-0107	●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	0108-	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0108-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0105-0107				●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-				●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	0105-0107	●	●	●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	0108-	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0108-				●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0105-0107				●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
