Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11525 - CYZ CHINA EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

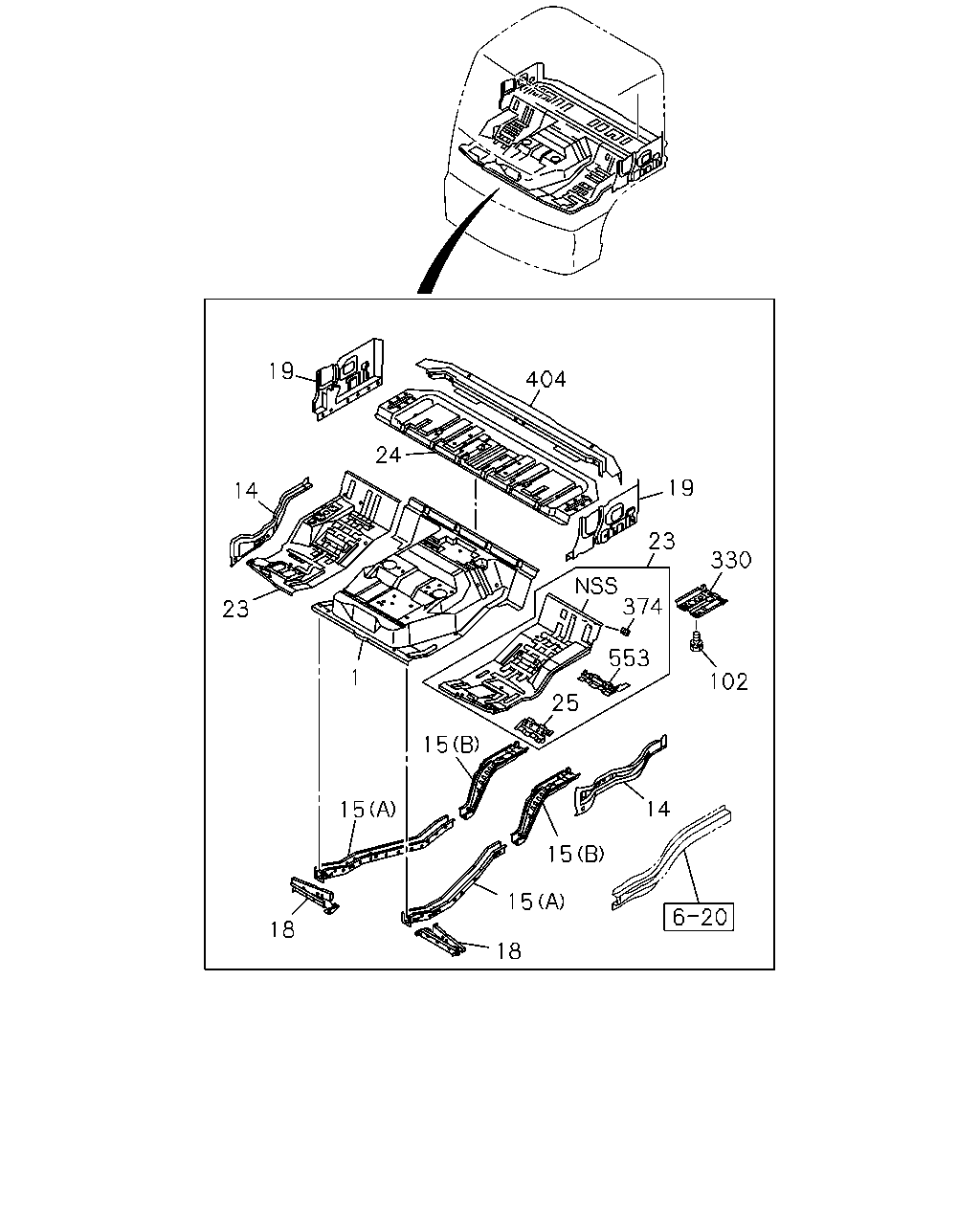

6-70 - FLOOR PANEL
▶
6-70 — FLOOR PANEL
(#119127) — 21 parça
19
14
23
24
404
19
330
374
25
14
15
15
18
15
15
18
553
23
102
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; FLOOR
8-98198-729-0
01
1
1305-
14
PANEL; FLOOR SIDE,FRT
1-62482-917-6
01
1
1305-
14
PANEL; FLOOR SIDE,FRT
1-62482-918-6
01
1
1305-
15
FRAME; UNDER
(B)
1-62472-598-6
01
1
1305-
15
FRAME; UNDER
(A)
1-62472-669-3
01
1
1305-
15
FRAME; UNDER
(A)
1-62472-670-3
01
1
1305-
15
FRAME; UNDER
(B)
1-62472-680-1
01
1
1305-
18
FRAME; FLOOR,CENTER SIDE
1-62472-671-3
01
1
1305-
18
FRAME; FLOOR,CENTER SIDE
1-62483-105-5
01
1
1305-
19
PANEL; FLOOR SIDE,REAR
1-62472-659-2
01
1
1305-
19
PANEL; FLOOR SIDE,REAR
1-62472-660-2
01
1
1305-
23
PANEL; FLOOR,SIDE
8-98198-725-0
01
1
1305-
23
PANEL; FLOOR,SIDE
PTO CONTROL(SV6)
1-62172-803-0
01
1
1305-
23
PANEL; FLOOR,SIDE
EXC. PTO CONTROL(SV6)
1-62172-805-0
01
1
1305-
24
PANEL; BED PAN
1-62172-540-9
01
1
1305-
25
REINFORCEMENT; FRAME FLOOR,FRT
1-62172-780-2
01
1
1305-
102
BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1305-
330
REINFORCEMENT; FLOOR
1-62172-585-5
01
1
1305-
374
NUT; FLOOR
M6
1-09984-110-0
05
1
1305-
404
RAIL ASM; MTG,RR
1-62472-596-8
01
1
1305-
553
REINFORCEMENT; SEAT STAND RR
1-62172-797-0
01
1
1305-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
