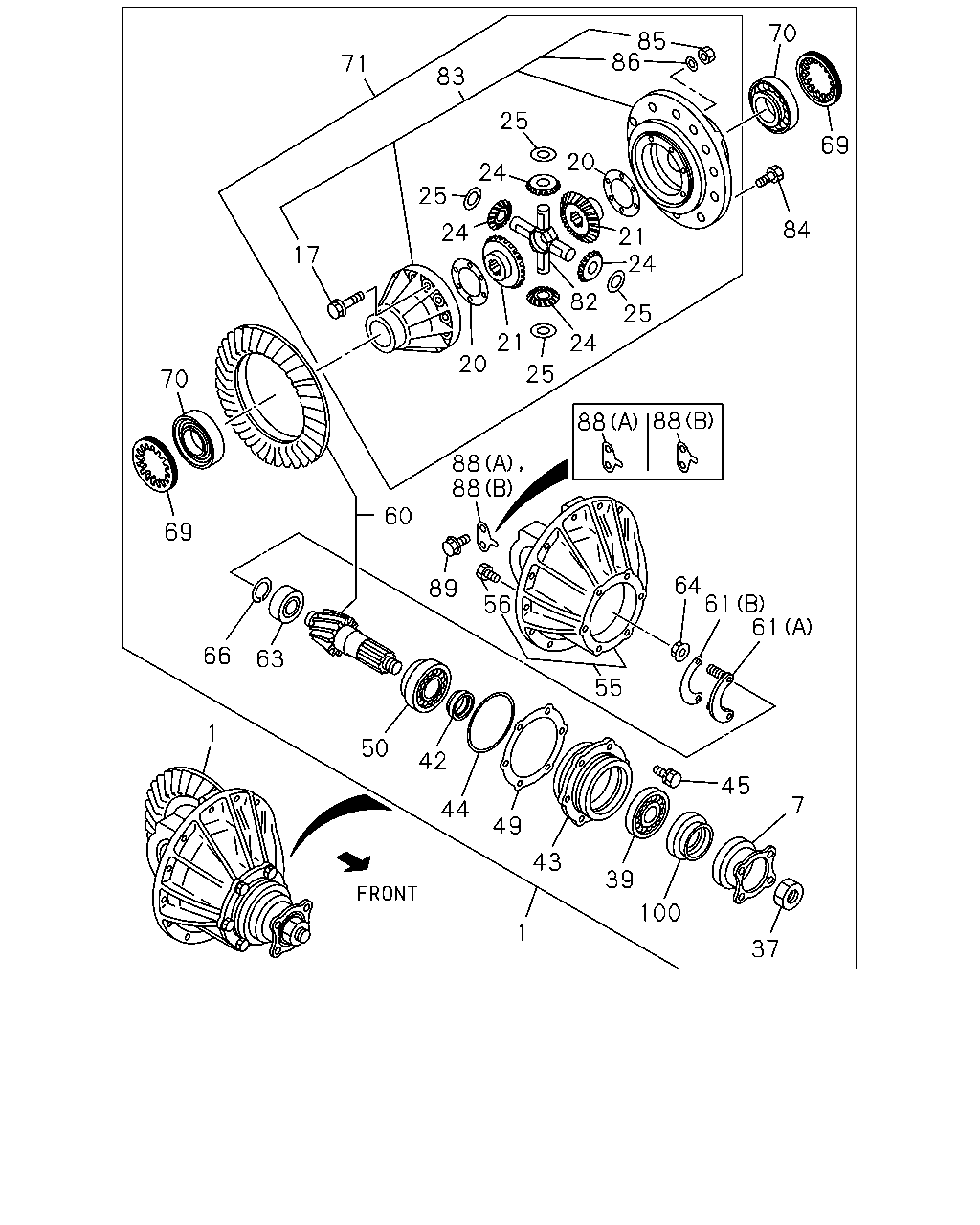

4-25 — REAR FINAL DRIVE (#119125) — 55 parça

71 83 85 86 25 24 25 17 70 69 60 89 56 55 64 61 61 7 45 39 100 37 43 49 44 42 50 63 66 1 1 25 88 88 88 88 20 21 24 82 24 21 20 24 25 84 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9<HC6> 41/9 IMA	8-97388-702-0	01	1	1304-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9<S2J> 43/9 IMA	8-97388-703-0	01	1	1304-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<S7C> 43/10 IMA	8-97388-701-0	01	1	1304-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 IMA	8-97388-700-0	01	1	1304-		●
7	FLANGE; FINAL IMA	8-97047-095-2	01	1	1304-	●	●
17	BOLT; DIFF CAGE SETTING IMA	8-98219-448-0	12	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80 IMA	1-41562-073-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90 IMA	1-41562-074-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00 IMA	1-41562-075-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10 IMA	1-41562-076-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20 IMA	1-41562-077-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30 IMA	1-41562-078-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40 IMA	1-41562-079-0	AR	1	1304-	●	●
21	GEAR; SIDE,DIFF Z=16 IMA	8-98165-935-0	02	1	1304-	●	●
24	GEAR; PINION,DIFF Z=10 IMA	1-41551-050-0	04	1	1304-	●	●
25	WASHER; THRUST,PINION IMA	1-41552-020-0	04	1	1304-	●	●
37	NUT; DRIVING PINION M30 FLANGE IMA	8-97047-146-0	01	1	1304-	●	●
39	BEARING; FINAL PINION JTEKT IMA	5-09812-062-1	01	1	1304-	●	●
39	BEARING; FINAL PINION NSK IMA	5-09812-063-0	01	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE IMA	8-97047-097-0	01	1	1304-	●	●
43	CAGE; FINAL PINION IMA	8-97047-098-0	01	1	1304-	●	●
44	GASKET; PINION CAGE IMA	8-97048-053-0	01	1	1304-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER IMA	8-98220-227-0	06	1	1304-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12 IMA	8-97047-298-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15 IMA	8-97047-299-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20 IMA	8-97047-300-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25 IMA	8-97048-418-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50 IMA	8-97048-419-0	AR	1	1304-	●	●
50	BEARING; FINAL PINION NSK IMA	1-09812-041-2	01	1	1304-	●	●
50	BEARING; FINAL PINION JTEKT IMA	1-09812-042-1	01	1	1304-	●	●
55	CARRIER; DIFF IMA	8-97094-637-0	01	1	1304-	●	●
56	BOLT; BRG CAP M14X95 FLANGE IMA	1-09070-027-0	04	1	1304-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9<HC6> 41/9 IMA	8-97078-635-1	01	1	1304-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9<S2J> 43/9 IMA	8-97061-850-0	01	1	1304-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10<S7C> 43/10 IMA	8-97047-115-0	01	1	1304-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10<GT5> 41/10 IMA	8-97061-846-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD IMA	8-97047-149-0	01	1	1304-	●	●
61	RETAINER; PILOT BRG,PINION (B) IMA	8-97047-150-0	01	1	1304-	●	●
63	BEARING; PINION PILOT NSK IMA	8-97047-296-0	01	1	1304-	●	●
63	BEARING; PINION PILOT JTEKT IMA	8-97047-928-0	01	1	1304-	●	●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	1304-	●	●
66	RING; SNAP,PILOT BRG IMA	8-97047-297-0	01	1	1304-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20 IMA	1-41121-039-0	02	1	1304-	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30 IMA	9-00093-130-0	02	1	1304-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE IMA	8-97047-099-4	01	1	1304-	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1304-1309	●	●
82	SPIDER; DIFF PINION IMA	1-41521-035-2	01	1	1310-	●	●
83	CAGE ASM; DIFF IMA	8-98219-705-0	01	1	1304-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30 IMA	8-97047-147-0	12	1	1304-	●	●
85	NUT; DIFF CAGE SETTING M12 IMA	8-97065-214-0	12	1	1304-	●	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2 IMA	8-97047-294-0	12	1	1304-	●	●
88	PLATE; LK,ADJ NUT (A) IMA	8-97087-821-0	AR	1	1304-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3 IMA	9-41124-015-0	AR	1	1304-	●	●
89	BOLT; LK PLATE M8X16 FLANGE THA	0-28050-816-0	04	1	1304-	●	●
100	SEAL; OIL,FINAL PINION NOK IMA	1-09625-484-1	01	1	1304-	●	●
